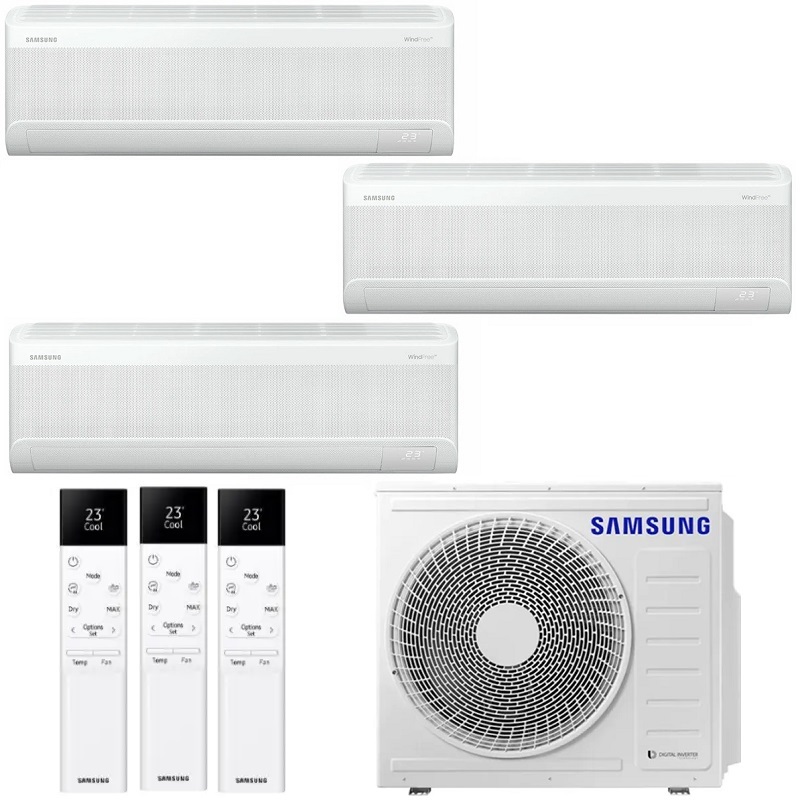

Samsung WindFree Tri-Split Air Conditioner: 3 x F-AR60F09NX (2.5 kW) + AJ068TXJ3KG Outdoor Unit

Samsung WindFree Tri-Split Air Conditioner: 3 x F-AR60F09NX (2.5 kW) + AJ068TXJ3KG Outdoor Unit

The Samsung WindFree tri-split air conditioner—comprising three 2.5 kW indoor units (typically from the WindFree Comfort S2 or Avant series) and an AJ068TXJ3KG outdoor unit—is a highly efficient and popular configuration for conditioning three separate spaces (such as three bedrooms, or two bedrooms and a small living room). It provides comfort without the annoyance of cold drafts; the system’s strength lies in the thousands of micro-perforations on its front panel. Once the desired temperature is reached, the air flap closes, and cool air is diffused evenly and ultra-gently, eliminating the unpleasant sensation of a direct blast of cold air.

Smart connectivity: These indoor units feature built-in Wi-Fi, allowing for remote control via Samsung’s SmartThings app, and benefit from intelligent temperature management (AI Auto Cooling). Quiet operation: In WindFree mode, the noise level drops to an extremely low point (starting from 16–19 dB(A), depending on the specific model), making it ideal for bedrooms. The AJ068TXJ3KG outdoor unit is well-proportioned for this setup, delivering a nominal capacity of 6.8 kW in cooling mode and 8.0 kW in heating mode.

Simultaneous capacity management: While installing three 2.5 kW indoor units implies a potential maximum demand of 7.5 kW (3 x 2.5 kW), the 6.8 kW outdoor unit is perfectly sized for this application. This is because it is highly unlikely that all three rooms will require maximum thermal capacity at the exact same time (a concept known as the "simultaneity factor"). The system intelligently regulates the required output accordingly. High energy efficiency is achieved through the Twin BLDC Digital Inverter compressor; the system delivers excellent seasonal performance, with an SEER of 7.75 (Class A++) for cooling and an SCOP of 4.32 (Class A+) for heating.

Technical Specifications

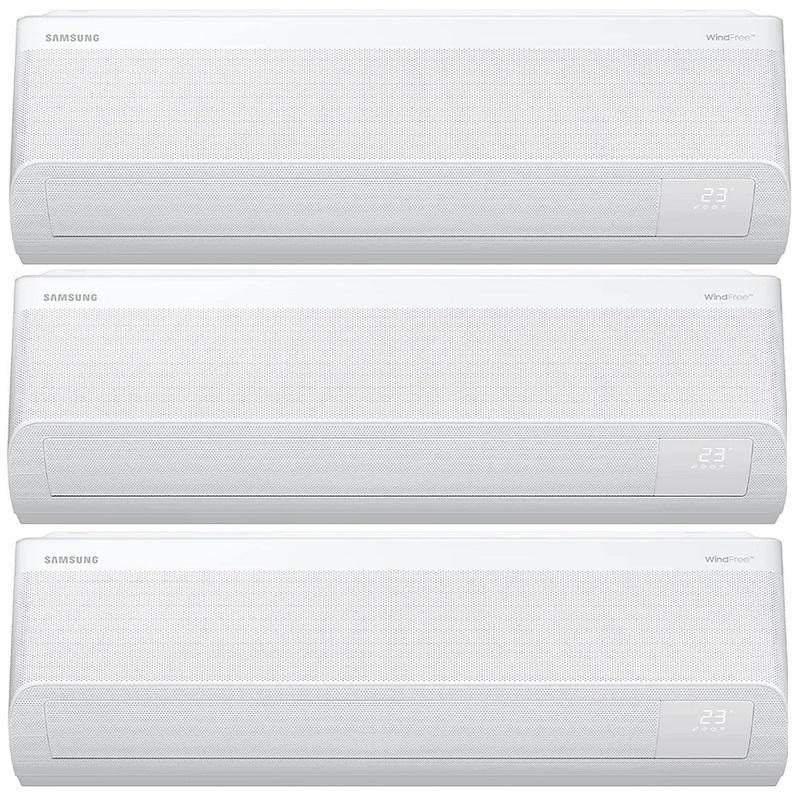

3 reversible indoor units (F-AR60F09NX, 2.5 kW)

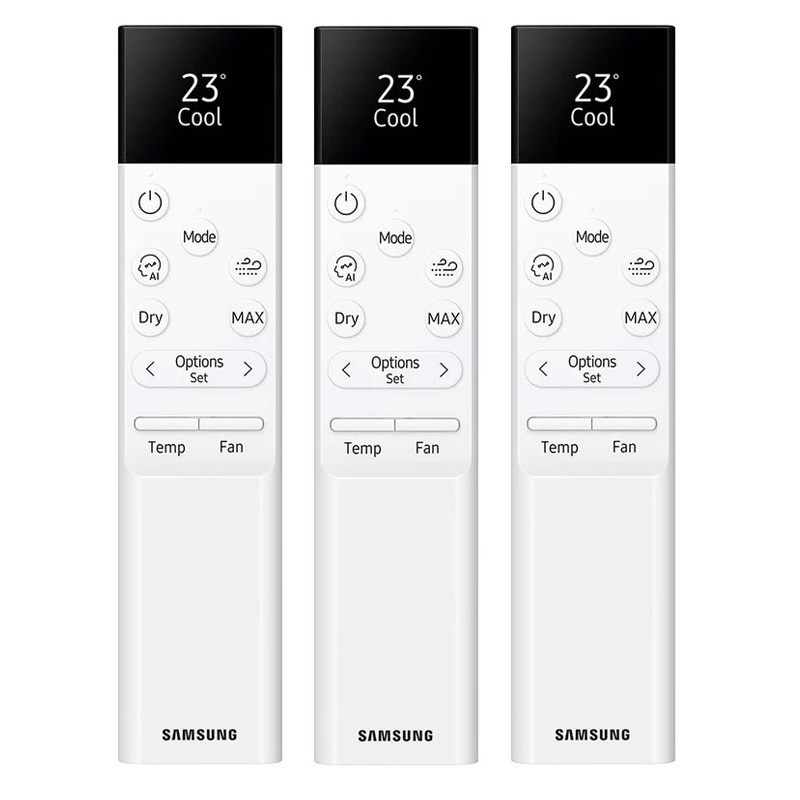

1 infrared remote control
1 user manual
Air conditioner type: Mono-split
Indoor unit type: Wall-mounted
Area coverage: 27 m²
Wi-Fi: Integrated
Capacity: 2.5 kW / 9,000 BTU
Nominal heating capacity: 3.2 kW
Nominal cooling capacity: 2.5 kW
Cooling energy class: A++
Heating energy class: A+++
SCOP / Nominal heating capacity: 5.2
SEER / Nominal cooling capacity: 7.9
Refrigerant: R32
Dimensions and Weight
Indoor unit dimensions (WxDxH): 820 x 215 x 299 mm
Weight: 9.9 kg

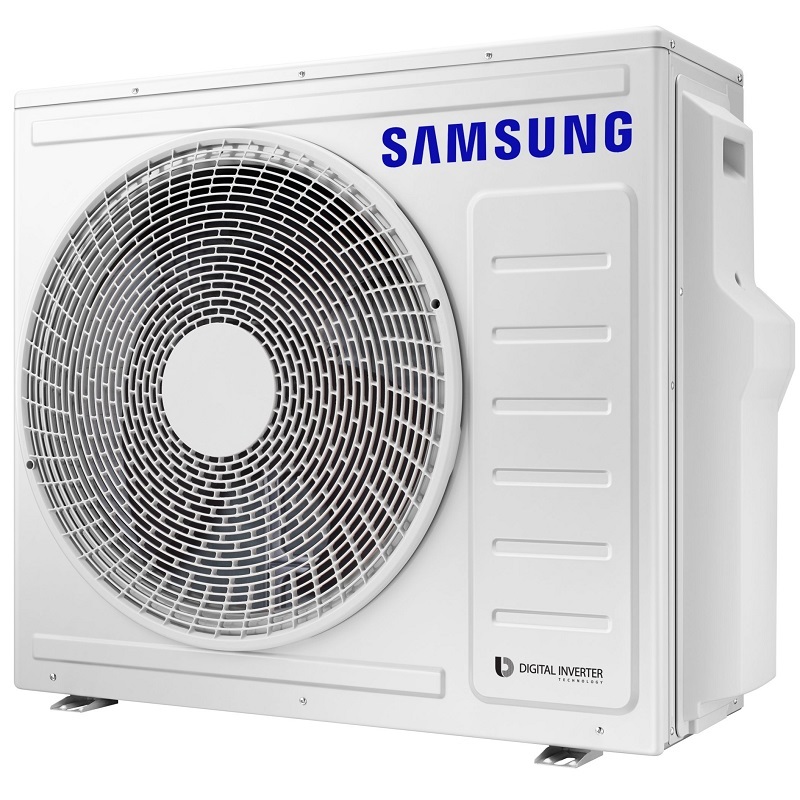

Outdoor unit: AJ068TXJ3KG
Capacity: 7 kW / 24,000 BTU
Nominal heating capacity: 8 kW
Nominal cooling capacity: 6.8 kW
SCOP (Seasonal Coefficient of Performance): 4.32
SEER (Seasonal Energy Efficiency Ratio): 7.75
Refrigerant: R32
Minimum sound pressure level: 50 dB(A)
Dimensions and Weight
Outdoor unit dimensions (WxDxH): 880 x 310 x 798 mm mm
Weight: 57.5 kg
