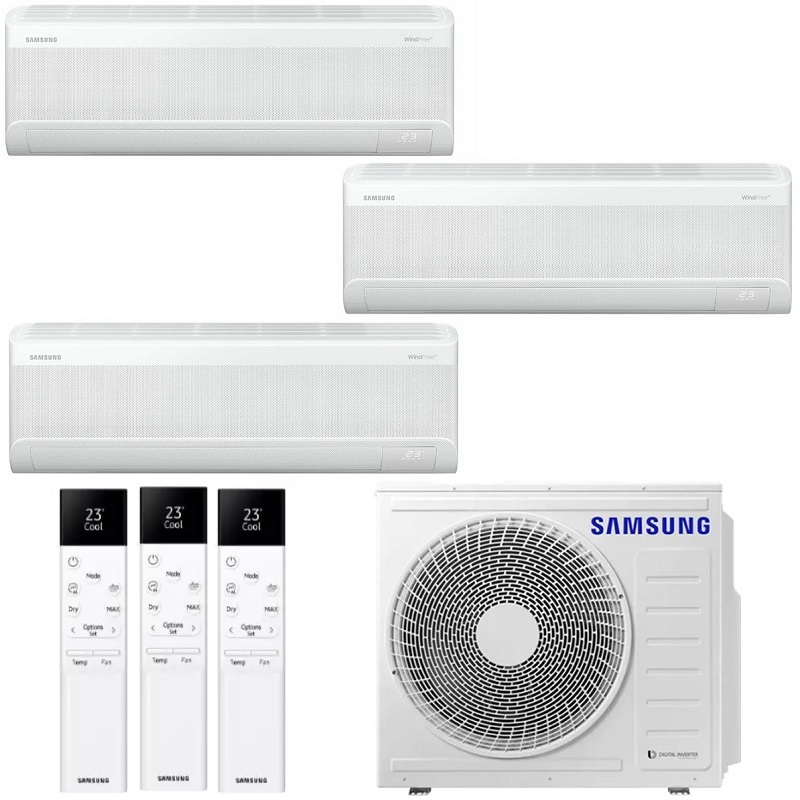

Samsung WindFree Comfort Tri-split Air Conditioner (3 x AR60F12C1AWNEU, 3.5 kW units. AJ068TXJ3KG outdoor unit)

Samsung WindFree Comfort Tri-split Air Conditioner (3 x AR60F12C1AWNEU, 3.5 kW units. AJ068TXJ3KG outdoor unit)

Maintains temperature without drafts: WindFree™ cooling technology ensures a comfortable environment without the typical sensation of a cold draft. Cool air is subtly dispersed through thousands of micro-perforations on the front panel at a speed of less than 0.15 m/s, with no temperature fluctuations. Smart connectivity: These indoor units feature built-in Wi-Fi for remote control via Samsung’s SmartThings app, offering intelligent temperature management (AI Auto Cooling).

Control your home’s temperature anytime, anywhere. Using the SmartThings app, you can remotely manage your heating and air conditioning system—turning it on or off, selecting operating modes, setting schedules, and monitoring energy consumption with a single tap. With the Bixby 2.0 Artificial Intelligence (AI) system, the unit can respond directly to your preferences. It also analyzes your environment, preferred settings, and temperature to suggest the optimal configuration for your home.

Silent operation: In WindFree mode, the noise level drops to an extremely low range (starting from 16–19 dB(A), depending on the specific model), making it ideal for bedrooms. The AJ068TXJ3KG outdoor unit provides a nominal capacity of 6.8 kW in cooling mode and 8.0 kW in heating mode. Managing simultaneous power demand: installing three 3.5 kW indoor units results in a maximum potential demand of 10.5 kW (3 x 3.5 kW). A 6.8 kW outdoor unit is perfectly sized for this, as it is highly unlikely that all three rooms will require maximum thermal output at the same time (a concept known as the "simultaneity factor"). The system intelligently regulates the power output as needed. High energy efficiency, thanks to the Twin BLDC Digital Inverter compressor; the system delivers excellent seasonal performance, with an SEER of 7.75 (Class A++) for cooling and an SCOP of 4.32 (Class A+) for heating.

Technical specifications

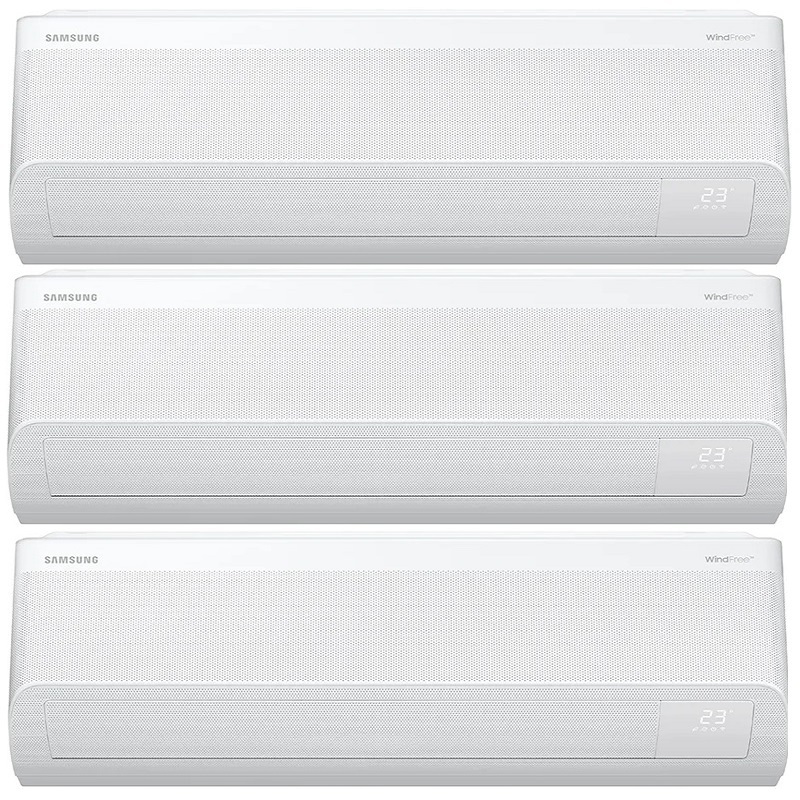

3 indoor units: AR60F12C1AWNEU 3.5 kW

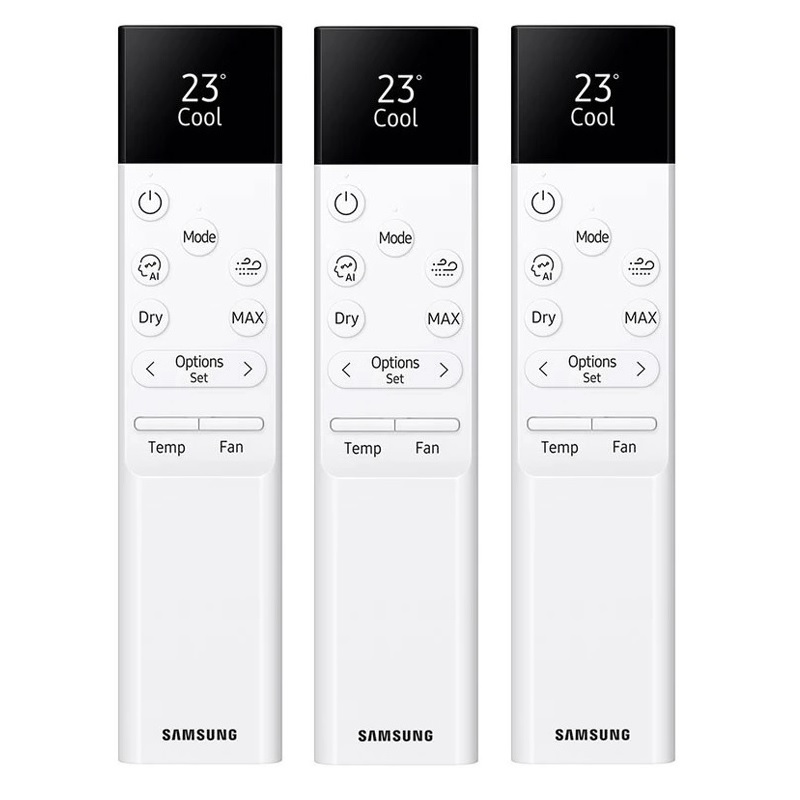

1 infrared remote control
1 user manual
Air conditioner type: Mono-split
Indoor unit type: Wall-mounted
Area: 37 m²
Wi-Fi: Built-in
Indoor unit type: Wall-mounted
Wi-Fi: Built-in
Capacity: 3.5 kW / 12,000 BTU
Nominal heating capacity: 4 kW
Nominal cooling capacity: 3.5 kW
Cooling energy class: A++
Heating energy class: A+++
SCOP / Nominal heating efficiency rating: 5.4
SEER / Nominal cooling efficiency rating: 7.6
Refrigerant: R32
Color: White
Minimum sound pressure level: 16 dBA
Dimensions and weight
Indoor unit dimensions: 889 x 299 x 215 mm
Weight: 9.9 kg

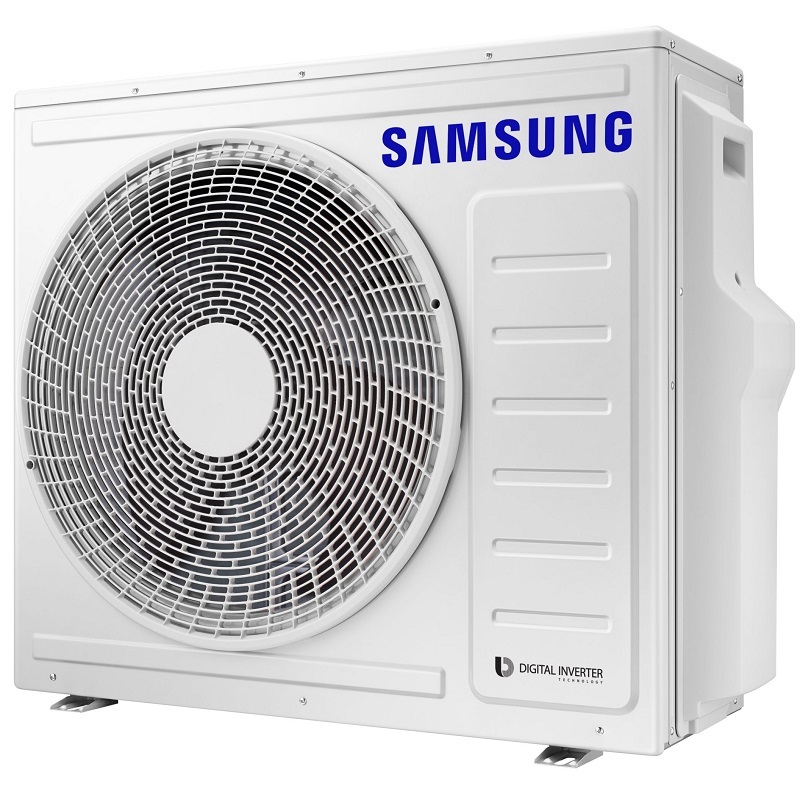

Outdoor unit: AJ068TXJ3KG
Capacity: 7 kW / 24,000 BTU
Nominal heating capacity: 8 kW
Nominal cooling capacity: 6.8 kW
SCOP (Seasonal Coefficient of Performance): 4.32
SEER (Seasonal Energy Efficiency Ratio): 7.75
Refrigerant: R32
Minimum sound pressure level: 50 dB(A)
Dimensions and weight
Outdoor unit dimensions (WxDxH): 880 x 310 x 798 mm
Weight: 57.5 kg
