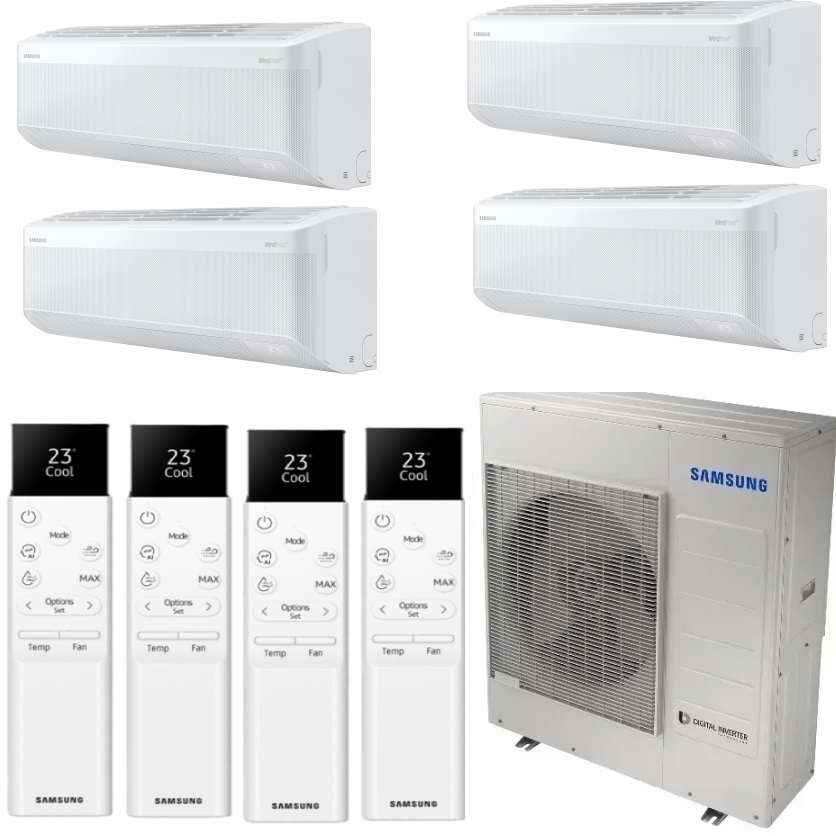

Samsung WindFree Comfort Quadri-Split Air Conditioner (2 x 2.0 kW units, 1 x 2.5 kW unit) with AJ050TXJ4KG Outdoor Unit

Samsung WindFree Comfort Quadri-Split Air Conditioner (2 x 2.0 kW units, 1 x 2.5 kW unit) with AJ050TXJ4KG Outdoor Unit

The Samsung WindFree Comfort Quadri-Split WiFi air conditioner (7000 + 7000 + 12000 + 12000 BTU) features an energy-efficient heat pump and Inverter technology. It is ideal for spaces requiring four separate indoor units: three units for areas ranging from 27 m² to 37 m² each, and one unit for an area of ​​up to 37 m². This comprehensive cooling solution for your home can manage up to four independent rooms, offering a wide range of configuration options.

Temperature maintenance without drafts: WindFree™ technology ensures a comfortable environment without the typical sensation of a cold draft. Cool air is subtly dispersed through thousands of micro-perforations on the front panel at a speed of less than 0.15 m/s, with no temperature fluctuations. Smart connectivity: These indoor units come with built-in Wi-Fi for remote control via Samsung’s SmartThings app, featuring intelligent temperature management (AI Auto Cooling).

Control: Integrated Wi-Fi comes standard, compatible with the Samsung SmartThings ecosystem. Each unit includes the new SolarCell infrared remote control (rechargeable via light). No direct drafts: In WindFree™ mode, the main louver closes, and cool air is gently diffused through 23,000 micro-perforations. You enjoy uniform coolness ("still air" at less than 0.15 m/s) without the unpleasant draft typically caused by an air conditioner. This mode also saves energy: the unit consumes up to 77% less power compared to standard rapid-cooling mode. Rapid Cooling (Digital Inverter Boost): If you enter an overheated room, the system is designed to cool the air 43% faster, thanks to a fan that is 15% larger and wider air vents. This Samsung WindFree™ Comfort S2 Quadri-Split reversible air conditioning system—comprising the AJ080TXJ4KG outdoor unit, two 2.0 kW (7,000 BTU) AR60F07C1AWNEU indoor units, and two 2.5 kW (9,000 BTU) AR60F09C1AWNEU indoor units—is a high-performance configuration designed to simultaneously cool or heat four rooms (covering approximately 22 m² to 27 m² per room).

Technical Specifications

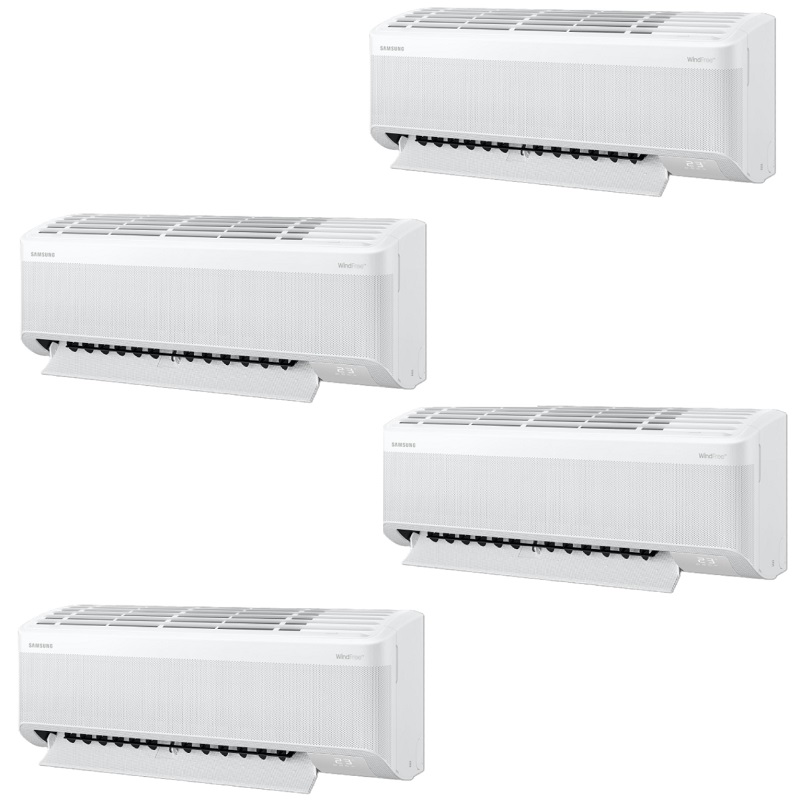

2 indoor units: AR60F12C1AWNEU 3.5 kW

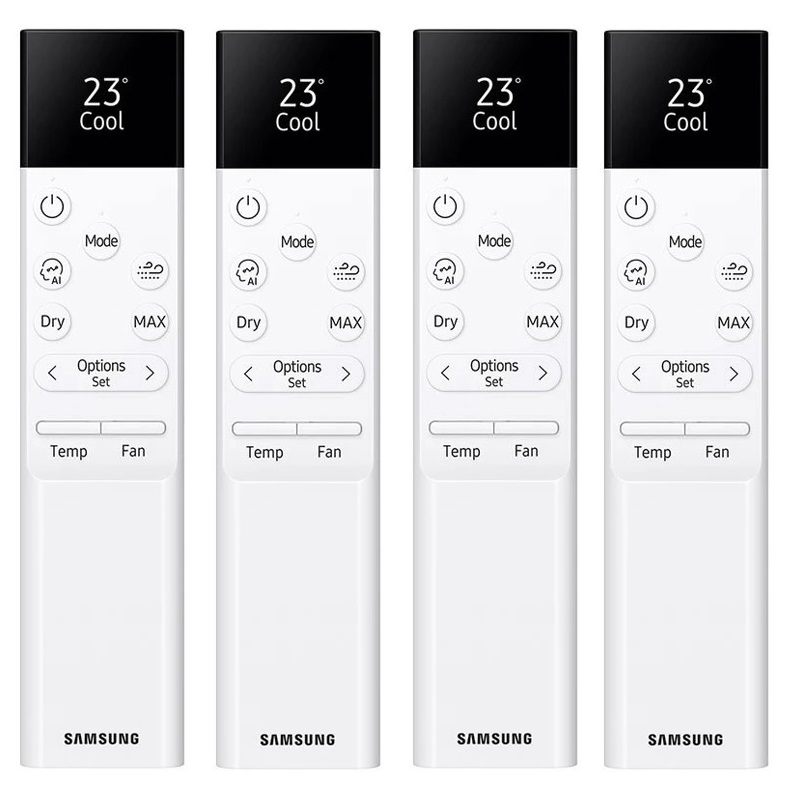

2 infrared remote controls
1 user manual
Air conditioner type: Multi-split (Quadri-split)
Area: 37 m²
Wi-Fi: Integrated
Indoor unit type: Wall-mounted
Wi-Fi: Integrated
Capacity: 3.5 kW / 12,000 BTU
Nominal heating capacity: 4 kW
Nominal cooling capacity: 3.5 kW
Cooling energy class: A++
Heating energy class: A+++
SCOP (Seasonal Coefficient of Performance): 5.4
SEER (Seasonal Energy Efficiency Ratio): 7.6
Refrigerant gas: R32
Color: White
Minimum sound pressure level: 16 dBA
Dimensions and Weight
Indoor unit dimensions: 889 x 299 x 215 mm
Weight: 9.9 kg
2 indoor units Reversible F-AR60F07NX 2.5 kW
Indoor unit: AR60F07C1AWNEU 2.0 kW
Indoor unit type: 2 kW / 7000 BTUs
Estimated area: 22 m²
WiFi: Built-in
Nominal heating capacity: 2.2 kW
Nominal cooling capacity: 2 kW
Refrigerant: R32
Refrigerant piping: 1/4'' - 3/8''
Minimum sound pressure level: 19 dB(A)
Dimensions and weight
Indoor unit dimensions: 820 x 299 x 215 mm
Net weight: 9.1 kg

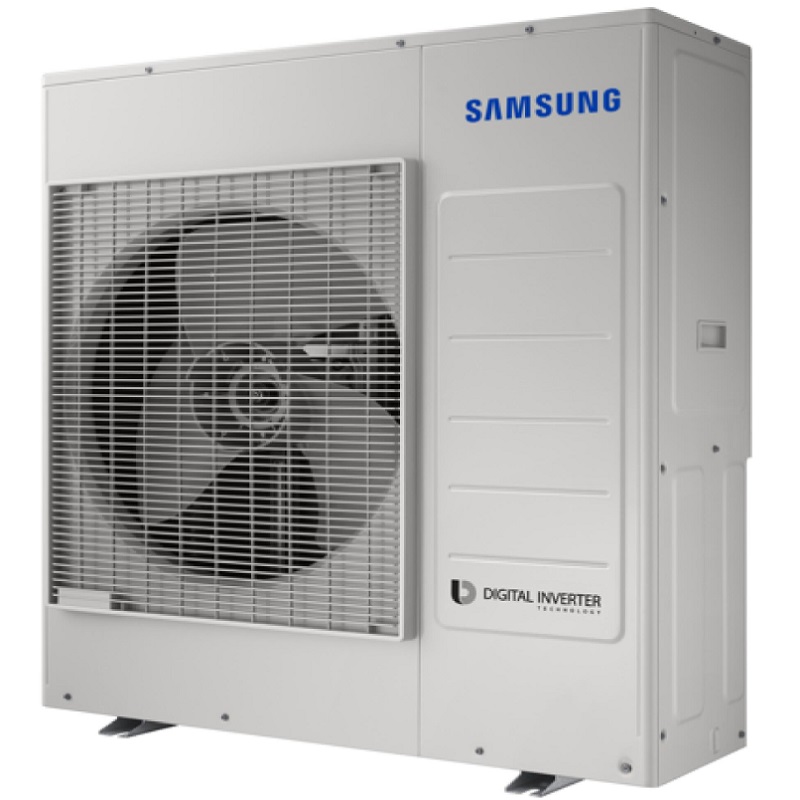

Outdoor unit: AJ050TXJ4KG
Capacity: 5 kW / 18000 BTUs
Nominal heating capacity: 5.6 kW
Nominal cooling capacity: 5 kW
SCOP (Seasonal Coefficient of Performance): 4.64
SEER (Seasonal Energy Efficiency Ratio): 8.54
Refrigerant: R32
Minimum sound pressure level: 47 dB(A)
Outdoor unit dimensions: 790 x 548 x 285 mm
Dimensions and weight
Dimensions (W×H×D): 790 × 548 × 285 mm
Net weight: 33 kg
