Ferroli ECOUnit F100 1C 89-Liter Hot Water Storage Tank

Ferroli ECOUnit F100 1C 89-Liter Hot Water Storage Tank

The Ferroli ECOUnit F100 1C storage tank (or indirect water heater) is a vertical unit designed for the production and storage of domestic hot water (DHW). Although often marketed as a "100-liter" model, it offers an actual usable volume of 89 liters. This model features a single coil (1C version), making it ideal for connection to a boiler (gas or oil) to ensure rapid water heating.

Corrosion protection includes an internal enamel coating and a magnesium anode supplied as standard. Insulation consists of 50 mm rigid polyurethane foam covered by a painted sheet steel casing. Energy efficiency class C (static heat loss of approximately 66 W). Electric backup heating: 1,500 W sheathed heating element included as standard (ideal for backup or frost protection).

Technical Data
Coil heat exchange surface area: 0.74 m²

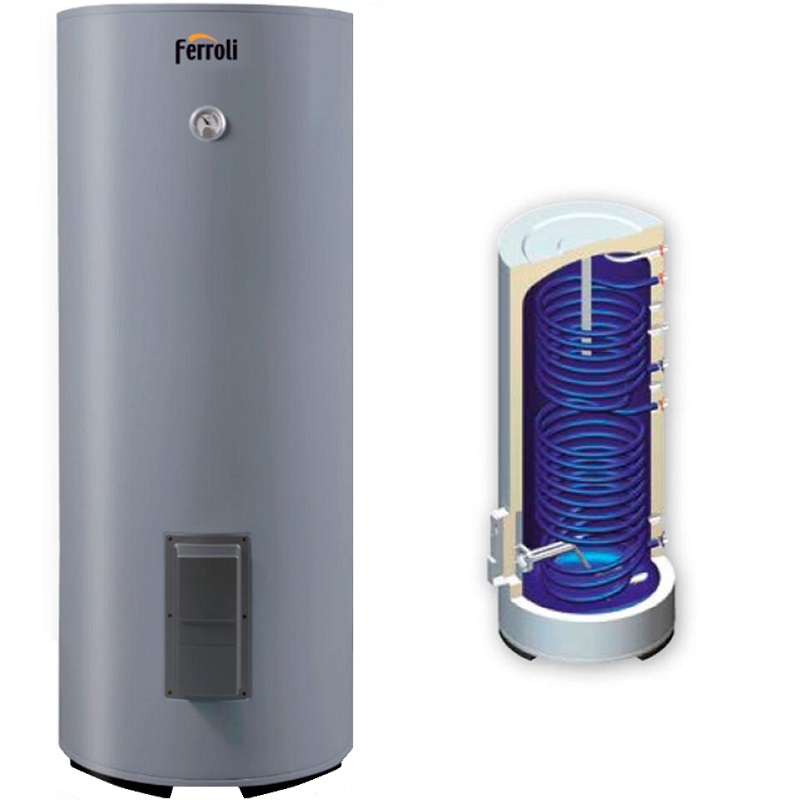

Heat exchanger type: 1 enamelled steel coil
1,500 W sheathed heating element
Tank material: Vitrified steel
Corrosion protection: Magnesium anode
Class: C
Maximum operating pressure: 8 bar
Maximum permissible temperature: 95°C
Heat exchange capacity (ΔT 35°C): 18.50 kW
Water heater type: Vertical
Reversible: No
Energy class: C
Dimensions and Weight
Capacity: 89 liters
Height: 978 mm
Width: 500 mm
Depth: 500 mm
Weight: 45 kg
