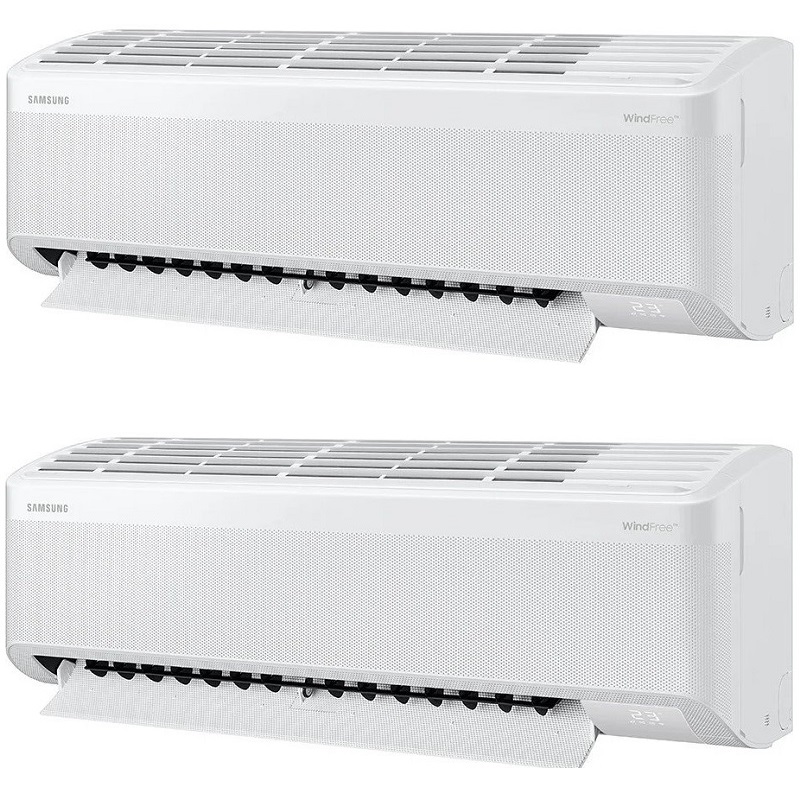

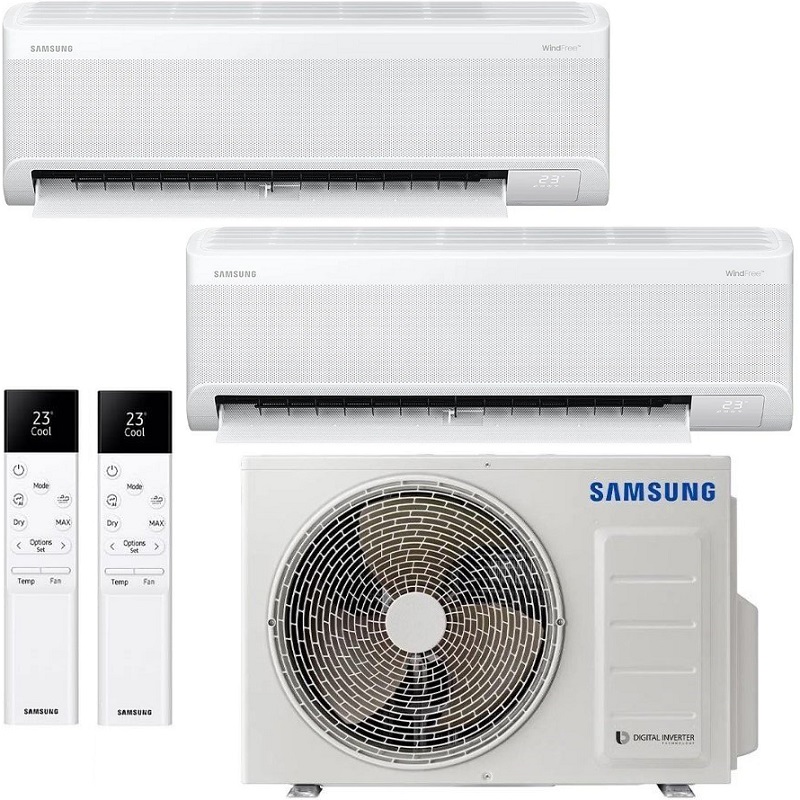

Samsung WindFree™ Bi-Split Air Conditioner (F-AR60F09NX - F-AR60F12NX. Outdoor Unit: AJ040TXJ2KG/EU)

Samsung WindFree™ Bi-Split Air Conditioner (F-AR60F09NX - F-AR60F12NX. Outdoor Unit: AJ040TXJ2KG/EU)

Stay cool with the Wind-Free™ Cooling system. It disperses air gently and quietly through 23,000 micro-holes, eliminating the unpleasant sensation of cold drafts on your skin. Its advanced airflow design cools a wider area more evenly, while consuming 77% less energy compared to conventional fast-cooling modes.

Designed to cool faster, wider, and further
Cool rooms quickly from corner to corner for optimal comfort. Digital Inverter Boost technology cools the air 43% faster. Its advanced design features a 15% larger fan, an 18% wider air intake, and a 31% wider blade—allowing cool air to reach further and cover a broader space, up to 15 meters away.

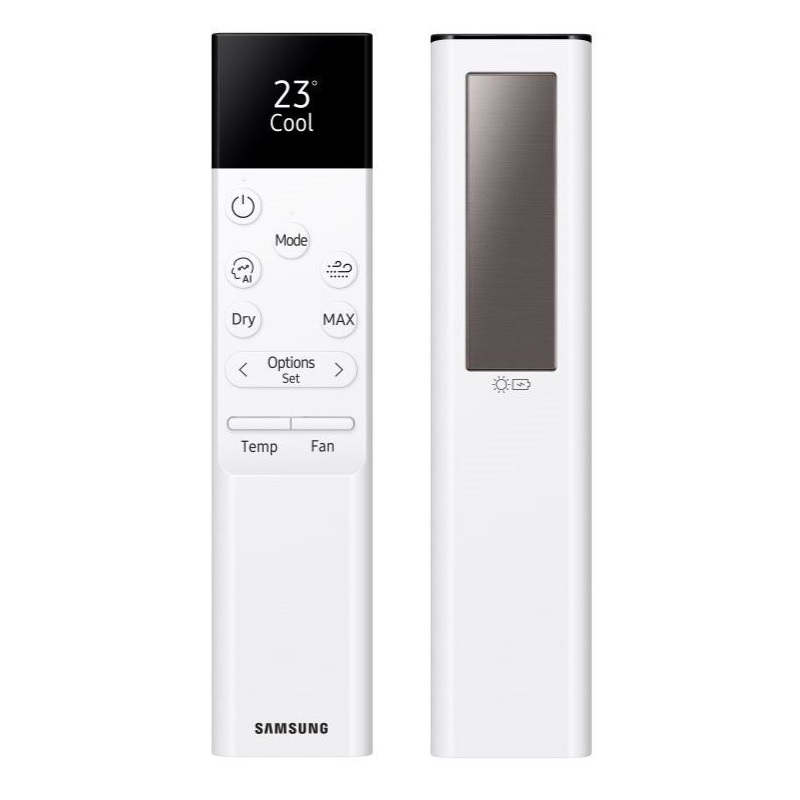

Remote control—anytime, anywhere
Manage your home’s temperature from anywhere, at any time. Using the SmartThings app, you can control and monitor your air conditioner remotely with a simple tap. Alternatively, you can simply tell the built-in artificial intelligence (AI) what you need, and it will execute your request—it can even suggest the best settings. Available on Android and iOS devices; requires a Wi-Fi connection and a Samsung account.

Technical Data
Capacity: 2.5 kW / 9000 BTU
Estimated area: 25 m²
WiFi: Integrated
Nominal heating capacity: 3.2 kW
Nominal cooling capacity: 2.5 kW
Energy class (cooling): A++
Energy class (heating): A+++
SCOP (Seasonal Coefficient of Performance): 5.2
SEER (Seasonal Energy Efficiency Ratio): 7.9
Refrigerant: R32
Refrigerant connections: 1/4'' - 3/8''
Minimum sound pressure level: 16 dB(A)
Dimensions and weight
Indoor unit dimensions: 889 x 299 x 215 mm
Indoor unit weight: 9.9 kg
Indoor unit model: F-AR60F12NX
Cooling capacity: 3.5 kW (12000 BTU)
Heating capacity: 4.00 kW
SEER (Cooling): 7.60
SCOP (Heating): 4.60
EER (Cooling): 3.92
Performance: Power consumption (cooling) 990 W
Power consumption (heating) 1020 W
Connection diameters:
Liquid line: 6.35 mm
Gas line: 9.52 mm
Refrigerant: R32 (0.70 kg in the indoor unit)
Operating temperature range:
Cooling: -10 ~ 46°C
Heating: -15 ~ 24°C
Dimensions and weight
Indoor unit: 889 x 299 x 215 mm
Indoor unit: 9.9 kg

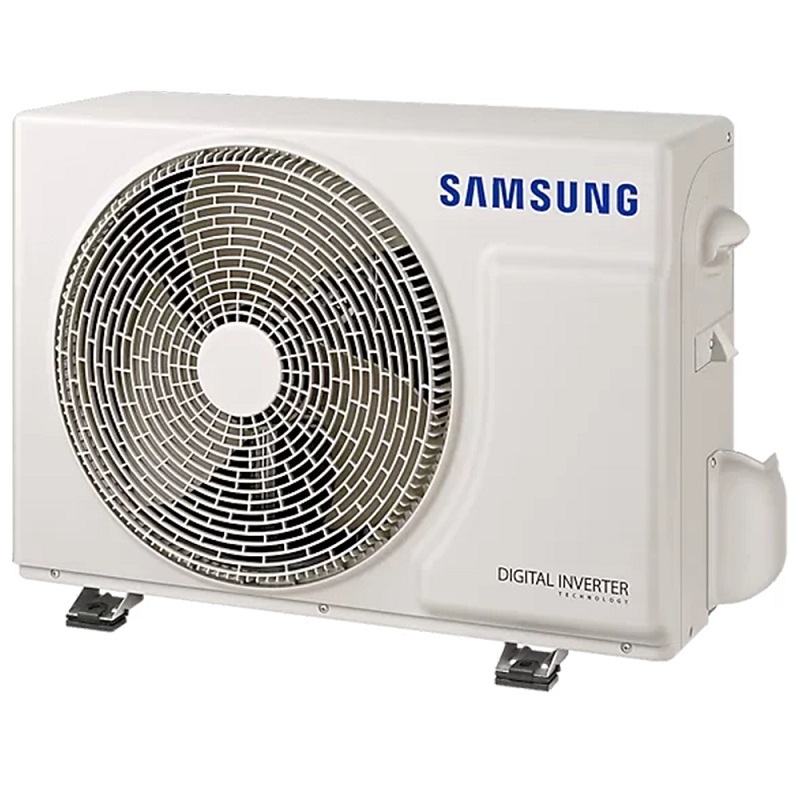

Outdoor unit
Capacity: 4 kW / 14000 BTU BTUs
Nominal heating capacity: 4.2 kW
Nominal cooling capacity: 4 kW
SCOP (Seasonal Coefficient of Performance): 4.6
SEER (Seasonal Energy Efficiency Ratio): 8.54
Refrigerant: R32
Minimum sound pressure level: 46 dB(A)
Dimensions and weight
Outdoor unit dimensions: 790 x 548 x 285 mm
Net weight: 32 kg
