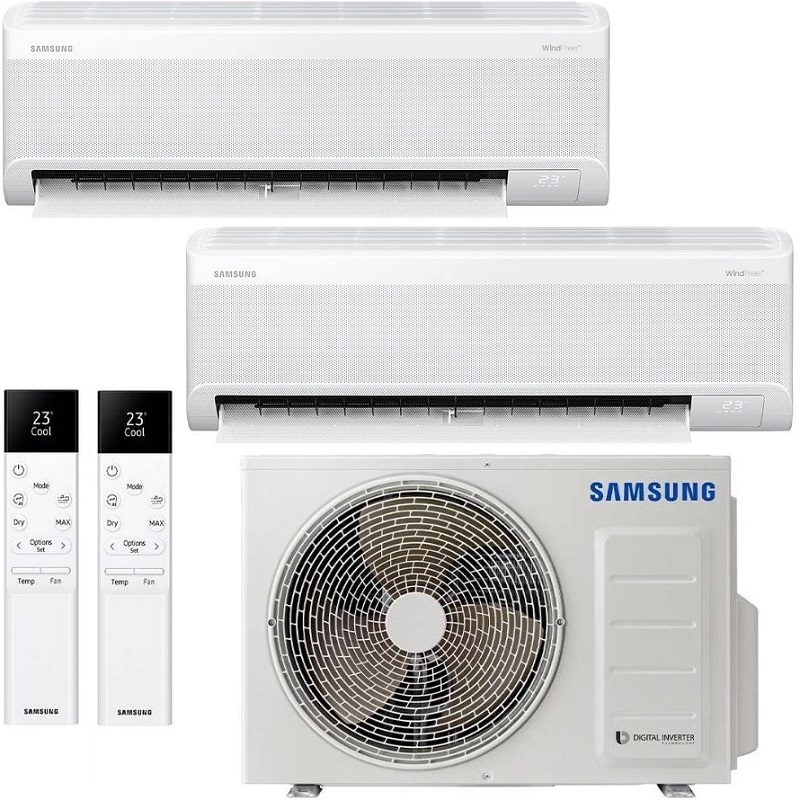

Samsung WindFree™ Bi-Split Air Conditioner (F-AR60F12NX - F-AR60F09NX | Outdoor Unit: AJ050TXJ2KG/EU)

Samsung WindFree™ Bi-Split Air Conditioner (F-AR60F12NX - F-AR60F09NX | Outdoor Unit: AJ050TXJ2KG/EU)

Stay cool with the Wind-Free™ Cooling system. It disperses air gently and silently through 23,000 micro-holes, eliminating the unpleasant sensation of cold drafts on your skin. Its advanced airflow design ensures more uniform cooling across a wider area, while consuming 77% less energy compared to conventional fast-cooling modes.

Designed to cool faster, wider, and further
Cool rooms quickly from corner to corner for optimal comfort. Digital Inverter Boost technology cools the air 43% faster. Its advanced design features a 15% larger fan, an 18% wider air intake, and a 31% wider blade—allowing cool air to reach further and cover a broader space, up to 15 meters away.

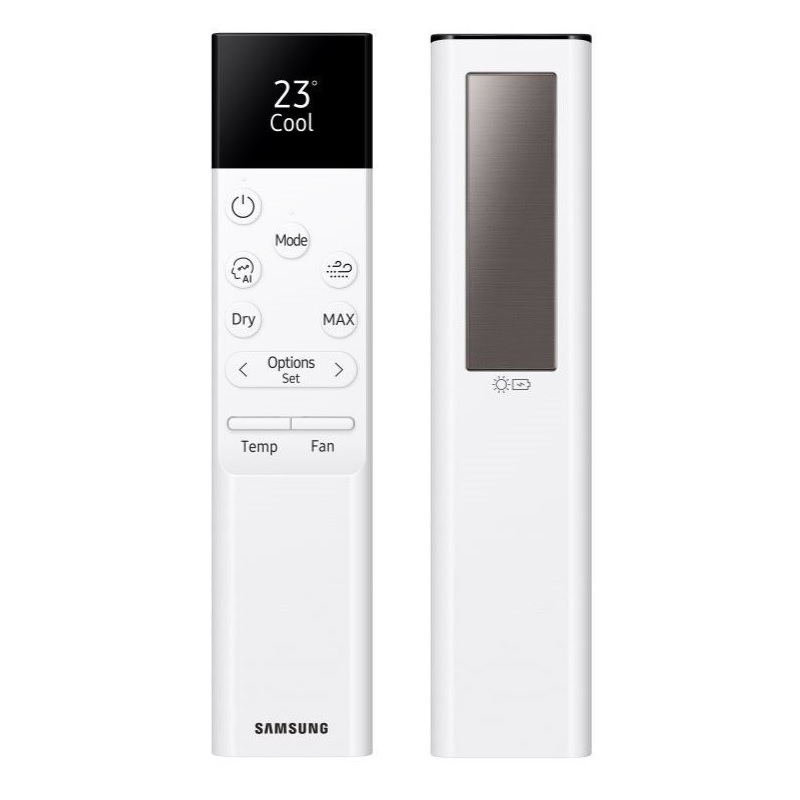

Remote control—anytime, anywhere
Manage your home’s temperature from anywhere, at any time. Using the SmartThings app, you can control and monitor your air conditioner remotely with a simple tap. Alternatively, you can simply tell the artificial intelligence (AI) what you need, and it will execute your request—it can even suggest the best settings for you. Available on Android and iOS devices; Wi-Fi connection and Samsung account required.

Technical Specifications

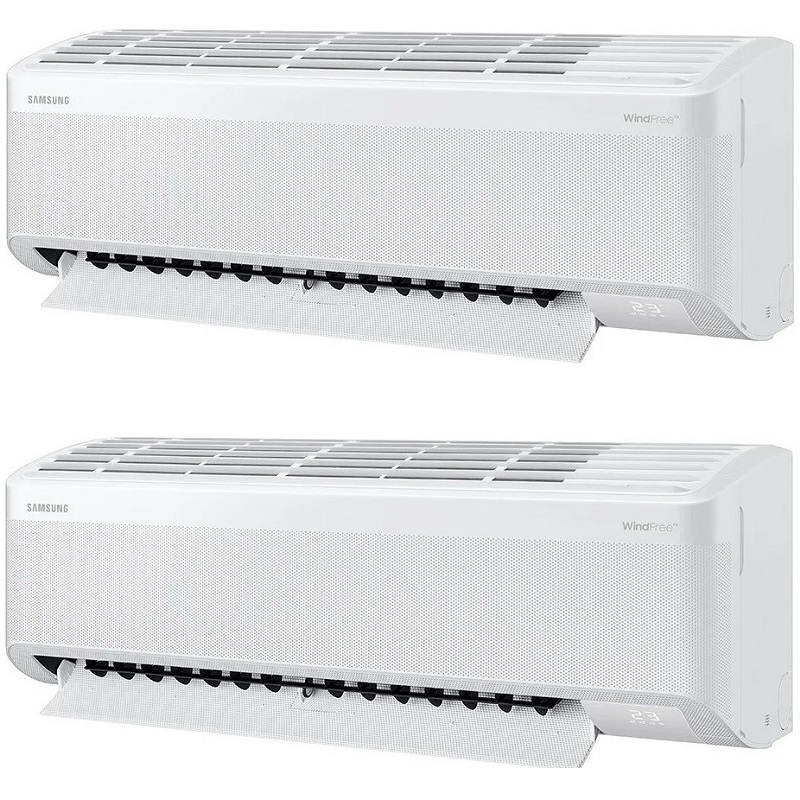

1 indoor unit: F-AR60F12NX
Cooling capacity: 3.5 kW (12,000 BTU)
Heating capacity: 4.00 kW
SEER (Cooling): 7.60
SCOP (Heating): 4.60
COP (Cooling): 3.92
Performance: Cooling power consumption 990 W
Heating power consumption 1,020 W
Connection diameters:
Liquid line: 6.35 mm
Gas line: 9.52 mm
Refrigerant: R32 (0.70 kg in the indoor unit)
Operating temperature range:
Cooling: -10 ~ 46°C
Heating: -15 ~ 24°C
Dimensions and weight
Indoor unit: 889 x 299 x 215 mm
Indoor unit: 9.9 kg
1 indoor unit: F-AR60F12NX
Capacity: 2.5 kW / 9,000 BTU
Estimated area: 25 m²
Wi-Fi: Built-in
Nominal heating capacity: 3.2 kW
Nominal cooling capacity: 2.5 kW
Energy class (cooling): A++
Energy class (heating): A+++
SCOP (Seasonal Coefficient of Performance): 5.2
SEER (Seasonal Energy Efficiency Ratio): 7.9
Refrigerant: R32
Refrigerant connections: 1/4'' - 3/8''
Minimum sound pressure level: 16 dB(A)
Dimensions and weight
Indoor unit dimensions: 889 x 299 x 215 mm mm
Indoor unit: 9.9 kg

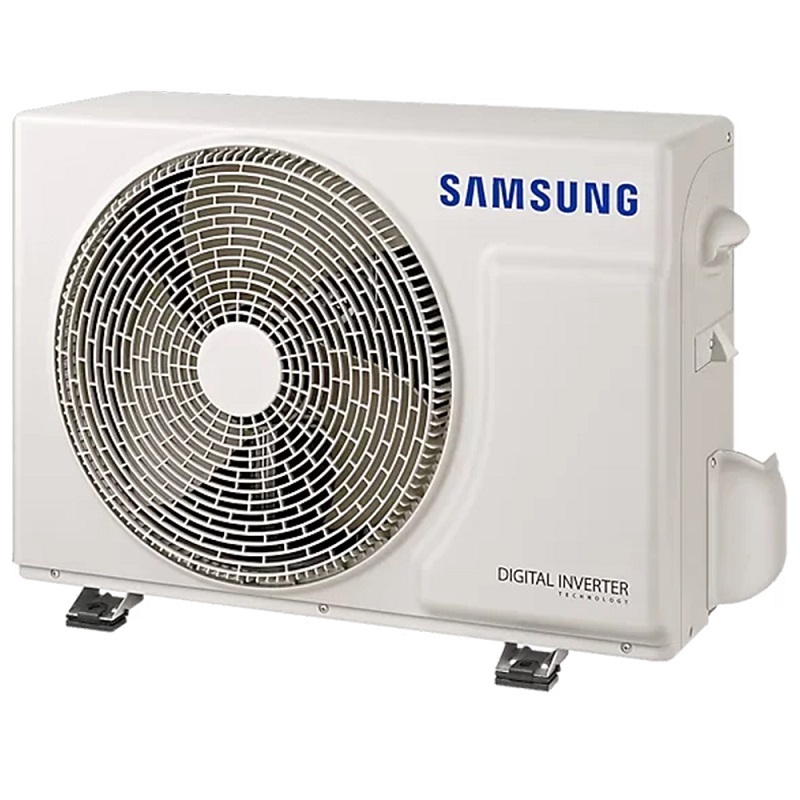

Outdoor unit
Power: 5 kW / 18,000 BTU
Nominal heating capacity: 5.6 kW
Nominal cooling capacity: 5 kW
SCOP (Seasonal Coefficient of Performance): 4.64
SEER (Seasonal Energy Efficiency Ratio): 8.54
Refrigerant: R32
Min. sound pressure level: 47 dB(A)
Dimensions and weight
Outdoor unit dimensions: 790 x 548 x 285 mm
Net weight: 33.9 kg
