Ferroli ECOUnit HP200 1C 167-Liter Storage Tank

Ferroli ECOUnit HP200 1C 167-Liter Storage Tank

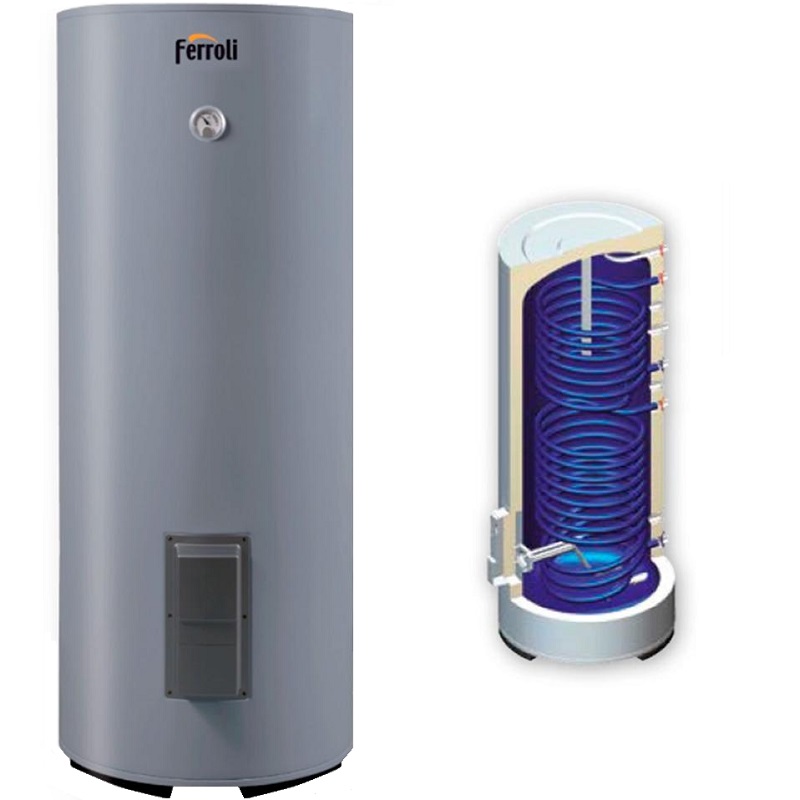

The Ferroli ECOUnit HP 200 1C is a 167-liter domestic hot water (DHW) storage tank, specifically optimized for use with a heat pump (air-source) or solar thermal panels. It features a 2.3 m² heat exchanger surface area—exceptionally large for this capacity and essential for high performance with a heat pump. Integrated backup system: Comes standard with an electric backup heating element (typically 1,500 W or 2,000 W, depending on the regional model) to provide supplemental heating when needed or to handle anti-legionella cycles.

Thanks to its "1C" configuration (featuring a single, oversized coil), it offers a very large heat exchange surface to maximize the efficiency of low-temperature systems. Coil length: 29.5 meters integrated within the tank. Heat exchange capacity: Up to 11.5 kW (at a nominal flow rate of 1 m³/h). High-quality construction: The tank is made of carbon steel vitrified at high temperatures (860°C) in compliance with strict durability standards, ensuring effective corrosion protection. Corrosion protection: equipped with a magnesium anode requiring periodic inspection

Technical data
Capacity: 167 liters
Coil heat exchange surface area: 2.3 m²
Coil length: 29.5 meters
Coil pressure drop: 148 mbar
Coil nominal flow rate: 1 m³/h
Heat exchange output: 11.5 kW (for ΔT = 35 K)
DHW flow rate: 283 l/h (for ΔT = 35 K)
DHW preparation time: 28 minutes (for ΔT = 35 K)
Maximum DHW pressure: 8 bar
Maximum DHW temperature: 95 °C
Standing heat loss: 2.2 kWh/24 h
Protection rating: IPX4
Voltage: 230 V / 50 Hz
Power consumption: 2,000 W
Dimensions and weight
Usable capacity: 167 liters
Height: 1438 mm
Diameter: 540 mm
Empty weight: 91 kg
