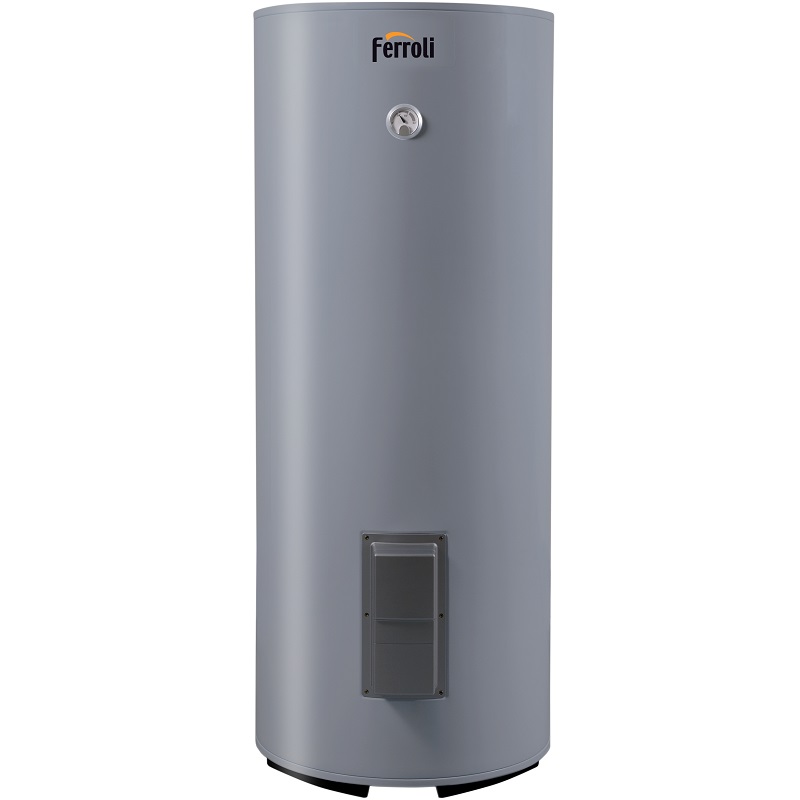

Ferroli ECOUnit HP400 1C 350-Liter Storage Tank

Ferroli ECOUnit HP400 1C 350-Liter Storage Tank

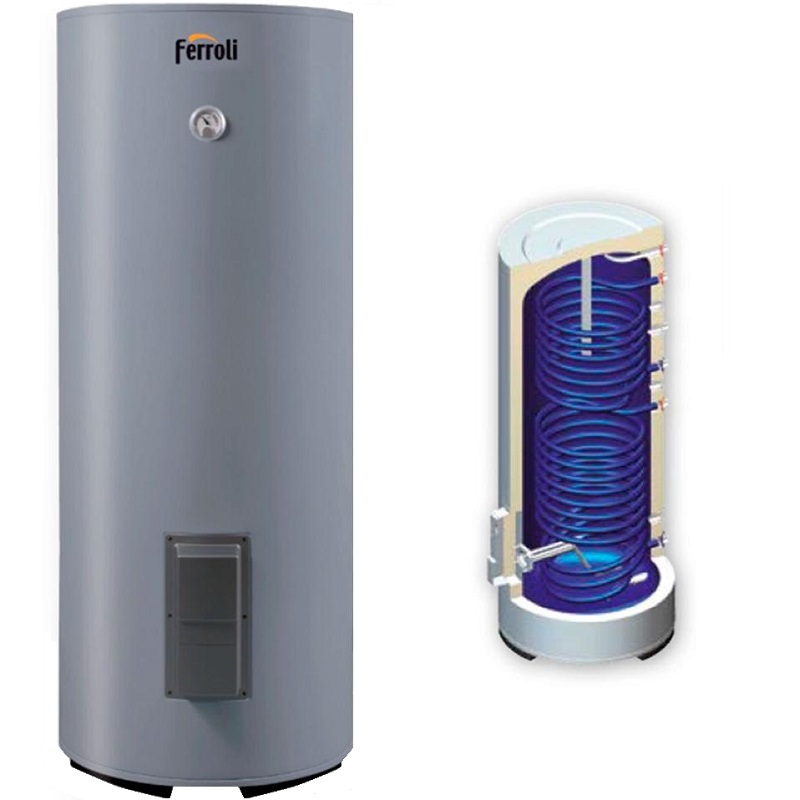

The Ferroli ECOUnit HP 400 1C is a high-performance vertical domestic hot water (DHW) storage tank with a real capacity of 350 liters. It is specifically designed for use with heat pump systems or solar installations, thanks to its oversized heat exchanger. It holds an Energy Class C rating, featuring 50 mm rigid insulation that effectively minimizes heat loss. It supports a maximum operating pressure of 8 bar and a maximum temperature of 95°C.

It offers a usable volume of 350 liters (the "400" in the product name refers to its overall size class). It features a single-coil heat exchanger with a very large surface area (4.7 m²) and a length of 46.5 meters, optimizing energy transfer from low-temperature sources (such as air-source heat pumps). The tank is made of carbon steel with a high-quality vitrified internal coating (fired at 860°C) and includes reinforced anti-corrosion protection via a magnesium anode. Electric backup: Equipped as standard with a 2,000 W electric backup heating element to ensure hot water production even if the primary source is interrupted.

Technical data
Capacity: 350 liters
Coil heat exchange surface area: 4.7 m²
Coil length: 46.5 m
Nominal coil flow rate: 577 l/h for a 35 K temperature difference
Heat exchange output: 23.5 kW
Maximum pressure (DHW): 8 bar
Maximum temperature (DHW): 95 °C
Standing heat loss: 2.9 kWh/24h
Power input: 2,000 W
Protection rating: IPX4
Standard electric heating element: 2,000 W
Voltage: 230 V / 50 Hz
Dimensions and weight
Height: 1,469 mm
Diameter: 750 mm
Empty weight: 153 kg
