Zodiac Z350iQ MD6 (R32) 16 - 4.7 kW Pool Heat Pump
Please sign in so that we can notify you about a reply
Zodiac Z350iQ MD6 (R32) 16 - 4.7 kW Pool Heat Pump

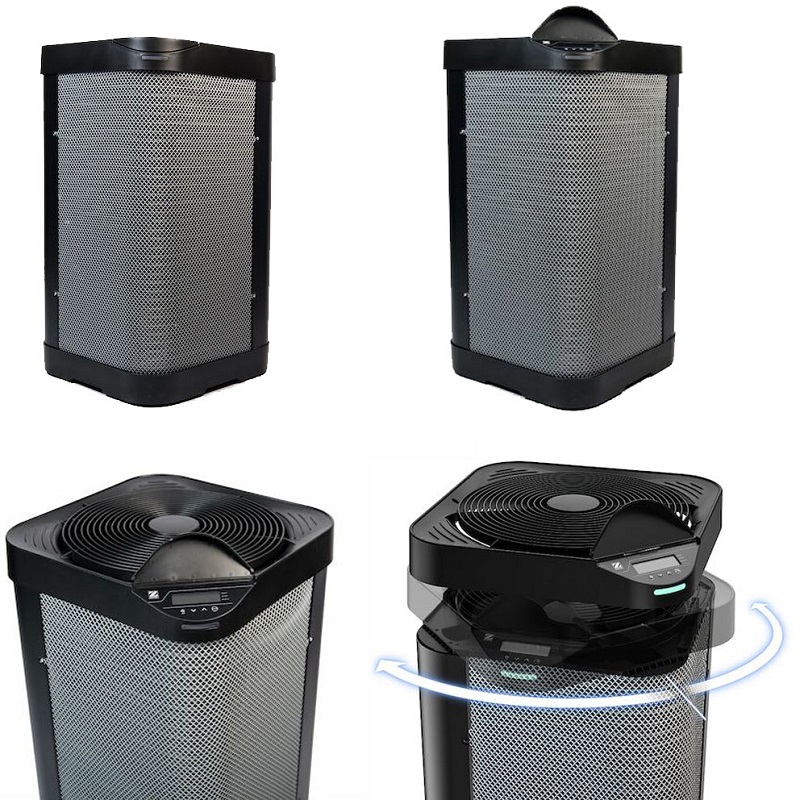

Perfect integration and easy installation thanks to its innovative rotating system and air outlets. Install outdoors, near the equipment room and at a sufficient distance from the pool (in accordance with current electrical standards).
Install on a stable, solid, and level surface.
Maintain the minimum distances between the heat pump and its surroundings (plants, walls, etc.), as shown in the attached diagram. The unit connects to the pool's filtration system, after the filter and before the water treatment system.
Observe the correct hydraulic connection direction.
Installing a bypass is recommended for easier access to the unit.
Description
Zodiac: Z550 iQ MD6
Pool volume: 95 m³
45° hydraulic connections (patent pending)
Horizontal airflow.
Galvanized body with epoxy coating

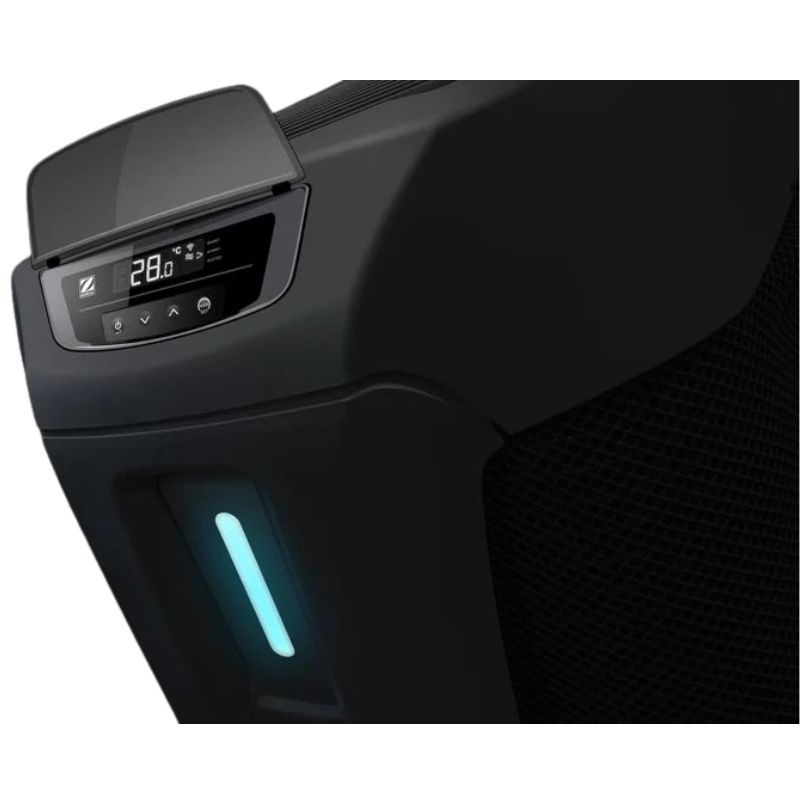

Removable LCD (LED) display
Heating priority mode (filtration pump control)
Timer mode. Complete Inverter technology with 3 operating modes:
"Boost": Maximum power for rapid heating.
"Smart": Automatic power adjustment based on temperature.
"Eco-Silence": Reduced power for energy savings and lower noise level. Automatic defrost.
Automatic cooling mode (reverse cycle).
Titanium water-to-water heat exchanger compatible with seawater treatment.
Rotary vane inverter compressor.
Variable speed DC fan (Inverter).
Included accessories:
Protective cover.
Condensate drain kit.
2 PVC union fittings Ø 40.
2 PVC reducers ½" 40/50.
Anti-vibration feet.
Remote control kit.
Optional accessories:
Cleaning kit (PAC Net) - WMA03491.
Power supply: 220-240 V / 1 V / 50-60 Hz
Nominal current consumption (A): 1-12
Maximum current consumption (A): 13.5
Power cable: 3 x 2.5 mm²
Refrigerant: R32
Refrigerant capacity (kg): 0.95
Sound power level (dB(A) in Standard/Silent mode): 73-65
Sound pressure at 10 m (dB(A)) at max-min speed: 42-34
Estimated average values for a private swimming pool with an insulated cover
Heating performance
Air: 28°C / Water: 28°C / Humidity: 80%
Power consumption (kW at max-min speed): 16-4.7
Electrical consumption (kW at max-min speed): 3.2 - 0.5
Average COP at max-min speed: 5.0 - 9.4
Air: 15°C / Water: 26°C / Humidity: 70%
Power consumption (kW at max-min speed): 12 - 3.0
Electrical consumption (kW at max-min speed): 2.8 - 0.6
Average COP at max-min speed: 5.0 - 4.3
Cable not included: Recommended cross-section for a maximum length of 20 meters.
Dimensions and weight
Dimensions (L x W x H): 610 x 670 x 980 mm
Weight: 47 kg
Perfect integration and easy installation thanks to its innovative rotating system and air outlets. Install outdoors, near the equipment room and at a sufficient distance from the pool (in accordance with current electrical standards).
Install on a stable, solid, and level surface.
Maintain the minimum distances between the heat pump and its surroundings (plants, walls, etc.), as shown in the attached diagram. The unit connects to the pool's filtration system, after the filter and before the water treatment system.
Observe the correct hydraulic connection direction.
Installing a bypass is recommended for easier access to the unit.
Description
Zodiac: Z550 iQ MD6
Pool volume: 95 m³
45° hydraulic connections (patent pending)
Horizontal airflow.
Galvanized body with epoxy coating
Removable LCD (LED) display
Heating priority mode (filtration pump control)
Timer mode. Complete Inverter technology with 3 operating modes:
"Boost": Maximum power for rapid heating.
"Smart": Automatic power adjustment based on temperature.
"Eco-Silence": Reduced power for energy savings and lower noise level. Automatic defrost.
Automatic cooling mode (reverse cycle).
Titanium water-to-water heat exchanger compatible with seawater treatment.
Rotary vane inverter compressor.
Variable speed DC fan (Inverter).
Included accessories:
Protective cover.
Condensate drain kit.
2 PVC union fittings Ø 40.
2 PVC reducers ½" 40/50.
Anti-vibration feet.
Remote control kit.
Optional accessories:
Cleaning kit (PAC Net) - WMA03491.
Power supply: 220-240 V / 1 V / 50-60 Hz
Nominal current consumption (A): 1-12
Maximum current consumption (A): 13.5
Power cable: 3 x 2.5 mm²
Refrigerant: R32
Refrigerant capacity (kg): 0.95
Sound power level (dB(A) in Standard/Silent mode): 73-65
Sound pressure at 10 m (dB(A)) at max-min speed: 42-34
Estimated average values for a private swimming pool with an insulated cover
Heating performance
Air: 28°C / Water: 28°C / Humidity: 80%
Power consumption (kW at max-min speed): 16-4.7
Electrical consumption (kW at max-min speed): 3.2 - 0.5
Average COP at max-min speed: 5.0 - 9.4
Air: 15°C / Water: 26°C / Humidity: 70%
Power consumption (kW at max-min speed): 12 - 3.0
Electrical consumption (kW at max-min speed): 2.8 - 0.6
Average COP at max-min speed: 5.0 - 4.3
Cable not included: Recommended cross-section for a maximum length of 20 meters.
Dimensions and weight
Dimensions (L x W x H): 610 x 670 x 980 mm
Weight: 47 kg
