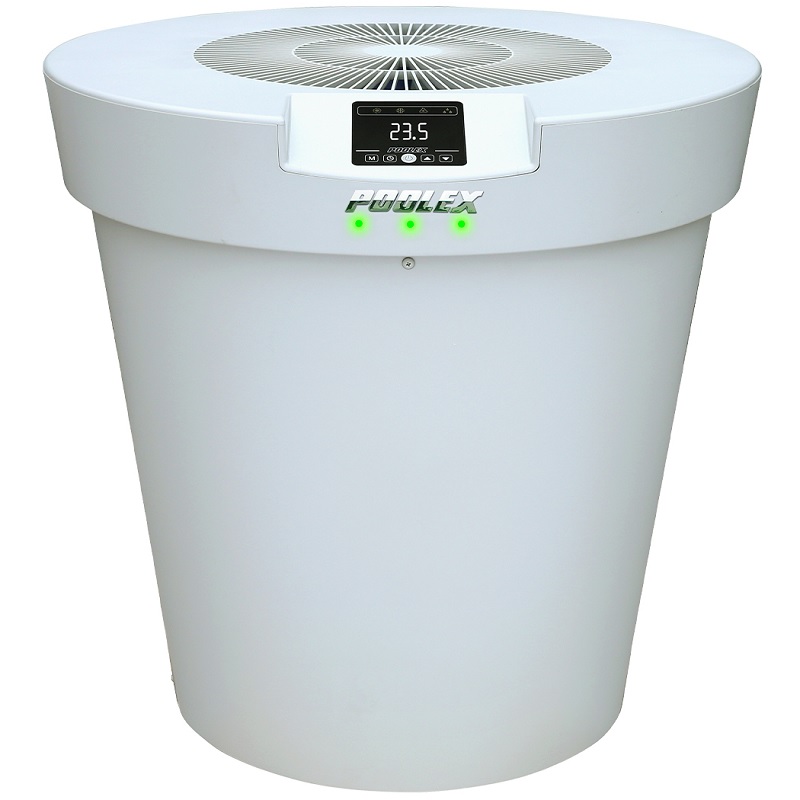

Poolex Platinium 15 kW 85 m³ Heat Pump

Poolex Platinium 15 kW 85 m³ Heat Pump

With a bold ABS design and available in 3 power outputs to meet the needs of most pools up to 65 m³, the Platinium Mini follows in the footsteps of the Platinium, Poolex's flagship heat pump, with its original design that blends seamlessly into your garden's architecture. Available in 3 power outputs for pools with a maximum volume of 65 m³, the Platinium Mini is equipped with all the features that have made Poolex heat pumps renowned: Full Inverter technology, WiFi control, and LED indicators.

Thanks to Full Inverter technology, the heat pump operates more stably, maintaining a constant temperature close to the set point, preventing consumption spikes and reducing energy consumption. The Platinium Mini is therefore a quiet pump that you can proudly display in your outdoor space.

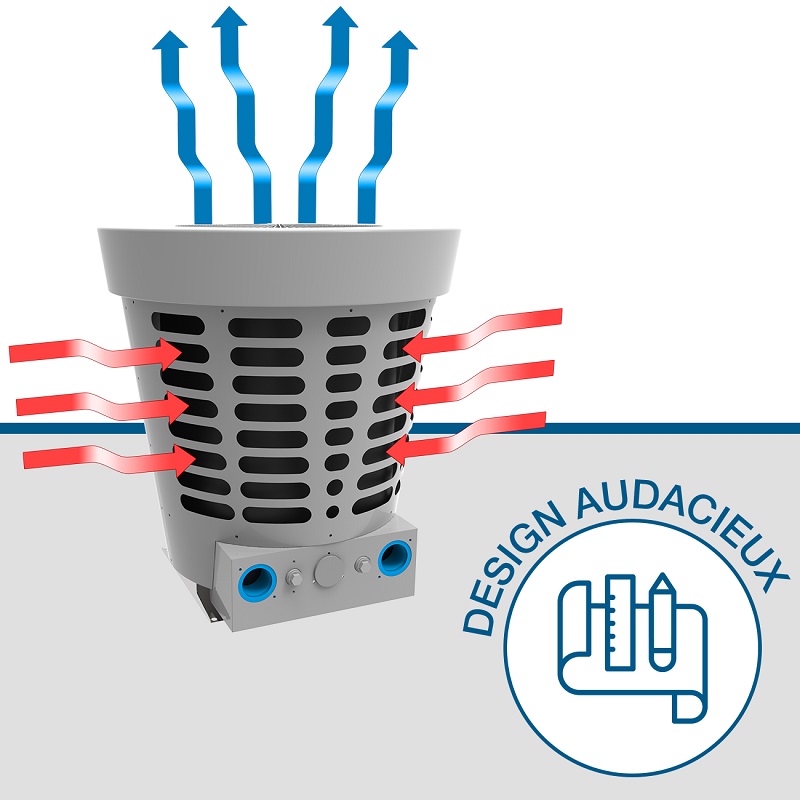

Its vertical ventilation prevents stale air from being expelled onto the installation surface and allows for significant space savings.

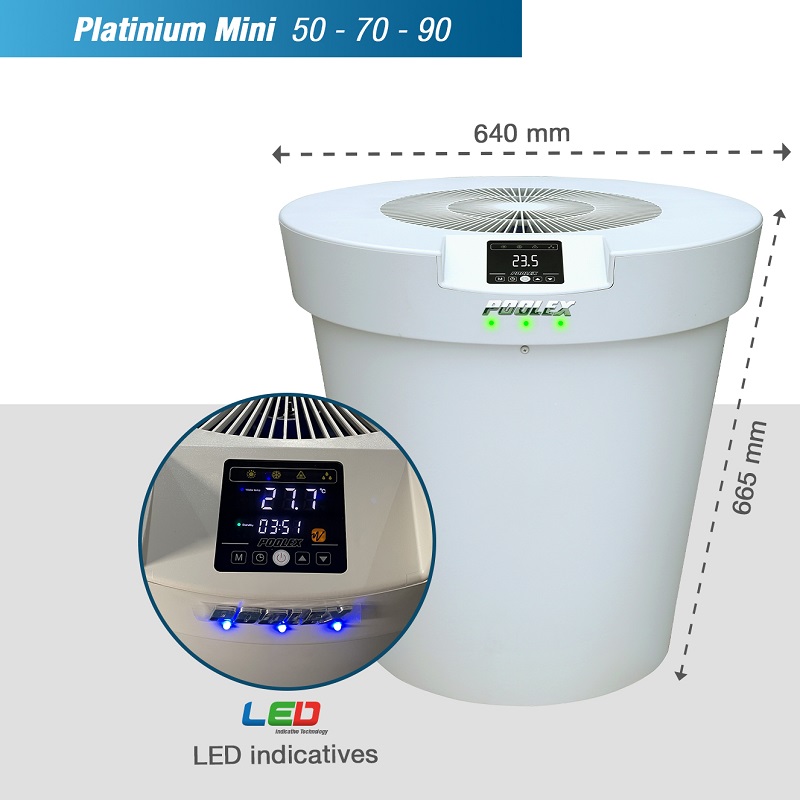

The integrated LED indicators add a touch of elegance while offering a highly useful function: instant visualization of the pump's operating status.

Green: The set temperature has been reached.
Blue: The pool is being heated.
Red: The heat pump is not operating.
Easily control your Platinium Mini from your smartphone screen thanks to the Wi-Fi connection integrated into the heat pump's control panel.

Pool volume: 65 to 85 m³
Reference: 120
Air: 26°C
Water: 26°C
Humidity: 80%
Maximum Heat Output: 15.1 kW
Minimum Heat Output: 4.7 kW
Power Consumption: 2.22 ~ 0.26 kW
COP 13.3 ~ 6.8
Air: 15°C
Water: 26°C
Humidity: 70%
Maximum Heat Output: 12.1 kW
Minimum Heat Output: 2.8 kW
Power Consumption: 2.5 ~ 0.4 kW
COP 7.3 ~ 4.8
Power Supply: Single-phase 230V / 50Hz
Maximum Current: 20 A
Heating Temperature Range: 15°C / 40°C
Operating range: -10°C / 43°C
Flow rate: 4.4 m³/h
Refrigerant: R32
Noise level at 1 meter: 49 ~ <41 dB(A)
Noise level at 10 meters: 31 ~ <23 dB(A)
Compressor type: Rotary
Compressor brand: Mitsubishi
Heat exchanger: Twisted Tech Titanium
Functions: EcoBooster & EcoSilence (inverter)
Heating
Cooling
Dimensions: 935 x 845 mm
Packaging dimensions: 1040 x 1010 mm
Net weight: 65 kg
Gross weight: 73 kg
