Domusa FUSION TRIO 180/80 Heat Pump Module: Integrated 80L Buffer Tank & 180L DHW Tank

Domusa FUSION TRIO 180/80 Heat Pump Module: Integrated 80L Buffer Tank & 180L DHW Tank

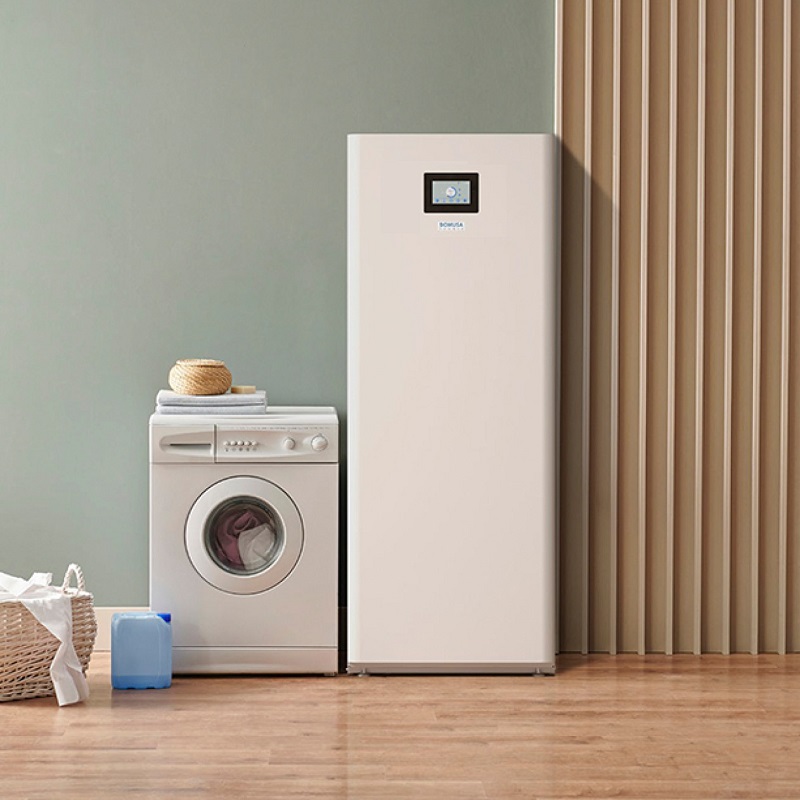

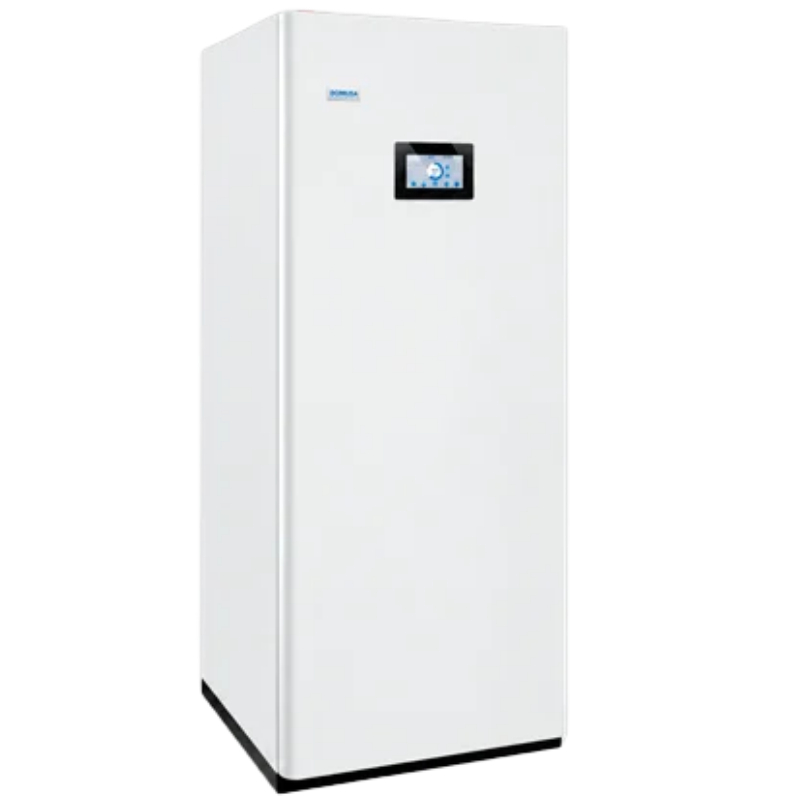

The Domusa Fusion TRIO 180/80 is an "all-in-one" hydraulic module (indoor unit) designed by the Spanish manufacturer Domusa Teknik. It is intended for installation alongside an air-to-water heat pump (such as the Dual Clima range). This module manages heating, cooling, and domestic hot water (DHW) production within a single unit.

180-Liter Domestic Hot Water (DHW) Tank: The hot water tank is made of stainless steel. This material ensures excellent thermal conductivity for rapid heating, as well as maximum resistance to corrosion and limescale buildup. It features an oversized coil optimized for air-source heat pump operation. Integrated 80-Liter Buffer Tank: This primary storage volume (or low-loss header) is crucial for the heat pump's proper operation. It prevents short-cycling (frequent compressor starts and stops), thereby protecting the equipment, extending its lifespan, and reducing electricity consumption.

Reversible System: The module is designed to handle both winter heating and summer cooling (via underfloor heating/cooling systems or fan coils). Comprehensive Equipment (Plug & Play): To simplify professional installation, the chassis comes factory-fitted with essential hydraulic components: an expansion vessel, a 3-way diverter valve (heating/DHW), air vents, and safety valves.

Technical data
Fusion Trio 180/80 180
Heat exchange surface area: 2.05 m²
Heating/cooling flow (1" male connection): Ø22 mm
Heating/cooling return (1" male connection): Ø22 mm
Heat pump flow (1" male connection): Ø22 mm
Heat pump return (1" male connection): Ø22 mm
DHW outlet: 1/2" male
DHW inlet: Ø18 mm (3/4" male connection)
DHW recirculation connection: 1/2" male
Backup boiler return (heating)
Equipment
DHW safety valve
Stainless steel DHW tank
Filter
Dielectric unions
Filling backflow preventer
Buffer tank
DHW expansion vessel
Three-way valve
Heating expansion vessel
Dimensions and weight
Weight when filled to maximum capacity (distributed as follows): 430 kg
Domestic hot water (DHW): 180 kg
Primary water (buffer tank): 80 kg
Height: 2000 mm
Width: 620 mm
Depth: 745 mm
Empty weight: 165 kg
