Zodiac ARCOMAX Robotic Pool Cleaner

Zodiac ARCOMAX Robotic Pool Cleaner

For medium and large public pools (swimming centers, sports complexes, municipal pools) with rigid walls, up to 50 m long. The robot has been specially designed for intensive use in medium-sized public pools with rigid walls. Nav System Sensor: intelligent and personalized cleaning with an anti-tangle compass system; no flipping required.

The ARCOMAX models are characterized by their robustness and efficiency in cleaning the bottom, walls, and waterline. They effectively vacuum all debris from the pool thanks to powerful and long-lasting cyclonic suction. The dual filtration system (60 microns and 150 microns) collects all sizes of debris, from the largest to the finest. The Sensor Nav Sistem™ enhances this efficiency by optimizing the robot's movement within the pool, thus reducing cleaning time.

The ARCO™ and ARCOMAX models, equally robust and high-performing, are equipped with infrared sensors that detect walls and obstacles, along with a gyroscope and an intelligent navigation system. With multiple cleaning cycles for the bottom, walls, and waterline, they offer a Delayed Start system for programming delayed start times, as well as a Turbo Mode for increased speed and power. Ultra-powerful, long-lasting suction completes this high level of performance.

Features
For pools up to 50 meters
Infrared sensors for wall and obstacle detection
Gyroscope and intelligent navigation system with compass
Tracked drive system for heavy-duty use
Ultra-powerful suction

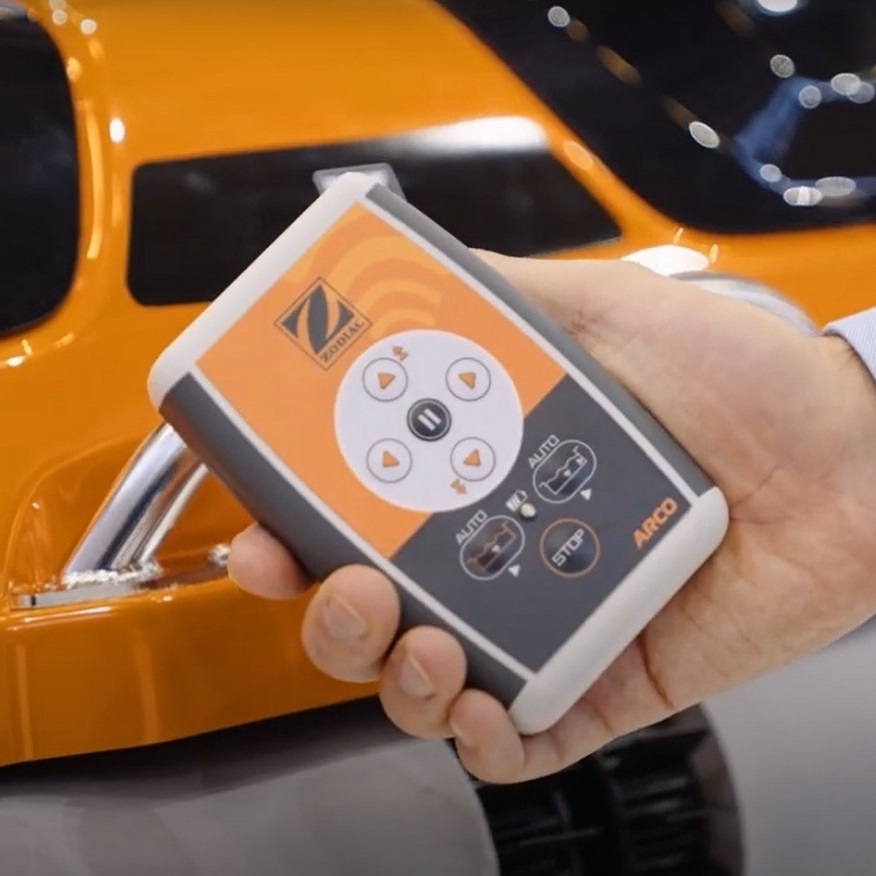

Radio frequency remote control
Cleaning: Floor + Walls + Waterline
Shapes: Rectangular
Floor types: Flat, gently sloping, compound slope, and diamond-shaped
Liner types: Mosaic, liner, fiberglass, reinforced PVC, painted concrete
Cleaning cycles
Floor mode: Floor only
Walls and floor mode: Floor/walls
Delayed start: 2 cleaning modes with programmable delayed start
Filtration level: 100 µm
Filter: Dual filter accessible from the bottom
Filter capacity: 5.1 kg
Safety: Infrared detection, water outlet detection, motor protection, diagnostics
Number of motors: 3
Power consumption: 150 W
Cable length: 40 meters
Operating time: up to 3 hours

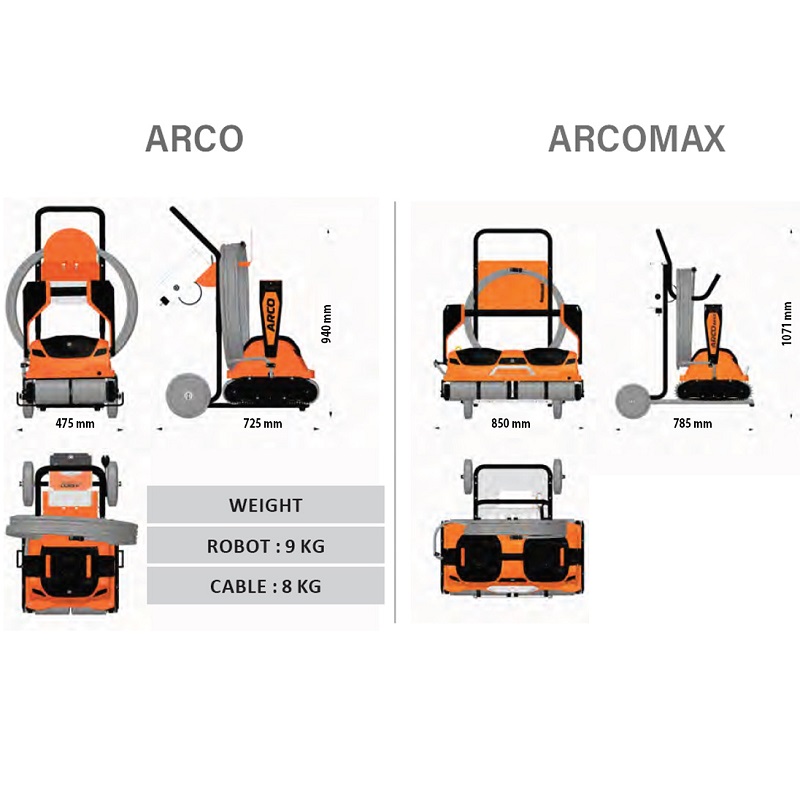

Dimensions (L × W × H): 80 × 43 × 54 cm
Weight: 18 kg
