Samsung ClimateHub AE200DNWMPK/EU 16.0 kW Indoor Unit. 200-liter tank (230V). R32
Please sign in so that we can notify you about a reply
Samsung ClimateHub AE200DNWMPK/EU 16.0 kW Indoor Unit. 200-liter tank (230V). R32

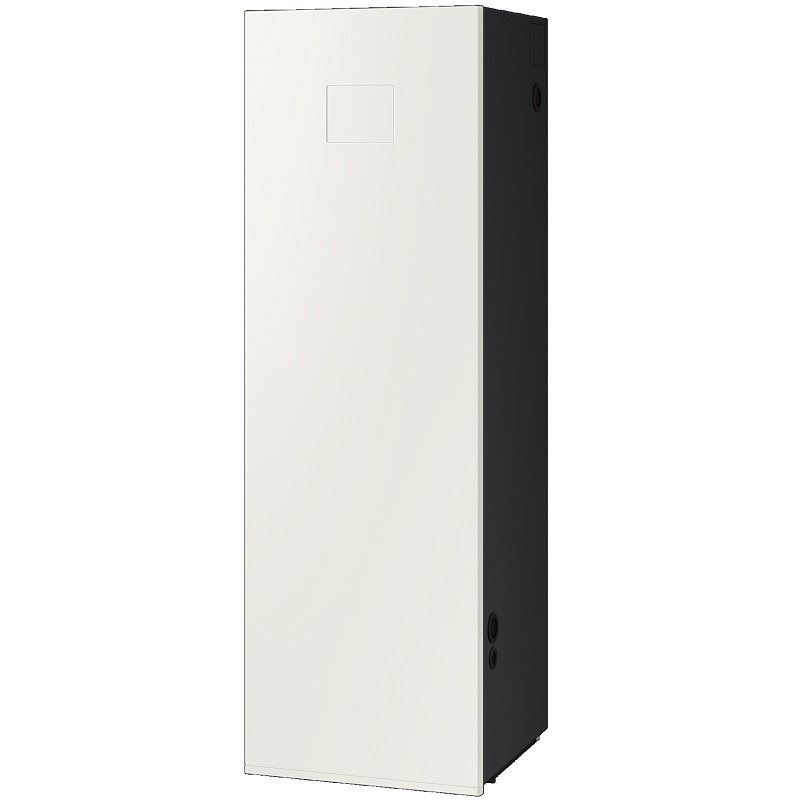

The Samsung ClimateHub AE200DNWMPK/EU indoor unit is an all-in-one hydraulic module designed for split-system (Biblock) heat pump installations. It features an integrated 200-liter domestic hot water (DHW) tank, operates on a single-phase 230V power supply, and supports a nominal capacity of up to 16.0 kW using R32 refrigerant (with R290 technology also available depending on the kit configuration).
Technical Specifications
Compact, column-style design that fits easily into a closet or utility room
DHW tank volume: 200-liter stainless steel tank for domestic hot water production
Power supply: Single-phase 230V (indicated by the 'W' in the model code)
Maximum capacity: 16.0 kW, ideal for heating, cooling, and hot water in large homes
Noise level: Extremely quiet, operating at just 28 dB(A) indoors
Includes a high-efficiency circulation pump, expansion vessel, 3-way diverter valve
(for switching between heating and DHW), precise flow meter, and an auxiliary electric backup heater
Control: Supplied with the MWR-WW10JN wired, backlit, touch-sensitive remote controller
Built-in Wi-Fi: Integrated Wi-Fi module for remote control and energy consumption monitoring via the app
Type: Air-to-water heat pump (Split-system – ClimateHub)
Tank capacity: 200 liters (usable volume: 194 liters)
Tank material: SUS 316 stainless steel with multi-layer insulation (EPP + VIP + EPS)
Energy efficiency class: A+++ (35°C) / A++ (55°C)
Level Sound level: 26–28 dB(A)
Power supply: Single-phase 220–240 V, 50 Hz
Maximum water temperature: 70 °C
Operating temperature: Heating: -25 °C to 35 °C | DHW (Domestic Hot Water): -25 °C to 43 °C
Connectivity: Built-in Wi-Fi and Bluetooth, compatible with SmartThings

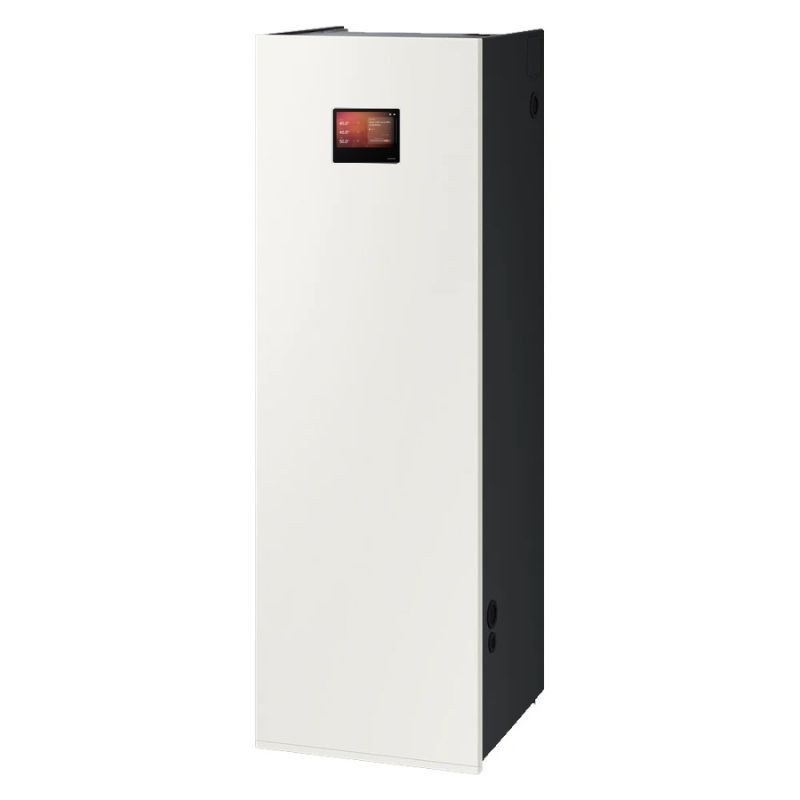

Included controls: 7″ AI Home Touch and MWR-WW10JN remote controller
Color: White
Power type: Single-phase
Dimensions and weight
Dimensions (W x H x D): 598 x 1800 x 600 mm
Net weight: 132 kg (empty)
The Samsung ClimateHub AE200DNWMPK/EU indoor unit is an all-in-one hydraulic module designed for split-system (Biblock) heat pump installations. It features an integrated 200-liter domestic hot water (DHW) tank, operates on a single-phase 230V power supply, and supports a nominal capacity of up to 16.0 kW using R32 refrigerant (with R290 technology also available depending on the kit configuration).
Technical Specifications
Compact, column-style design that fits easily into a closet or utility room
DHW tank volume: 200-liter stainless steel tank for domestic hot water production
Power supply: Single-phase 230V (indicated by the 'W' in the model code)
Maximum capacity: 16.0 kW, ideal for heating, cooling, and hot water in large homes
Noise level: Extremely quiet, operating at just 28 dB(A) indoors
Includes a high-efficiency circulation pump, expansion vessel, 3-way diverter valve
(for switching between heating and DHW), precise flow meter, and an auxiliary electric backup heater
Control: Supplied with the MWR-WW10JN wired, backlit, touch-sensitive remote controller
Built-in Wi-Fi: Integrated Wi-Fi module for remote control and energy consumption monitoring via the app
Type: Air-to-water heat pump (Split-system – ClimateHub)
Tank capacity: 200 liters (usable volume: 194 liters)
Tank material: SUS 316 stainless steel with multi-layer insulation (EPP + VIP + EPS)
Energy efficiency class: A+++ (35°C) / A++ (55°C)
Level Sound level: 26–28 dB(A)
Power supply: Single-phase 220–240 V, 50 Hz
Maximum water temperature: 70 °C
Operating temperature: Heating: -25 °C to 35 °C | DHW (Domestic Hot Water): -25 °C to 43 °C
Connectivity: Built-in Wi-Fi and Bluetooth, compatible with SmartThings
Included controls: 7″ AI Home Touch and MWR-WW10JN remote controller
Color: White
Power type: Single-phase
Dimensions and weight
Dimensions (W x H x D): 598 x 1800 x 600 mm
Net weight: 132 kg (empty)
