Panasonic Inverter Air Conditioner KIT-71PK4Z5 7.1 kW (230V) R32
The Panasonic KIT-71PK4Z5 is a wall-mounted single-split air conditioning system from Panasonic’s PACi NX Standard range. Powered by a single-phase supply (230V), it delivers a nominal heating capacity of 7.1 kW and operates using the eco-friendly R32 refrigerant.

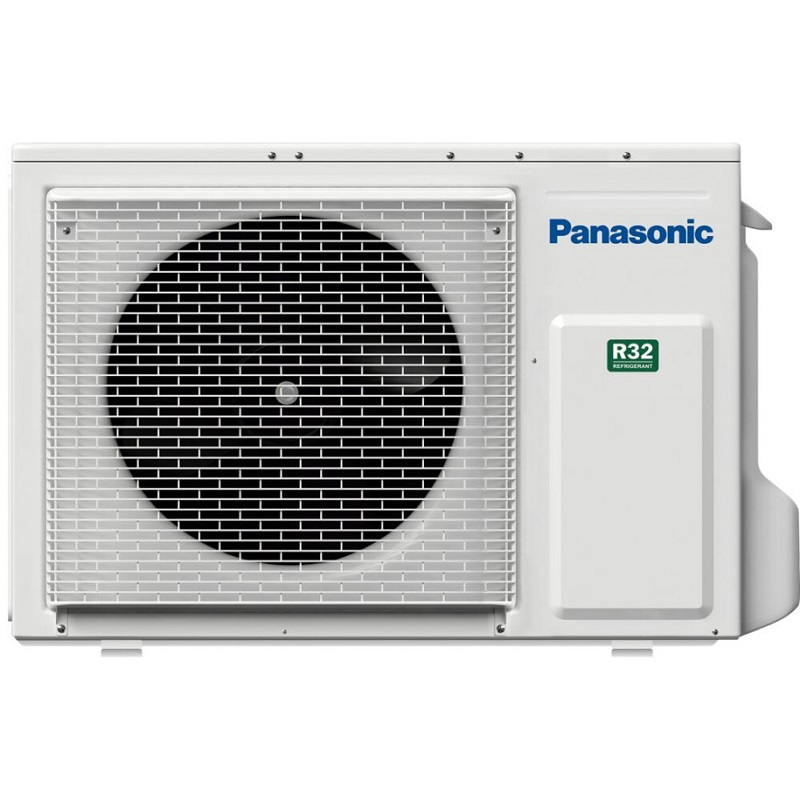

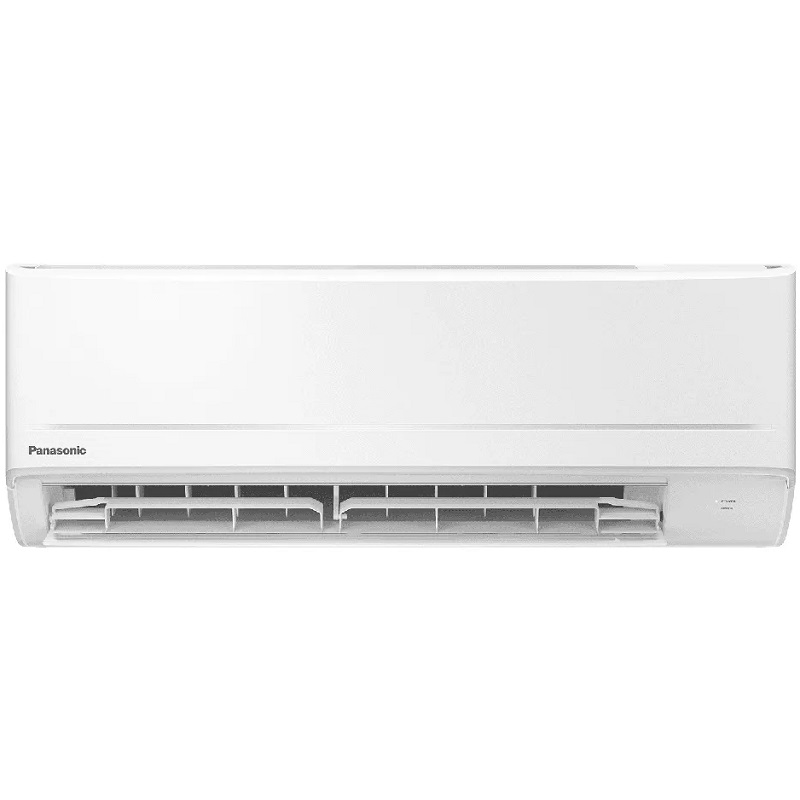

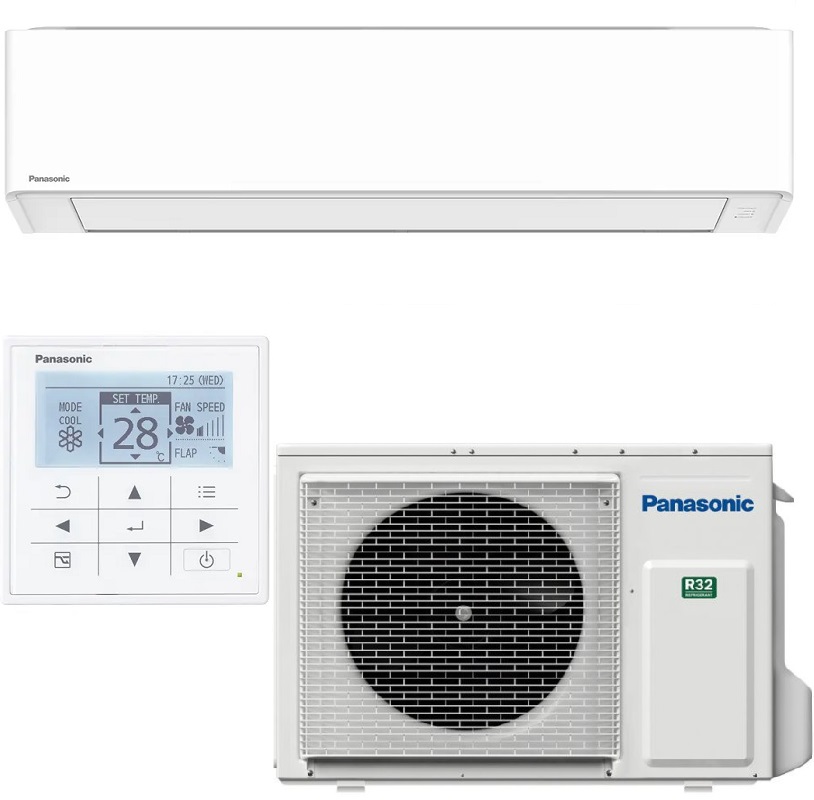

This model is particularly well-suited for commercial spaces, large areas (high ceilings), studios, or server rooms. Kit composition: Includes the S-5010PK4E indoor unit (featuring an elegant matte finish) and the U-71PZ3E5A outdoor unit.
nanoe™ X Technology (Mark 3 Generator): Included as standard, this technology releases hydroxyl radicals to purify indoor air by inhibiting pollutants, viruses, and bacteria, while also eliminating odors. Comfort and airflow: Automatic airflow adjustment in 5 directions for both heating and cooling modes. Smart connectivity compatible with IoT solutions and the Panasonic Comfort Cloud app (via the CZ-CAPWFC1 interface) for remote control
Technical Data
Brand: Panasonic
Model: KIT-71PK4Z5
Series: PACi NX Standard split PK4: R32
Nominal cooling capacity: 6.9 kW
Cooling capacity (min–max): 2.6 – 7.7 kW
Nominal EER: 3.29 W/W
SEER: 6.0 A+
Pdesign (cooling): 6.9 kW
Nominal cooling power input: 2.10 kW
Annual energy consumption (cooling): 402 kWh/year
Nominal heating capacity: 7.1 kW
Heating capacity (min–max): 2.1 – 8.1 kW
Heating capacity at -15°C: 5.8 kW
Nominal COP: 4.10 W/W
SCOP: 4.4 A+
Pdesign at -10°C: 5.2 kW
Nominal heating power input: 1.73 kW
Annual energy consumption (heating): 1,654 kWh/year
Dimensions and Weight
Indoor unit dimensions: 332 x 1102 x 244 mm
Outdoor unit dimensions: 695 x 875 x 320 mm
Indoor unit: 14 kg
Outdoor unit: 50 kg
