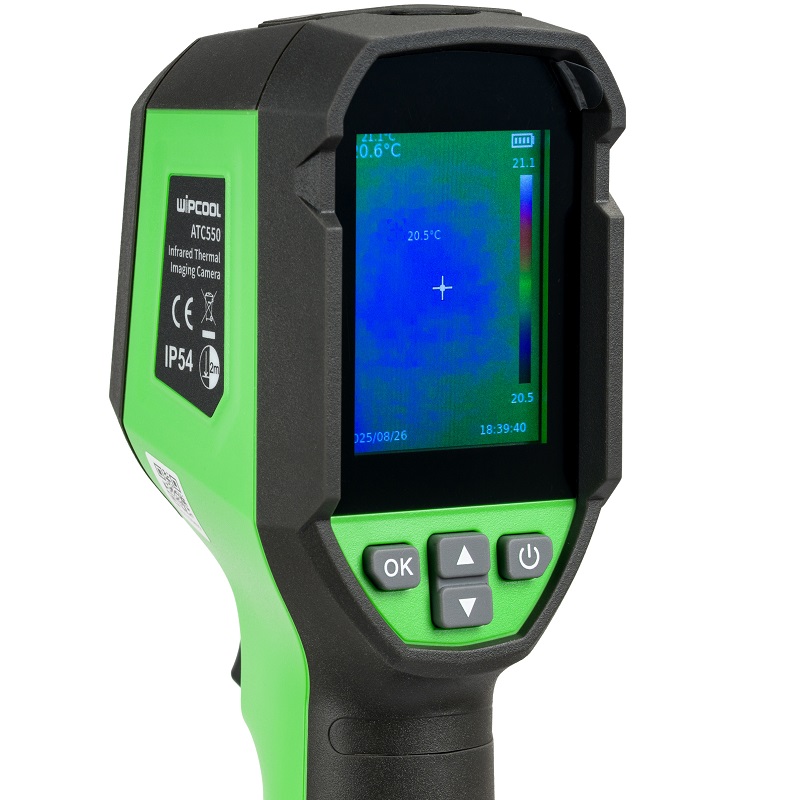

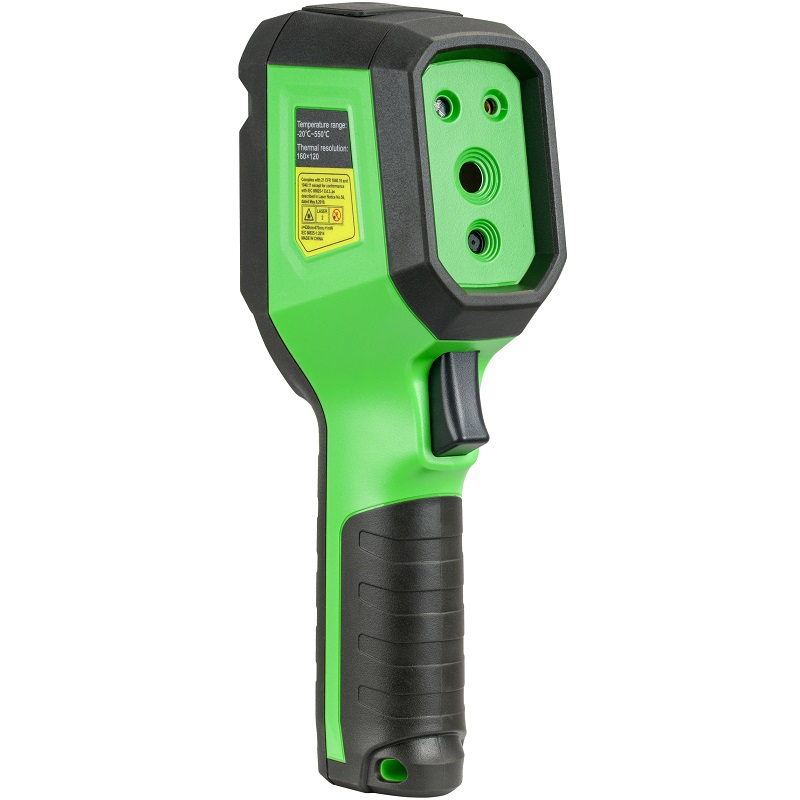

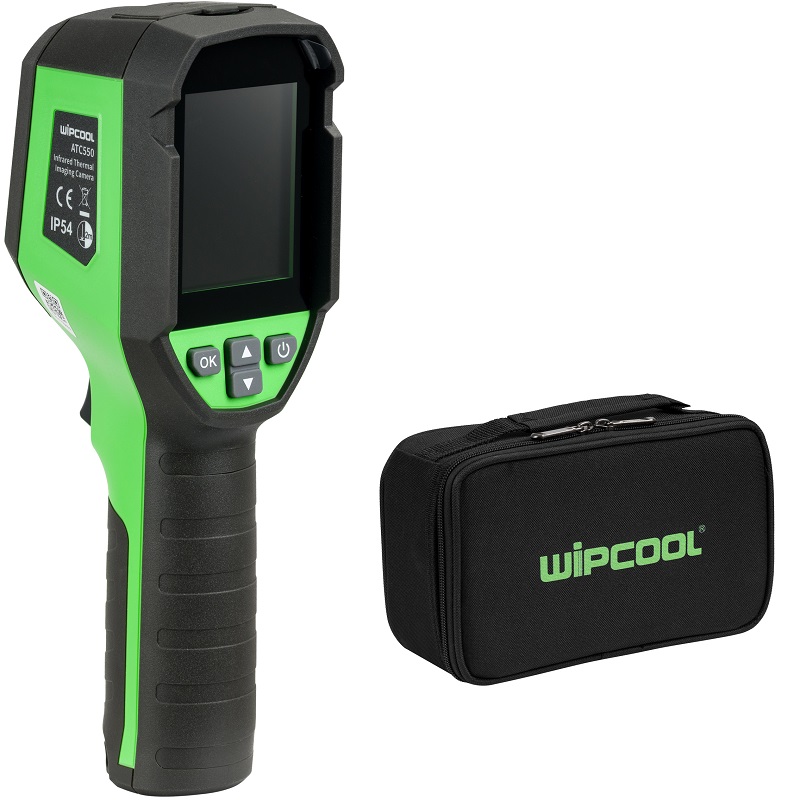

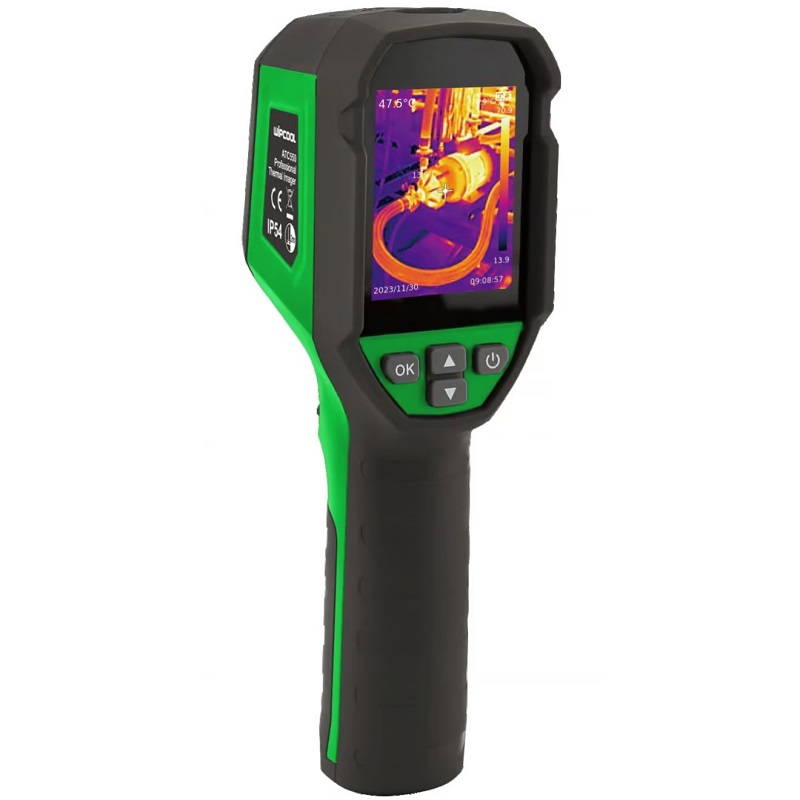

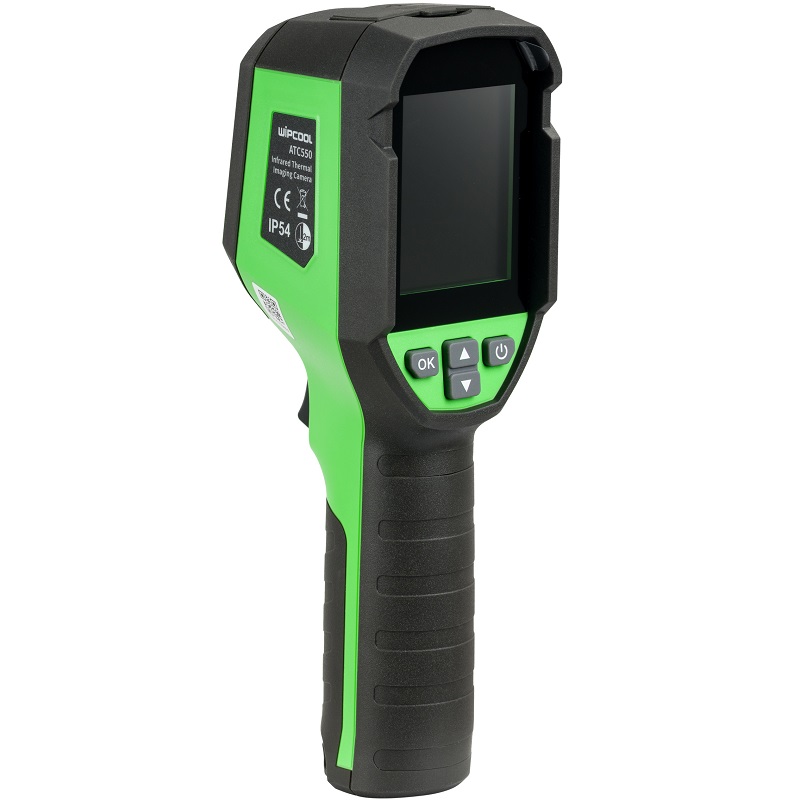

Wipcool ATC550 Infrared Thermal Imaging Camera, -20 to 550°C
Please sign in so that we can notify you about a reply
Wipcool ATC550 Infrared Thermal Imaging Camera, -20 to 550°C

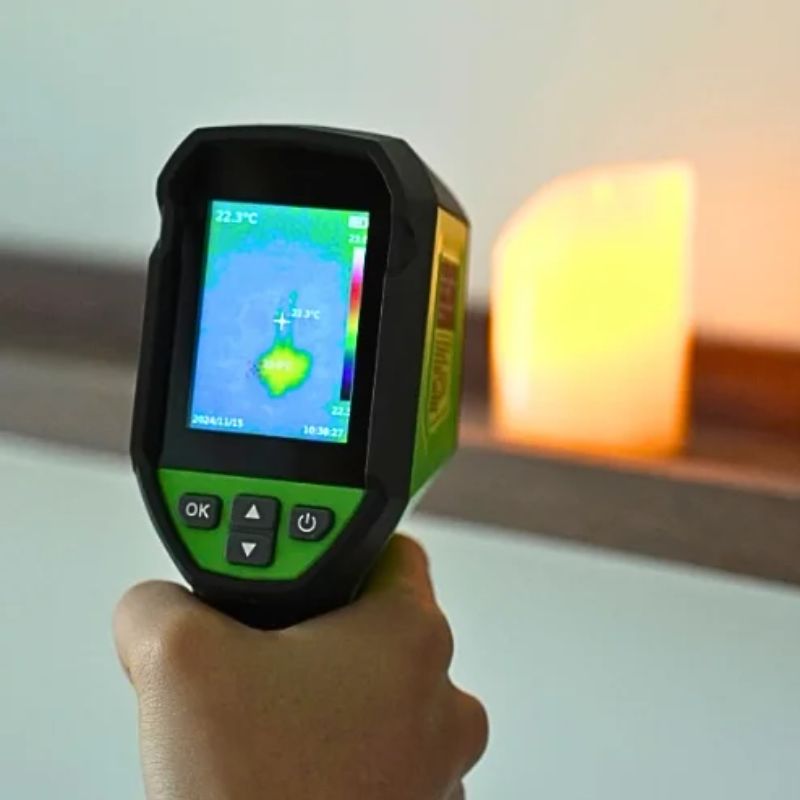

The Wipcool ATC550 is a portable infrared thermal imaging camera specifically designed for HVAC (Heating, Ventilation, Air Conditioning), electrical, and industrial maintenance professionals. It allows for the rapid detection of thermal anomalies such as component overheating, fluid leaks, or insulation defects.
Lightweight and portable design, multiple functions, center-point temperature measurement and automatic high/low point tracking, equipped with an LED light, laser pointer, high/low point alarm, IP54 protection rating and 2-meter drop resistance, suitable for various working environments.
Technical Specifications
Temperature Range: Accurate measurement from -20°C to +550°C
IR Sensor Resolution: 160 × 120 pixels with a thermal sensitivity greater than 50 mK
Display: 2.4-inch TFT display with a resolution of 320 × 240 pixels
Measurement Accuracy: ±2°C or ±2%, whichever is greater
Internal Storage
Built-in 32 GB eMMC flash memory for saving numerous readings Screen
Battery Life & Power: 3.7V / 2600mAh rechargeable Li-ion battery via a Type-C port (also used for data transfer)
Key Features and Functionality
Durability: Reinforced casing capable of withstanding drops of up to 2 meters, with an IP54 rating for dust and splash resistance
Automatic Alarms: Configurable alerts for abnormally high or low temperatures
Precise Aiming: Equipped with a laser pointer for precise targeting of the measurement area and an integrated LED light for working in dark environments
Adjustable Emissivity: Adjustable from 0.10 to 0.99 to adapt to the nature of different materials being inspected
Temperature Range: -20°C to 550°C
Temperature Measurement Accuracy: ±2°C / ±2% (maximum value considered)
Temperature Measurement Resolution: 0.1 °C
Screen resolution: 320 x 240 px
Infrared sensor resolution: 160-120 dB
Response band: 8-14 µm
Thermal sensitivity: 50 mK at 25 °C
Frame rate: 25 Hz
Emissivity ratio (distance/light spot): 0.95 (typical) (0.1-0.99)
Field of view: 40° H x 30° V
Storage: 32 GB built-in eMMC memory
Battery type: Built-in battery: 3.7 V and 2600 mAh (USB-C port)
Dimensions: 12 x 10 x 25 cm
Weight: 1 kg
The Wipcool ATC550 is a portable infrared thermal imaging camera specifically designed for HVAC (Heating, Ventilation, Air Conditioning), electrical, and industrial maintenance professionals. It allows for the rapid detection of thermal anomalies such as component overheating, fluid leaks, or insulation defects.
Lightweight and portable design, multiple functions, center-point temperature measurement and automatic high/low point tracking, equipped with an LED light, laser pointer, high/low point alarm, IP54 protection rating and 2-meter drop resistance, suitable for various working environments.
Technical Specifications
Temperature Range: Accurate measurement from -20°C to +550°C
IR Sensor Resolution: 160 × 120 pixels with a thermal sensitivity greater than 50 mK
Display: 2.4-inch TFT display with a resolution of 320 × 240 pixels
Measurement Accuracy: ±2°C or ±2%, whichever is greater
Internal Storage
Built-in 32 GB eMMC flash memory for saving numerous readings Screen
Battery Life & Power: 3.7V / 2600mAh rechargeable Li-ion battery via a Type-C port (also used for data transfer)
Key Features and Functionality
Durability: Reinforced casing capable of withstanding drops of up to 2 meters, with an IP54 rating for dust and splash resistance
Automatic Alarms: Configurable alerts for abnormally high or low temperatures
Precise Aiming: Equipped with a laser pointer for precise targeting of the measurement area and an integrated LED light for working in dark environments
Adjustable Emissivity: Adjustable from 0.10 to 0.99 to adapt to the nature of different materials being inspected
Temperature Range: -20°C to 550°C
Temperature Measurement Accuracy: ±2°C / ±2% (maximum value considered)
Temperature Measurement Resolution: 0.1 °C
Screen resolution: 320 x 240 px
Infrared sensor resolution: 160-120 dB
Response band: 8-14 µm
Thermal sensitivity: 50 mK at 25 °C
Frame rate: 25 Hz
Emissivity ratio (distance/light spot): 0.95 (typical) (0.1-0.99)
Field of view: 40° H x 30° V
Storage: 32 GB built-in eMMC memory
Battery type: Built-in battery: 3.7 V and 2600 mAh (USB-C port)
Dimensions: 12 x 10 x 25 cm
Weight: 1 kg
