Mitsubishi PAC-SG61DS-E Drain Kit
The Mitsubishi PAC-SG61DS-E drain kit is a genuine accessory designed to centralize and safely discharge condensate produced by the outdoor unit. It is primarily used when the unit operates in heat pump (heating) mode, as the outdoor unit generates condensation in this state which must be drained to prevent leaks and ice formation.
Technical specifications

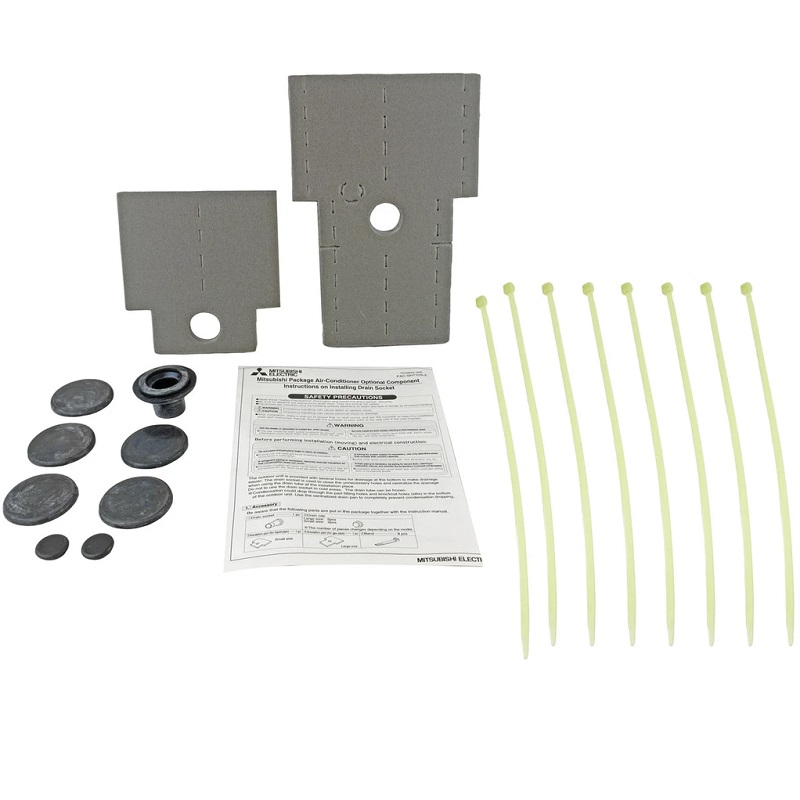

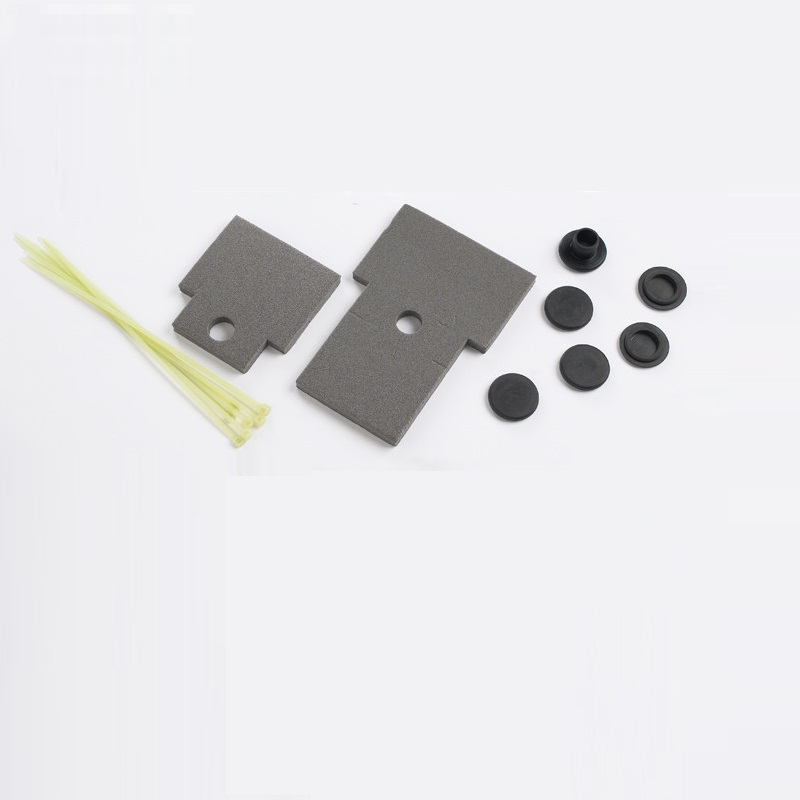

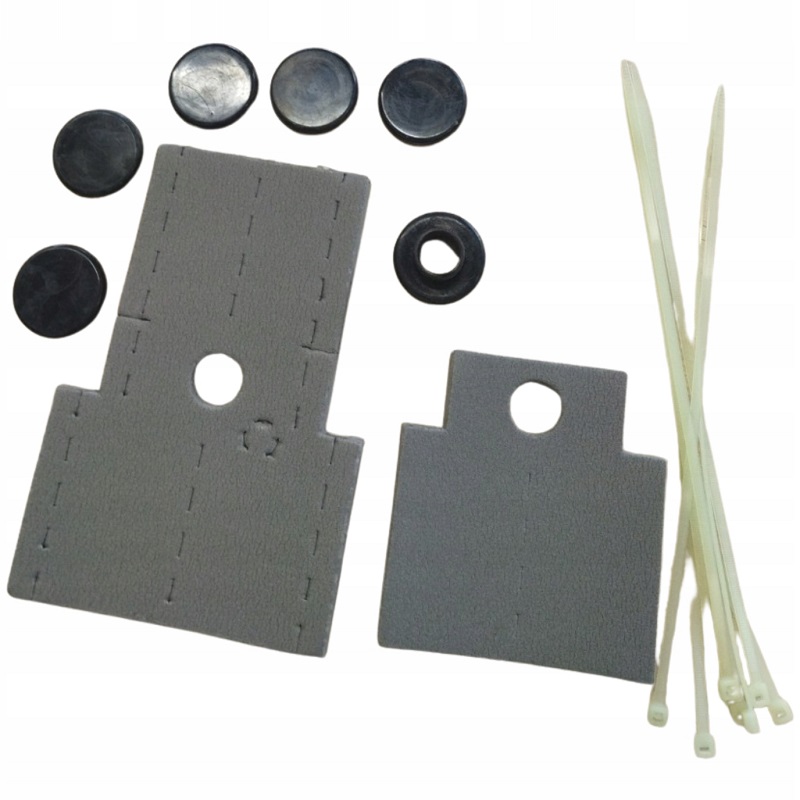

Kit contents
5 rubber plugs
These seal off unused openings at the base of the outdoor unit
1 drain fitting (guide/elbow)
Channels water discharge to a single point to facilitate connection to a drain hose
Thermal insulation material
Protects fittings and prevents freezing and water droplet formation
Compatible with the following models
MXZ-8A140V
PUHZ-RP35/50/60/71-VHA4
PUHZ-RP100/125/140-VKA/YKA
PUHZ-HRP71/100/125-VHA2
PUHZ-P100/125/140/200/250;
PUZ-M / PUZ-ZM60/140
PUZ-WM50
PUHZ-SW120/160/200
PUHZ-SW75/100VAA
PUZ-WM-AA
PUD-SWM-AA
PUD-SHWM-AA
Dimensions and weight
8 cable ties

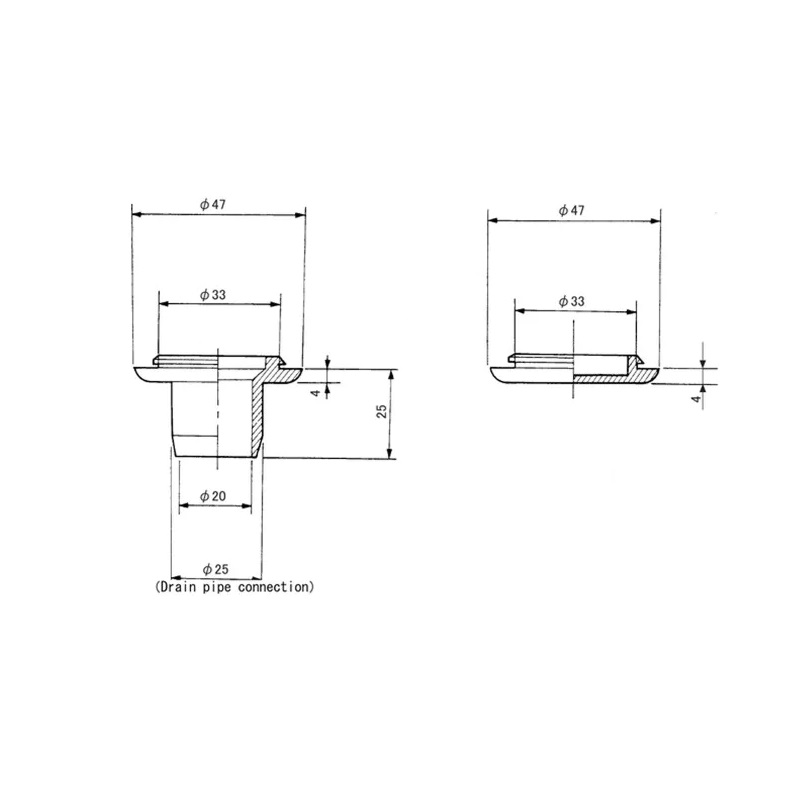

1 drain connector: 25 mm
Dimensions: 50 x 75 x 25 mm
Weight: 0.05 kg
