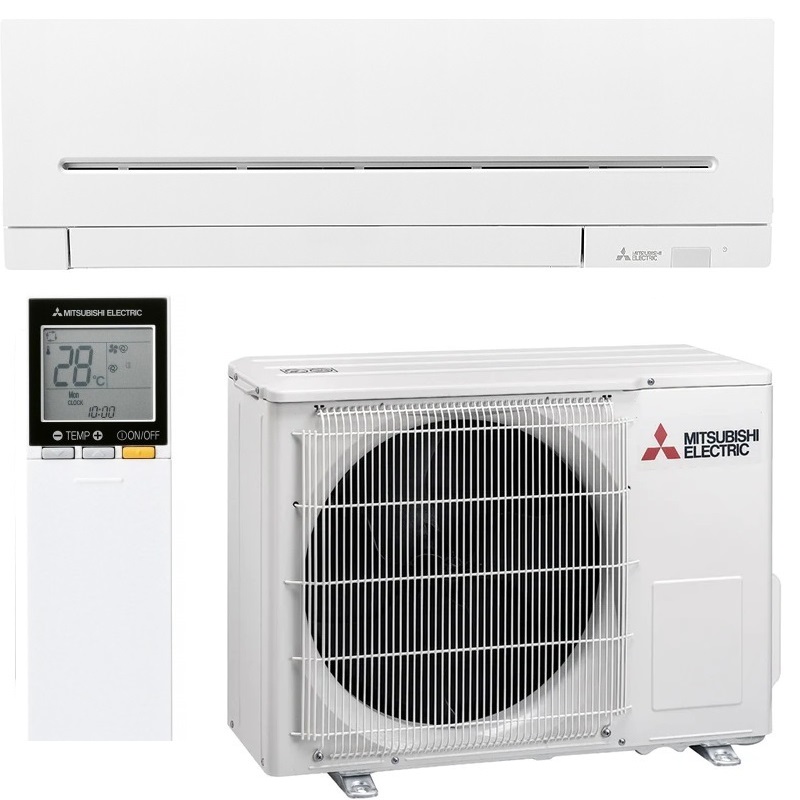

Mitsubishi MSZ-AP71VGK White R32 Reversible Air Conditioner

Mitsubishi MSZ-AP71VGK White R32 Reversible Air Conditioner

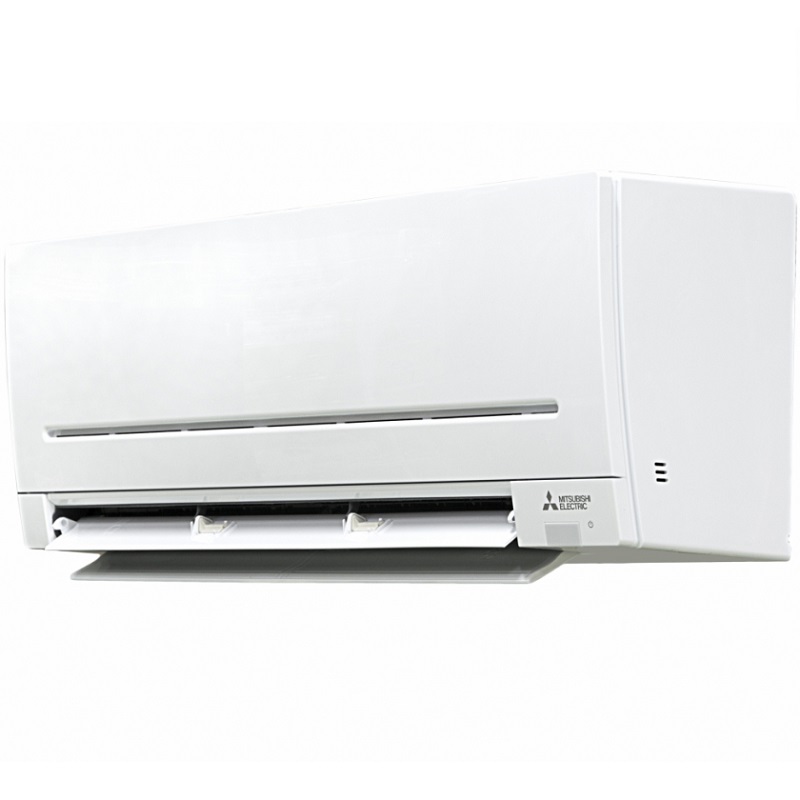

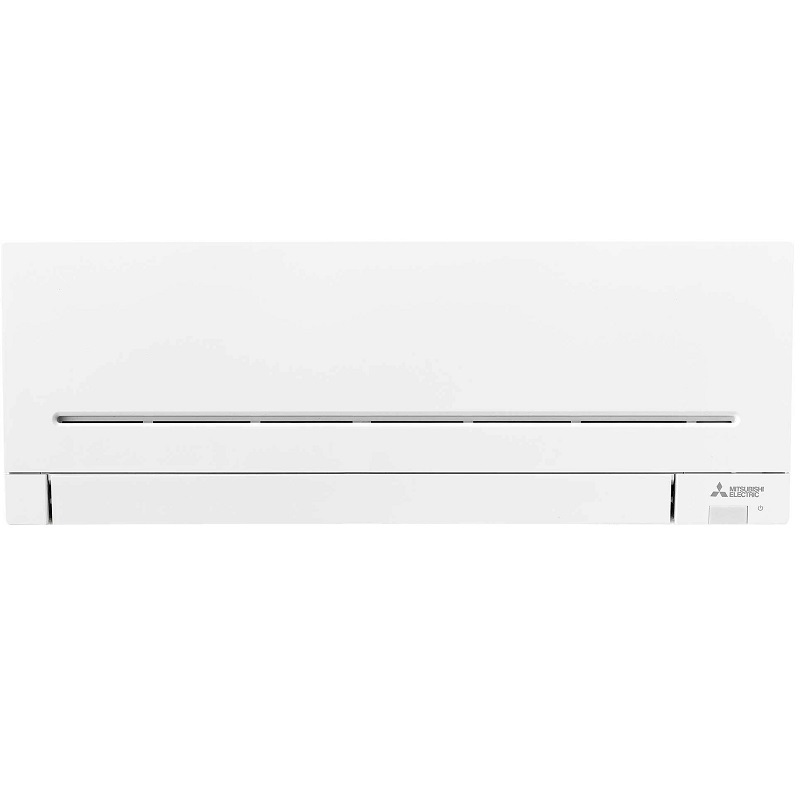

The Mitsubishi MSZ-AP71VGK is a high-power (7.1 kW / 24,000 BTU/h) Inverter single-split air conditioning system designed to efficiently cool and heat spaces up to 60 m². This wall-mounted unit combines a compact, elegant design with outstanding performance, achieving an A++ rating in cooling mode (SEER 7.2) and A+ in heating mode (SCOP 4.4). The MSZ-AP VGK series features the MELCloud system, enabling Wi-Fi control of the unit via a smartphone, tablet, or internet-connected PC.

The model incorporates the advanced Plasma Quad Plus system for air purification (eliminating viruses and bacteria) and offers full control via built-in Wi-Fi (MELCloud). It is a choice that blends performance with quality, making it perfectly suited to professional requirements. The control system includes a horizontal airflow function that eliminates the sensation of drafts. It also allows for scheduling operating times and temperatures on a daily or weekly basis, thereby enhancing comfort and energy efficiency.

Characterized by its sleek shape and clean lines, the MSZ-AP is the ideal solution for integrating air conditioning into any interior, from small bedrooms to large living areas. Engineered to deliver class-leading performance, the MSZ-AP has been meticulously designed to achieve this goal. Thanks to its technology and the use of R32 refrigerant, the MSZ-AP achieves remarkable energy efficiency levels, ranking in the A+++ (SEER) and A++ (SCOP) categories for the 25 and 35 models.

The MSZ-AP’s built-in air-purifying filter eliminates dust and unpleasant odors. An optional silver-ion filter is also available, capable of capturing and destroying bacteria, viruses, and other allergens. The indoor unit’s noise level is virtually inaudible—reaching just 19 dB on the 25 and 35 models—setting a new benchmark in the industry. The MSZ-AP features a night mode that dims the unit's LED, disables the audible beep, and reduces outdoor unit noise by 3 dB.

Technical specifications
Indoor unit: MSZ-AP71VG / Outdoor unit: MUZ-AP71VG
Cooling capacity (Max-Min): 7.1 (2.8-8.7) kW
Heating capacity (Max-Min): 8.1 (2.2-10.3) kW
Refrigerant: R32
Voltage/Frequency: 230 V / 50 Hz
Power consumption (cooling): 2.010 kW
Power consumption (heating): 2.120 kW
Recommended circuit breaker: 20 A
Maximum current: 16.4 A
SEER: 7.2 (A++)
SCOP: 4.4 (A+)
Indoor unit airflow (cooling) (Silent-Low-Med-High-Super High): 582-690-798-924-1068 (m³/h)
Indoor unit airflow (heating) (Silent-Low-Med-High-Super High): 582-690-798-924-1068 (m³/h)
Indoor unit sound pressure level (cooling) (Low-Med-High-Super High): 30-37-41-45-49 dB(A)
Indoor unit sound pressure level (heating) (Low-Med-High-Super High): 30-37-41-45-51 dB(A)
Outdoor unit sound pressure level (cooling): 56 dB(A)
Outdoor unit sound pressure level (heating): 55 dB(A)
Dimensions and weight
Indoor unit dimensions (WxHxD): 1100×325×257 mm
Net weight: 17 kg

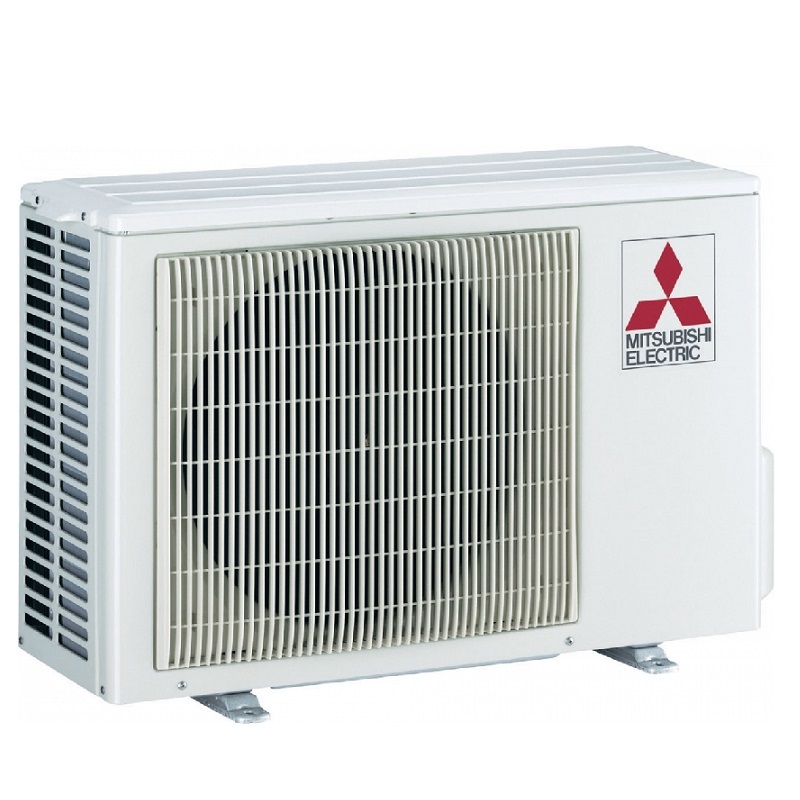

Outdoor unit dimensions (WxHxD): 840×880×330 mm
Net weight: 55 kg
