Daikin Altherma 3 Supra Air-to-Water Heat Pump RAVX1423EV 10.0 kW. Split System. 230 L (230V) R32

Daikin Altherma 3 Supra Air-to-Water Heat Pump RAVX1423EV 10.0 kW. Split System. 230 L (230V) R32

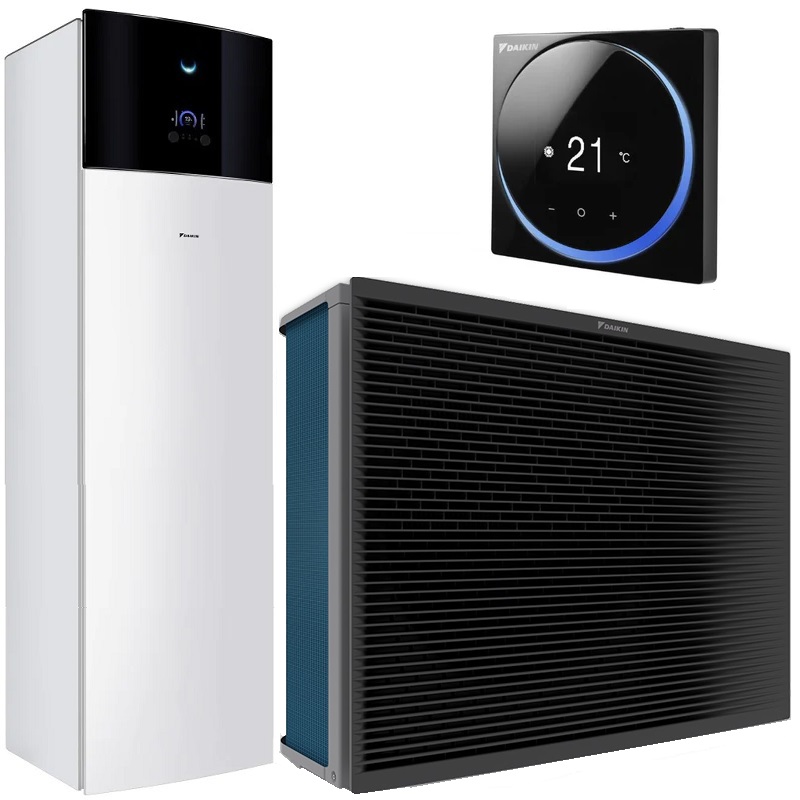

The Daikin Altherma 3 Supra air-to-water heat pump (model RAVX1423EV) is a high-performance split system with a nominal heating capacity of approximately 10 kW. It includes a 230-liter domestic hot water (DHW) tank powered by a 230V single-phase supply and uses the environmentally friendly R32 refrigerant. This all-in-one system is particularly recommended for medium to large homes (approximately 140-160 m²).

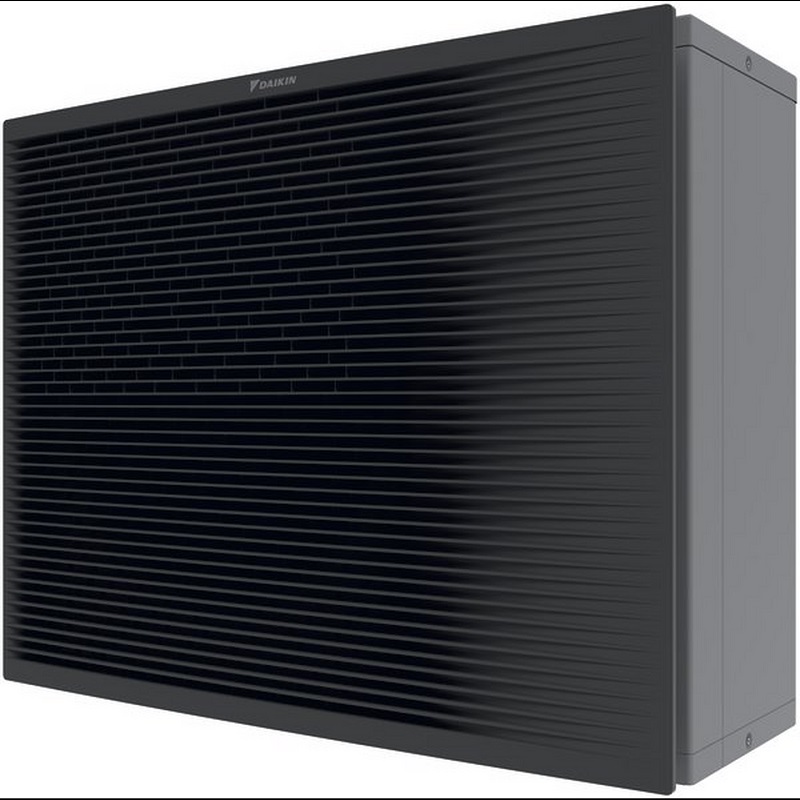

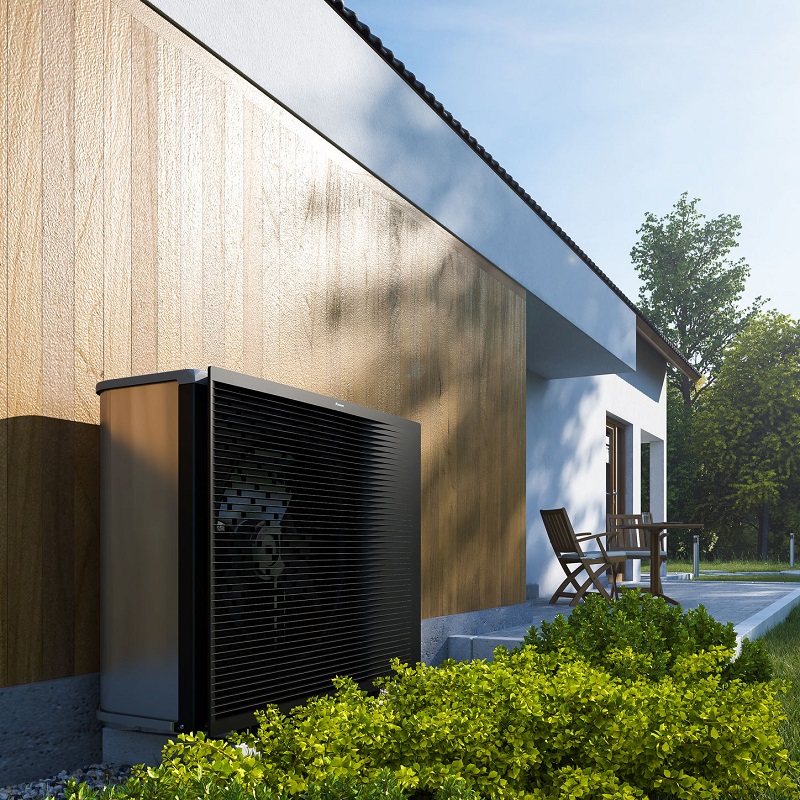

Outdoor unit (EPRA14DV3): Robust unit designed to capture heat from the outside air, even in extreme weather conditions.

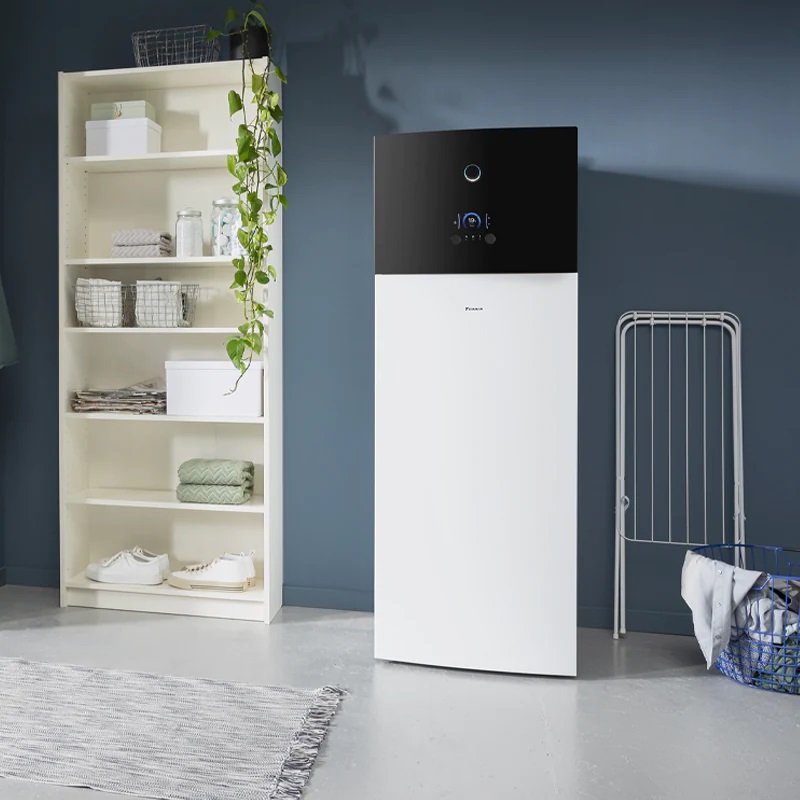

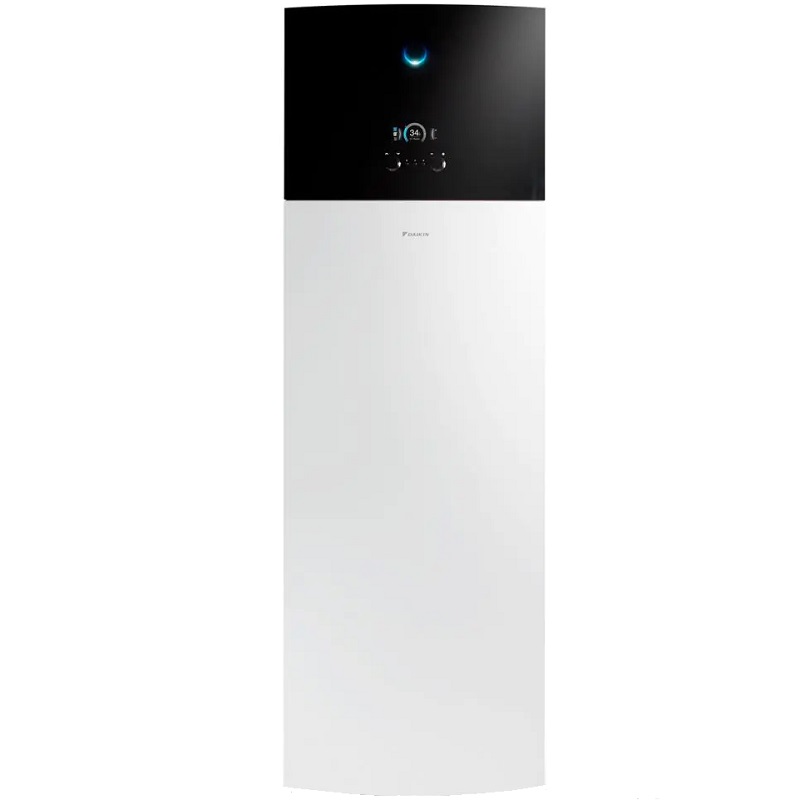

Integrated indoor unit (ETVX16S23D6V / ETVX16S23E6V): Floor-standing column that integrates the hydraulic module (hydrokit) and the 230-liter hot water tank, minimizing the required floor space.

Heating performance: Delivers a nominal output of approximately 7.9 kW to 10.3 kW depending on test temperatures, offering an excellent coefficient of performance (COP) of 4.57 to 4.7.
High temperature: Capable of producing heating water up to 70°C, making it ideal for replacing an older boiler while retaining traditional radiators.
Frost resistance: Ensures optimal operation and maintains the temperature. Heating down to extreme outdoor temperatures of -28°C
Maximum energy efficiency: Rated A+++ for low-temperature heating (35°C), guaranteeing controlled electricity bills
Green R32 refrigerant: Uses R32 refrigerant, which is more environmentally friendly thanks to a carbon footprint (GWP) reduced by two-thirds compared to older refrigerants

Technical specifications
Energy class (cooling): A+++
Heat pump type: Split system
All-in-one: Yes
Heat pump range: Altherma 3 Supra
Heat pump output: 14 kW
Connection: Hydraulic
Electrical wiring: Single-phase: 230 V – 50 Hz
Energy class (cooling/heating): A+++ (35°C) | A++ (55°C)
Cooling capacity: 6.9 kW (5,934 BTU/h)
Heating capacity: 7.92 kW (6,811 kcal/h)
SEER / SCOP: 4.13 / 4.81 – 3.63
Maximum domestic hot water temperature: 70 °C
Operating range in heating mode: down to -28 °C
Refrigerant type: R-32 (4.2 kg – GWP 675)
Inverter technology: Yes (scroll compressor)

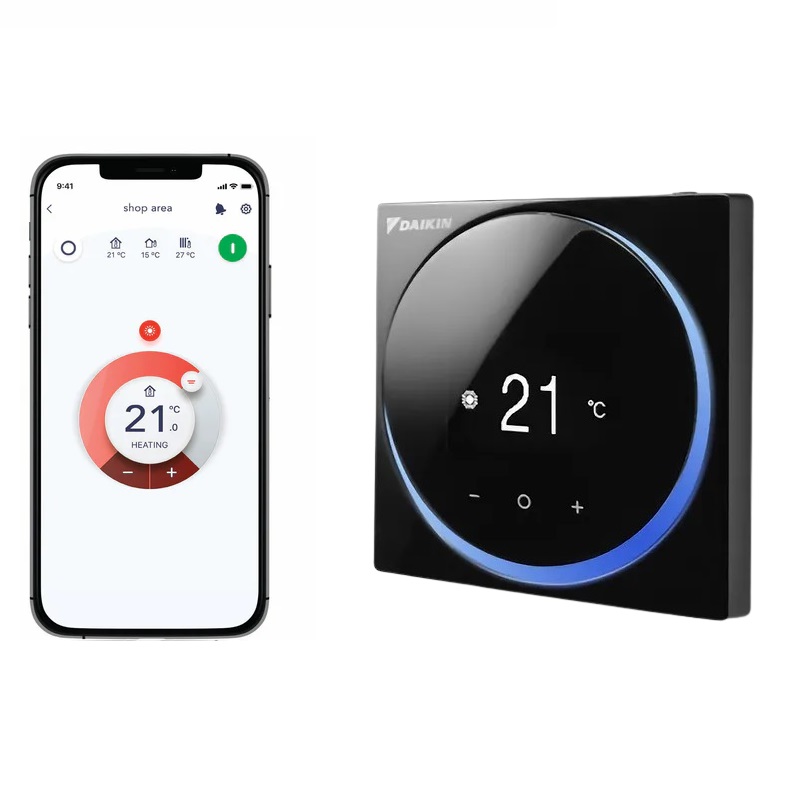

Wi-Fi connectivity: Yes
Indoor noise level: 30 dB(A)
Outdoor noise level: 43 dB(A)
Auxiliary heating element: 6 kW (two levels)
Dimensions (H x W x D): 1650 x 595 x 625 mm
Indoor unit weight: 139 kg
Outdoor unit dimensions (H x W x D): 990 x 1270 x 460 mm
Weight of outdoor unit: 170 kg
