Daikin Altherma 3 LAVX1623DV 16.0 kW Air-to-Water Heat Pump. Split System. 230 L (230V) R32

Daikin Altherma 3 LAVX1623DV 16.0 kW Air-to-Water Heat Pump. Split System. 230 L (230V) R32

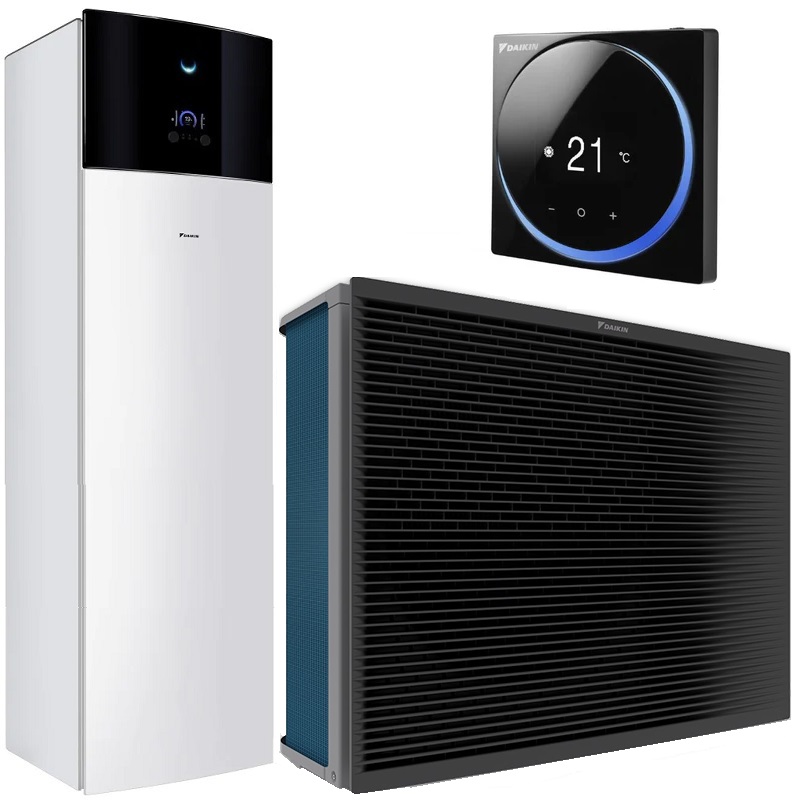

The Daikin Altherma 3 LAVX1623DV split air-to-water heat pump, with an integrated 230-liter storage tank, is designed for heating, cooling, and domestic hot water production in large homes or those with high energy consumption. With a 16 kW output, it consists of the ERLA16DV3 outdoor unit and the EBVX16S23D9W indoor unit. It uses R32 refrigerant (3.8 kg, GWP 675) and a Daikin Swing Inverter compressor, offering a SCOP of 4.72 (A+++ class at 35°C) and 3.27 (A++ class at 55°C), guaranteeing maximum energy efficiency.

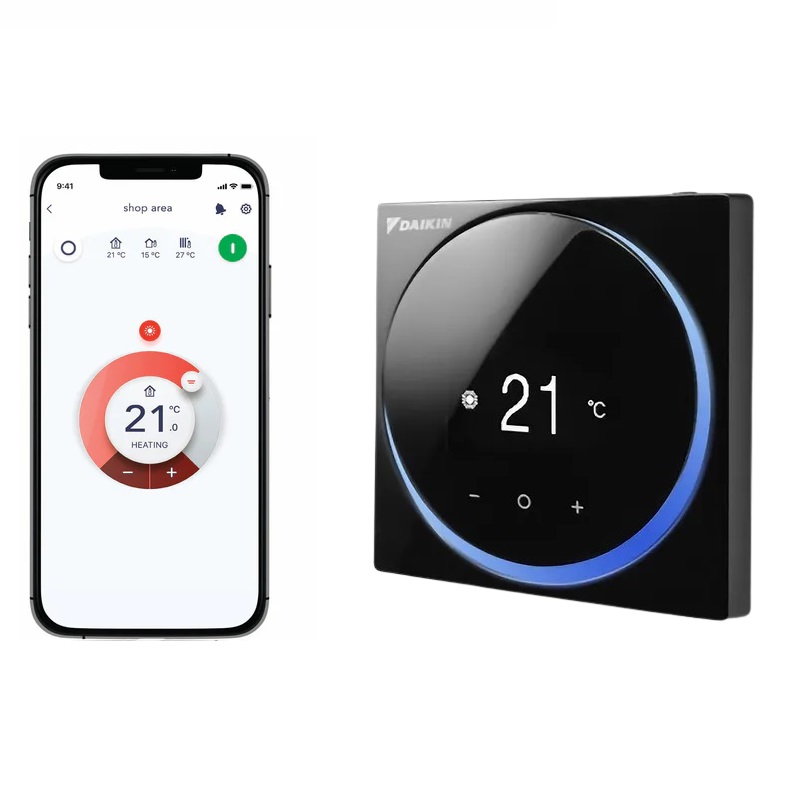

This model produces hot water up to 60°C in heat pump-only mode and up to 75°C with a 9 kW, 3-level electric heating element. It can operate in extreme conditions down to -25°C in heating mode. Regarding noise levels, it operates at 28 dB(A) for the indoor unit and 62 dB(A) for the outdoor unit, making it suitable for both residential and commercial installations. Its advanced features include integrated Wi-Fi control, automatic defrosting, and an intelligent management system that regulates operation for optimal comfort at all times.

This system is ideal for large detached houses, villas, or commercial premises seeking a robust, comprehensive, and high-performance appliance. It uses the more efficient and environmentally friendly R-32 refrigerant and is equipped with a Swing compressor featuring Inverter technology, ensuring stable, quiet, and long-lasting operation. In addition, the indoor unit is equipped with a 6 kW electric backup heater, ensuring optimal comfort even in extreme weather.

Technical Specifications

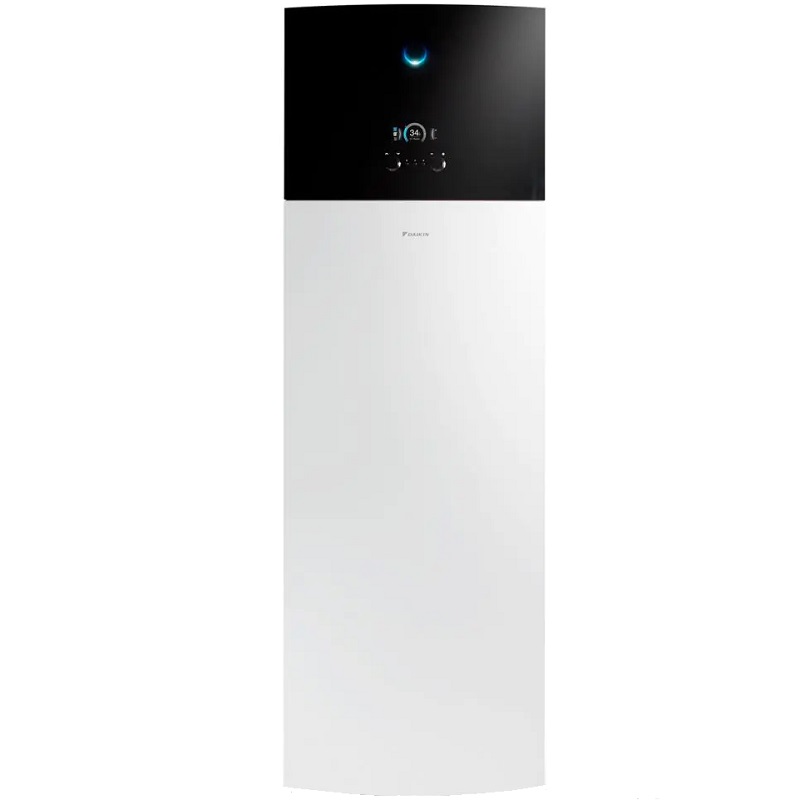

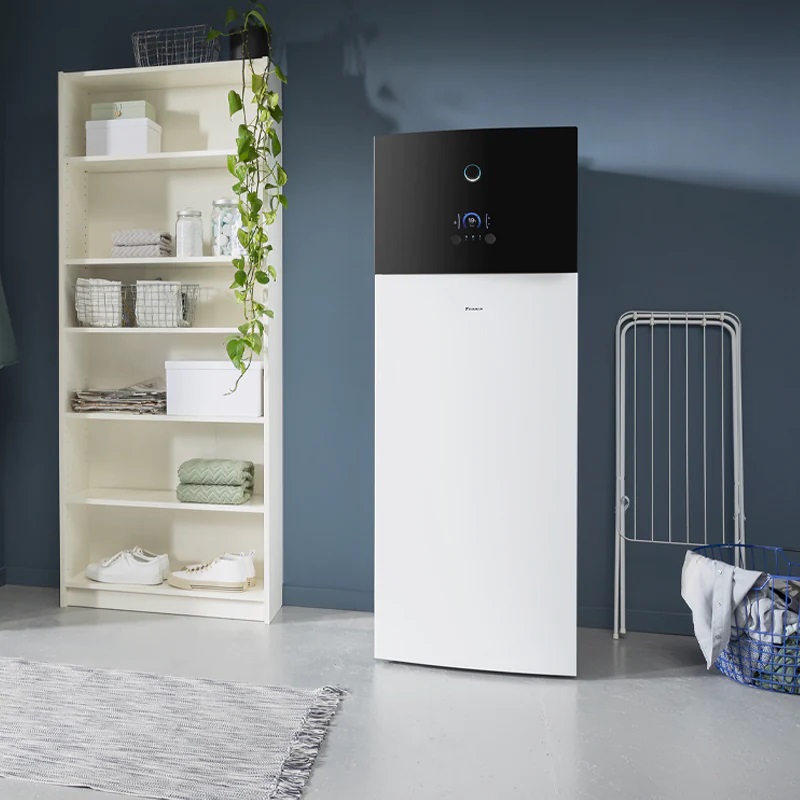

Indoor Unit EBVX16S23D6V
Domestic Hot Water (DHW) Tank Volume: 230 liters
Tank Material: Stainless steel (EN 1.4521) with polyurethane foam insulation
Heat Loss: Approximately 1.4 kWh/24 h for the 230-liter version
Maximum DHW Pressure: 10 bar
Maximum DHW Temperature: 70 °C
Integrated Expansion Vessel: 10 liters
Refrigerant Connection Diameters (Indoor Unit): Liquid Ø 9.5 mm; Gas Ø 15.9 mm
Water Supply Temperature Range: Typically 15 to 60 °C (depending on the product range catalog).

Dimensions (H x W x D): 1855 x 595 x 634 mm
Indoor unit weight: 117 kg

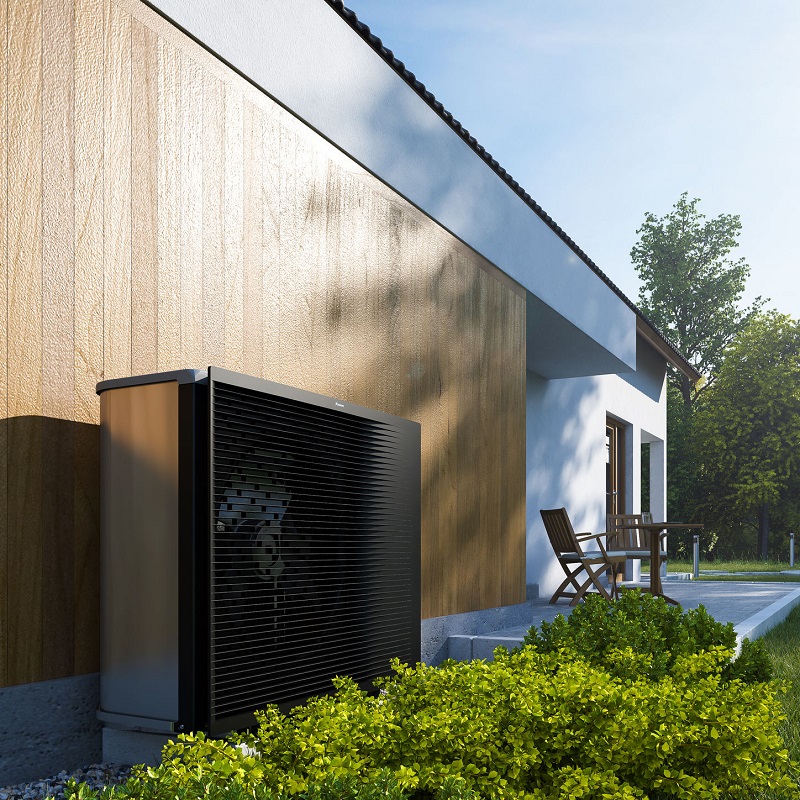

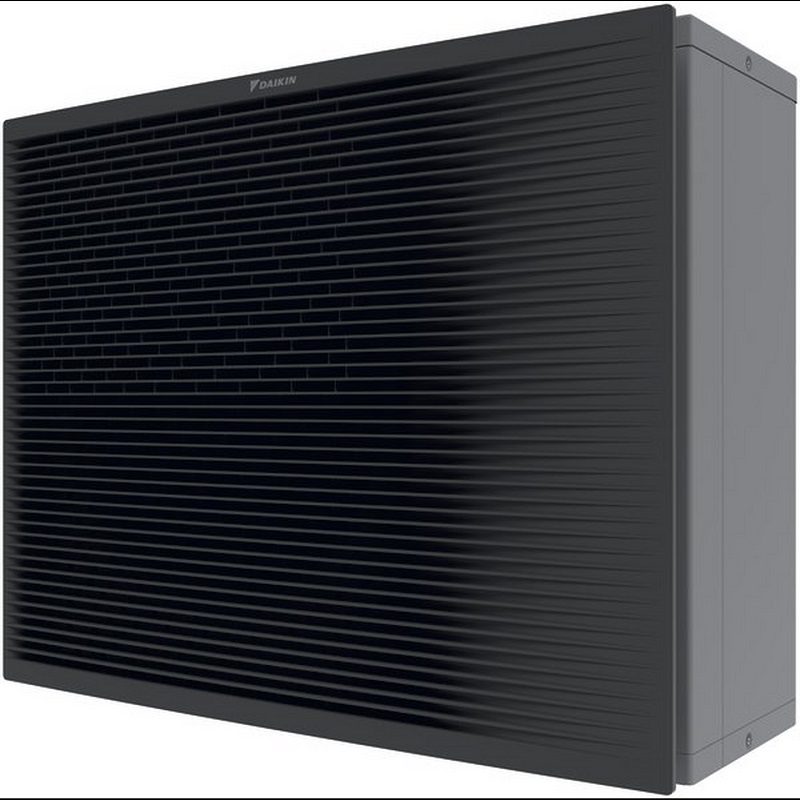

Outdoor unit ERLA16DV37
Model: ERLA16DV37, part of the ERLA-DV series
Outdoor operating temperature range: down to -25 °C in heating mode
Refrigerant connections: gas Ø 15.9 mm; liquid Ø 9.5 mm
Sound level: approximately 62 dB(A) (typical value for the series)
Dimensions (H x W x D): 870 × 1100 × 460 mm
Weight: 101 kg
