Daikin Altherma 3 GAVV823EV 8.0 kW Air-to-Water Split Heat Pump. 230 L (230V) R32

Daikin Altherma 3 GAVV823EV 8.0 kW Air-to-Water Split Heat Pump. 230 L (230V) R32

The Daikin Altherma 3 GAVV823EV system is a split-type air-to-water heat pump with an integrated 230-liter domestic hot water (DHW) tank. Offering a nominal power of 8.0 kW, this single-phase (230V) system uses the eco-efficient R32 refrigerant to ensure high performance in heating, cooling, and hot water production.

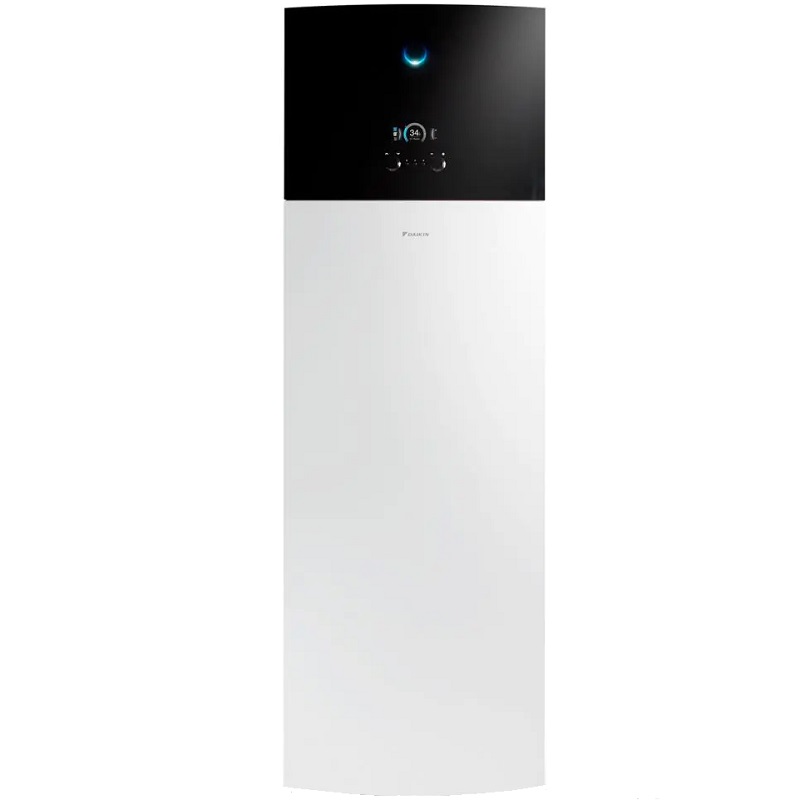

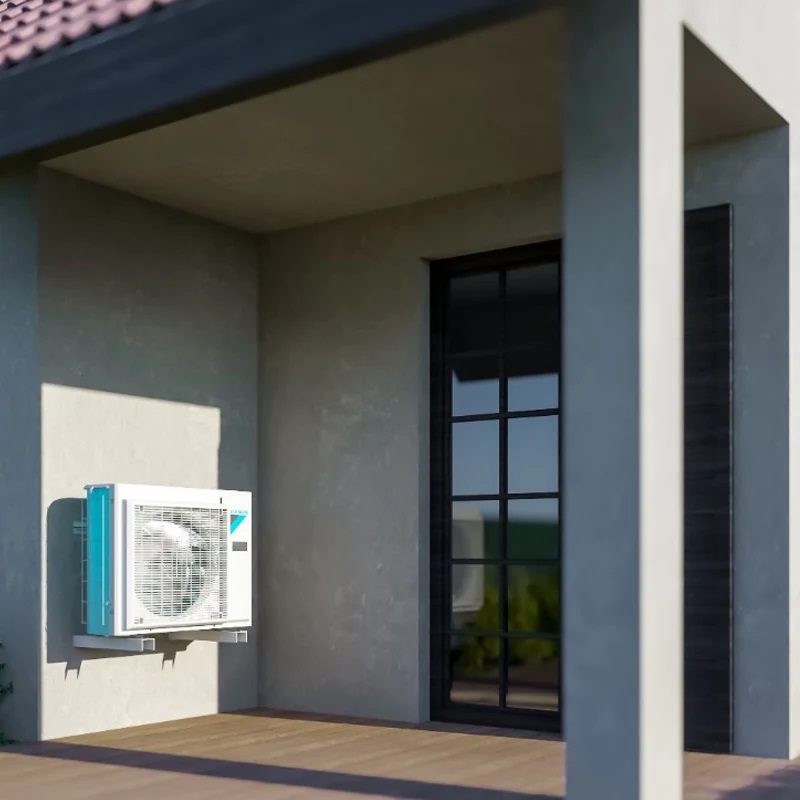

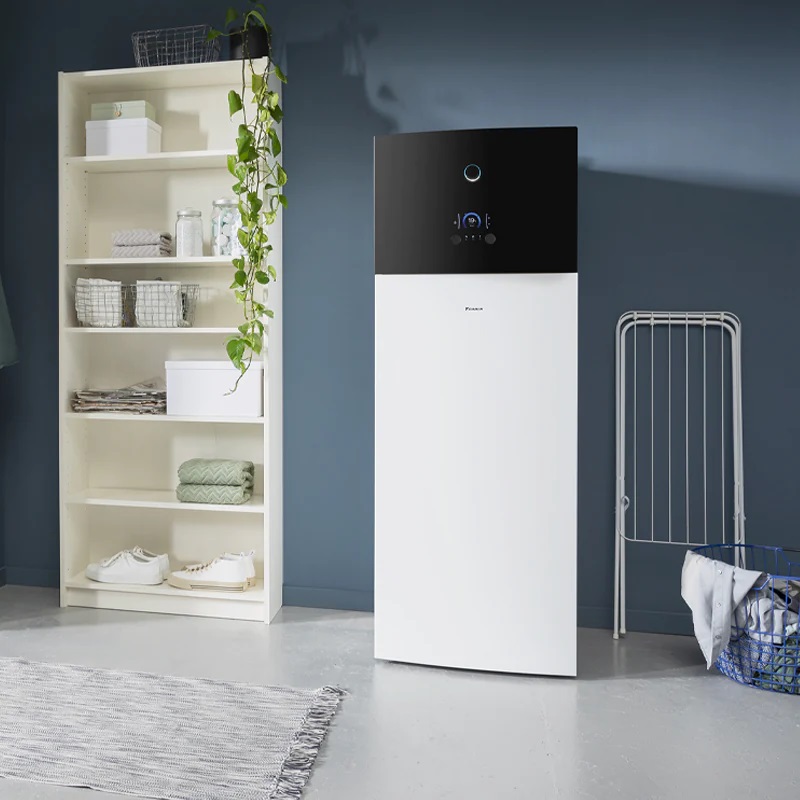

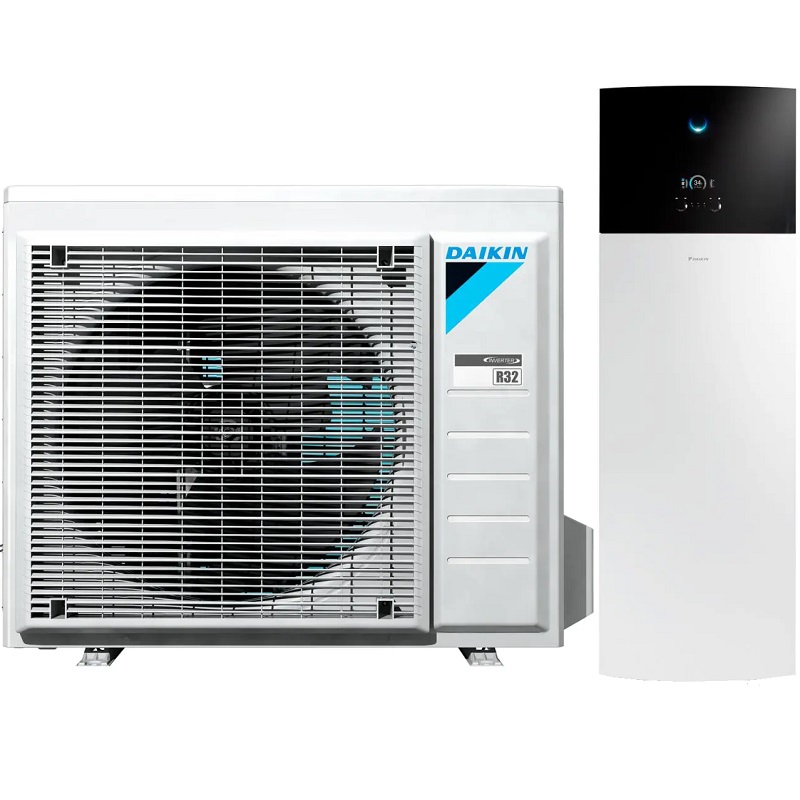

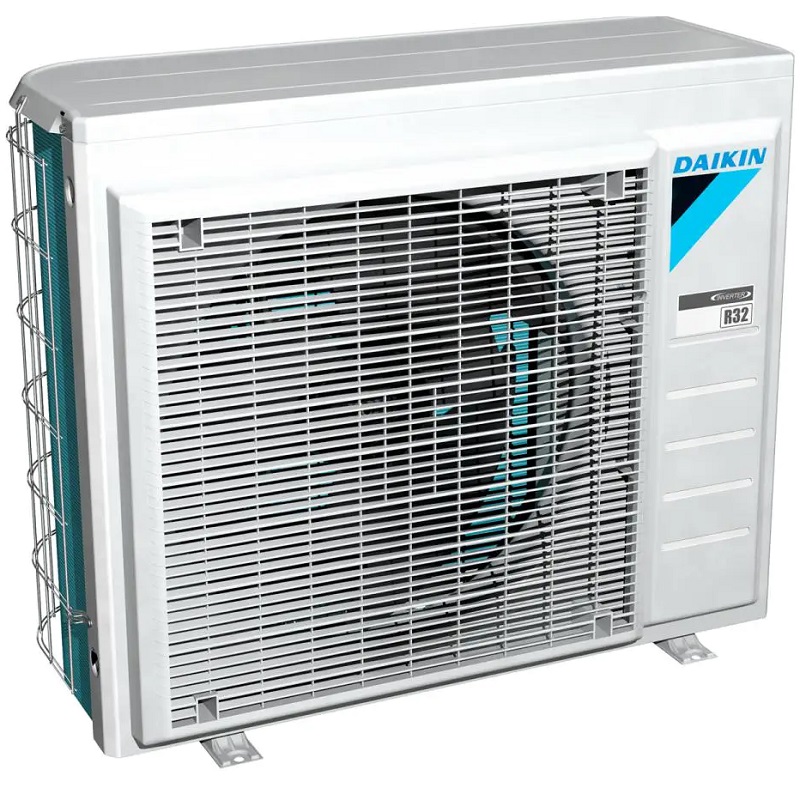

This complete package consists of two main components: Outdoor unit (ERGA08EVH): It captures heat from the outside air, even in very cold weather. Indoor floor-standing unit (EHVX08S23E6V): Commonly called a "Hydrokit," it integrates a 230-liter stainless steel tank for domestic hot water management.
Energy efficiency: Energy class up to A+++ in heating at low temperature (35°C) and A++ at medium temperature (55°C), maximizing savings on your electricity bill.
Inverter technology: Equipped with a Daikin Swing compressor, the unit constantly adapts its power to actual needs to reduce consumption.
All-in-one comfort: Reversible system ensuring the Heating in winter, cooling in summer, and domestic hot water year-round.

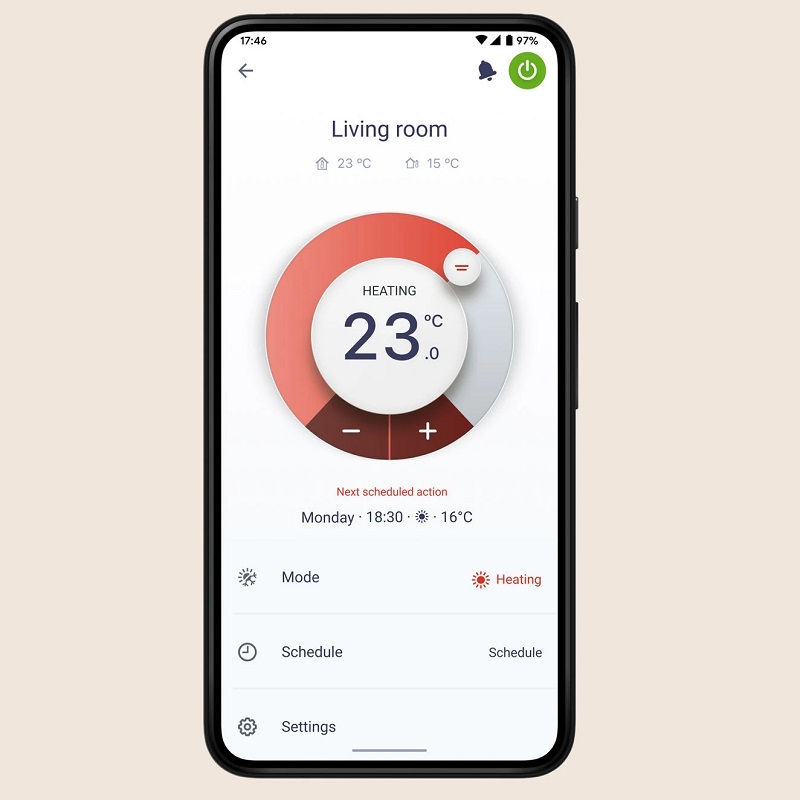

Smart Connectivity: Typically equipped with an included Wi-Fi card, enabling complete remote control via the Daikin Onecta app or voice control (Google Assistant / Amazon Alexa).

Technical Specifications
Flow Water Temperature: 5°C to 65°C without heating element
Maximum Heating Capacity (ambient 7°C / flow water 35°C): 7.74 kW
Maximum Power Consumption (ambient 7°C / flow water 35°C): 1.63 kW
Maximum Cooling Capacity (ambient 35°C / flow water 18°C): 7.45 kW
Maximum Power Consumption (ambient 35°C / flow water 18°C): 1.54 kW
COP / EER: 4.85 / 5.61
Airflow: 2,520 m³/h
Refrigerant R32: 1.5 / 1.01 / 675.0 kg / TCO₂eq / GWP
Compressor: SWING
Sound power level: 60 dB(A)
Refrigerant connection: ø 1/4” - ø 5/8”
Coolant lines L max. (d) / Maximum Slope (h): 3 < d < 30 / h < 30
Refrigerant Precharge: 10 meters
Power Supply: 230 V (single-phase)
Energy Efficiency Class 55 °C / SCOP: A++ / 3.28
Energy Efficiency Class 35 °C / SCOP: A+++ / 4.52
Indoor Unit EHV08S23E6V (HYDROKIT + Storage Tank)
Storage Tank Volume: 230 liters
Heating Time: 1 hour 40 minutes
Auxiliary Heating Element 3 kW or 6 kW (2+2+2): I / 230 V - 6 kW
Sound Pressure Level (Cooling/Heating): 28 dB(A)
Color: White
Load Profile: XL
Energy Efficiency Class: A+
Dimensions (H x W x D): 1850 x 595 x 625 mm
Weight: 139 kg
Outdoor unit dimensions (H x W x D): 740 x 884 x 388 mm
Weight: 58.5 kg
