Daikin ALTHERMA 3 EBLA14D3V3 14.0 kW Air Source Heat Pump. Monoblock (230V) R32

Daikin ALTHERMA 3 EBLA14D3V3 14.0 kW Air Source Heat Pump. Monoblock (230V) R32

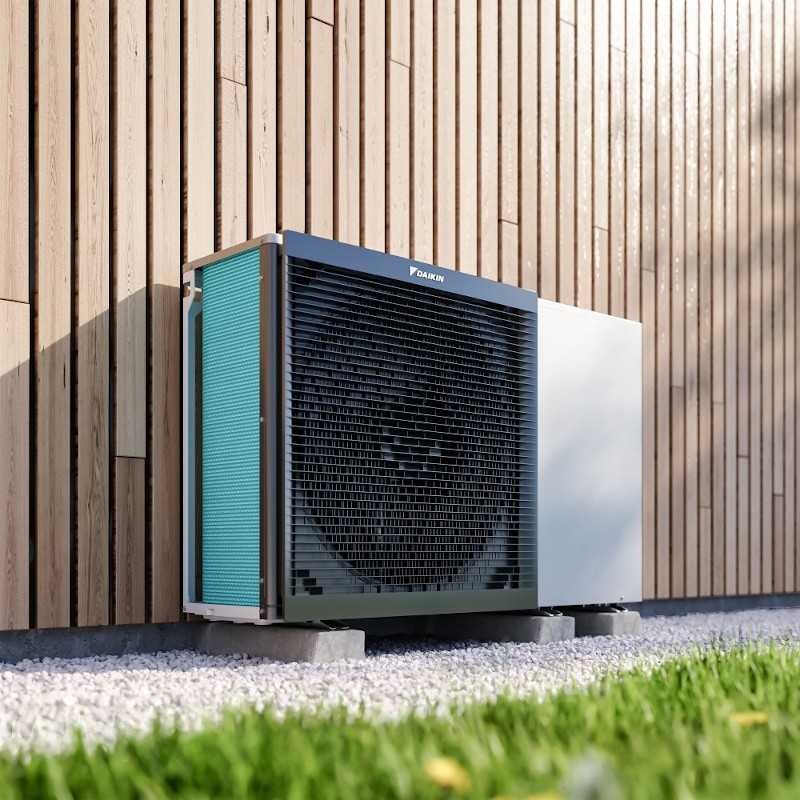

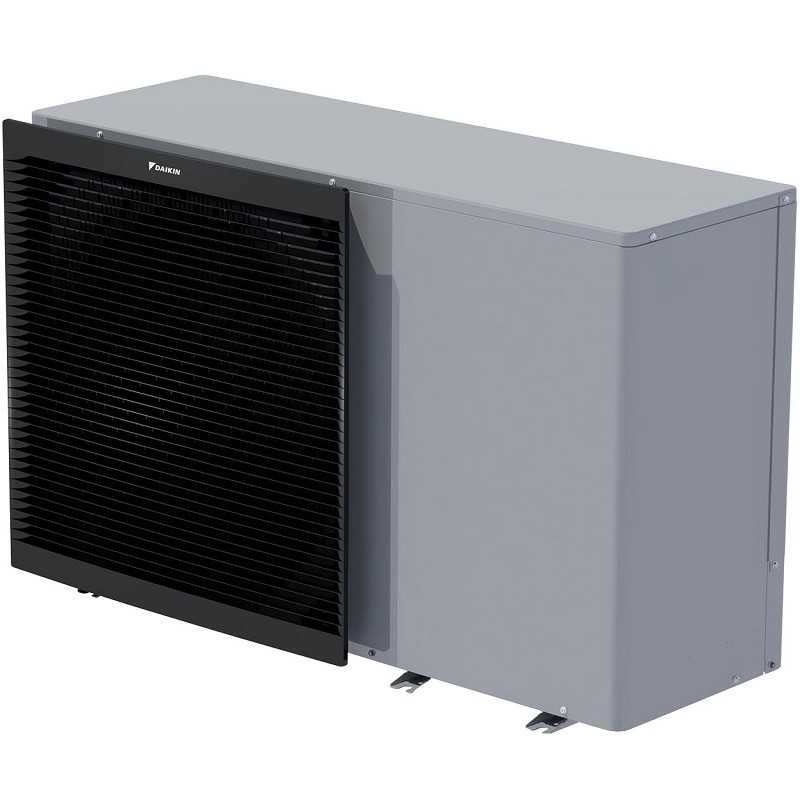

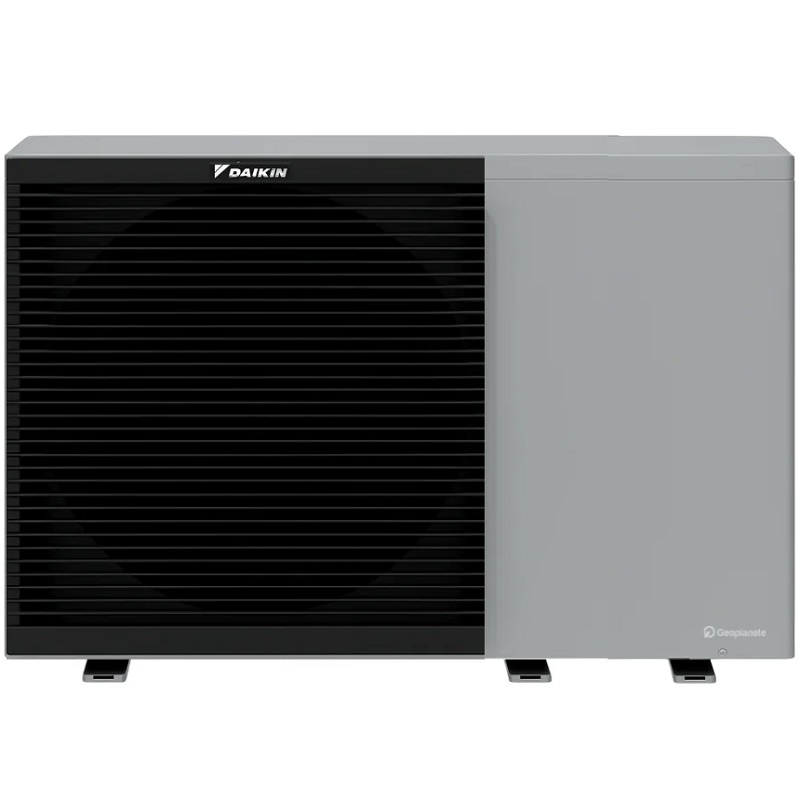

The Daikin Altherma 3 EBLA14D3V3 heat pump is the ideal solution for new construction or renovation projects. With its compact and discreet monoblock unit, it ensures exceptional performance and optimal energy efficiency, while reducing CO₂ emissions thanks to the use of R-32 refrigerant. This robust, quiet, and easy-to-install 14 kW Daikin heat pump is designed to provide superior thermal comfort, even in confined spaces.

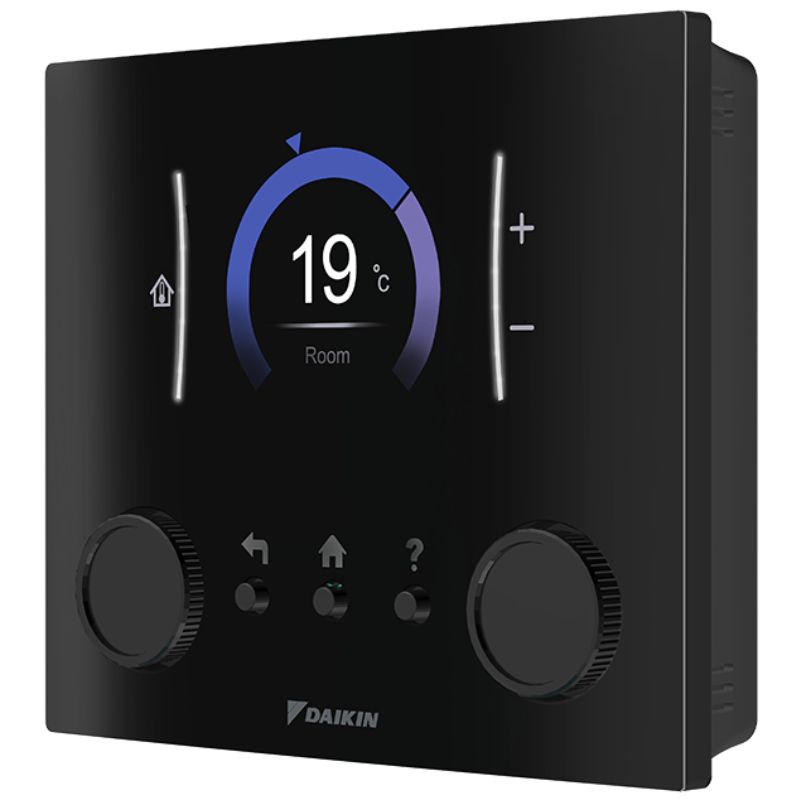

The heat pump comes with Daikin's intuitive MMI-2 control interface. By adding the optional WLAN card, the system becomes fully controllable remotely via the Daikin Onecta smartphone app. The system also allows for intelligent management of photovoltaic configurations to maximize self-consumption of green electricity. It also includes a 3.0 kW backup electric heater.

All-in-one monobloc design including hydraulic components
Wi-Fi cartridge connection (optional)
Can be connected to a domestic hot water heater
Energy-efficient heating and cooling system based on air-to-water heat pump technology
Separate backup heating kit
Onecta app (optional)
Control your indoor climate from anywhere via smartphone or tablet
Online controller
Manage your indoor unit from anywhere via smartphone, laptop, PC, tablet, or touchscreen

Technical Specifications
Heating Capacity: Nominal heating capacity of 12.5 kW to 13.7 kW depending on climatic and emitter conditions (A7/W35)
It also includes a 3.0 kW backup electric heater
Energy Performance: It has an A+++ rating for a water outlet at 35°C and A++ at 55°C, with a SCOP (Seasonal Coefficient of Performance) that can reach 4.82 to 6.03 depending on your zone configuration.
Temperature range: Ensures a water outlet temperature of up to 60°C, making it perfectly compatible with underfloor heating or low-temperature radiators.

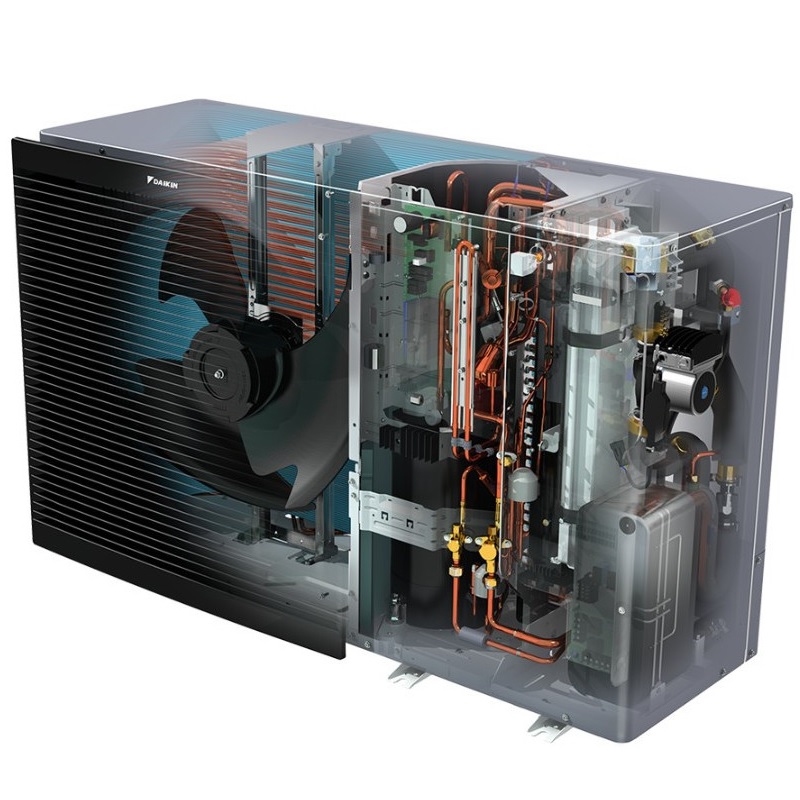

Exterior Monobloc Technology: The compressor and refrigerant circuit remain confined outside.
Only insulated water pipes enter the building, eliminating the risk of handling refrigerant inside.
Acoustics and Design: Its gray casing with a black front grille incorporates a single, oversized fan with profiled blades.
This design optimizes air circulation while reducing perceived noise (nominal sound pressure level of 62 dBA at maximum power).
Operating limits: It efficiently extracts heat from the air even in harsh climates, operating in heating mode down to -25°C outside.
Power: 12.5 kW / 42,000 BTU
Nominal heating capacity A7/W35: 12 kW - A7/W45: 12.5 kW
Operating mode: Heating only
Refrigerant: R32
Voltage: Single-phase
Energy efficiency class (water at 35°C): A+++
Energy efficiency class (water at 55°C): A++
SCOP – Water outlet at 35°C: 6.03
SCOP – Water outlet at 55°C: 4.28
Minimum sound pressure level: 55 dB(A)
Dimensions (H x W x D): 870 x 1380 x 460 mm
Weight: 147 kg
