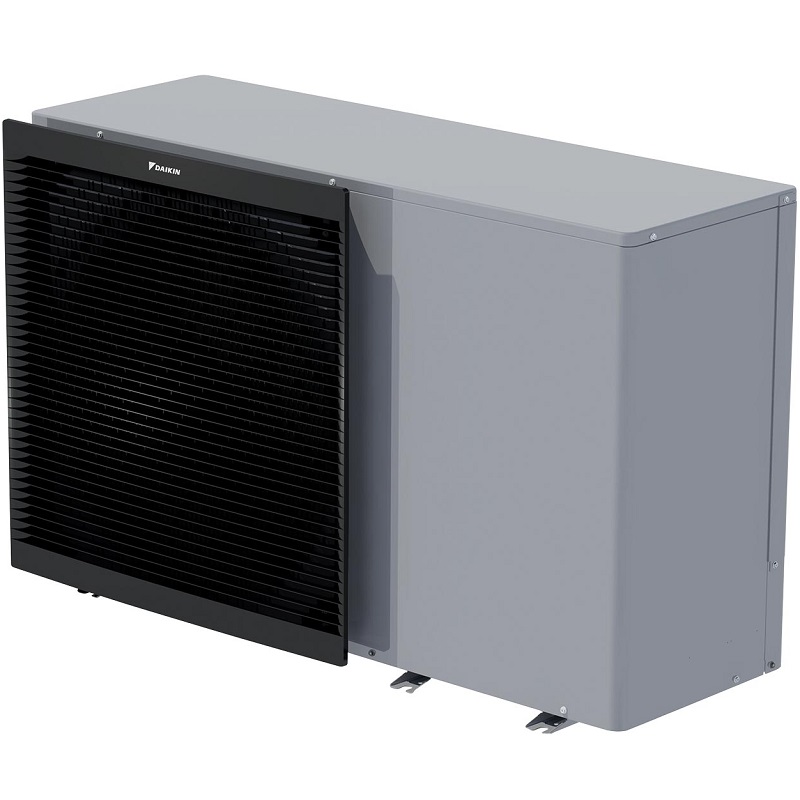

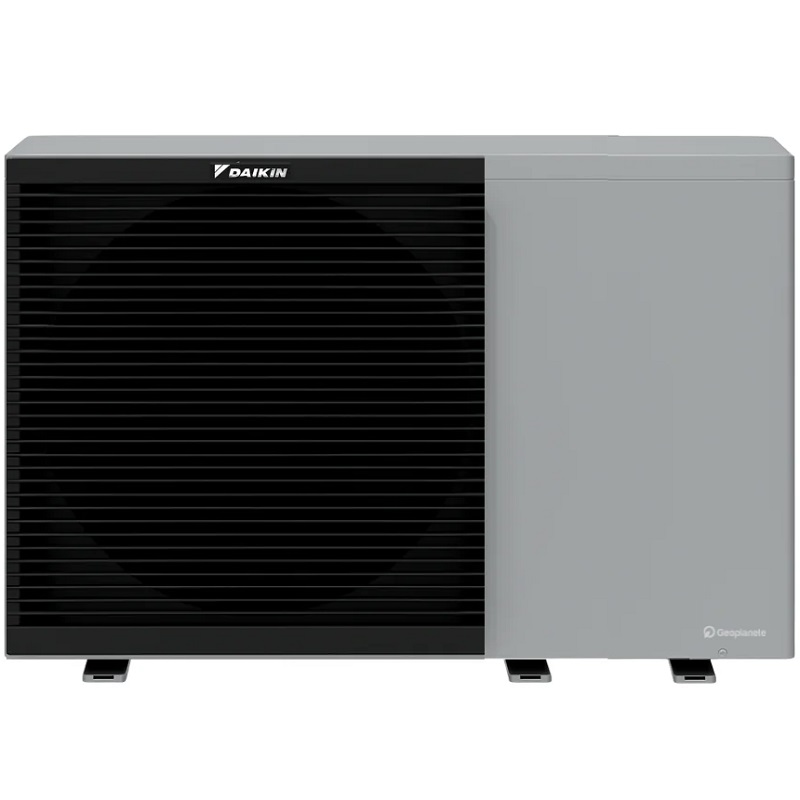

Daikin Altherma 3 EBLA11D3V3 11.0 kW Air-to-Air Heat Pump. Monoblock (230V) R32
The Daikin Altherma 3 EBLA11D3V3 heat pump is the ideal solution for new construction or renovation projects. With its compact and discreet monoblock unit, it ensures exceptional performance and optimal energy efficiency, while reducing CO₂ emissions thanks to the use of R-32 refrigerant. The robust, quiet, and easy-to-install Daikin 11 kW heat pump is designed to provide superior thermal comfort, even in small spaces.
All-in-one monobloc design including hydraulic components
Wi-Fi cartridge connection (optional)
Can be connected to a domestic hot water heater
Energy-efficient heating and cooling system based on air-to-water heat pump technology
Separate auxiliary heating kit
Onecta app (optional)
Control your indoor climate from anywhere via smartphone or tablet

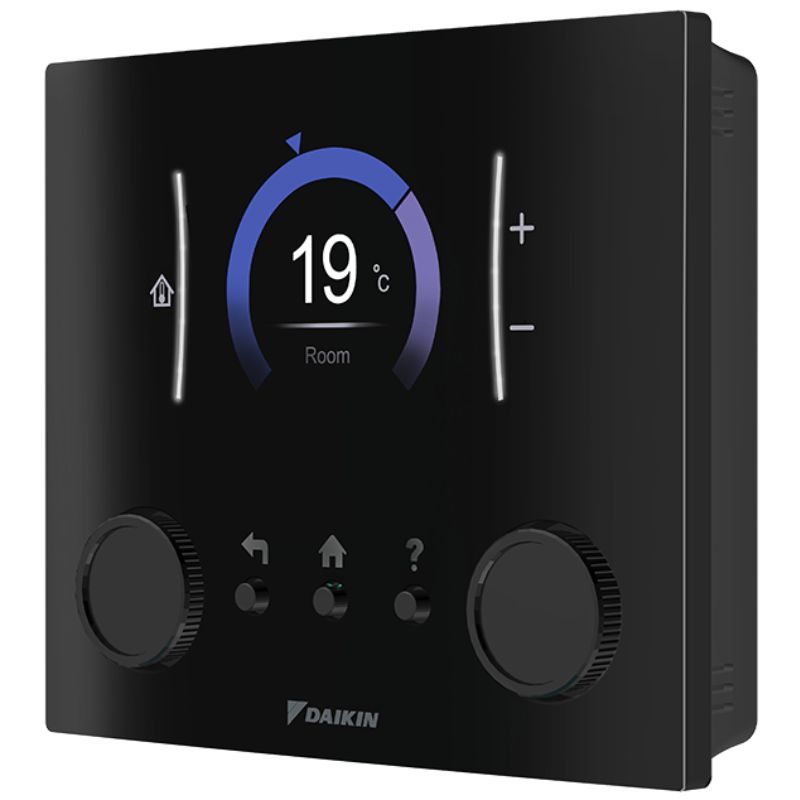

Online controller
Manage your indoor unit from anywhere via smartphone, laptop, PC, tablet, or touchscreen
Technical Specifications
Nominal output: 11 kW (Maximum heating capacity: 12.3 kW / Maximum cooling capacity: 18.3 kW)
Energy Efficiency: Rated A+++ at low temperature (water outlet at 35°C). COP (Coefficient of Performance) Performance): Up to 4.83 (according to regulatory conditions A7/W35)
Reversible Technology: Provides heating in winter and cooling in summer
Electric Backup: Integrated 3 kW backup heating element for guaranteed comfort in very cold weather
Water Outlet Temperature: Delivers water up to 60°C, ideal for underfloor heating or low/medium temperature radiators
Operating Mode: Heating only
Refrigerant: R32
Voltage: Single-phase
Energy Class Water 35°C: A+++
Energy Class Water 55°C: A++
SCOP - Water Outlet 35°C: 6
SCOP - Water Outlet 55°C: 4.2
Sound Pressure Level (minimum): 55+ dB(A)
Dimensions
Height: 870 mm
Width: 1380 mm
Depth: 460 mm mm
Weight: 149 kg
