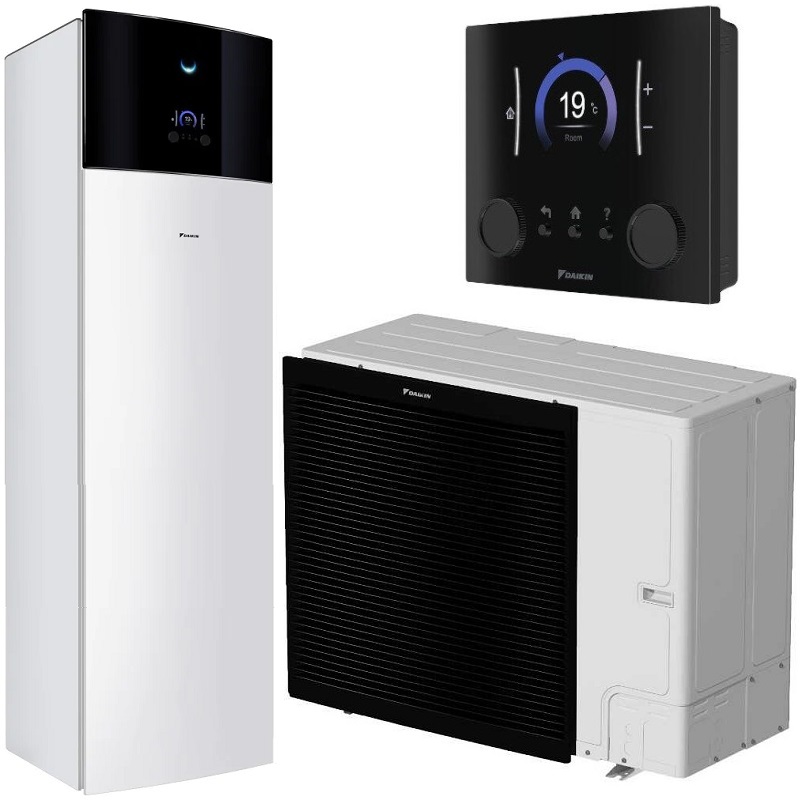

Daikin ALT.3 LAVX1623DV 16.0 kW Air-to-Air Heat Pump. Split System. 230 L (230V) R32
Please sign in so that we can notify you about a reply
Daikin ALT.3 LAVX1623DV 16.0 kW Air-to-Air Heat Pump. Split System. 230 L (230V) R32
The Daikin Altherma 3 LAVX1623DV represents the pinnacle of the range, combining the maximum available output of the Erla16dv3 outdoor unit with the largest storage capacity of 230 liters in stainless steel. This system is designed for the most demanding installations requiring both maximum cooling capacity and abundant domestic hot water production.
Nominal heating capacity: 16 kW (typical value in standard configuration). Indoor unit EBVX16S23D6V: hydraulic module with a 230-liter domestic hot water (DHW) tank, including a circulator, expansion vessel, magnetic filter, and an auxiliary electric heating element with a maximum output of 6 kW. Domestic hot water tank: 230-liter capacity, stainless steel, maximum pressure of 10 bar, maximum DHW temperature: approximately 70°C.
Split probe system: refrigerator connection between units via R-32 Bluevolution
High energy efficiency: classification up to +++ (SCOP up to 6.3), reducing operating costs
Pulse temperature up to 60°C: ensures thermal comfort adapted to different needs

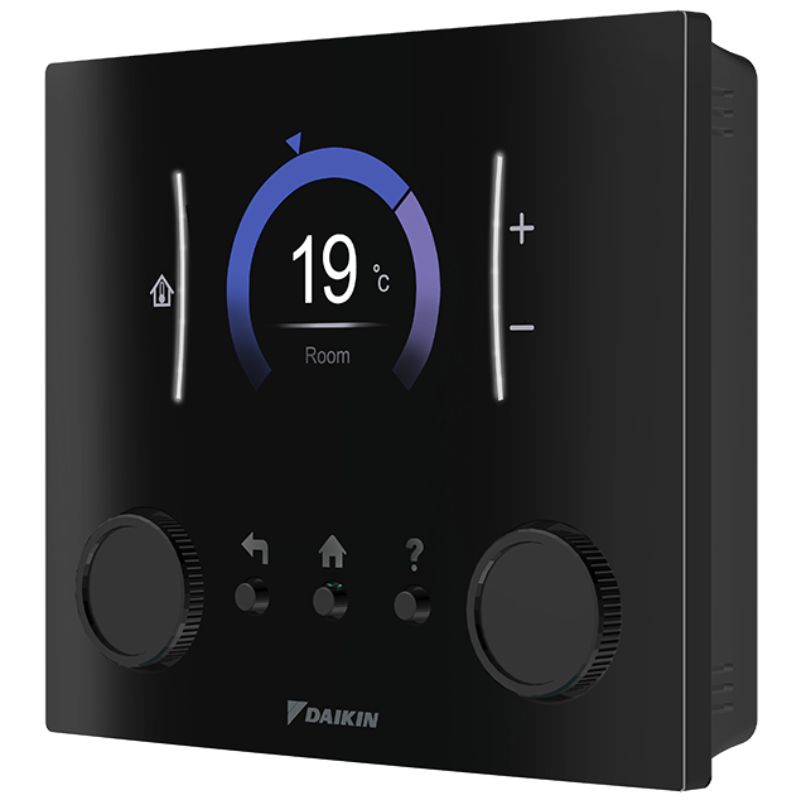

Integrated MMI-2 controller: equipped with the Daikin Eye sensor for intelligent monitoring
Compatibility with Madoka Controller (Optional): greater system customization
Remote control via Daikin UNTACA app: system access and configuration via WLAN card (optional)
Superior outdoor unit design: modern aesthetics with optimized thermal efficiency
Technical specifications
Voice control
Guaranteed operation down to -25°C
Model: Altherma 3 R
Material type: Stainless steel
Energy efficiency rating: A+++
Refrigerant: R32
Power supply: Three-phase
Storage capacity: 230 liters
Cooling capacity: 16 kW
Heating capacity: 18 kW
Pipe: 3/8" - 5/8"
Maximum length/height: 3/50 m

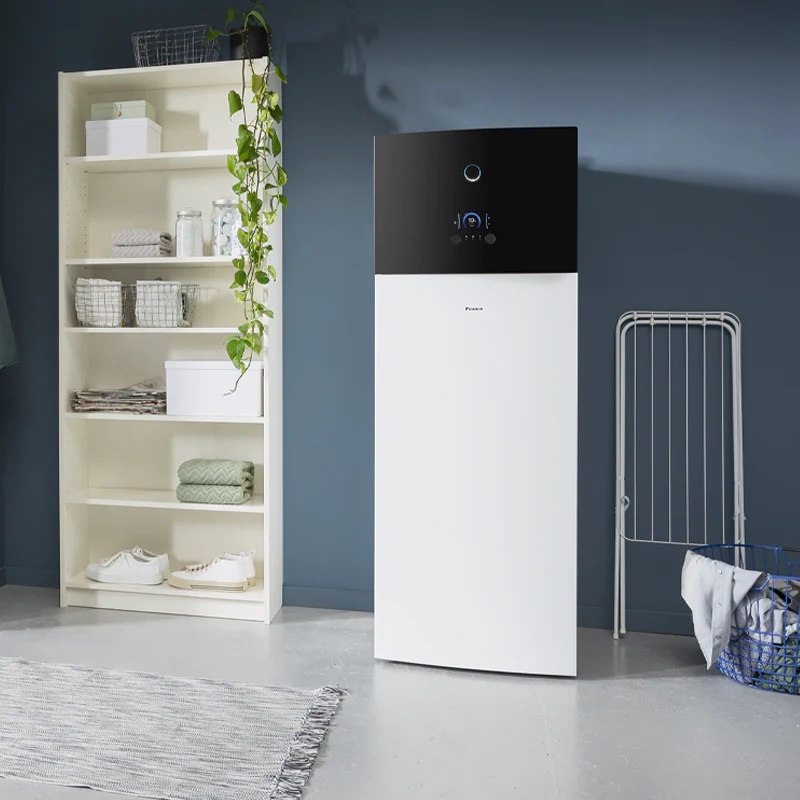

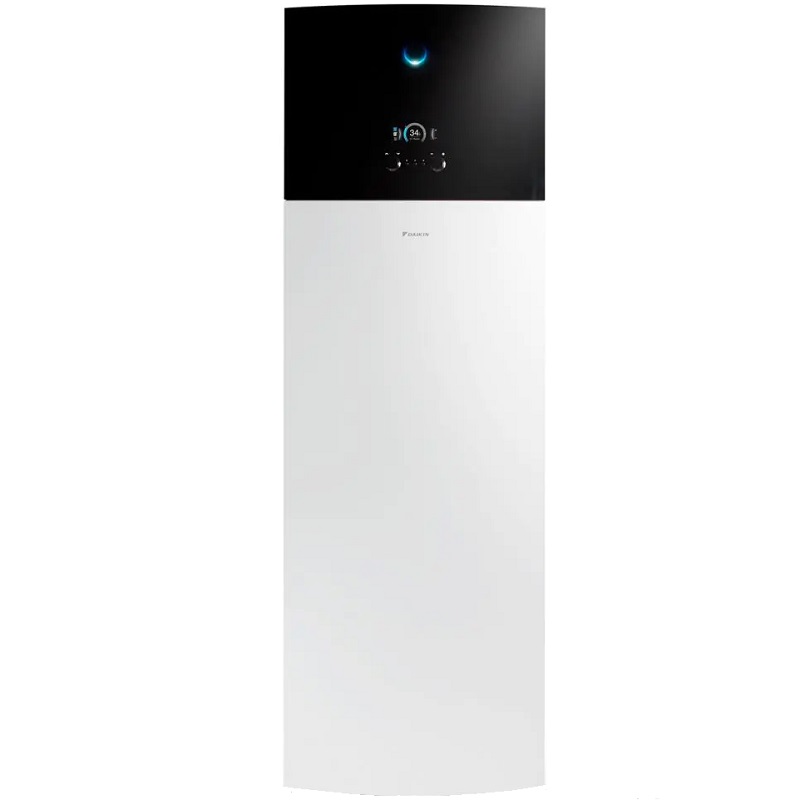

Indoor unit: EBVX16S23D6V
Indoor unit dimensions (H x W x D): 1850 x 595 x 625 mm
Indoor unit weight: 117 kg

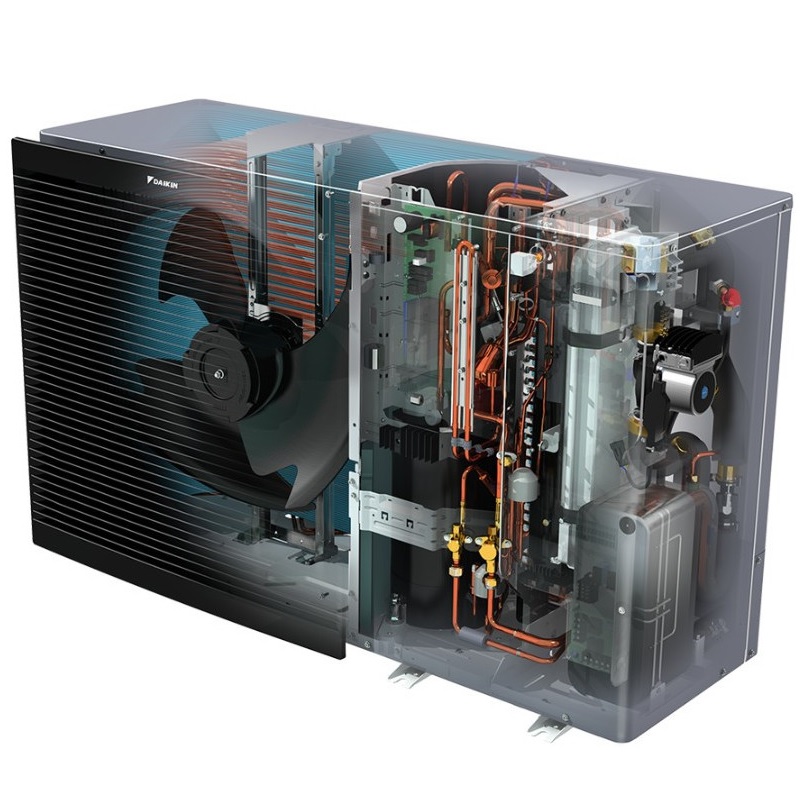

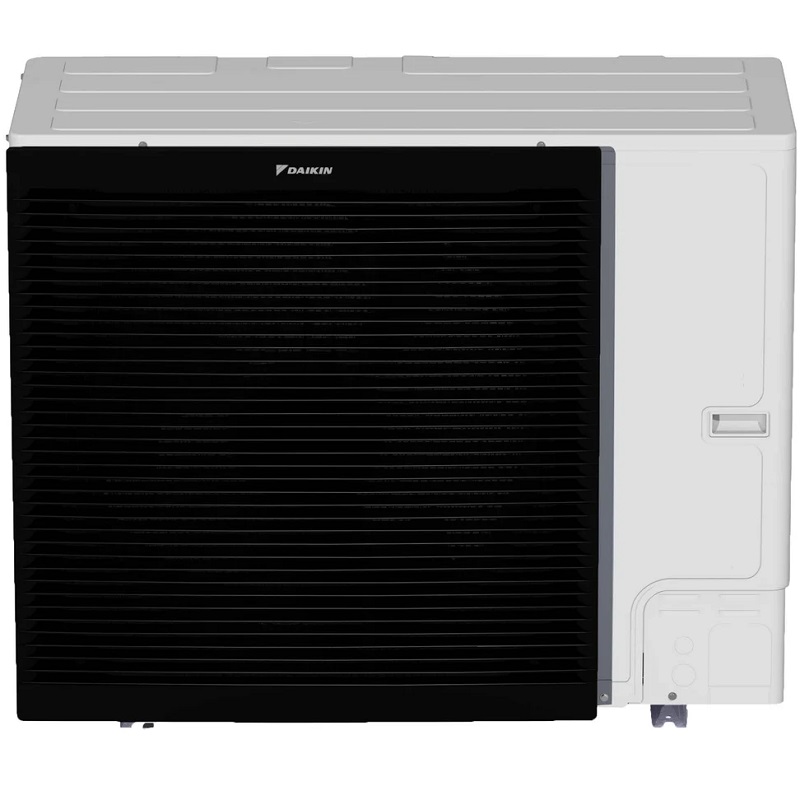

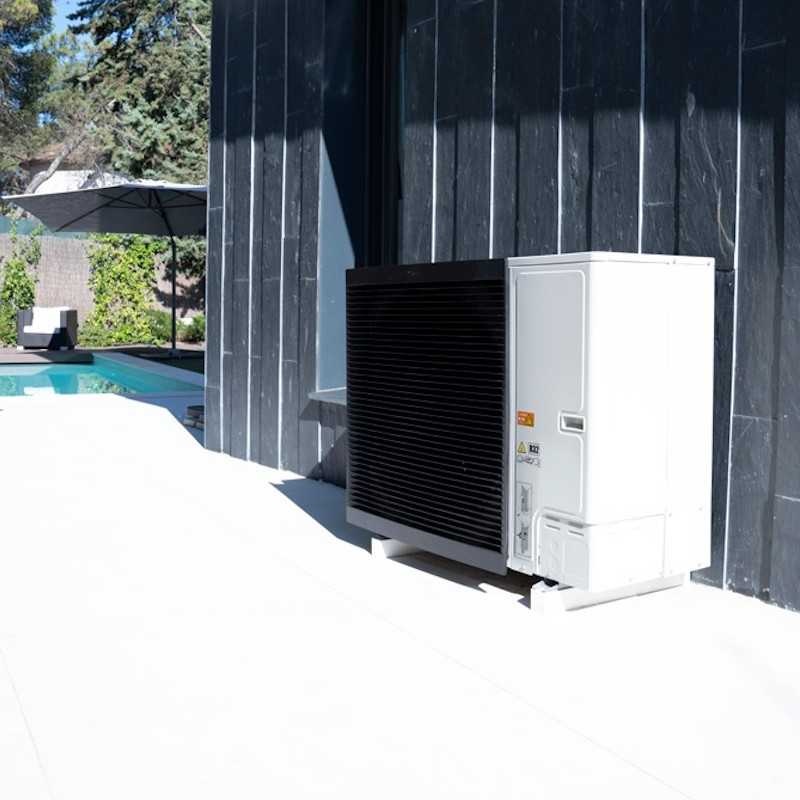

Outdoor unit: ERLA16DV3
Outdoor unit dimensions (H x W x D): 870 x 1100 x 460 mm
Outdoor unit weight: 118 kg
