Zodiac MS 950 Sand Filter

Zodiac MS 950 Sand Filter

The pool water circulates through the same closed loop several times a day for cleaning and purification. This constant movement prevents stagnation and avoids contamination by algae and bacteria. The pump is what drives the water movement, creating a current that allows the water to enter the skimmers before entering the filtration circuit and returning to the pool through the return jets.

The central component of the filtration system, the filter contains a filter medium (which can be sand, glass, textiles, or diatomaceous earth, depending on the filter type). As the water is filtered, dirt particles are trapped in this filter bed before the water is returned to the pool. The residue and impurities retained in the filter body are removed by backwashing the filter (drainage). An effective filtration system is essential for efficient water treatment.

The filter, the central component of the filtration system, contains filter media (which can be sand, glass, a cartridge, or another material depending on the filter type). Debris and impurities are trapped within the filter body. The filtration system's performance is indispensable for effective water treatment. The filter plays a crucial role in maintaining crystal-clear water suitable for swimming.

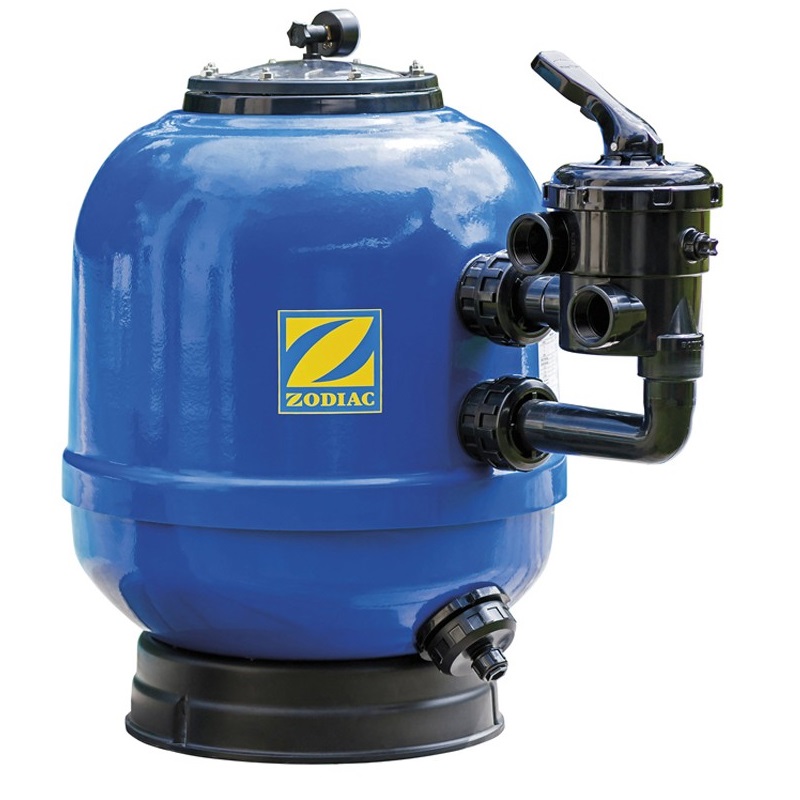

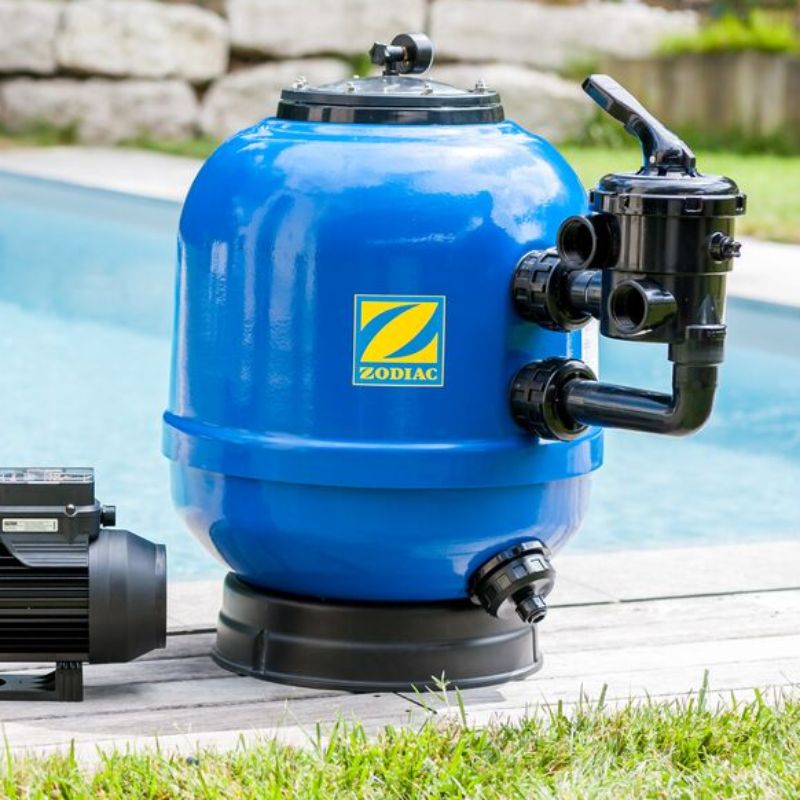

These efficient and durable fiberglass-reinforced polyester laminate filters are compatible with sand and crystal filter media (Crystal Clear). The fiberglass-reinforced polyester filter features a 6-way side valve, a transparent cover, a pressure gauge, and a drain. A drainage system for the filter is also included.

Features

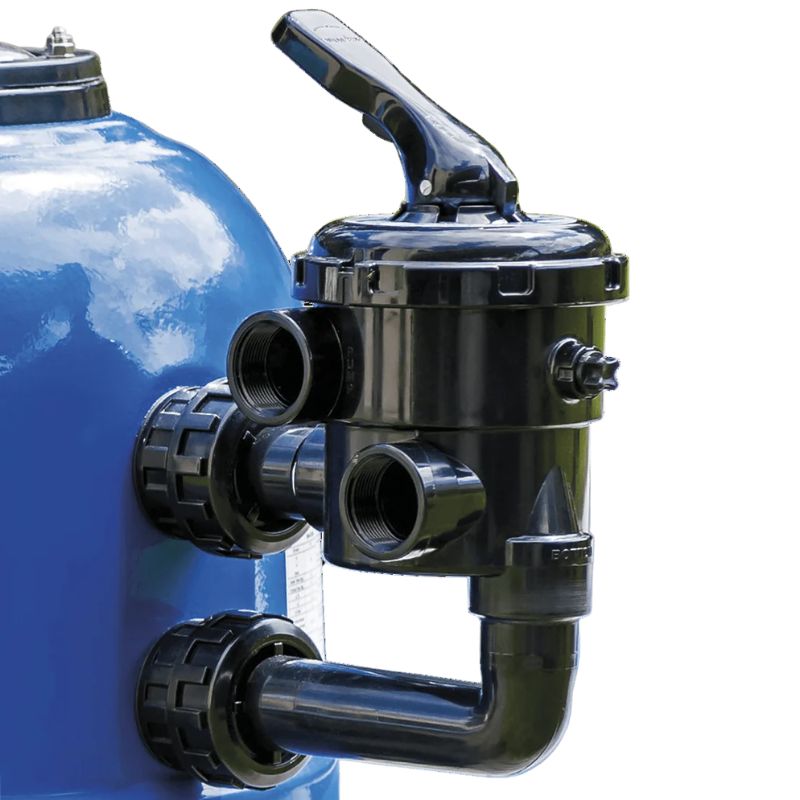

6-way selector valve (filter-backwash-rinse-drain-recirculate-closed)
Fiberglass-reinforced polyester resin body
Easy maintenance
Convenient pressure gauge
Warranty: 3 years; 10 years on the body

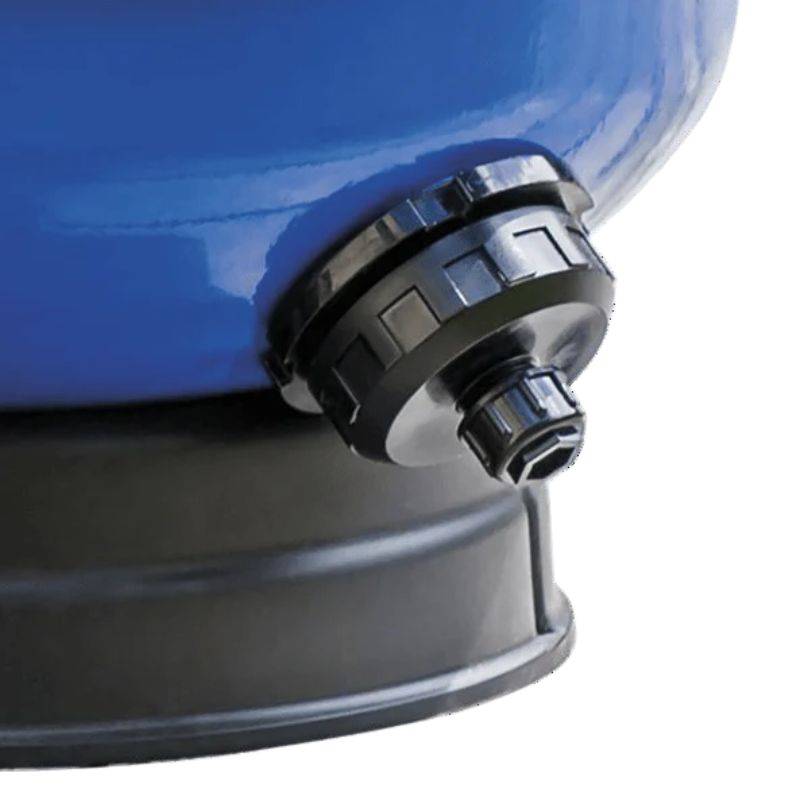

Drain plug, maximum flow rate 30.0 m³/h
Threaded connection: 2"
Filtration area: 0.66 m²
Maximum pressure: 2.5 bar
Weight: 60 kg
Includes:
Zodiac MS 950 sand filter for swimming pools
Selector valve kit (with screws)
Pressure gauge and air purge kit
Hardware kit
Dimensions (L x W x H): 96 x 96 x 104 cm
Weight: 90 kg
