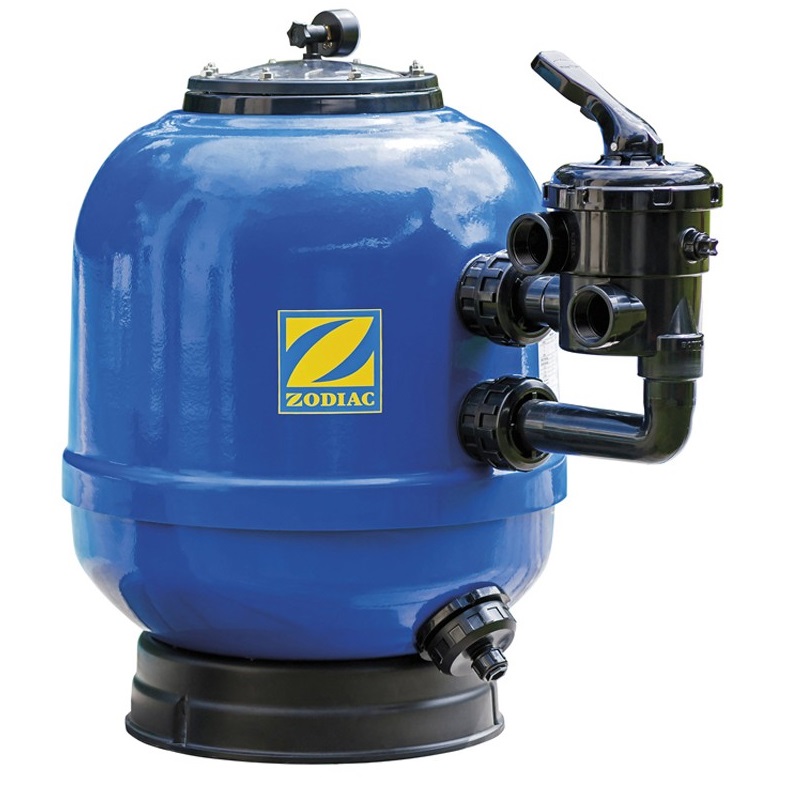

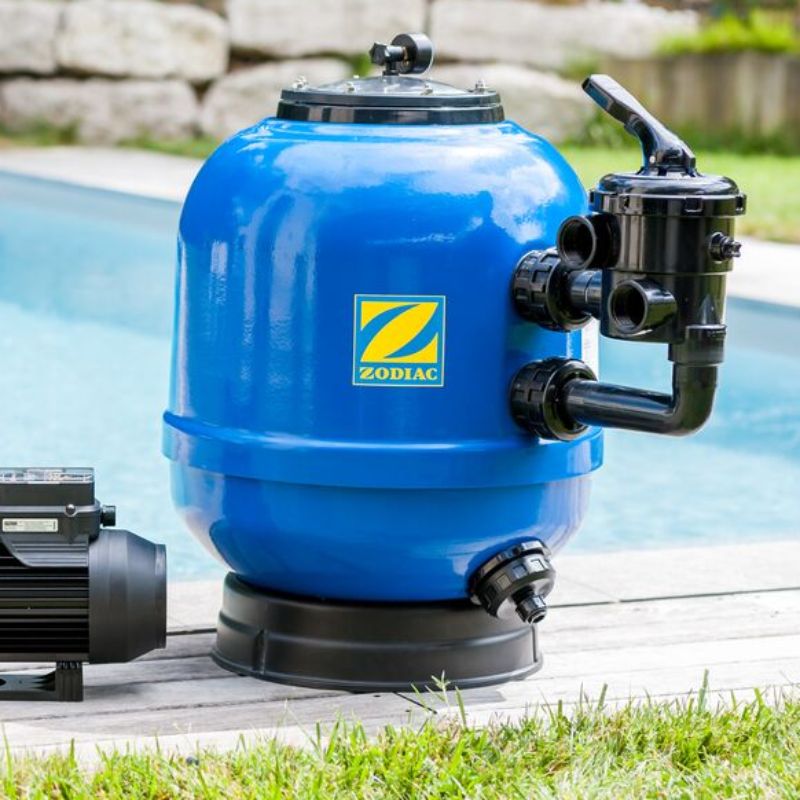

Zodiac 470 MM Sand Filter

Zodiac 470 MM Sand Filter

Durable high-density polyethylene tank protects against corrosion and weathering, ensuring increased longevity. A 6-position multiport valve facilitates use and maintenance (backwashing, rinsing, circulation, etc.) for simplified filtration management. An optimized top diffuser evenly distributes water over the sand, improving filtration efficiency and reducing pressure loss.

Large, stable base: Provides excellent stability and facilitates installation, even on uneven surfaces. Integrated pressure gauge: Allows for easy pressure monitoring and optimization of backwash cycles for consistent performance. Manual air purge: Eliminates trapped air from the filter, ensuring optimal operation and extending the filter media's lifespan. Compatibility with various sand types: Offers flexibility in filter media selection to suit your specific needs

Features
The MS 470 filter is a simple and durable sand or glass filter.
Tank Material
Fiberglass Reinforced Polyester
Multiport Valve

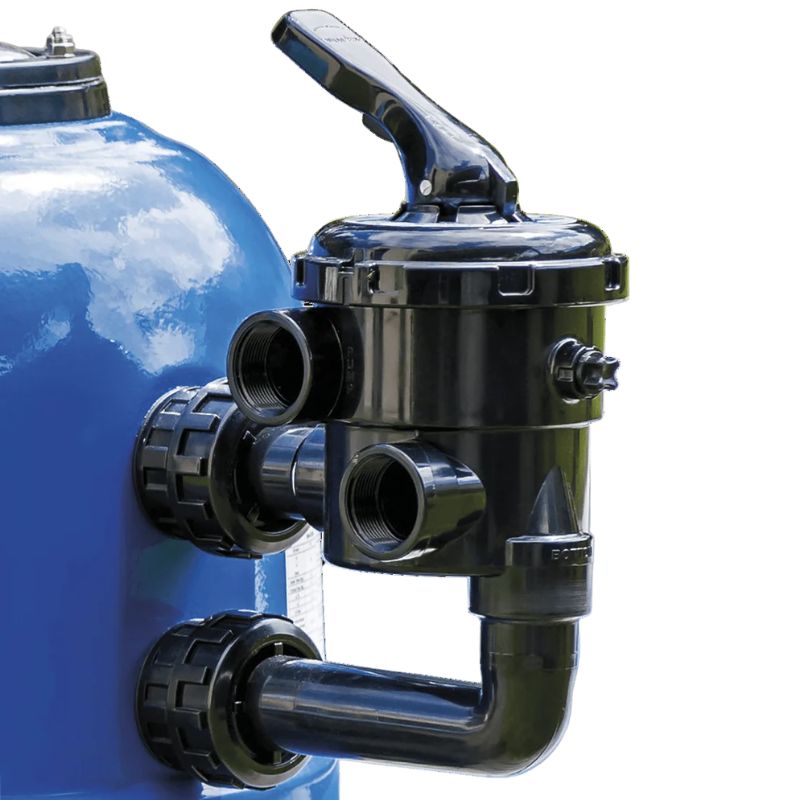

Side-mounted 6-way valve (filtration, backwash, rinse, drain, circulation, closed)
Pressure Gauge Position:
On the top cover using a T-shaped adapter screwed into the cover
Connections
All connections are threaded for easy maintenance (multiport valve and piping)
Tank Diameter: 470 mm
Filter Area: 0.16 m²
Valve: 1 1/2"
Flow Rate: 8 m³/h
Diameter: 475 mm
Height: 71 cm
Sand Capacity: 85 kg
Weight: 40.0 kg
