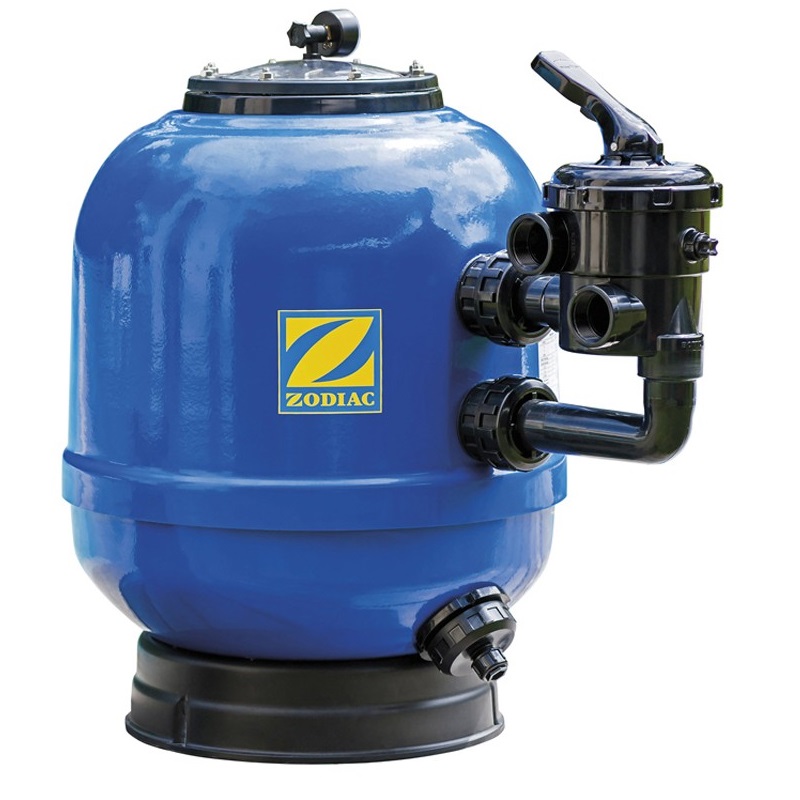

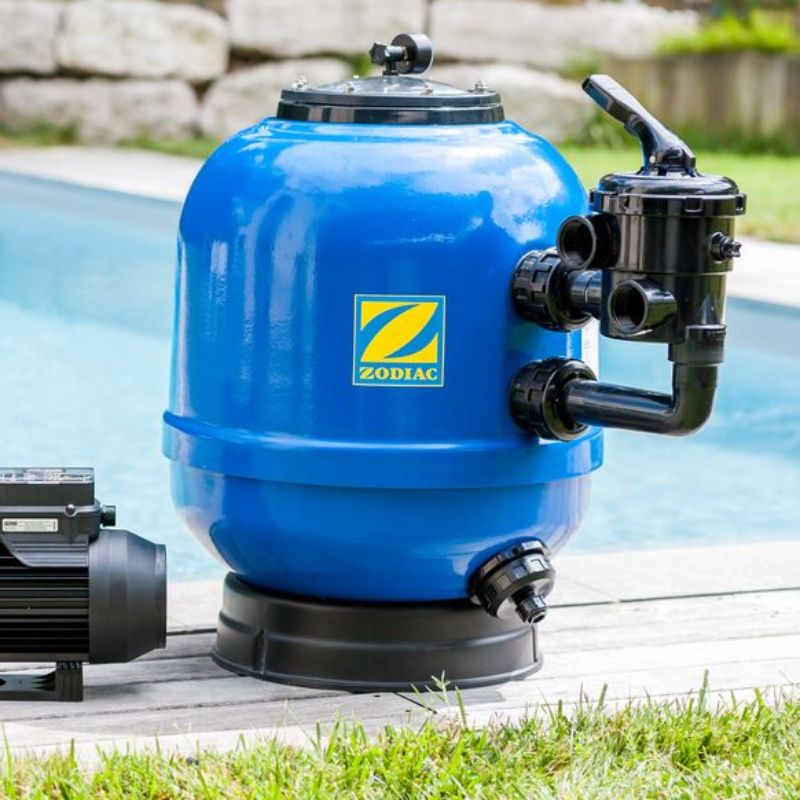

Zodiac MS 800 Sand Filter
The central component of the filtration system, the filter contains filter media (which can be sand, glass, a cartridge, or another material depending on the filter type). Debris and impurities are trapped within the filter body. The performance of the filtration system is essential for effective water treatment. The filter plays a crucial role in maintaining crystal-clear water suitable for swimming.

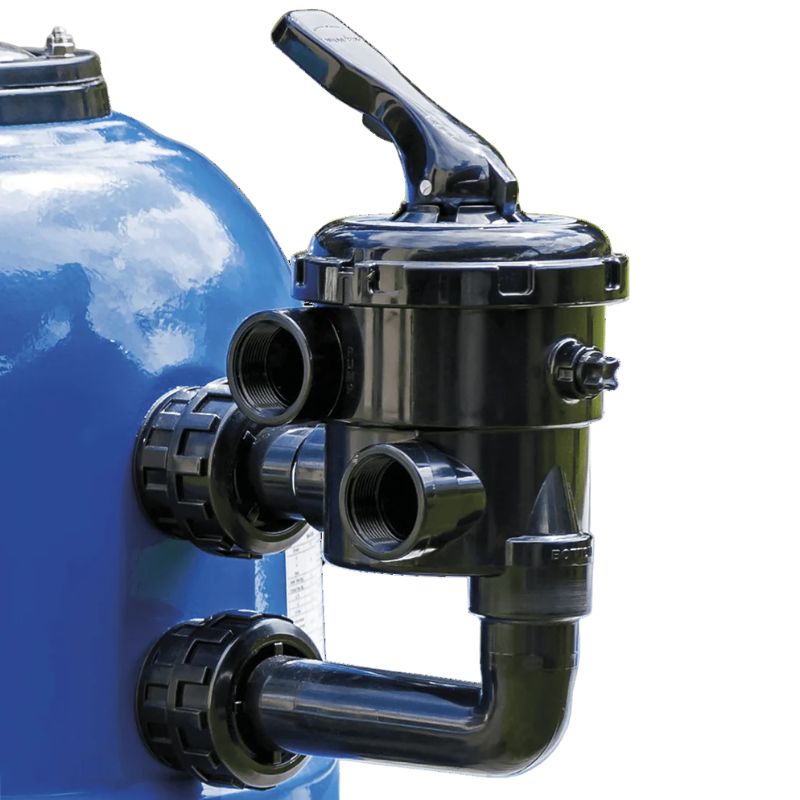

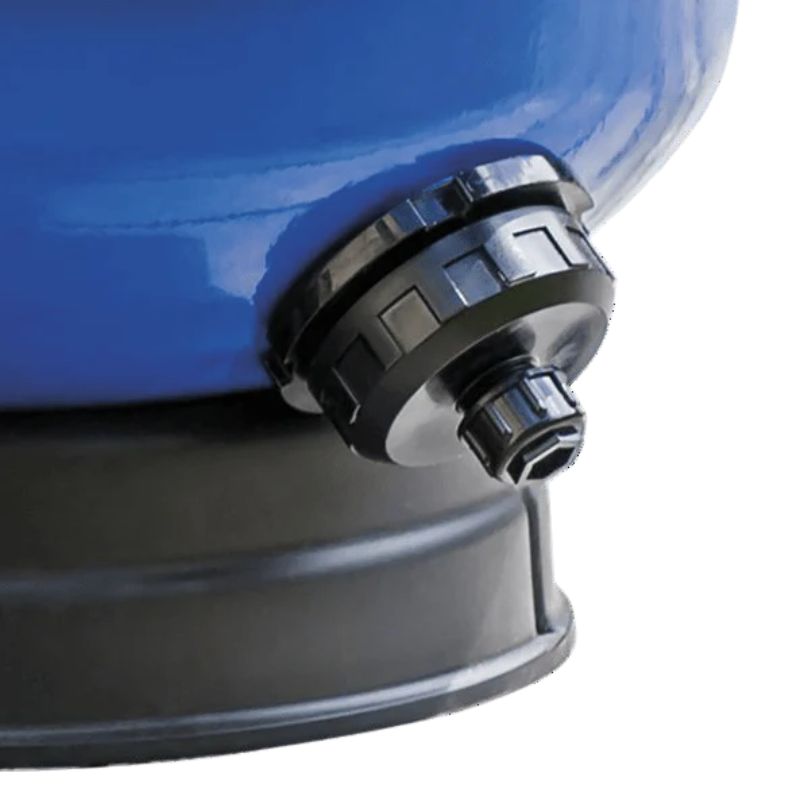

Efficient and durable fiberglass-reinforced polyester laminated filters compatible with sand and crystal filter media (Crystal Clear). Fiberglass-reinforced polyester filter with a 6-way side valve, transparent cover, pressure gauge, and drain. Transparent cover for viewing the inside of the filter, double drain valve for easy emptying, and a 6-position side-selector valve.
Key Features
Includes a drainage system for the filter.
Fiberglass-reinforced polyester tank
Filter supplied with 6-way side valve
Flow rate: 8 to 30 m³/h
Durable filter
Easy to maintain
Tank diameter: 800 mm
Filter area: 0.47 m²
Valve: 2"
Maximum flow rate: 23.3 m³/h
Threaded connection: 2"
Filtration area: 0.47 m²
Maximum pressure: 2.5 bar
Sand capacity: 310 kg
Dimensions: 798 mm x 984 mm
Weight: 37 kg
