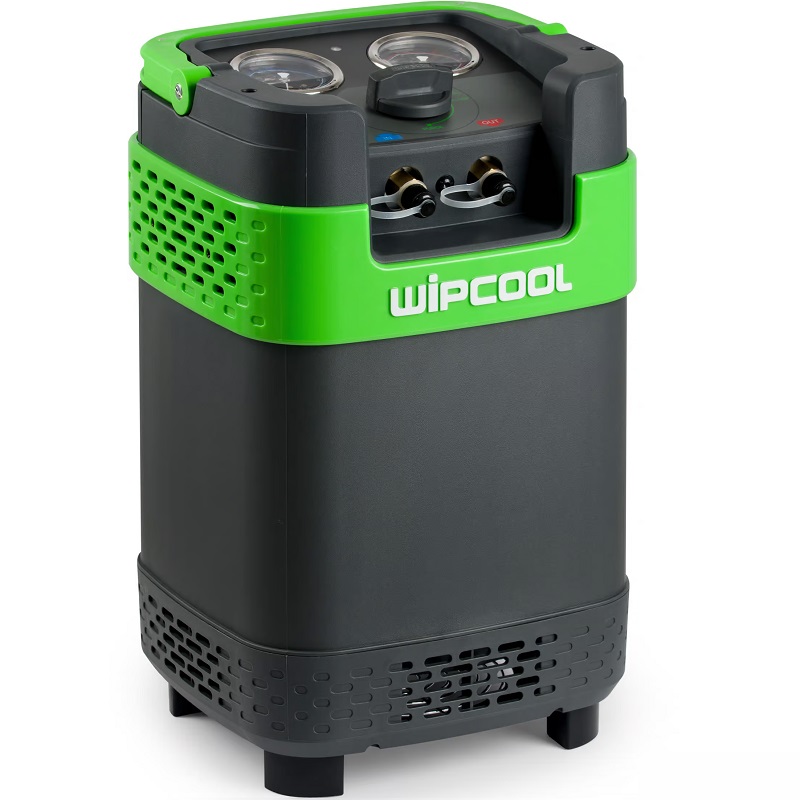

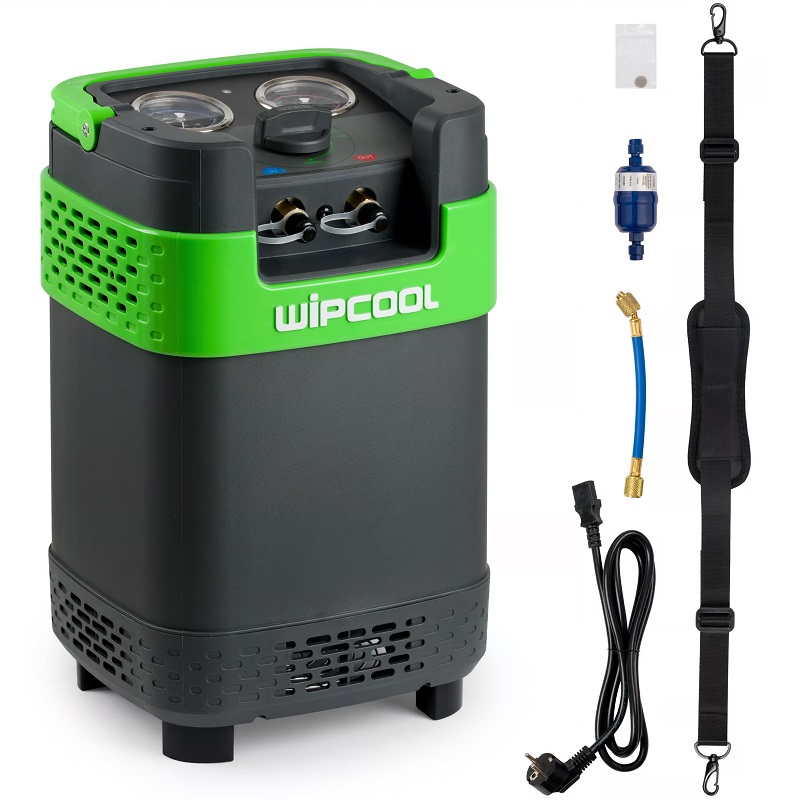

Wipcool MRM55 Single-Cylinder Refrigerant Recovery Station for A2L and Older Refrigerants
The MRM55 is a lightweight, efficient, and reliable refrigerant recovery machine with a compact and robust housing. It offers an ideal solution for quick and easy refrigerant recovery. Unlike most refrigerant recovery machines, it features an integrated vertical design with a high-mounted pressure gauge and control panel. Additionally, a rear service port greatly simplifies piston ring and air valve core replacement for more intuitive operation. This recovery machine is compatible with A2L grade refrigerants and backward compatible with older refrigerants (such as R12, R22, and R410A).
Versatile: Compatible with a wide range of refrigerants, including modern A2L grade refrigerants (e.g., R32) and older refrigerants such as R12, R22, and R410A.

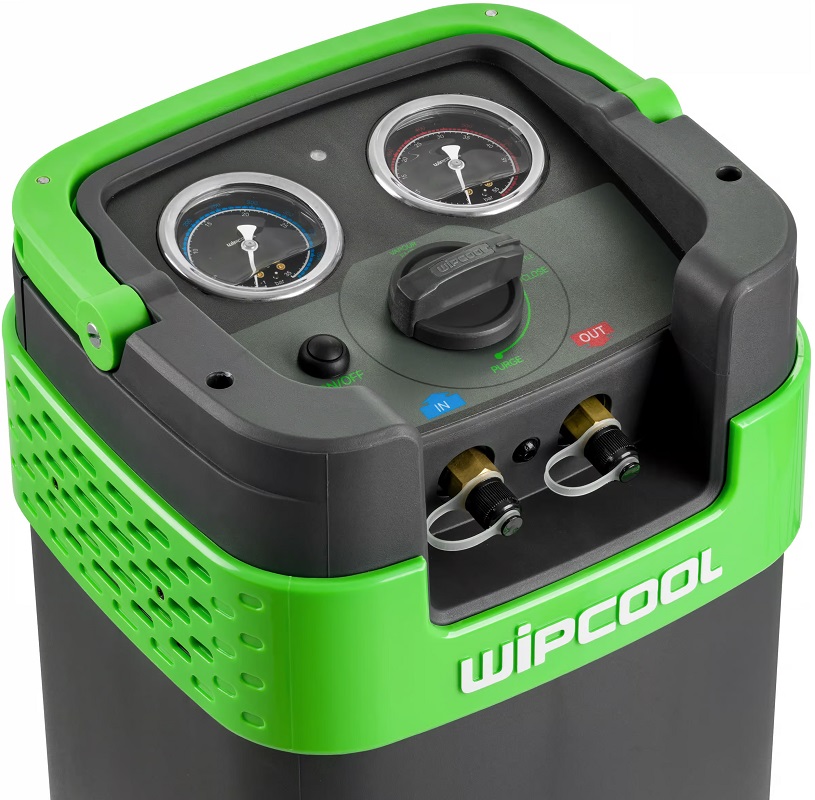

Innovative Design: Its vertical design, combined with a modern pressure gauge, allows for precise control of the recovery process.

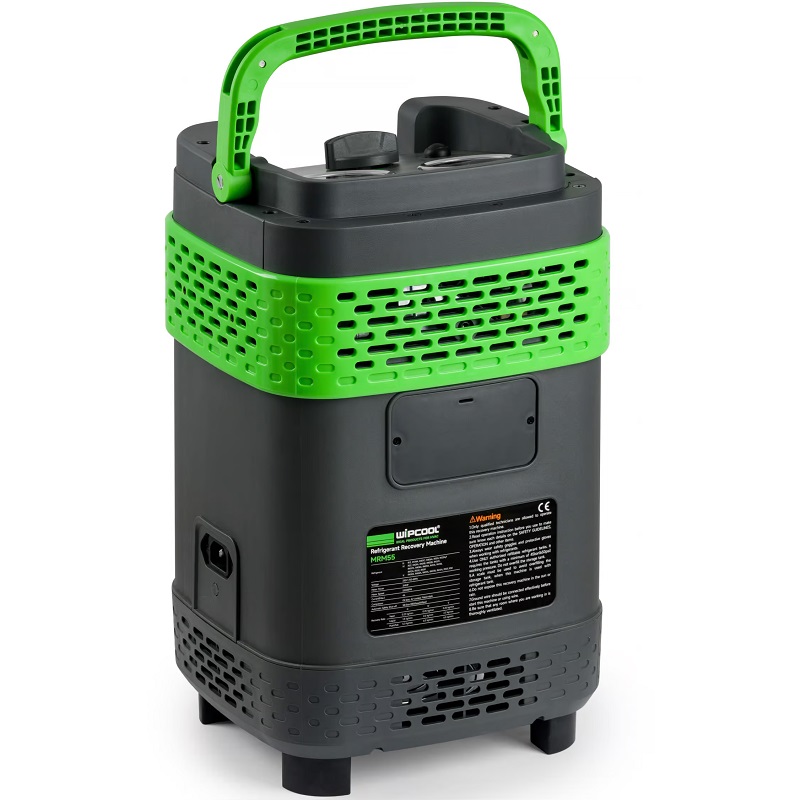

Simplified Maintenance: The rear service port provides quick access to internal components, making it easy to replace piston rings and valve cores.
Compact and Portable: Lightweight and ergonomic, this unit is extremely convenient to transport and store.
Technical Specifications
Model: MRM55
Refrigerants: III: R12, R134a, R401c, R406a, R500, R1234yf
IV: R22, R401a, R401b, R402b, R407c, R407d, R408a
V: R409a, R411a, R411b, R412a, R502, R509
R402a, R404a, R407a, R407b, R410a, R507, R32
Voltage: 110 V~/60 Hz / 230 V~/50-60 Hz
Motor Power: 0.75 HP
Motor Speed: 2800 rpm
Current (max.): 8 A / 4 A
Compressor: Oil-free, air-cooled, piston type
Automatic safety cut-off pressure: 38.5 bar/3,850 kPa (558 psi)
Recovery rate: III IV V
0.22 kg/min 0.25 kg/min 0.25 kg/min
1.8 kg/min 2.0 kg/min 2.2 kg/min
5.0 kg/min 6.0 kg/min 6.5 kg/min
Operating temperature: 0 °C to 40 °C
Dimensions (L × W × H): 259 x 235 x 390 mm
Weight: 9.0 kg
