Mitsubishi Electric MSZ-EF35VG Reversible Air Conditioner (R32 Refrigerant)

Mitsubishi Electric MSZ-EF35VG Reversible Air Conditioner (R32 Refrigerant)

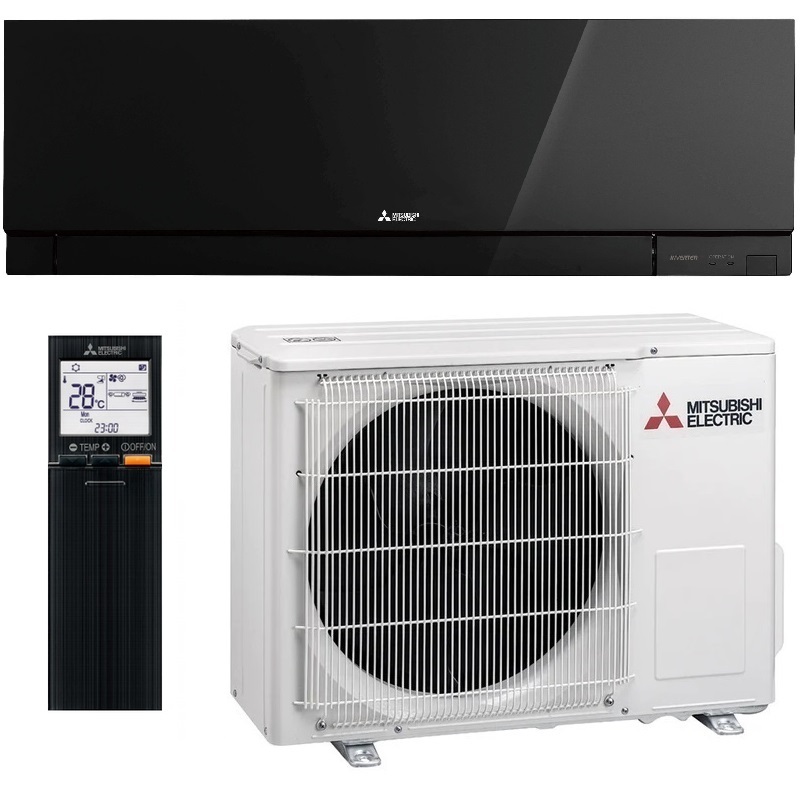

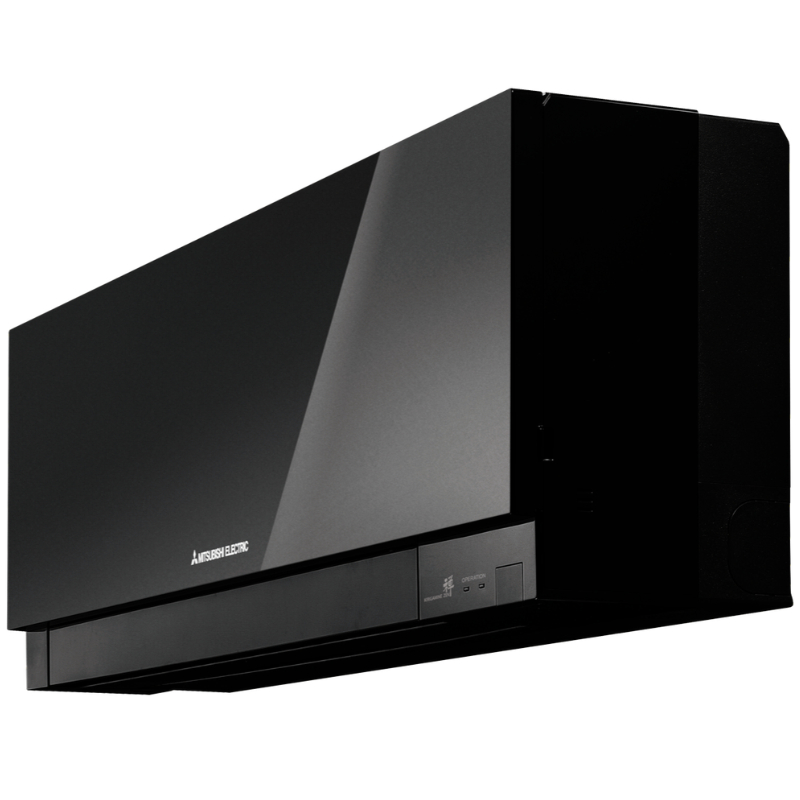

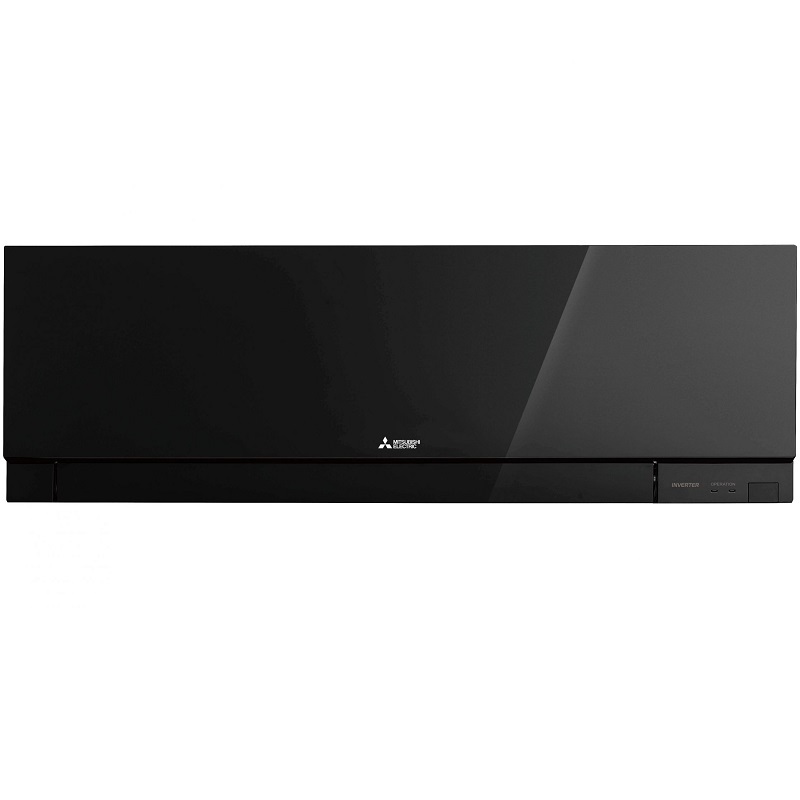

The Mitsubishi Electric MSZ-EF35VG (paired with the MUZ-EF35VG outdoor unit) is a high-quality, reversible mono-split wall-mounted air conditioner from the Kirigamine ZEN series. Designed for rooms up to 37 m², it utilizes the high-performance, eco-friendly R32 refrigerant. The indoor unit stands out with its clean, modern lines; the "EF Designer Smart" series combines exceptional energy efficiency with an elegant, minimalist design, making it an ideal solution for offices, retail spaces, hotels, and upscale commercial environments.

The system impresses with its premium aesthetics and modern design, visually enhancing business premises and customer areas. Its ultra-quiet operation ensures a pleasant atmosphere with minimal noise. Advanced air filtration improves indoor air quality and fosters a healthier work environment, while intelligent energy management allows for real-time monitoring of energy consumption to optimize efficiency and control costs.

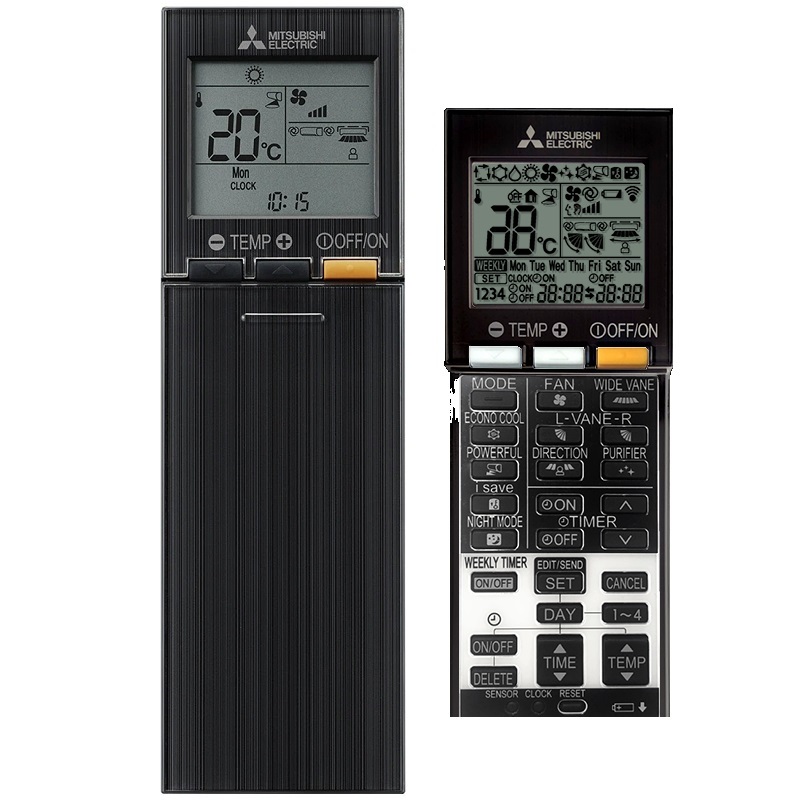

Integrated Wi-Fi enables easy remote control and programming via the "Mitsubishi Electric Wi-Fi Control" app, allowing businesses to optimize energy usage and comfort from anywhere. The eco-friendly R32 refrigerant reduces environmental impact while boosting performance. For businesses that value style, efficiency, and quiet comfort, the "EF Designer Smart" series offers a sophisticated heating and cooling solution that integrates seamlessly into modern commercial spaces.

Technical Data
Indoor unit: MUZ-EF35VG
Energy efficiency class: A++
Annual electricity consumption (cooling): 139 kWh
Annual electricity consumption (heating): 882 kWh
RT2012 compatibility (heating-only mode): Yes (setting via infrared remote control)
Cooling capacity: 3.50 kW
Cooling capacity (min./max.): 1.10 / 4.00 kW
Cooling efficiency ratio: EER 3.85
Cooling energy efficiency class (EER): A
SEER: 8.80
Cooling energy efficiency class: A+++
Cooling operating range (outdoor temperature): -10 to +46 °C
Heating capacity: 4.00 kW
Heating capacity (min./max.): 1.30 / 5.10 kW
Capacity at low outdoor temperature (-7 °C): 2.70 kW
Heating efficiency ratio: COP 4.21
Heating energy efficiency class (COP): A
SCOP: 4.60
Heating energy efficiency class: A++
Heating operating range (outdoor temperature): -15 / +24 °C
Wi-Fi enabled: Yes
Indoor unit color: Gray
Airflow: Single-flow
Sound pressure level min.: 21 dB(A)
Sound pressure level max.: 42 dB(A)
Dimensions and weight
Dimensions (H x W x D): 299 x 885 x 195 mm
Net weight: 12 kg

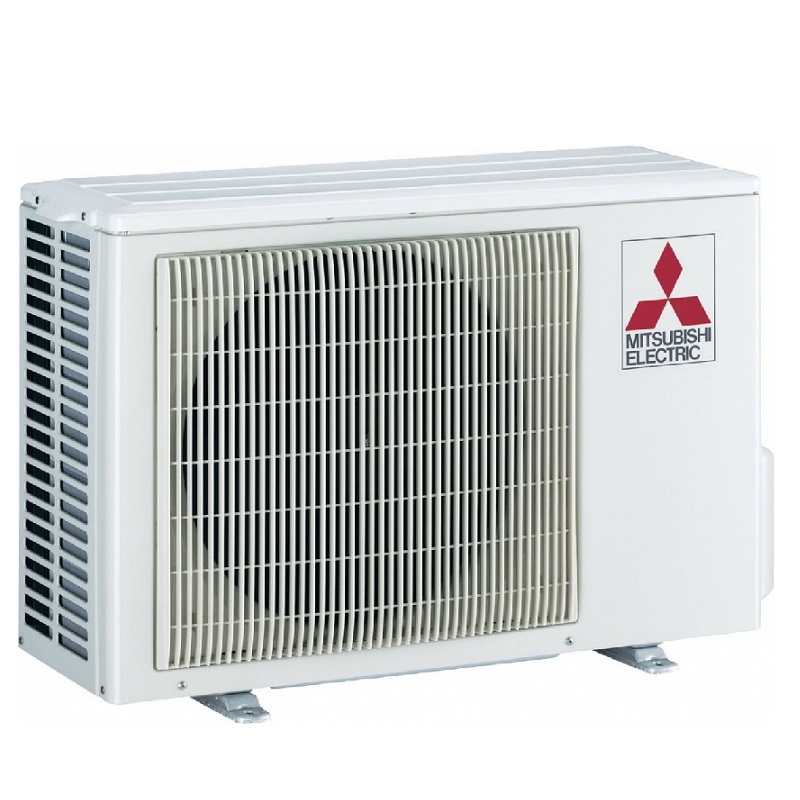

Outdoor unit: MUZ-EF35VG
Number of connections: 1
Single fan
Max. air volume flow Cooling / Heating: 2016 m³/h
Max. sound pressure level (cooling): 49 dB(A)
Refrigerant lines: 1 x 1/4" - 3/8"
Refrigerant: R32
Pre-charge for line length: 7 meters (lines not included)
Maximum total length: 20 meters (lines not included)
System power supply: Via outdoor unit
Power supply: Single-phase
Power supply cable: 3 x 2.5 mm²
Connection cable (indoor to outdoor unit): 4 x 1.5 mm²
Electrical protection: 10 A
Dimensions and weight
Dimensions (H x W x D): 550 x 800 x 285 mm
Net weight: 35 kg
