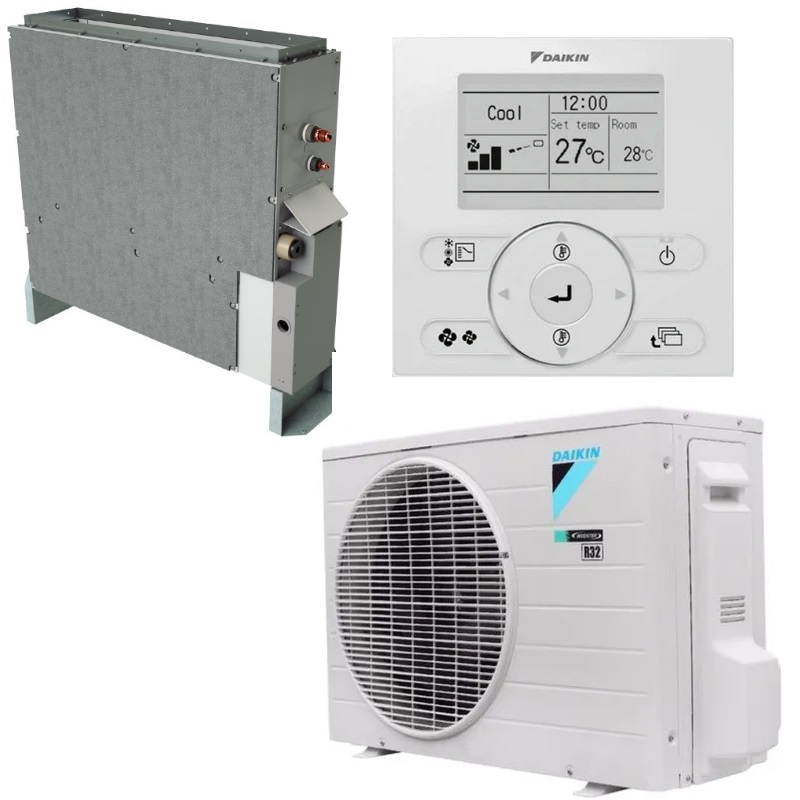

Daikin NAS25A 2.6 kW (230V) R32 Ducted Floor-Standing Air Conditioner

Daikin NAS25A 2.6 kW (230V) R32 Ducted Floor-Standing Air Conditioner

This highly efficient, floor-standing ducted air conditioner, with an indoor unit only 200 mm deep, boasts a discreet design that highlights its technology and comfort. Operating with R32 refrigerant and equipped with Inverter technology, it is ideal for wall or floor installation in residential spaces. Thanks to its high static pressure, it is compatible with flexible ducts and offers more than 6 operating modes. Inverter ventilation technology, the use of R32 refrigerant, and the various operating modes that reduce energy consumption combine to offer a high-performance alternative with a wide temperature range at the best price.

The unit, a console-style indoor unit (not cased), is also known as a window air conditioner because the unit is most often placed under an opening. Its main advantage is that it is easier to install than a wall-mounted air conditioner. To choose the indoor unit model that best suits your requirements, it is recommended to consider the volume of the space to be ventilated, but also the possibilities on the floor, wall or ceiling. Indeed, the more your indoor unit

Technical Specifications
Available in various capacities, from 2.4 kW to 6 kW
Ultra-compact indoor unit (only 200 mm deep)
High-pressure version available
R-32 refrigerant
Compact outdoor unit
Quiet operation
Maximum energy efficiency
Guaranteed optimal control
Quick and easy installation thanks to its compact dimensions
Compatible with ONECTA for app-based management (accessory not included)
DC Inverter technology
Replacement technology for R-22
Nominal cooling capacity: 2,600 W
Nominal cooling capacity: 2,236 kcal/h
Nominal heating capacity: 3,200 W
Nominal heating capacity: 2,752 kcal/h
Nominal power consumption (cooling/heating): 680/800 W
Liquid/gas connections: ø 6.4 (1/4") / ø 9.5 (3/8") mm
Power supply: 1/220 V
Number of interconnecting wires: 3 + ground
SEER/SCOP (cooling/heating): 5.68 / 4.24
Seasonal energy class (cooling/heating): A+ / A+
Nominal capacity (cooling/heating -10 °C): 2.60 kW / 2.80 kW
Seasonal annual energy consumption (cooling/heating): 160 / 924 kWh

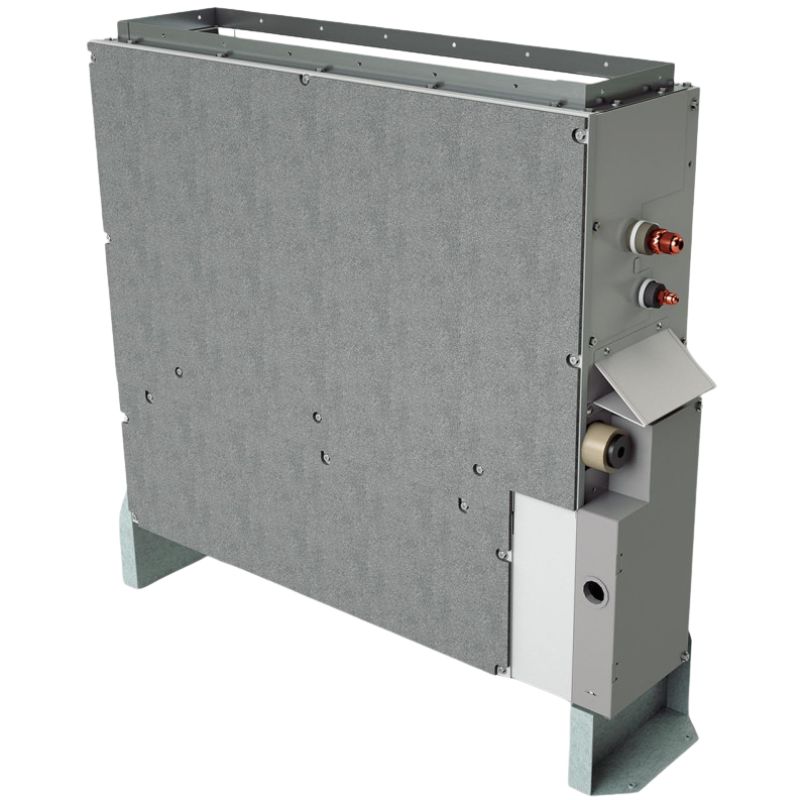

Indoor unit NAS25A
Cooling/heating airflow (A/B): 8.7 / 7.3 m³/min
Nominal available pressure: 48 / 30 Pa
Fan speeds: 3
Dimensions (H x W x D): 620 x 750 x 200 mm
Weight: 23.0 kg

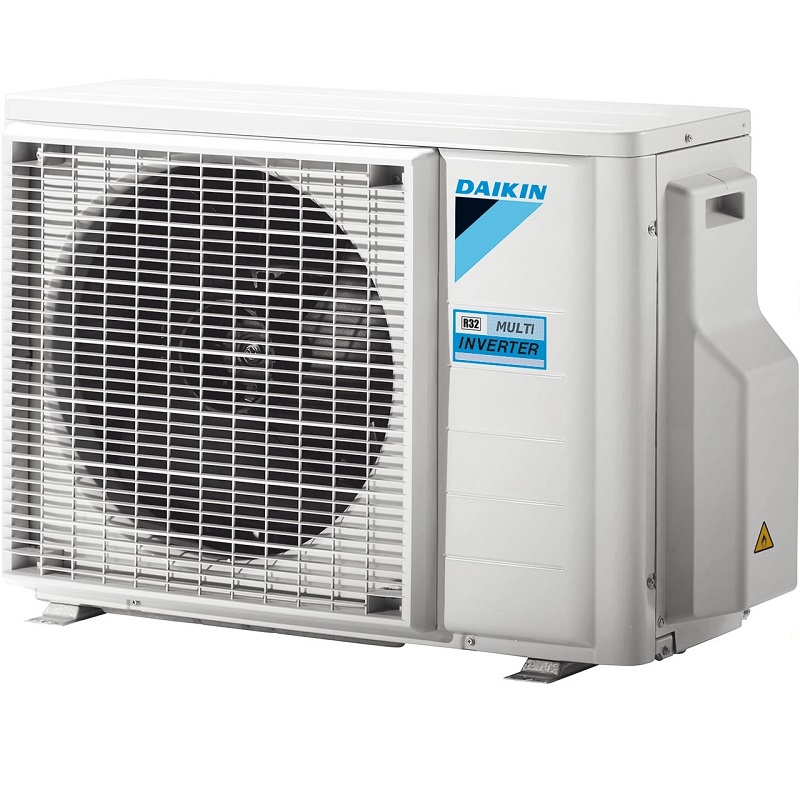

Outdoor Unit
Cooling/Heating Airflow: 28.3 m³/min
Heating/Heating Airflow: 28.3 m³/min
Compressor Type: Swing
Refrigerant: R-32 / TCO₂ eq / GWP: 0.76 / 0.52 / 675 kg
Sound Pressure Level (Cooling): 46 dBA
Sound Pressure Level (Heating): 47 dBA
Sound Power Level: 59 dBA
Refrigerant Charge: 10 m³
Additional Charge: 20 g/m³
Dimensions (H x W x D): 552 x 840 x 350 mm
Weight: 32 kg
