Zodiac Z550IQ MD4 (R32) 12.5 kW Pool Heat Pump
Full inverter technology. The operating speed adjusts according to the power requirement and the selected mode: Boost: maximum power for rapid temperature increase; Smart: automatic power adjustment based on temperature; EcoSilence: reduced power for energy savings and quiet operation.

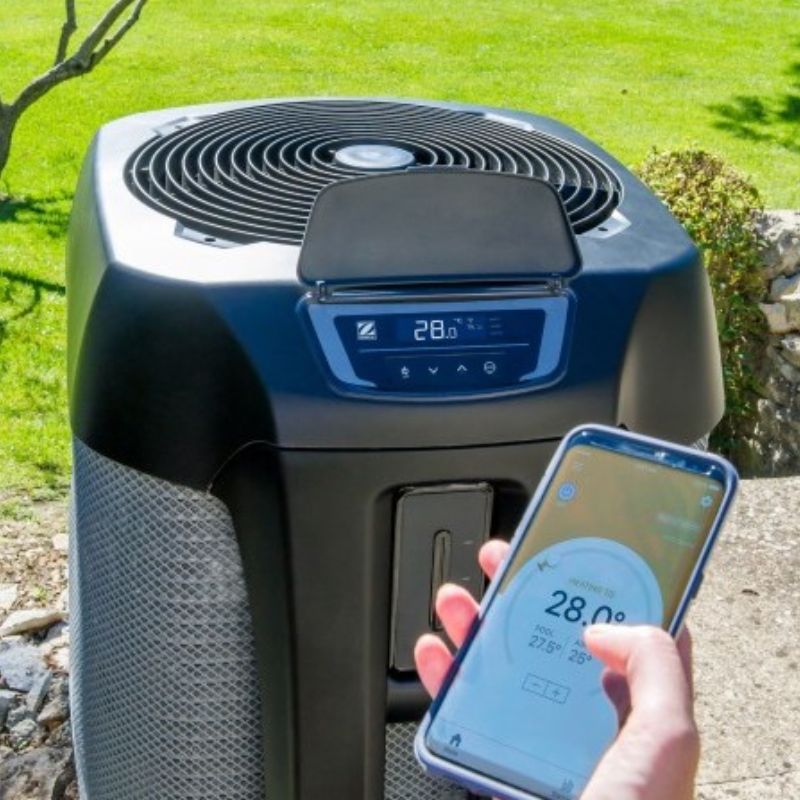

Easily integrates into small spaces. The Z550iQ will blend discreetly into any pool. Thanks to its compact size, requiring half the space of standard heat pumps, and its vertical airflow, it fits into even the smallest corners. Controllable from your smartphone, the Z550iQ heat pump allows you to configure and monitor its operating mode remotely. With updates via the Fluidra Pool app, the Z550iQ benefits from continuous improvements.
Description
Z550 iQ MD4 Zodiac
Pool volume: 65 m³
Compact and elegant design
Priority heating function
Supplied with protective cover
Remote control
Monobloc air/water outdoor heat pump with digital display controller

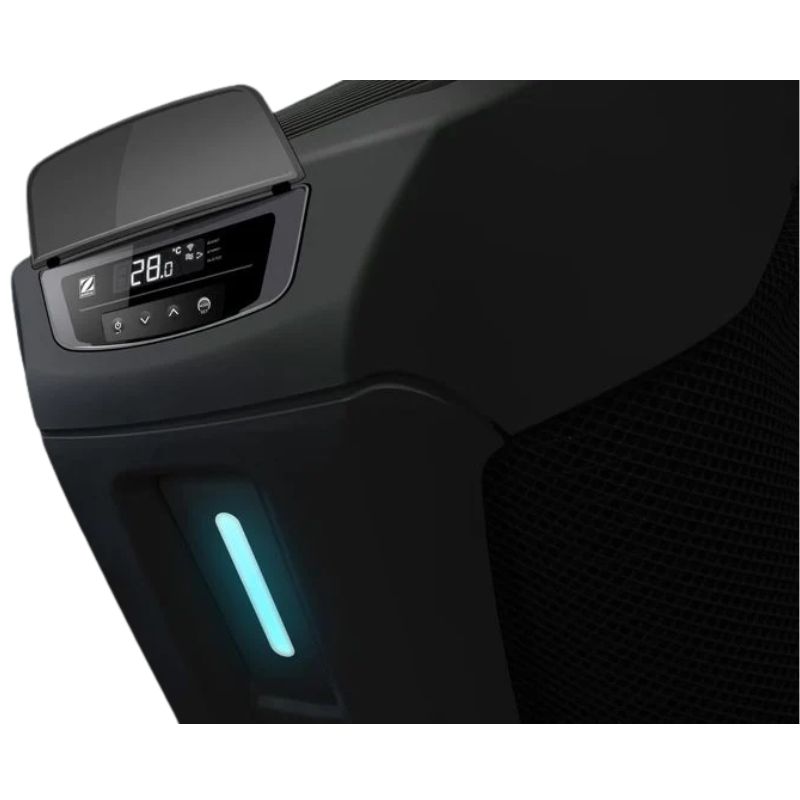

New: Cover to protect the control panel (UV rays, storms)
Anti-corrosion polypropylene structure
Titanium water heat exchanger/condenser
Automatic defrosting by forced ventilation
Rotary compressor
Eco-friendly R32 refrigerant
Water flow switch
Power consumption: 1.9 kW/2 kW
Heating power: 9.5 kW/12.5 kW
Technology: Full Inverter
Defrosting by reverse cycle
Cycle: Reversible, all seasons
COP: 4.9/6.1
Decibels: (10 meters) 23/31 dB(A)
Gas: R32 refrigerant
Amperage: 9 Amps
Minimum cable cross-section (Type H07RN-F): 3G 2.5 mm²
Control: LED display, smartphone app
Connection: Ø 50 PVC fittings (included)
Voltage: 230 volts
Warranty: 3 years
5 years compressor
10 years condenser
Pump performance according to NF414 standard
Air at 15°C / water at 26°C
Air at 27°C / water at 26°C

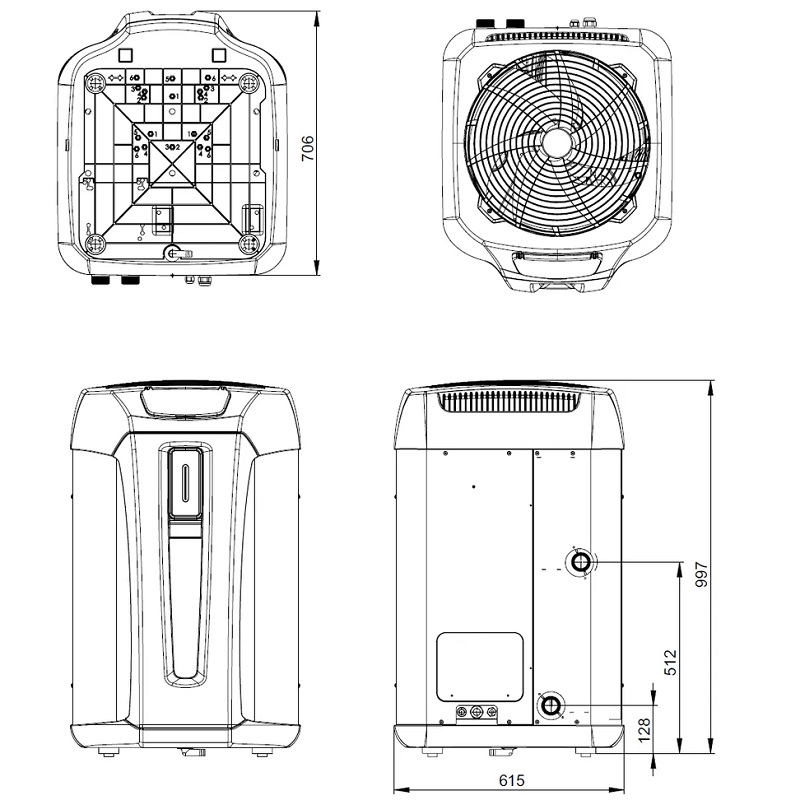

Dimensions: (W x D x H) 610 x 670 x 980 mm
Weight: 54 kg
