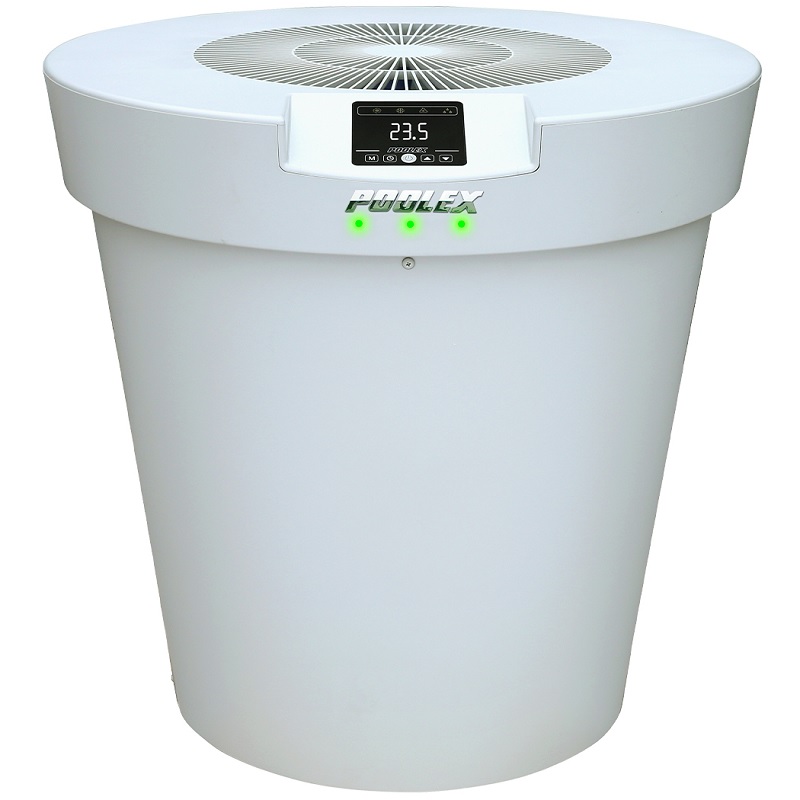

Poolex Platinium Mini 5 Pool Heat Pump

Poolex Platinium Mini 5 Pool Heat Pump

A bold ABS design, available in 3 power outputs to meet the needs of most pools up to 65 m³. The Platinium Mini follows in the footsteps of the Platinium, Poolex's flagship heat pump, with its original design that blends seamlessly into your garden's architecture.

Available in 3 power outputs for pools with a maximum volume of 65 m³, the Platinium Mini is equipped with all the features that have made Poolex heat pumps renowned: Full Inverter technology, WiFi control, and LED indicators. Thanks to Full Inverter technology, the heat pump operates more stably, maintaining a constant temperature close to the set point, preventing consumption spikes, and reducing energy consumption.

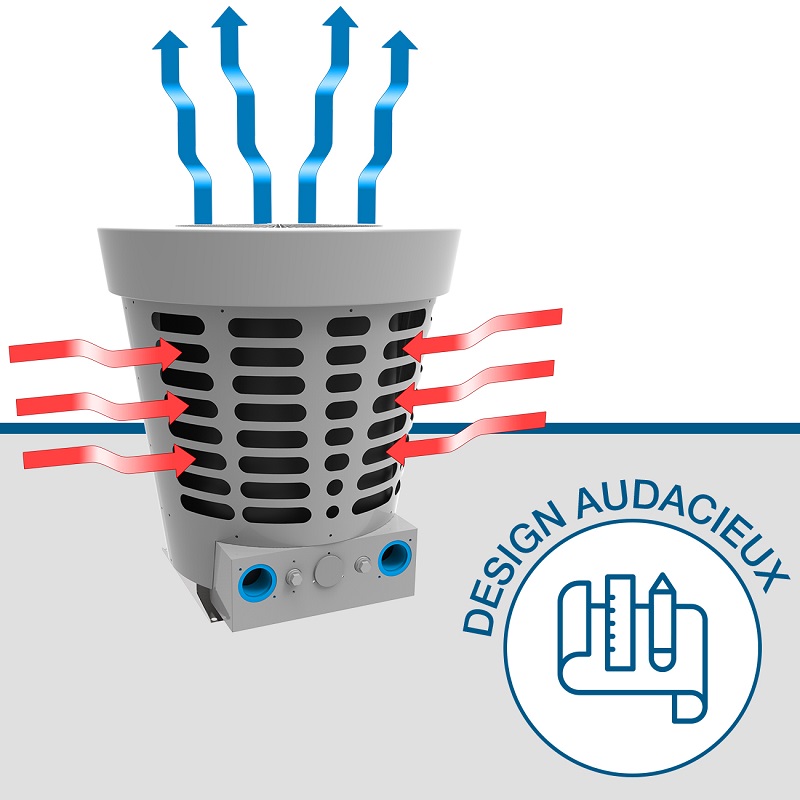

The Platinium Mini is therefore a quiet pump that you can proudly display in your outdoor space. Its vertical ventilation prevents stale air from being expelled onto the installation surface, resulting in significant space savings. The integrated LED indicators add a touch of elegance while providing a highly useful function: instant visualization of the pump's operating status. Easily control your Platinium Mini from your smartphone screen thanks to the Wi-Fi connection integrated into the heat pump's control panel.

Product Details
Platinum Model: Mini 5
Pool Volume: 35 to 40 m³
Green: Set temperature reached
Blue: Pool heating
Red: Heat pump not operating
Function: EcoBooster & EcoSilence (inverter) / Heating / Cooling
Conditions
Air: 26°C
Humidity: 80%
Maximum Heat Output: 7.06 kW
Minimum Heat Output: 1.39 kW
Power Consumption: 1.09~0.11 kW
COP: 12.87~6.48
Conditions
Air: 15°C
Water: 26°C
Humidity: 70% Maximum Heat Output: 5.08 kW
Minimum Heat Output: 1.01-1.38 kW
Power Consumption: 1.12~0.14 kW
COP: 7.06~4.54
Power Supply: Single Phase 220-240V/50Hz
Heating Temperature Range: 15°C ~ 40°C
Cooling Temperature Range: 8°C ~ 28°C
Operating Range: -10°C ~ 43°C
Flow Rate: 2.2 m³/h
Refrigerant: R32
Noise Level at 1 Meter: <36~<45 dB(A)
Noise Level at 10 Meters: <19~<27 dB(A)
Compressor Type: Rotary
Compressor Brand: Toshiba
Heat Exchanger: Twisted Tech Titanium
Pressure Drop (mWC): 1.1

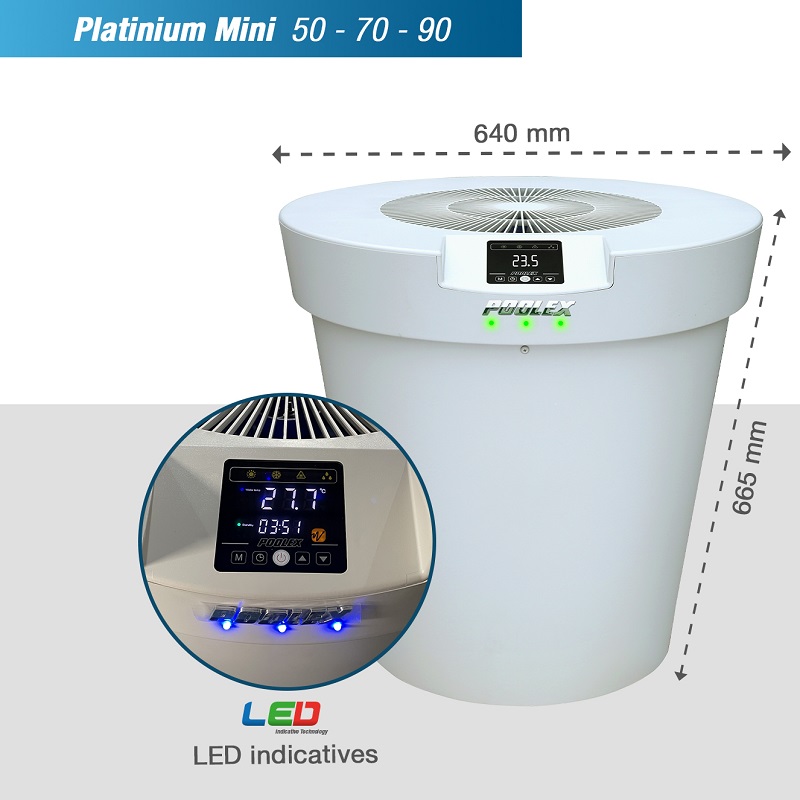

Dimensions: 640x640x665 mm
Packaging Dimensions: 700x700x800 mm
Net Weight: 37 kg
Gross: 45 kg
