Mundoclima MU-WING-D 10/6-R3 Air Curtains: Aerodynamics and Heating

Mundoclima MU-WING-D 10/6-R3 Air Curtains: Aerodynamics and Heating

Open doors and entrances represent a significant energy loss in air-conditioned spaces, in addition to creating drafts. An open door may seem welcoming and facilitate access, but it also creates an unsuitable working environment and wastes energy. An air curtain creates a comfortable environment and actively reduces heat loss by effectively separating the inside from the outside and preventing heat from entering.

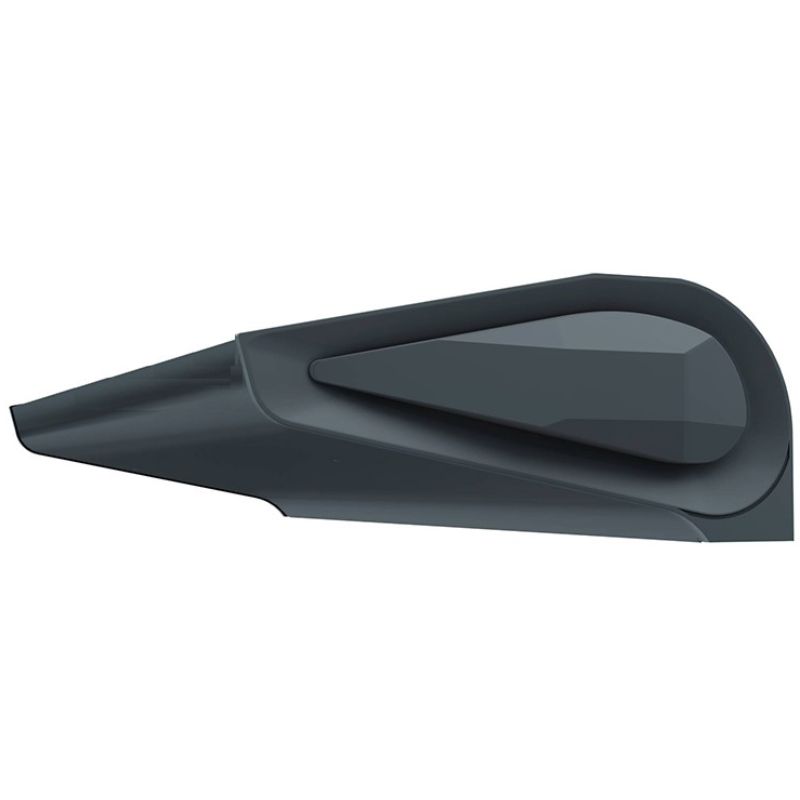

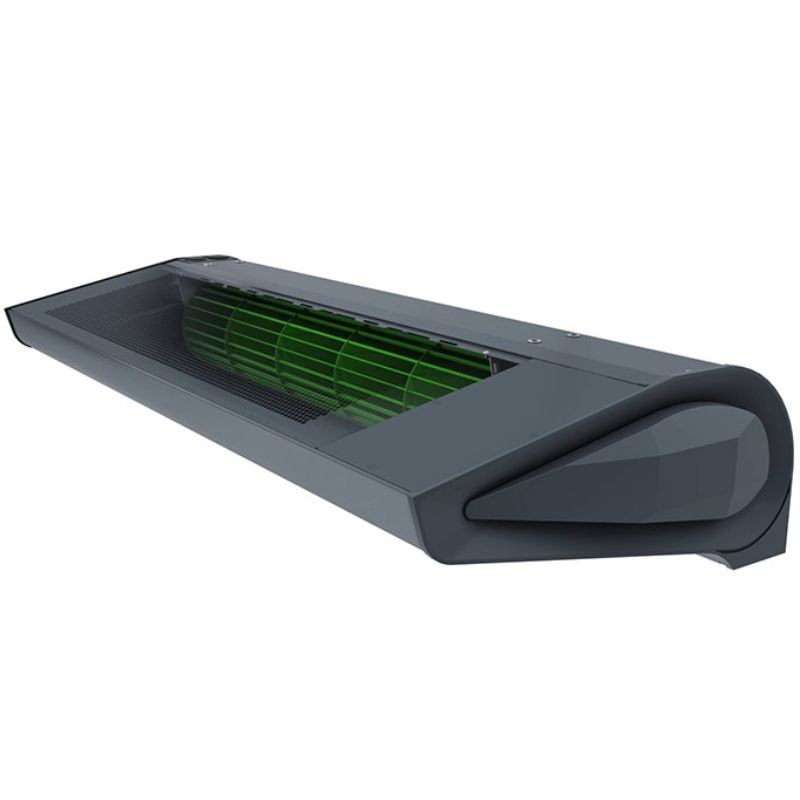

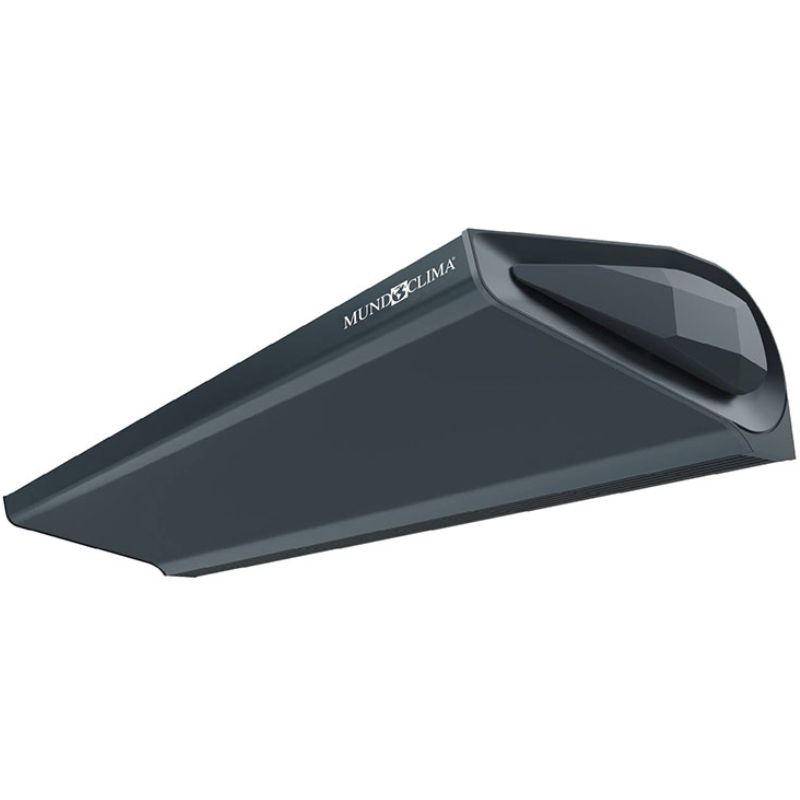

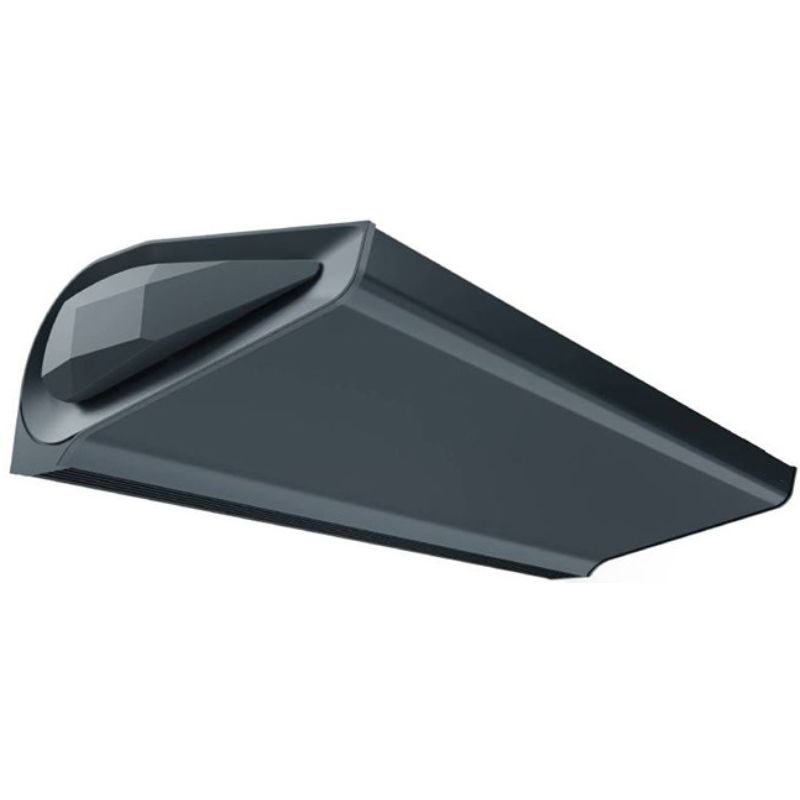

MU-WING represents the next generation of air curtains. Its aerodynamic wing shape gives it the appearance of floating in the air, which significantly reduces air resistance. The diamond-patterned side panels conceal advanced technology, including the EC motor. Combining a unique design with exceptional performance, MU-WING redefines the image of air curtains.

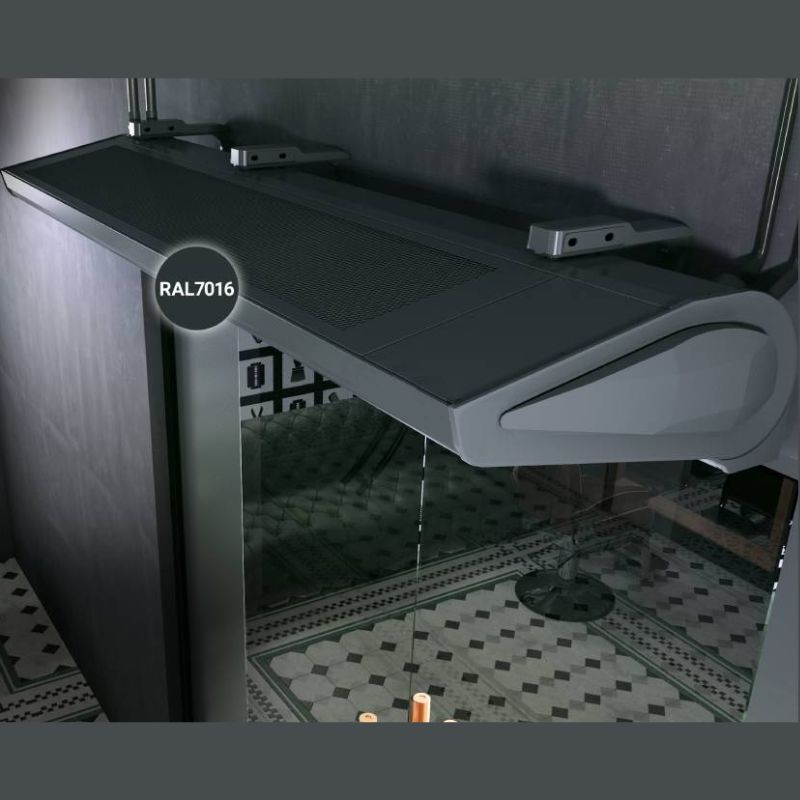

Manufactured with meticulous attention to detail and using high-quality materials, this unit boasts a refined design that guarantees stable and quiet operation, ensuring occupant comfort. WING air curtains are now available in a DARK version (RAL 7016)

Features
Model: MU-WING-D 10/6-R3
Aerodynamic and heating
Color: RAL 7016
Function: Aerodynamic and heating
Sound pressure level: 63 dB(A)
Adjustable EC motor from 0 to 10 V
Coverage range depends on the selected speed
Ceiling or wall mounting with brackets
Numerous optional accessories

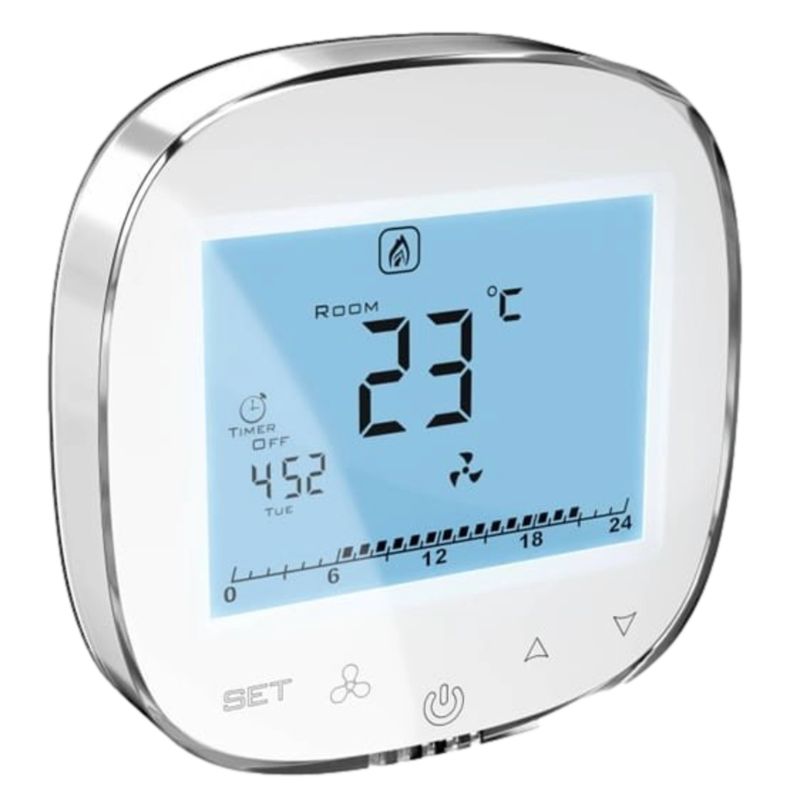

Remote control not included
Airflow (max): 1850 m³/h
Nominal heating capacity: 2/6 or 4/6 kW

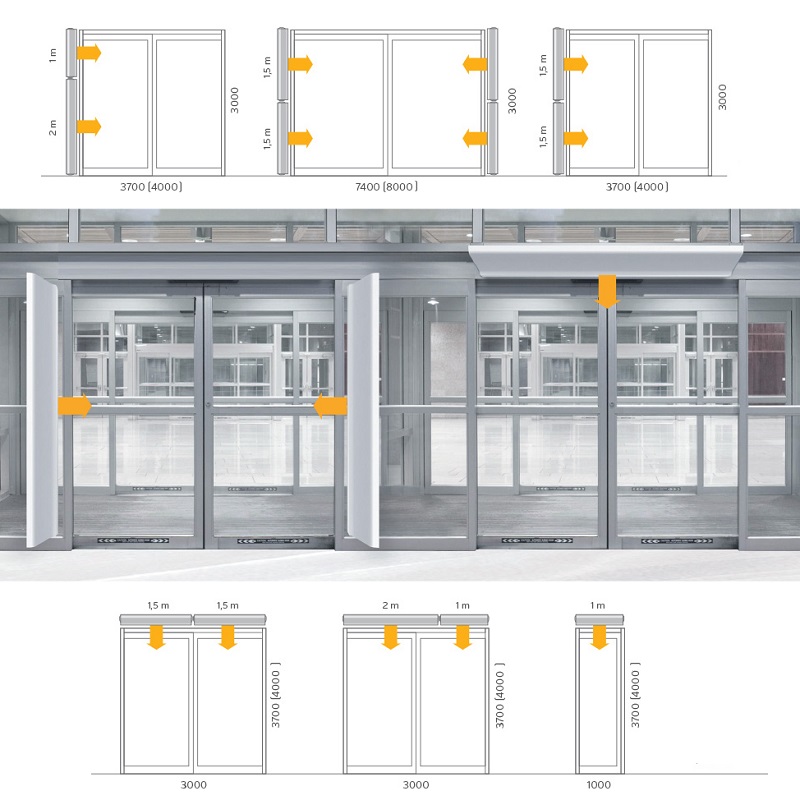

Max. door height: 3.7 meters
Power supply: 230/50 V/Hz
Dimensions (W x H x D): 1110 x 207 x 462 mm
Weight: 21.5 kg
