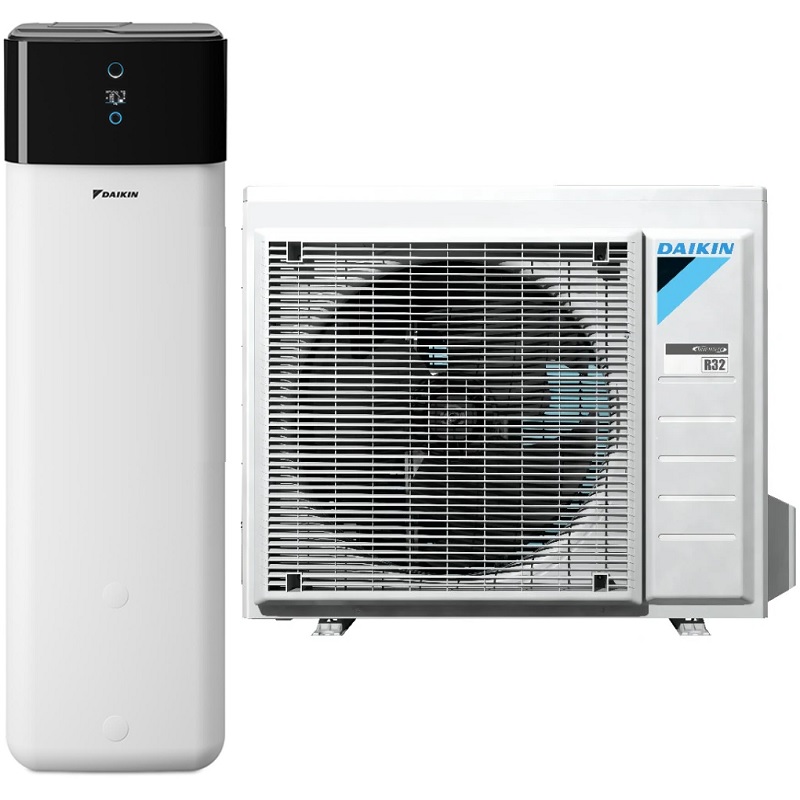

Daikin Altherma ERGA08EVH + EHSX08P50E 500-Liter Heat Pump

Daikin Altherma ERGA08EVH + EHSX08P50E 500-Liter Heat Pump

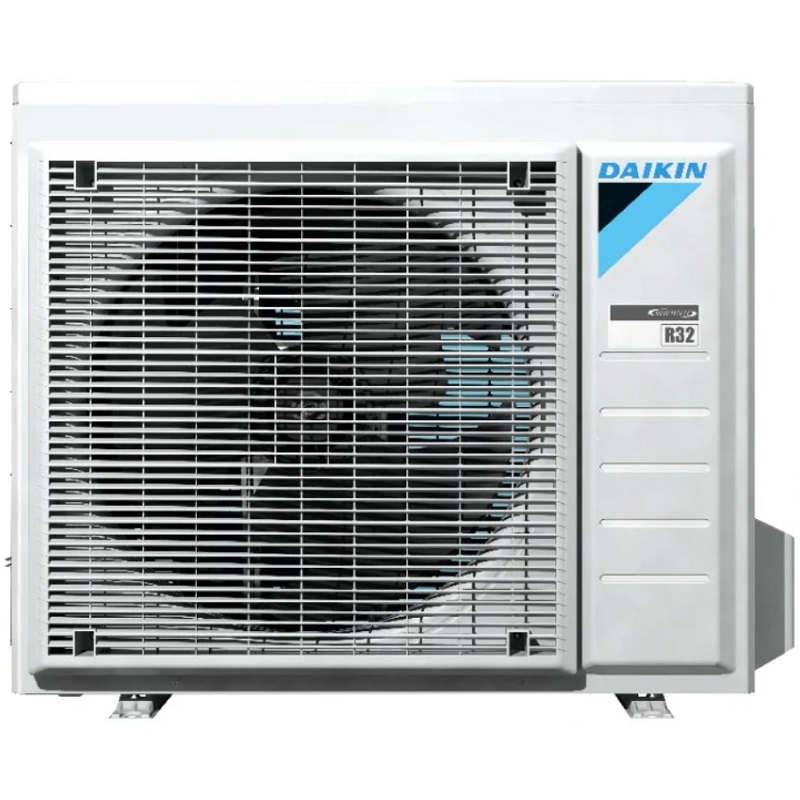

The outdoor unit extracts heat from the outside air even at -25°C
Integrated solar unit provides superior comfort for heating, hot water, and cooling.
Maximum use of renewable energy: utilizes heat pump technology for heating and solar thermal assistance for space heating and domestic hot water production.
Clean water principle: hygienic water, no need for thermal disinfection against Legionella.
Maintenance-free tank: no corrosion, anode, scale, or limescale deposits, and no water loss through the safety valve.
Solar support for domestic hot water with a pressureless (drain) solar system.
Intelligent heat storage management: continuous heating in defrost mode and use of stored heat for space heating.
Heat loss is minimized thanks to high-performance insulation. Quality
App-based control for managing heating, hot water, and cooling

Technical Specifications
Nominal output: 8 kW (heating A7/W35: 7.5 kW, cooling A35/W18: 6.25 kW)
Energy efficiency: Rated A+++ for water heating at 35°C and A+ for domestic hot water (DHW)
Performance (SCOP/SEER): SCOP up to 6.73 at 35°C and SEER of 5.73
Refrigerant: Uses environmentally friendly R-32 Bluevolution
Water outlet temperature: Capable of supplying water up to 65°C

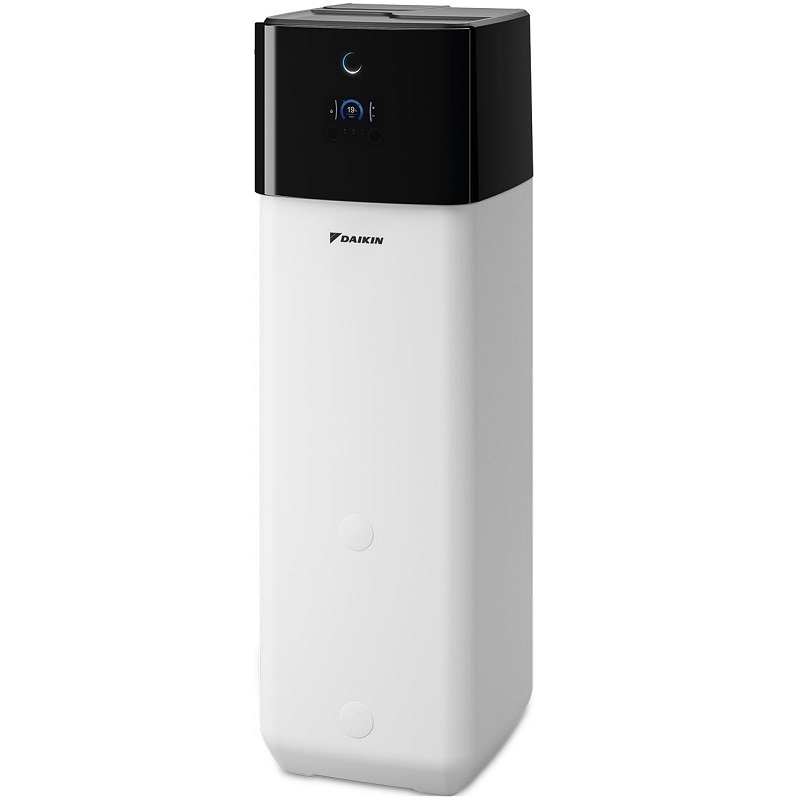

Indoor Unit EHSX08P50E (500L)
This combination unit includes a 500-liter storage tank using ECH2O technology
Hygiene Hot water: Instantaneous hot water production to prevent the risk of Legionella and corrosion
Solar & Smart Grid: Ready for connection to solar thermal panels and compatible with smart grids for storing thermal energy
Control and Connectivity
MMI-2 Interface: Integrated controller with the "Daikin Eye" sensor for at-a-glance system status monitoring
Onecta App: Remote control via smartphone, compatible with Google Assistant and Amazon Alexa
Installation and Connection
Refrigerant connection: R-32 refrigerant
Pipe diameter: Liquid (6.4 mm) / Gas (15.9 mm)
Maximum distance between units: 30 meters
Maximum height difference: 20 meters
Control via the Daikin app
Dimensions: Indoor unit: 1896 x 790 x 790 mm
