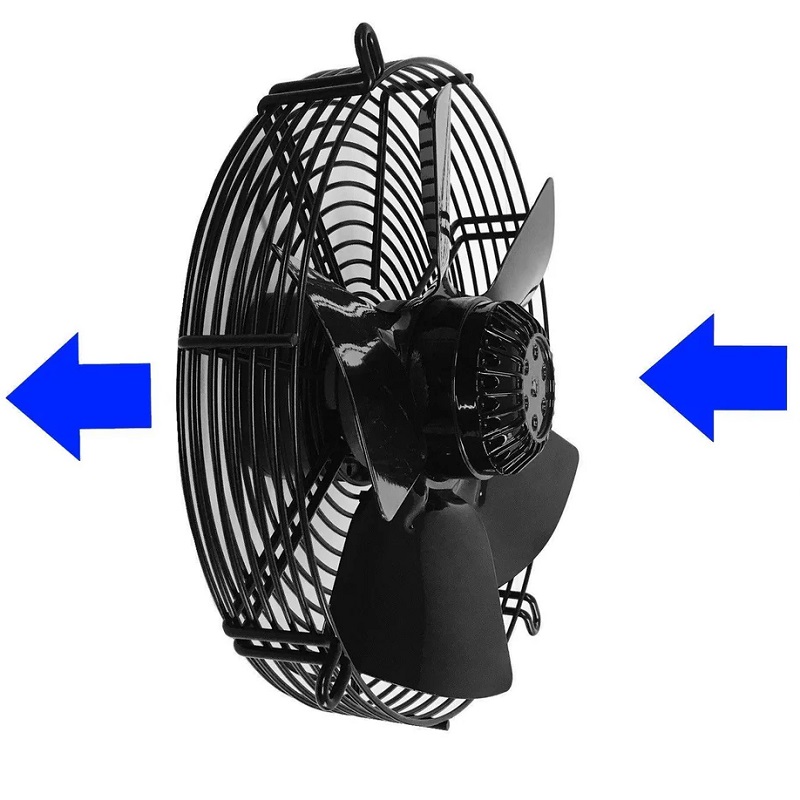

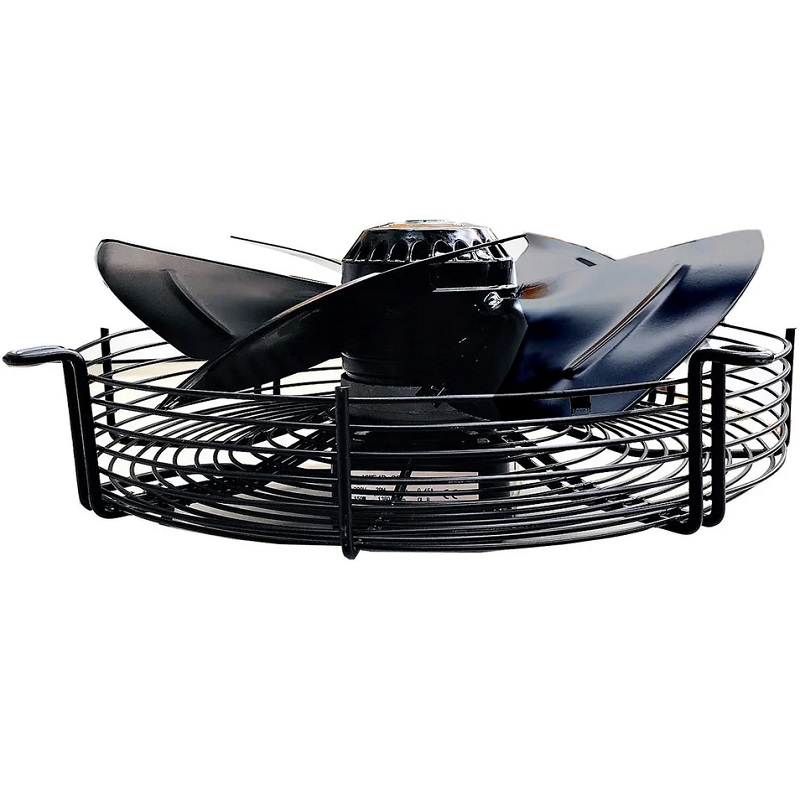

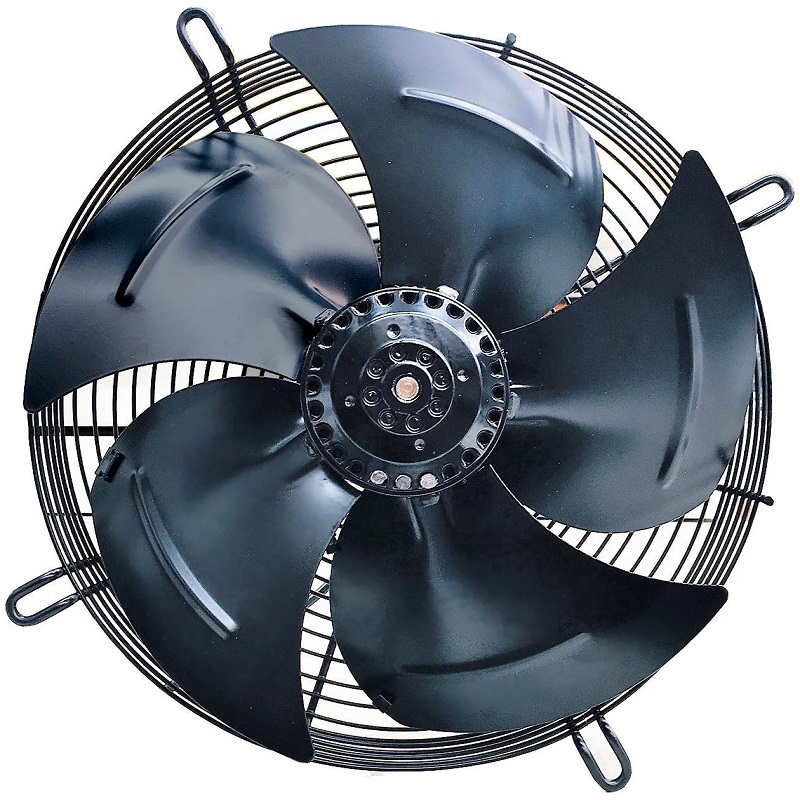

Weiguang YWF4E-300 Fan, Ø300, 85 W, 1380 rpm, 1690 m³/h, 230 V
Our heavy-duty axial fans are ideal for residential, commercial, and industrial applications, such as air conditioning and refrigeration condensing units, commercial cold rooms, evaporators, heaters, and exhaust fans. For use in condensers, the applicable ambient temperature is between 0°C and +60°C, and for use in evaporators, the applicable ambient temperature is between -30°C and 0°C.
Four-pole electric induction fan motors are divided into single-phase and three-phase asynchronous fan motors, widely used in condensers, evaporators, ventilation cycles, and other refrigeration equipment.
Benefits
Heavy-duty
Ideal for commercial and industrial use
Low noise
Average motor life: over 30,000 hours
Energy saving
Easy to install
Features:
Available with protective grille
Protection rating: IP42 or IP44
Certification: CE
Thermal protection integrated into the winding
Standard fan cable length: 1.5 m
Specifications
Type: Single-phase external rotor electric induction fan with motor
Model: YWF4E-500 axial fan
Motor type: Asynchronous
Speed: 1400 rpm
Suction
Class Insulation: Class B
Voltage: 220-240 V
Frequency: 50 Hz
Poles: 4
Input Power: 470 W
Current: 2.1 A
Additional Protection: Drip Protection

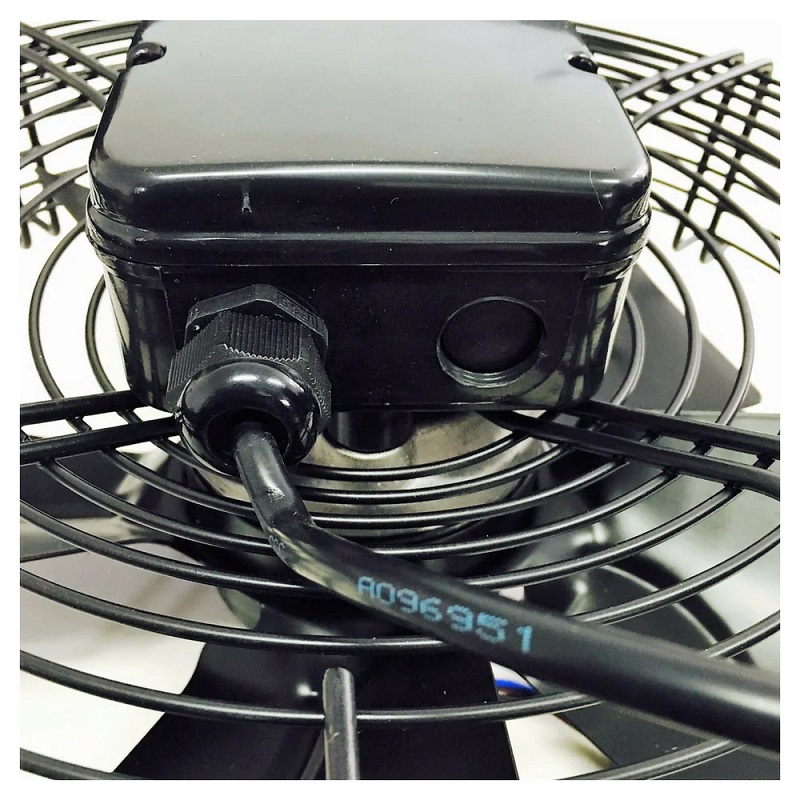

Connection Type: Connection Box: 1.5 m
Dimensions: 500 mm
Our heavy-duty axial fans are ideal for residential, commercial, and industrial applications, such as air conditioning and refrigeration condensing units, commercial cold rooms, evaporators, heaters, and exhaust fans. For use in condensers, the applicable ambient temperature is between 0°C and +60°C, and for use in evaporators, the applicable ambient temperature is between -30°C and 0°C.
Four-pole electric induction fan motors are divided into single-phase and three-phase asynchronous fan motors, widely used in condensers, evaporators, ventilation cycles, and other refrigeration equipment.
Benefits
Heavy-duty
Ideal for commercial and industrial use
Low noise
Average motor life: over 30,000 hours
Energy saving
Easy to install
Features:
Available with protective grille
Protection rating: IP42 or IP44
Certification: CE
Thermal protection integrated into the winding
Standard fan cable length: 1.5 m
Specifications
Type: Single-phase external rotor electric induction fan with motor
Model: YWF4E-500 axial fan
Motor type: Asynchronous
Speed: 1400 rpm
Suction
Class Insulation: Class B
Voltage: 220-240 V
Frequency: 50 Hz
Poles: 4
Input Power: 470 W
Current: 2.1 A
Additional Protection: Drip Protection
Connection Type: Connection Box: 1.5 m
Dimensions: 500 mm
