Home/Air conditioning/Fixed air conditioning/Unité intérieur/ extérieur seul /HTW MO3-052IX41B2R32 Indoor Unit
Please sign in so that we can notify you about a reply

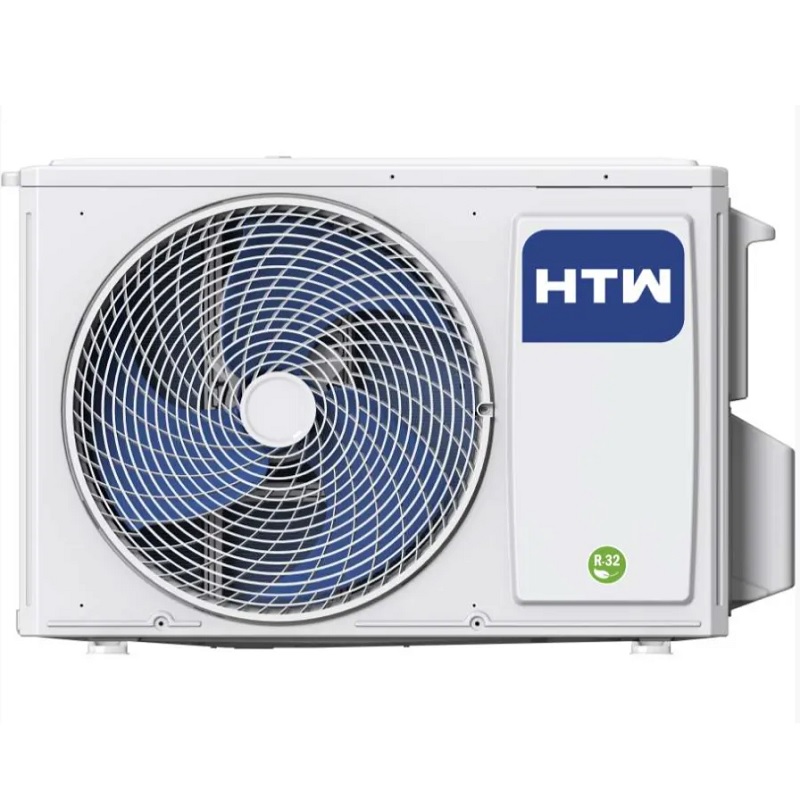

HTW MO3-052IX41B2R32 Indoor Unit
HTW 5.2 kW outdoor air conditioning unit. With the ability to power up to 3 indoor units, you can cool large spaces with a single outdoor unit.
Up to 12 operating speeds
Air conditioner protection
Compressor protection
Anti-cold air protection
Design that complements any home décor.
Low noise level thanks to a very low fan speed.
Remote control allows you to control settings such as temperature, speed, mode, and timer on the indoor units from anywhere near them.
Specifications
Power supply: 220–240 V (single-phase ~ 50 Hz)
Cooling capacity
Power (kW): 6.15 (1.94~6.86)
Cooling capacity (Btu/h): 21,000 (6,800~22,500)
Power consumption (W): 1,905 (180~2,200)
SEER: 6.1
Cooling energy class: A++
Heating capacity
Power (kW): 6.6 (1.7~7.3)
Cooling capacity (Btu/h): 22,000 (4,947~22,800)
Power consumption (W): 1,738 (350~1,800)
SCOP: 4
Energy class: A+
Outdoor unit
Sound level: 65 dB(A)
Sound pressure: 57.5 dB(A)
Airflow: 3,000 m³/min / m³/h
Operating temperature: 15~50 / -15~24 °C
Refrigerant type/charge: 1.5 g/kg R32
Additional charge > 7.5 g/m³: 12 g/m³
Connections
Refrigerant piping
Liquid – Gas: 1/4"-3/8" x 3"
Maximum length: 60 m
Maximum length (1 indoor unit): 30 m
Maximum vertical distance (indoor/outdoor): 15 m
Maximum vertical distance (between indoor units): 10 m
Electrical connections
Power supply: 2 x 4 mm² + T
Interconnection: 3 x 2.5 mm² + T
Weight and dimensions
Outdoor unit:
Dimensions net (L x H x D): 890 x 673 x 342 mm
Gross dimensions (L x H x D): 1030 x 750 x 438 mm
Net weight: 43.3 kg
