Home/Air conditioning/Fixed air conditioning/Unité intérieur/ extérieur seul /Panasonic M-CU-5Z90TBE Outdoor Unit
Please sign in so that we can notify you about a reply

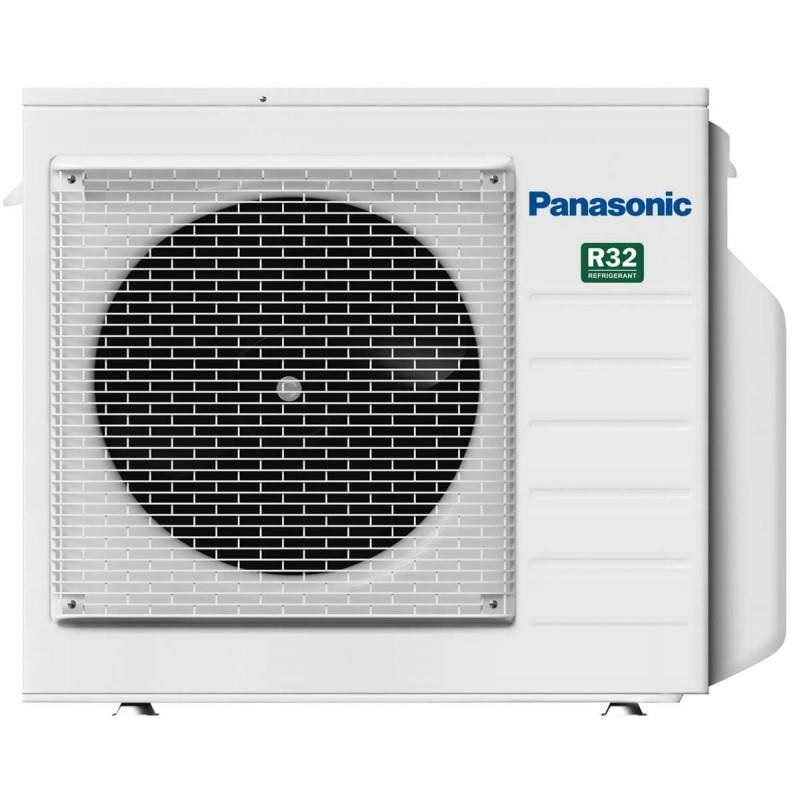

Panasonic M-CU-5Z90TBE Outdoor Unit

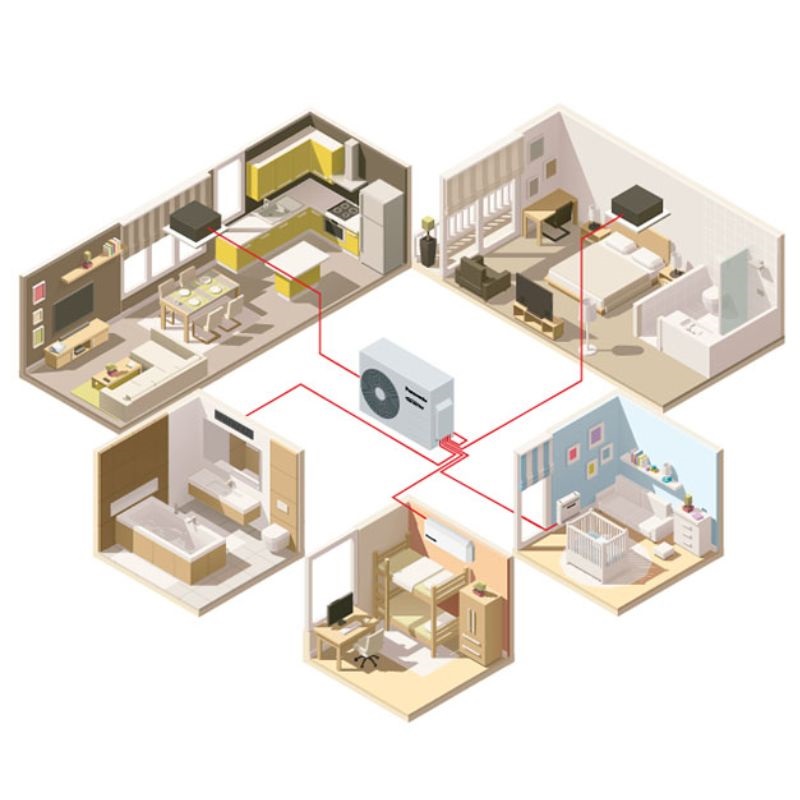

Up to 5 indoor units with a single outdoor unit and 5 rooms with individual control
With nanoe™ X technology for enhanced 24/7 protection
Energy class A+++ SEER
Indoor units compatible with internet and voice control
Cooling capacity 9.00 kW (2.90 – 11.50)
EER 4.09 W/W (5.27 – 2.98)
SEER 8.50 A+++
Nominal cooling capacity 9.00 kW
Cooling consumption 2.20 kW (0.55 – 3.86)
Annual energy consumption 1100 kWh/year
Heating cost 10.40 kW (3.40 – 14.50)
Heating efficiency at -7 °C: ——- kW
COP 4.84 W/W (6.42 – 3.42)
SCOP 4.68 A++
Rated output at -10°C: 8.50 kW
Heating consumption: 2.15 kW (0.53 – 4.24)
Annual energy consumption: 2,543 kWh/year
Current: 10.50 A / 10.10 A
Mains voltage: 230 V
Recommended fuse: 25 A
Recommended cable cross-section: 3.5 mm²
Sound level: 53 dB(A) / 54 dB(A)
Pipe diameter: 1/4" (6.35) / 3/8" (9.52) inches
Total pipe length: 6 to 80 meters
Pipe lengths per unit: 3 to 25 meters
Elevation difference (indoor/outdoor): 15 meters
Additional hose length: 45 meters
Additional coolant quantity: 20 g/m
Refrigerant (R32) / CO2 equivalent: 2.72 kg/T / 1836
Operating range (Max. cooling ~ Max. heating): -10 ~ +46 °C
Operating range (Max. heating ~ Max. heating): -15 ~ +24 °C
Dimensions: 999 x 940 x 340 mm
Net weight: 81 kg
Up to 5 indoor units with a single outdoor unit and 5 rooms with individual control
With nanoe™ X technology for enhanced 24/7 protection
Energy class A+++ SEER
Indoor units compatible with internet and voice control
Cooling capacity 9.00 kW (2.90 – 11.50)
EER 4.09 W/W (5.27 – 2.98)
SEER 8.50 A+++
Nominal cooling capacity 9.00 kW
Cooling consumption 2.20 kW (0.55 – 3.86)
Annual energy consumption 1100 kWh/year
Heating cost 10.40 kW (3.40 – 14.50)
Heating efficiency at -7 °C: ——- kW
COP 4.84 W/W (6.42 – 3.42)
SCOP 4.68 A++
Rated output at -10°C: 8.50 kW
Heating consumption: 2.15 kW (0.53 – 4.24)
Annual energy consumption: 2,543 kWh/year
Current: 10.50 A / 10.10 A
Mains voltage: 230 V
Recommended fuse: 25 A
Recommended cable cross-section: 3.5 mm²
Sound level: 53 dB(A) / 54 dB(A)
Pipe diameter: 1/4" (6.35) / 3/8" (9.52) inches
Total pipe length: 6 to 80 meters
Pipe lengths per unit: 3 to 25 meters
Elevation difference (indoor/outdoor): 15 meters
Additional hose length: 45 meters
Additional coolant quantity: 20 g/m
Refrigerant (R32) / CO2 equivalent: 2.72 kg/T / 1836
Operating range (Max. cooling ~ Max. heating): -10 ~ +46 °C
Operating range (Max. heating ~ Max. heating): -15 ~ +24 °C
Dimensions: 999 x 940 x 340 mm
Net weight: 81 kg
