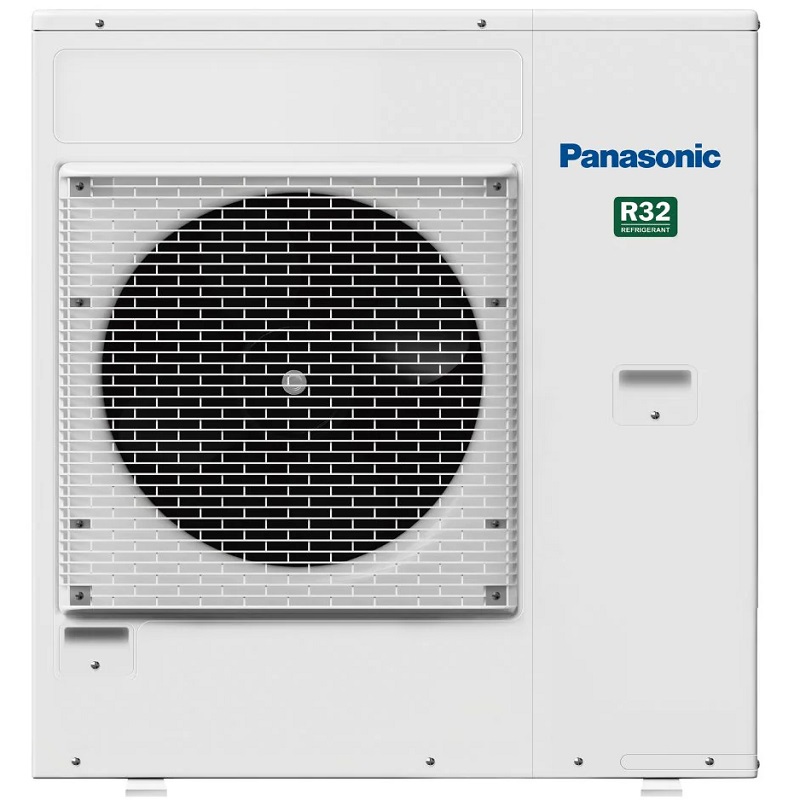

Panasonic M-CU-4Z80TBE 8.0 kW (230V) R32 Outdoor Unit
Inverter multi-split systems offer the advantage of allowing up to five indoor units to be connected to a single outdoor unit. This significantly reduces the required outdoor space and can also decrease energy consumption by up to 30%. The size of the outdoor unit should be chosen based on the type and number of indoor units to be connected, as well as their combined capacity. The tables on the following pages, detailing possible combinations, technical specifications, and performance data, are designed to help you find the ideal combination of units.
Panasonic Multisplit Inverter+ Outdoor Unit
Compatible with internet control
Energy saving
Heating operation down to -15°C outdoor temperature
Cooling operation down to -10°C outdoor temperature
Easy control via a building management system (BMS)
5-year compressor warranty
Description
Indoor unit nominal capacity (min. - max.): 4.5 to 14.7 kW
Model: CU-4Z80TBE
Cooling capacity (min. - max.): 8.00 kW (3.00 to 9.20 kW)
EER nominal (min. - max.): 4.04 W/W (5.66 to 3.21 W/W)
SEER: 7.90 A++
Cooling capacity (operating in cooling mode): 8.00 kW
Power consumption Nominal cooling output (min. - max.): 1.98 kW (0.53 to 2.87 kW)
Annual energy consumption: 990 kWh/year
Nominal heating output (min. - max.): 9.40 kW (4.20 to 10.60 kW)
Nominal COP (min. - max.): 4.63 W/W (6.00 to 3.46 W/W)
SCOP: 4.70 A++
Nominal output at -10°C: 6.80 kW
Power consumption in heating mode (min.-max.): 2.03 kW (0.70-3.06 kW)
Current consumption in cooling/heating mode (A): 9.50/9.50
Voltage (V): 230
Recommended fuse (A): 20 Power cable (mm²): 2.5
Sound level in cooling/heating mode (high) (dB(A)): 51/52
Liquid pipe connections (inches/mm): 1/4" (6.35)
Gas pipe connections (inches/mm): 3/8" (9.52)
Total pipe length (m): 6 to 70
Additional gas pipe length (m): 45
Additional gas recharge capacity (g/m): 20 Refrigerant (R32) / Eq. CO₂ (kg/T): 2.72 / 1.836
Operating range in cooling mode (min./max. °C): -10 to +46
Heating mode (min./max. °C): -15 to +24
Dimensions (H x W x D): 999 x 940 x 340 mm
Net weight: 80 kg
Inverter multi-split systems offer the advantage of allowing up to five indoor units to be connected to a single outdoor unit. This significantly reduces the required outdoor space and can also decrease energy consumption by up to 30%. The size of the outdoor unit should be chosen based on the type and number of indoor units to be connected, as well as their combined capacity. The tables on the following pages, detailing possible combinations, technical specifications, and performance data, are designed to help you find the ideal combination of units.
Panasonic Multisplit Inverter+ Outdoor Unit
Compatible with internet control
Energy saving
Heating operation down to -15°C outdoor temperature
Cooling operation down to -10°C outdoor temperature
Easy control via a building management system (BMS)
5-year compressor warranty
Description
Indoor unit nominal capacity (min. - max.): 4.5 to 14.7 kW
Model: CU-4Z80TBE
Cooling capacity (min. - max.): 8.00 kW (3.00 to 9.20 kW)
EER nominal (min. - max.): 4.04 W/W (5.66 to 3.21 W/W)
SEER: 7.90 A++
Cooling capacity (operating in cooling mode): 8.00 kW
Power consumption Nominal cooling output (min. - max.): 1.98 kW (0.53 to 2.87 kW)
Annual energy consumption: 990 kWh/year
Nominal heating output (min. - max.): 9.40 kW (4.20 to 10.60 kW)
Nominal COP (min. - max.): 4.63 W/W (6.00 to 3.46 W/W)
SCOP: 4.70 A++
Nominal output at -10°C: 6.80 kW
Power consumption in heating mode (min.-max.): 2.03 kW (0.70-3.06 kW)
Current consumption in cooling/heating mode (A): 9.50/9.50
Voltage (V): 230
Recommended fuse (A): 20 Power cable (mm²): 2.5
Sound level in cooling/heating mode (high) (dB(A)): 51/52
Liquid pipe connections (inches/mm): 1/4" (6.35)
Gas pipe connections (inches/mm): 3/8" (9.52)
Total pipe length (m): 6 to 70
Additional gas pipe length (m): 45
Additional gas recharge capacity (g/m): 20 Refrigerant (R32) / Eq. CO₂ (kg/T): 2.72 / 1.836
Operating range in cooling mode (min./max. °C): -10 to +46
Heating mode (min./max. °C): -15 to +24
Dimensions (H x W x D): 999 x 940 x 340 mm
Net weight: 80 kg
