Home/Air conditioning/Fixed air conditioning/Unité intérieur/ extérieur seul /Panasonic M-CU-4Z68TBE Outdoor Unit
Please sign in so that we can notify you about a reply

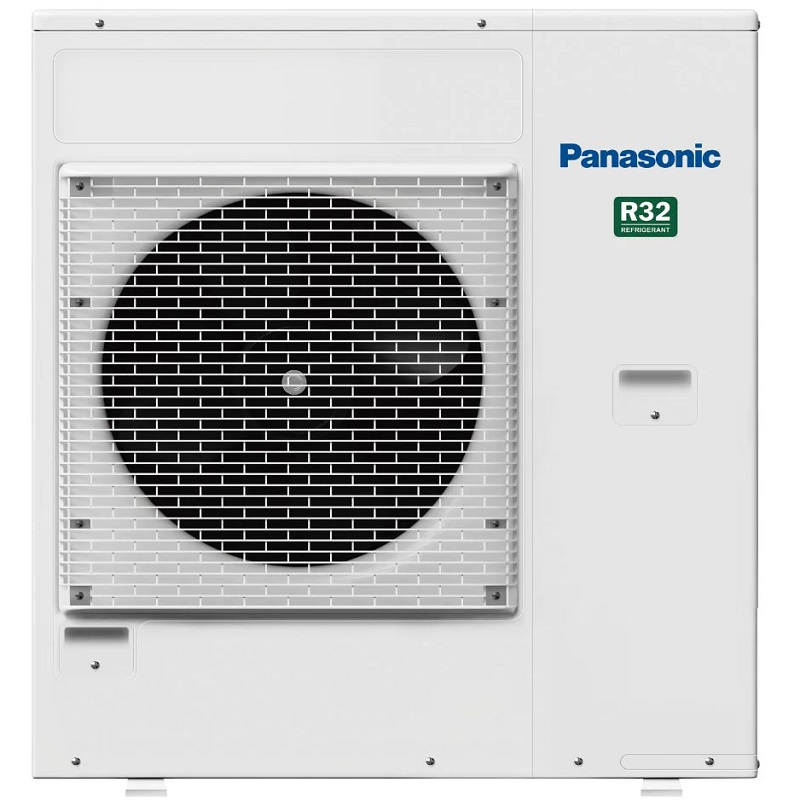

Panasonic M-CU-4Z68TBE Outdoor Unit
nanoe™ X technology for enhanced 24/7 protection
Energy efficiency class A+++ SEER
Indoor units compatible with voice and internet control
Technical Specifications
Refrigerant type: R32
Nominal cooling power consumption: 1.55 kW
Operating principle:
Cooling and heating
Total number of indoor units: 4
Connection voltage, outdoor unit: 230 V
Number of phases, outdoor unit: 1
Nominal connection current, outdoor unit: 7 A
Inverter technology: Yes
Sound pressure level, outdoor unit cooling: 49 dB(A)
Sound pressure level, outdoor unit heating: 50 dB(A)
Nominal liquid line diameter: 1/4 inch
Outer diameter of liquid line tube: 6.35 mm
Number of lines Suction inlet, 3/8 inch diameter: 4
Annual energy consumption (air conditioning, 350h - full load): 298 kWh
Nominal power input (heating): 1.9 kW
Maximum heating capacity: 8.5 kW
Maximum cooling capacity: 6.8 kW
EER (cooling): 4.39
COP (heating): 4.47
SEER (cooling): 8
SCOP (heating): 4.2
Energy efficiency class (cooling): A++
Energy efficiency class (heating): A+
Operating temperature range (cooling): -10 - 46 °C
Operating temperature range (heating): -15 - 24 °C
Minimum duct length per circuit: 3 meters
Maximum duct length per circuit: 25 meters
Total maximum duct length: 60 meters
Maximum height difference: 15 meters
Refrigerant charge: 2.1 kg
Device protection: 20 A
Outdoor unit height: 795 mm
Outdoor unit width: 875 mm
Outdoor unit depth: 320 mm
Outdoor unit weight: 72 kg
nanoe™ X technology for enhanced 24/7 protection
Energy efficiency class A+++ SEER
Indoor units compatible with voice and internet control
Technical Specifications
Refrigerant type: R32
Nominal cooling power consumption: 1.55 kW
Operating principle:
Cooling and heating
Total number of indoor units: 4
Connection voltage, outdoor unit: 230 V
Number of phases, outdoor unit: 1
Nominal connection current, outdoor unit: 7 A
Inverter technology: Yes
Sound pressure level, outdoor unit cooling: 49 dB(A)
Sound pressure level, outdoor unit heating: 50 dB(A)
Nominal liquid line diameter: 1/4 inch
Outer diameter of liquid line tube: 6.35 mm
Number of lines Suction inlet, 3/8 inch diameter: 4
Annual energy consumption (air conditioning, 350h - full load): 298 kWh
Nominal power input (heating): 1.9 kW
Maximum heating capacity: 8.5 kW
Maximum cooling capacity: 6.8 kW
EER (cooling): 4.39
COP (heating): 4.47
SEER (cooling): 8
SCOP (heating): 4.2
Energy efficiency class (cooling): A++
Energy efficiency class (heating): A+
Operating temperature range (cooling): -10 - 46 °C
Operating temperature range (heating): -15 - 24 °C
Minimum duct length per circuit: 3 meters
Maximum duct length per circuit: 25 meters
Total maximum duct length: 60 meters
Maximum height difference: 15 meters
Refrigerant charge: 2.1 kg
Device protection: 20 A
Outdoor unit height: 795 mm
Outdoor unit width: 875 mm
Outdoor unit depth: 320 mm
Outdoor unit weight: 72 kg
Brand Hemmera:
PANASONIC
