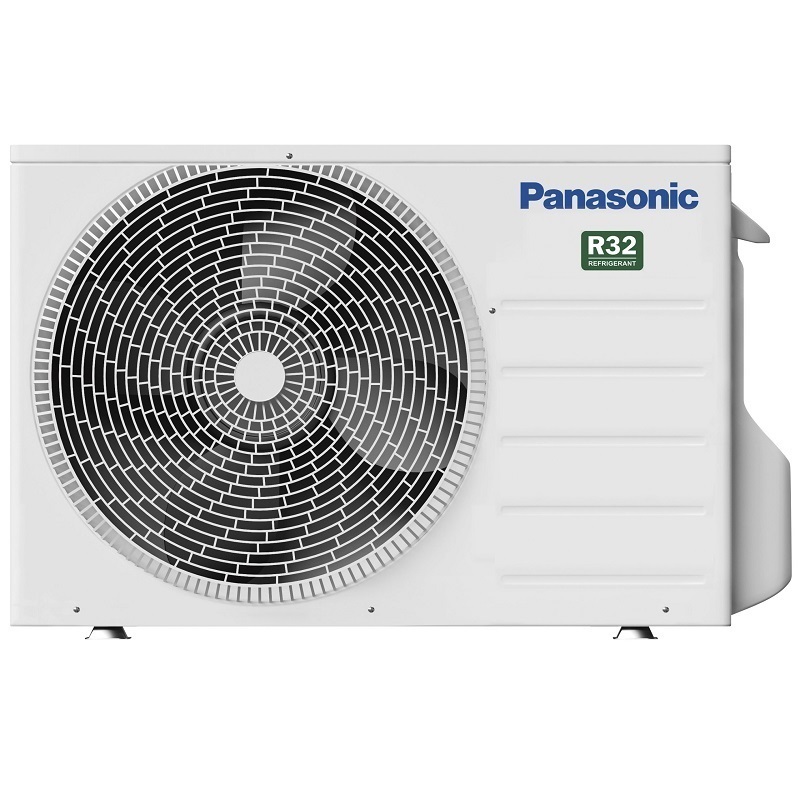

Panasonic M-CU-2Z50TBE Outdoor Unit
Total flexibility up to 9.0 kW with a wide range of indoor units, including high-performance Etherea indoor units, achieving up to A+++/A++
Specifications
Multi-Z Deluxe System · R32: 5.00 kW
Annual Energy Consumption for Cooling (3): 206 kWh/year
Operating Range (Cooling - Max): +46 °C
Operating Range (Heating - Min): -15 °C
Operating Range (Heating - Max): +24 °C
Cooling Capacity (Min): 1.50 kW
Cooling Capacity (Max): 5.40 kW
EER (Min) (1): 6.00 W/W
EER (Max) (1): 3.62 W/W
Design Power (Cooling): 5.00 kW
Power Cooling input (nominal): 1.18 kW
Cooling input (minimum): 0.25 kW
Cooling input (maximum): 1.49 kW
Outdoor sound pressure level (Heat - Hi) (4): 52 dB(A)
Heating capacity (minimum): 1.10 kW
Heating capacity (maximum): 7.20 kW
COP (minimum) (1): 5.24 W/W
COP (maximum) (1): 4.00 W/W
Heating input (minimum): 0.21 kW
Heating input (maximum): 1.80 kW
Recommended outdoor fuse: 16 A
Cooling current: 5.35 A
Heating current: 5.50 A
Indoor nominal capacity (minimum ~ maximum): 3.2 ~ 7.7 kW
Cable cross-section Recommended cable size: 2.5 mm²
Total pipe run length: 6–30 meters
Single pipe run length range: 3–20 meters
Heating input power (nominal): 1.21 kW
Outdoor sound pressure level (Cool - Hi): 50 dB(A)
SEER: 8.50 A+++
Annual energy consumption for heating (3): 1,278 dB(A)
SCOP (2): 4.60 A++
Design power at -10°C: 4.20 kW
Operating range (Cool - Min): -10°C
Cooling capacity (nominal): 5.00 kW
Heating capacity (nominal): 5.60 kW
COP (nominal): 4.63 W/W
EER (nominal): 4.24 W/W
Heating capacity at -7°C kW
Refrigerant (R32) / CO2 Eq.: 1.12 / 0.756 kg / T
Liquid piping diameter (inch): 1/4 (6.35) mm
Gas piping diameter (inch): 3/8 (9.52) mm
Elevation difference (inlet/outlet): 10 meters
Precharge hose length: 20 meters
Additional gas quantity: 15 g/m
Power supply (voltage): 230 V
External dimensions (height): 619 mm
External dimensions (width): 824 mm
External dimensions (depth): 299 mm
Net weight (external): 39 kg
