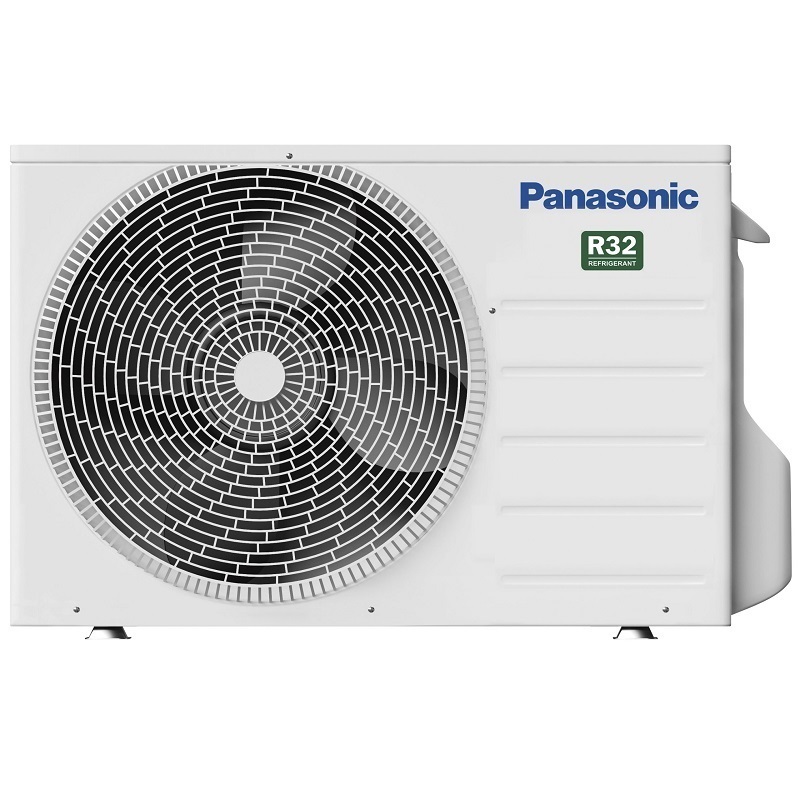

Panasonic M-CU-2Z41TBE Outdoor Unit
The Panasonic CU-2Z41TBE unit is designed to power two indoor units. It delivers a nominal cooling capacity of 4.1 kW and a heating capacity of 4.6 kW, incorporates environmentally friendly R32 refrigerant and inverter technology for quiet and energy-efficient operation, and offers integrated Wi-Fi connectivity via the Panasonic Comfort Cloud app for convenient remote control.
Very high energy efficiency: SEER 8.50 (Class A+++) and SCOP 4.60 (Class A++)
Low noise level: approximately 48 dB(A) in cooling mode and 50 dB(A) in heating mode
Flexible installation: Piping up to 30 meters in total
Specifications
Free Multi Z system outdoor unit
Outdoor unit model: CU-2Z41TBE
Energy efficiency:
Seasonal efficiency:
SEER: 8.50
SCOP (average/warmest/coldest climate): 4.60
Energy efficiency class (Cooling): A+++
Energy efficiency class (Heating): A++
Seasonal energy consumption (average/warmest/coldest climate) kWh/year 169 - 1075
Performance
Cooling Capacity (kW): 4.1 (1.5 - 5.2)
Heating Capacity (kW): 4.6 (1.1 - 7.0)
Can be connected to 2 indoor units with a maximum capacity of 6.0 kW
The unit must operate with at least 2 indoor units connected
Sound Pressure Level (dB(A): 48/50)
Cooling Power Consumption (kW): 0.90 (0.25 - 1.37)
Heating Power Consumption (kW): 0.96 (0.21 - 1.79)
Electrical Data
Power Supply (V/Hz/Φ): 230/50/1
Refrigerant: R32 - 1.12 kg / 0.756 T.CO2 eq.
Liquid/Gas Pipe Diameter (inches): 1/4” (6.35 mm) - 3/8” (9.52 mm)
Maximum piping length with standard load: 3-20 m
Maximum piping length with price surcharge: 30 m
Maximum height difference (outdoor unit above): 10 m
Operating limits (outdoor temperature): Cooling -10°C to +46°C / Heating -15°C to +24°C
Dimensions and weight
Outdoor unit HxWxD (mm): 619 x 824 x 299
Weight: 39 kg without packaging
Weight: 43 kg with packaging
The Panasonic CU-2Z41TBE unit is designed to power two indoor units. It delivers a nominal cooling capacity of 4.1 kW and a heating capacity of 4.6 kW, incorporates environmentally friendly R32 refrigerant and inverter technology for quiet and energy-efficient operation, and offers integrated Wi-Fi connectivity via the Panasonic Comfort Cloud app for convenient remote control.
Very high energy efficiency: SEER 8.50 (Class A+++) and SCOP 4.60 (Class A++)
Low noise level: approximately 48 dB(A) in cooling mode and 50 dB(A) in heating mode
Flexible installation: Piping up to 30 meters in total
Specifications
Free Multi Z system outdoor unit
Outdoor unit model: CU-2Z41TBE
Energy efficiency:
Seasonal efficiency:
SEER: 8.50
SCOP (average/warmest/coldest climate): 4.60
Energy efficiency class (Cooling): A+++
Energy efficiency class (Heating): A++
Seasonal energy consumption (average/warmest/coldest climate) kWh/year 169 - 1075
Performance
Cooling Capacity (kW): 4.1 (1.5 - 5.2)
Heating Capacity (kW): 4.6 (1.1 - 7.0)
Can be connected to 2 indoor units with a maximum capacity of 6.0 kW
The unit must operate with at least 2 indoor units connected
Sound Pressure Level (dB(A): 48/50)
Cooling Power Consumption (kW): 0.90 (0.25 - 1.37)
Heating Power Consumption (kW): 0.96 (0.21 - 1.79)
Electrical Data
Power Supply (V/Hz/Φ): 230/50/1
Refrigerant: R32 - 1.12 kg / 0.756 T.CO2 eq.
Liquid/Gas Pipe Diameter (inches): 1/4” (6.35 mm) - 3/8” (9.52 mm)
Maximum piping length with standard load: 3-20 m
Maximum piping length with price surcharge: 30 m
Maximum height difference (outdoor unit above): 10 m
Operating limits (outdoor temperature): Cooling -10°C to +46°C / Heating -15°C to +24°C
Dimensions and weight
Outdoor unit HxWxD (mm): 619 x 824 x 299
Weight: 39 kg without packaging
Weight: 43 kg with packaging
