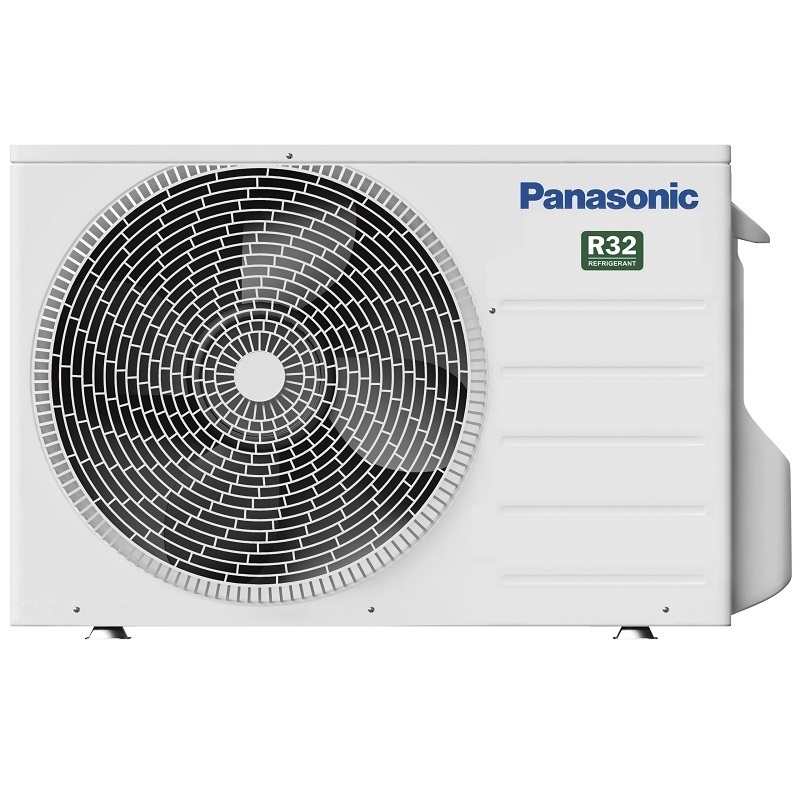

Panasonic M-CU-2Z35TBE Outdoor Unit
Panasonic R32 High Performance Outdoor Unit
Sound level: 55 dB(A)
Improved efficiency with Inverter technology
Operates down to -20°C
With a maximum outlet temperature of 60°C
Suitable for low-energy homes with a minimum outlet temperature of 20°C
Low CO2 emissions, reducing environmental impact
Outdoor unit shuts down via dry contacts during defrosting
Remote control with CZ-TAW1 via the Cloud
Features
Free Multi Z System Outdoor Unit
Outdoor Unit Model: CU-2Z35TBE
Energy Efficiency
Seasonal Efficiency
SEER: 8.50
SCOP (Average/Warmest/Coldest Climate): 4.60
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption (average/hottest/coldest climate) kWh/year; 144 - 974
Performance
Cooling Capacity (kW): 3.5 (1.5 - 4.5)
Heating Capacity (kW): 4.2 (1.1 - 5.6)
Can be connected to 2 indoor units with a maximum capacity of 6.0 kW
The unit must operate with at least 2 indoor units connected
Sound Pressure Level (dB(A): 48/50)
Cooling Power Consumption (kW): 0.72 (0.25 - 1.10)
Heating Power Consumption (kW): 0.86 (0.21 - 1.34)
Electrical Data
Power Supply (V/Hz/Φ): 230/50/1
Refrigerant: R32 - 1.12 kg / 0.756 T.CO2 eq.
Liquid/Gas Pipe Diameter (inches): 1/4” (6.35 mm) - 3/8” (9.52 mm)
Maximum piping length with standard load: 3-20 m
Maximum piping length with price surcharge: 30 m
Maximum height difference (outdoor unit above): 10 m
Operating limits (outdoor temperature): Cooling -10°C to +46°C / Heating -15°C to +24°C
Dimensions and weight
Outdoor unit HxWxD: 619 x 824 x 299 mm
Weight without packaging: 39 kg
Weight with packaging: 42 kg
Panasonic R32 High Performance Outdoor Unit
Sound level: 55 dB(A)
Improved efficiency with Inverter technology
Operates down to -20°C
With a maximum outlet temperature of 60°C
Suitable for low-energy homes with a minimum outlet temperature of 20°C
Low CO2 emissions, reducing environmental impact
Outdoor unit shuts down via dry contacts during defrosting
Remote control with CZ-TAW1 via the Cloud
Features
Free Multi Z System Outdoor Unit
Outdoor Unit Model: CU-2Z35TBE
Energy Efficiency
Seasonal Efficiency
SEER: 8.50
SCOP (Average/Warmest/Coldest Climate): 4.60
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption (average/hottest/coldest climate) kWh/year; 144 - 974
Performance
Cooling Capacity (kW): 3.5 (1.5 - 4.5)
Heating Capacity (kW): 4.2 (1.1 - 5.6)
Can be connected to 2 indoor units with a maximum capacity of 6.0 kW
The unit must operate with at least 2 indoor units connected
Sound Pressure Level (dB(A): 48/50)
Cooling Power Consumption (kW): 0.72 (0.25 - 1.10)
Heating Power Consumption (kW): 0.86 (0.21 - 1.34)
Electrical Data
Power Supply (V/Hz/Φ): 230/50/1
Refrigerant: R32 - 1.12 kg / 0.756 T.CO2 eq.
Liquid/Gas Pipe Diameter (inches): 1/4” (6.35 mm) - 3/8” (9.52 mm)
Maximum piping length with standard load: 3-20 m
Maximum piping length with price surcharge: 30 m
Maximum height difference (outdoor unit above): 10 m
Operating limits (outdoor temperature): Cooling -10°C to +46°C / Heating -15°C to +24°C
Dimensions and weight
Outdoor unit HxWxD: 619 x 824 x 299 mm
Weight without packaging: 39 kg
Weight with packaging: 42 kg
