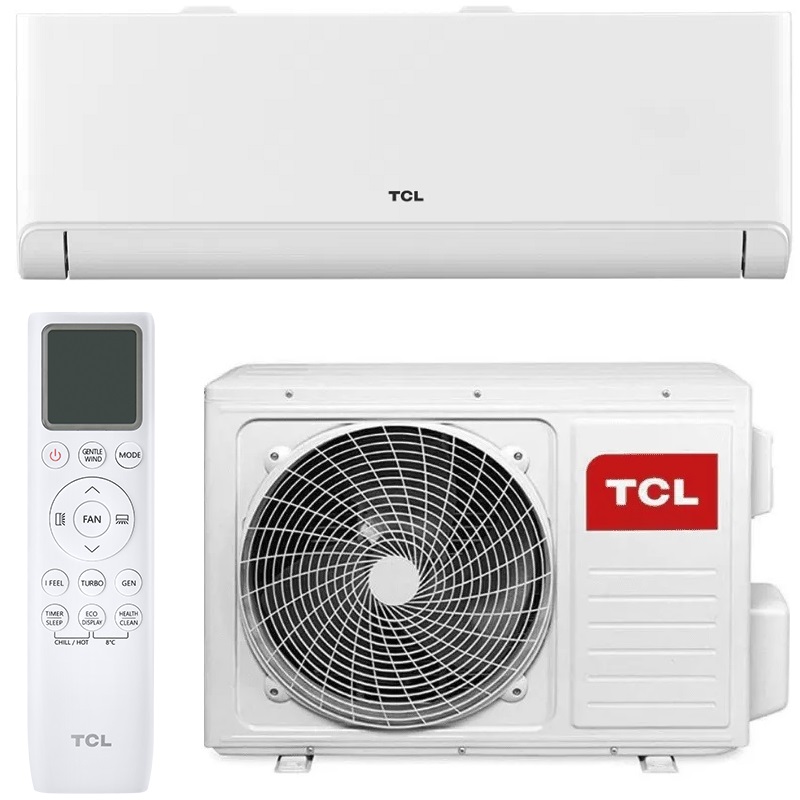

TCL SAVE IN S24F72S3 7.0 kW Air Conditioner. Smart Wi-Fi Control

TCL SAVE IN S24F72S3 7.0 kW Air Conditioner. Smart Wi-Fi Control

Thanks to an AI algorithm and temperature prediction models, T-AI technology dynamically adjusts the compressor frequency to regulate the room temperature, saving energy while ensuring optimal comfort.
This data was tested by SGS, with the air conditioner operating in T-AI energy-saving mode for a cumulative total of 3 hours in cooling mode.

Actual performance may vary depending on the environment.
Compared to models without T-AI energy-saving technology, the TCL SaveIN AI Series system can achieve up to 35% energy savings.

More Powerful Airflow
An air volume of 1,570 m³/h ensures instant cooling of the entire room.
These air volume figures are based on the TCL SaveIN AI Series 1220z model. The 1010z model offers a different air volume: 1,240 m³/h.

Fast cooling in 30 seconds and rapid heating in 60 seconds
The high-performance inverter compressor cools or heats the room quickly and stably, while optimizing energy consumption. Automatic cleaning at 56°C
The evaporator features an automatic cleaning system that includes defrosting, drying, and sterilization at 56°C to eliminate bacteria. In addition, the outdoor unit's reverse cleaning function automatically removes dust, ensuring cleaner air and easier breathing.

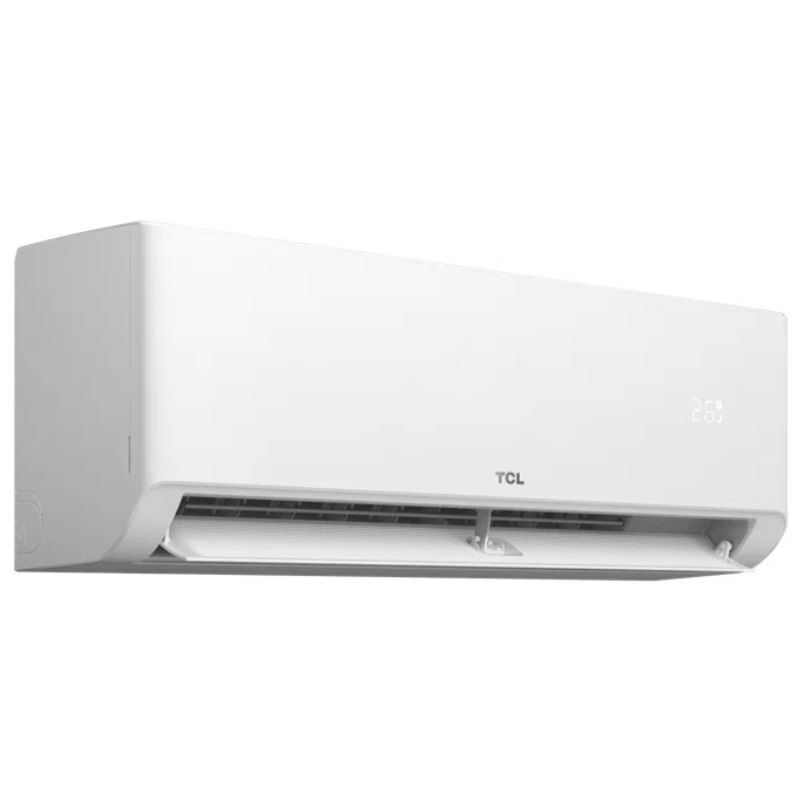

Indoor Unit
Declared Cooling Capacity: 7040 (1500~7800) W
Declared Heating Capacity: 7080 (1500~7900) W
Nominal Power: 7000 W
Declared SEER: 6.4 W/W
Energy Class: A++
Declared EER: 3.02 W
Declared COP: 3.25 W
Average Nominal Power: 4900 W
Declared Average SCOP: 4 W
Energy Class (Average): A+
Indoor Noise Level (S/H/M/L/Silent): 58/56/51/46/40 dB(A)
Indoor Net Dimensions (W x H x D): 321.5 x 220 mm
Indoor Packaging Dimensions (W x H x D): 1096 x 390 mm × 297 mm
Indoor Net Weight: 11 kg
Indoor Gross Weight: 13 kg

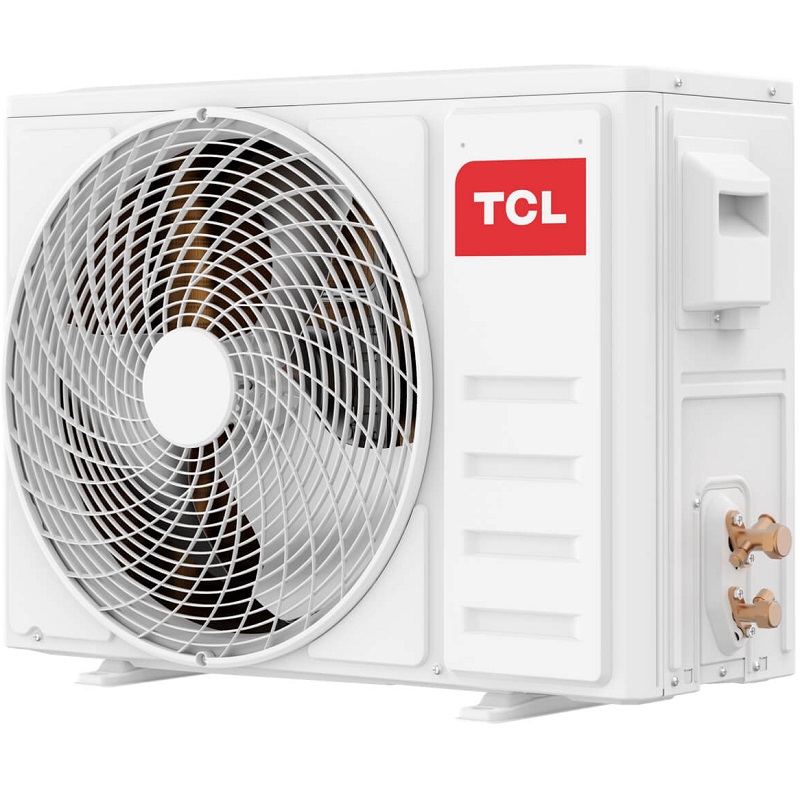

Outdoor Unit
Outdoor Noise Level: 67 dB(A)
Power Supply: 220-240 V~/50 Hz/1P
Power Supply Side: Outdoor
Voltage Range: 165~265 V
Operating Current in Cooling Mode: 10.5 (1.8~12.6) A
Operating Current in Heating Mode: 10.0 (1.8~13.4) A
Power Consumption in Cooling Mode: 2324 (390~2800) W
Power Consumption in Heating Mode: 2178 (390~3000) W
Refrigerant Type/Charge/Total Cooling Capacity/CO₂ Equivalent: R32/1.14/675/0.77
Indoor Airflow (Cooling/Heating): 1000/1000 m³/h
Gas Connection Hose Diameter: 1/2"
Liquid Connection Hose Diameter: 1/4"
Application Area: 27~45 m²
Indoor Ambient Temperature Range (°C)
Cooling: 17-32 / Heating: 0-30
Outdoor Ambient Temperature Range (°C)
Cooling: -15-53 / Heating: -20-30
External Net Dimensions (W x H x D): 920 × 699 × 380 mm
External Net Weight: 38 kg
External Packaging Dimensions (W x H x D): 949 × 732 × 392 mm
External Gross Weight: 40.5 kg
