TCL SAVE IN S12F72S3 3.5 kW Air Conditioner. Smart Wi-Fi Control

TCL SAVE IN S12F72S3 3.5 kW Air Conditioner. Smart Wi-Fi Control

Thanks to an AI algorithm and temperature prediction models, T-AI technology dynamically adjusts the compressor frequency to regulate the room temperature, saving energy while ensuring optimal comfort.
This data was tested by SGS, with the air conditioner operating in T-AI energy-saving mode for a cumulative total of 3 hours in cooling mode.

Actual performance may vary depending on the environment.
Compared to models without T-AI energy-saving technology, the TCL SaveIN AI Series system can achieve up to 35% energy savings.

More Powerful Airflow
An air volume of 1,570 m³/h ensures instant cooling of the entire room.
These air volume figures are based on the TCL SaveIN AI Series 1220z model. The 1010z model offers a different air volume: 1,240 m³/h.

Fast cooling in 30 seconds and rapid heating in 60 seconds
The high-performance inverter compressor cools or heats the room quickly and stably, while optimizing energy consumption. Automatic cleaning at 56°C
The evaporator features an automatic cleaning system that includes defrosting, drying, and sterilization at 56°C to eliminate bacteria. In addition, the outdoor unit's reverse cleaning function automatically removes dust, ensuring cleaner air and easier breathing.

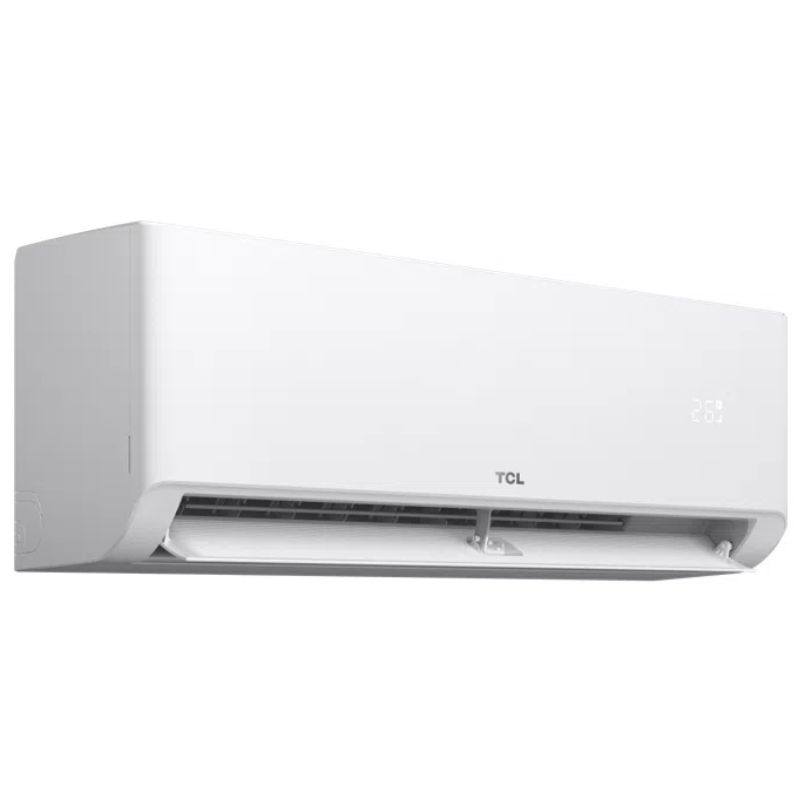

Indoor Unit
Declared Cooling Capacity: 3400 (1000~3770) W
Declared Heating Capacity: 3420 (1000~3810) W
Nominal Power: 3400 W
Declared SEER: 6.1 W/W
Energy Class: A++
Declared EER: 3 W
Declared COP: 3.4 W/W
Average Nominal Power: 2200 W
Declared Average SCOP: 4 W
Energy Class (Average): A+
Indoor Sound Level (S/H/M/L/Silent): 53/49/43/35/32 dB(A)
Indoor Net Dimensions (W x H x D): 778 x 272 x 192 mm
Indoor Net Weight: 7.3 kg
Indoor Gross Weight: 9.5 kg

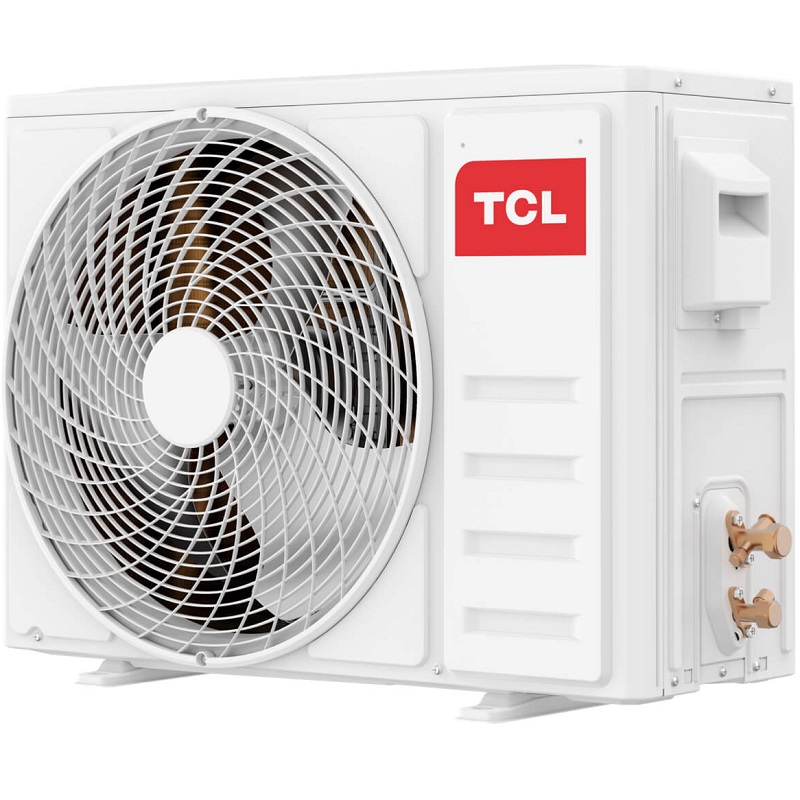

Outdoor Unit
Sound Level Outdoor: 62 dB(A)
Power supply: 220-240 V~/50 Hz/1P
Power supply side: Outdoor
Voltage range: 165~265 V
Operating current in cooling mode: 5.8 (1.5~9.0) A
Operating current in heating mode: 4.4 (1.5~10.0) A
Power consumption in cooling mode: 1130 (290~1500) W
Power consumption in heating mode: 1005 (290~1720) W
Refrigerant type/Charge/Lower heating value/CO₂ equivalent: R32/0.52/675/0.351
Indoor airflow (cooling/heating): 550/570 m³/h
Gas connection pipe diameter: 3/8"
Diameter Liquid connection hose: 1/4"
Application area: 14-22 m²
Indoor ambient temperature range: °C
Cooling: 17-32°C / Heating: 0-30°C
Outdoor ambient temperature range: °C
Cooling: -15-53°C / Heating: -20-30°C
External net dimensions (W x H x D): 712 x 459 x 276 mm
Inner packaging dimensions: 840 x 335 x 255 mm (W x H x D)
Outer packaging dimensions (W x H x D): 765 x 481 x 310 mm
External net weight: 20 kg
External gross weight: 22 kg
