Home/Air conditioning/Fixed air conditioning/Unité intérieur/ extérieur seul /TCL MT3240 9.5 kW (230V) R32 Outdoor Unit
Please sign in so that we can notify you about a reply

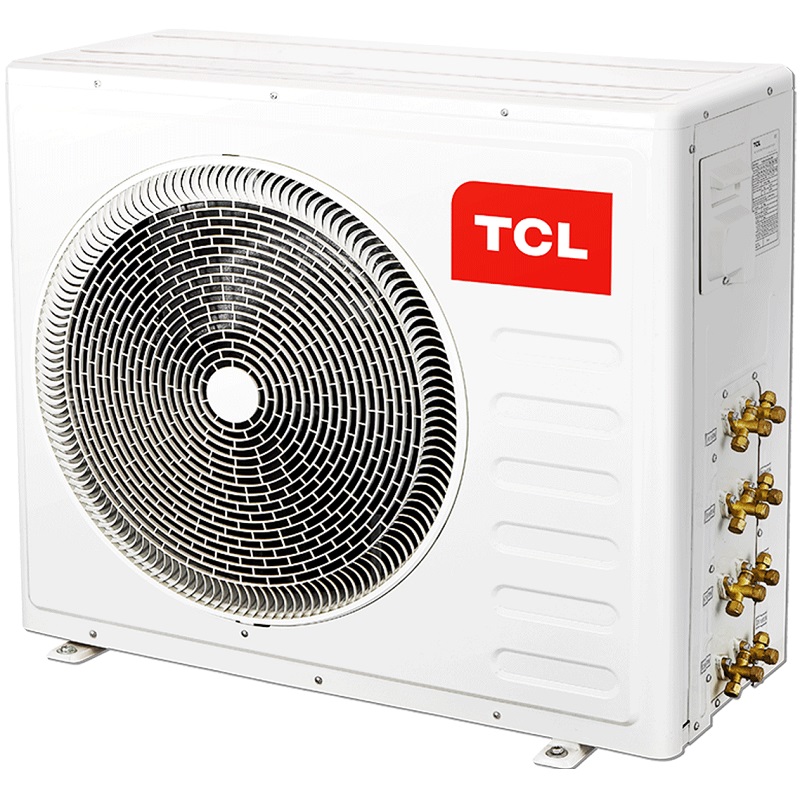

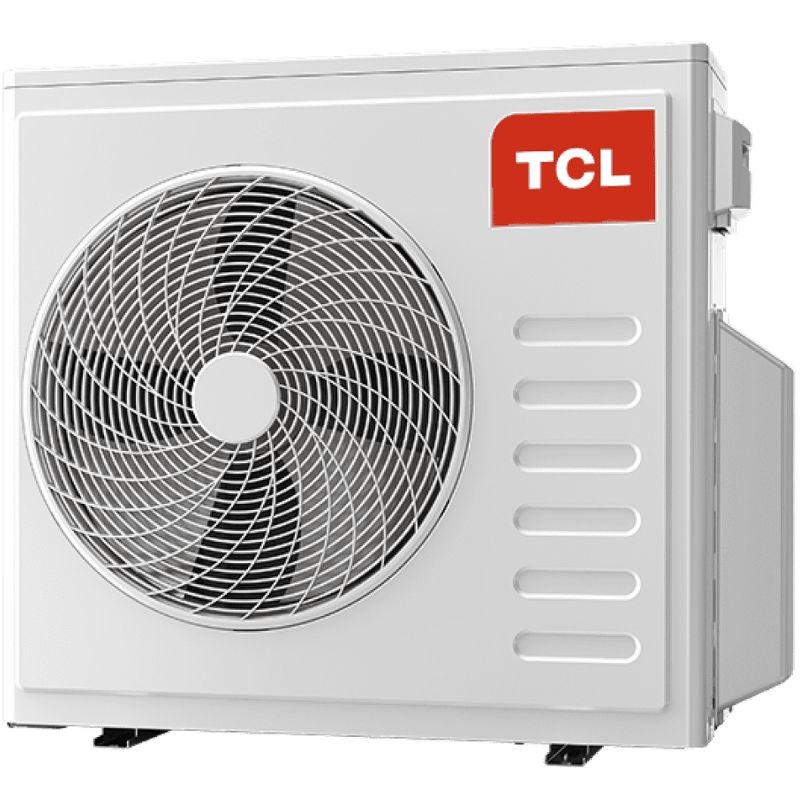

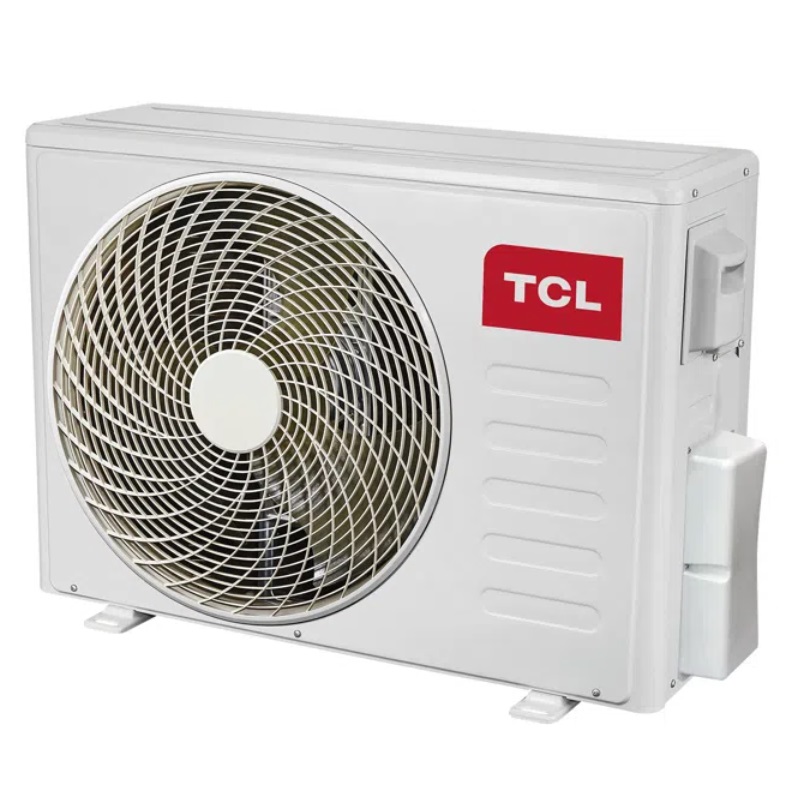

TCL MT3240 9.5 kW (230V) R32 Outdoor Unit
Inverter compressor with state-of-the-art technology: 30% improved energy efficiency, rapid cooling or heating (90 seconds for hot or cold air distribution at full load), and precise temperature control.
A high-performance, economical system for heating or cooling your home with high energy efficiency. Energy class A++ in cooling mode and A++ in heating mode.
TCL air-to-air heat pumps are reversible. Whether you need to heat or cool your home, enjoy a high-performance, economical system all year round.
Maintain a comfortable temperature regardless of the outside temperature.
The TCL compressor guarantees continuous operation, heating even at -15°C outside.
Cooling even at 50°C ambient temperature and 100% cooling capacity at 50°C ambient temperature.
Description
Compressor with 5-year warranty
Inverter technology
Model name: MT3240
Control: Remote control
Cooling capacity: 32,000 (10,600 to 35,000) BTU/h
Cooling power (W): 9,400 (3,100 to 10,200)
Pump power: 32,000 (8,700 to 35,000) BTU/h
Pump power: 9,450 (2,550 to 10,200) W
Rated power: 32,000 BTU/h
Rated power: 9,300 W
Rated power: 25,000 BTU/h
Rated power: 7,300 W
SEER: 6.1 (A++) W/W
SCOP: 4.0 (A+) W/W
EER: 3.4 W/W
COP: 3.71 W/W
Declared power (-10°C): 6,800 W
Declared average heating power (7°C) (average): 2,780 W
Declared average heating power (-7°C) (average): 6,470 W
Emergency electrical power (Elbu): 500 W
Sound power level: 70 dB(A)
Power supply: 220-240 V~/50 Hz
Voltage: 165~265 V
Cooling power consumption: 2,765 (410~3,500) W
Heating power consumption: 2,547 (510~3500) W
Operating current in cooling mode (A): 14.1 (1.8~17.0)
Operating current in heating mode: 13.0 (2.3~17.0)
Average annual consumption. Cooling capacity (kWh): 606
Average annual energy consumption (kWh): 2555
Refrigerant/charge (g): R32/2200 g
CO₂ emissions (tonnes): 1485
Compressor: Twin rotary
Fan: Axial, DC
Connections
Refrigerant connection: Flared
Minimum distance between units (outdoor - indoor): 3 meters
Standard distance between units (outdoor - indoor): 5 meters
Maximum distance between units (outdoor - indoor): 20 meters
Maximum total installation distance: 60 meters
Maximum pre-charge distance: 40 meters
Additional refrigerant charge (g/m³): 15 g
Maximum distance between indoor units: Not required
Maximum vertical distance (outdoor - indoor): 15 meters
Maximum vertical distance (between lower and upper indoor units): Not required Minimum number of indoor units required: 4
Liquid pipe dimensions: 1/2"
Net dimensions: 1005 × 910 × 400 mm
Dimensions with packaging (W × H × D): 1045 × 950 × 430 mm
Weight without packaging: 68 kg
Gross weight: 80 kg
Inverter compressor with state-of-the-art technology: 30% improved energy efficiency, rapid cooling or heating (90 seconds for hot or cold air distribution at full load), and precise temperature control.
A high-performance, economical system for heating or cooling your home with high energy efficiency. Energy class A++ in cooling mode and A++ in heating mode.
TCL air-to-air heat pumps are reversible. Whether you need to heat or cool your home, enjoy a high-performance, economical system all year round.
Maintain a comfortable temperature regardless of the outside temperature.
The TCL compressor guarantees continuous operation, heating even at -15°C outside.
Cooling even at 50°C ambient temperature and 100% cooling capacity at 50°C ambient temperature.
Description
Compressor with 5-year warranty
Inverter technology
Model name: MT3240
Control: Remote control
Cooling capacity: 32,000 (10,600 to 35,000) BTU/h
Cooling power (W): 9,400 (3,100 to 10,200)
Pump power: 32,000 (8,700 to 35,000) BTU/h
Pump power: 9,450 (2,550 to 10,200) W
Rated power: 32,000 BTU/h
Rated power: 9,300 W
Rated power: 25,000 BTU/h
Rated power: 7,300 W
SEER: 6.1 (A++) W/W
SCOP: 4.0 (A+) W/W
EER: 3.4 W/W
COP: 3.71 W/W
Declared power (-10°C): 6,800 W
Declared average heating power (7°C) (average): 2,780 W
Declared average heating power (-7°C) (average): 6,470 W
Emergency electrical power (Elbu): 500 W
Sound power level: 70 dB(A)
Power supply: 220-240 V~/50 Hz
Voltage: 165~265 V
Cooling power consumption: 2,765 (410~3,500) W
Heating power consumption: 2,547 (510~3500) W
Operating current in cooling mode (A): 14.1 (1.8~17.0)
Operating current in heating mode: 13.0 (2.3~17.0)
Average annual consumption. Cooling capacity (kWh): 606
Average annual energy consumption (kWh): 2555
Refrigerant/charge (g): R32/2200 g
CO₂ emissions (tonnes): 1485
Compressor: Twin rotary
Fan: Axial, DC
Connections
Refrigerant connection: Flared
Minimum distance between units (outdoor - indoor): 3 meters
Standard distance between units (outdoor - indoor): 5 meters
Maximum distance between units (outdoor - indoor): 20 meters
Maximum total installation distance: 60 meters
Maximum pre-charge distance: 40 meters
Additional refrigerant charge (g/m³): 15 g
Maximum distance between indoor units: Not required
Maximum vertical distance (outdoor - indoor): 15 meters
Maximum vertical distance (between lower and upper indoor units): Not required Minimum number of indoor units required: 4
Liquid pipe dimensions: 1/2"
Net dimensions: 1005 × 910 × 400 mm
Dimensions with packaging (W × H × D): 1045 × 950 × 430 mm
Weight without packaging: 68 kg
Gross weight: 80 kg
