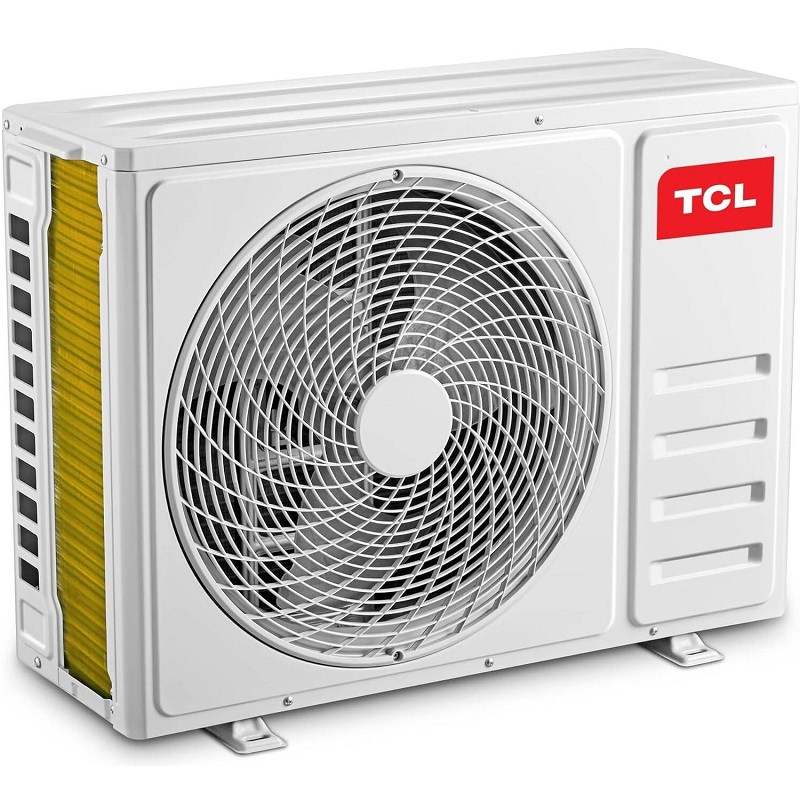

TCL MT1821 5.0 kW (230V) R32 Outdoor Unit

TCL MT1821 5.0 kW (230V) R32 Outdoor Unit

Inverter compressor with state-of-the-art technology: 30% improved energy efficiency, rapid cooling or heating (90 seconds for hot or cold air distribution at full load), and precise temperature control.
A high-performance, economical system for heating or cooling your home with high energy efficiency. Energy class A++ in cooling mode and A++ in heating mode.

TCL air-to-air heat pumps are reversible. Whether you need to heat or cool your home, enjoy a high-performance, economical system all year round.
Maintain a comfortable temperature regardless of the outside temperature.
The TCL compressor guarantees continuous operation, heating even at -15°C outside.
Cooling even at 50°C ambient temperature and 100% cooling capacity at 50°C ambient temperature.

Description
Compressor with 5-year warranty
Inverter technology
Model name: UE MT1821
Control: Remote control
Cooling capacity: 17,400 (4,200 to 19,100) BTU/h
Cooling power: 5,100 (1,230 to 5,600) W
Pump power: 18,000 (4,400 to 19,600) 27,000 BTU/h
Pump power: 5,200 (1,290 to 5,750) W
Rated power: 18,000 BTU/h
Rated power: 5,100 W
Rated power: 13,650 BTU/h
Rated power: 4,000 W
SEER: 6.1 (A++) W/W
SCOP: 4.0 (A+) W/W
EER: 3.3 W/W
COP: 3.9 W/W
Nominal capacity (-10°C) Cooling capacity (7°C): 3800 W
Average heating capacity (-7°C): 1600 W
Average heating capacity (-7°C): 3900 W
Standby power: 200 W
Sound power level: 65 dB(A)
Power supply: 220-240 V~/50 Hz
Voltage: 165~265 V
Cooling power consumption: 1545 (280~2050) W
Heating power consumption: 1333 (280~2050) W
Operating current in cooling mode: 7.5 (1.3~10.5) A
Operating current in heating mode: 6.2 (1.3~10.5) A
Average annual energy consumption. Cooling mode: 293 kWh
Average annual energy consumption: 1400 kWh
Refrigerant/charge (g): R32/1100 g
CO₂ emissions (tonnes): 0.743
Compressor: Twin rotary
Fan
Unit fan: Axial
Connections
Refrigerant connection: Flared
Minimum distance between units (outdoor - indoor): 3 meters
Standard distance between units (outdoor - indoor): 5 meters
Maximum distance between units (outdoor - indoor): 15 meters
Maximum total installation distance: 30 meters
Maximum pre-charge distance: 20 meters
Additional refrigerant charge: 15 g/m²
Distance Maximum distance between indoor units: Not required
Maximum vertical distance (outdoor - indoor): 15 meters
Distance between indoor units (bottom - top): Not required
Minimum number of indoor units: 2
Liquid pipe dimensions: 1/4"
Gas pipe dimensions: 3/8"
Net dimensions: 853 × 602 × 349 mm
Dimensions with packaging (W × H × D): 890 × 628 × 385 mm
Gross weight: 33 kg
Weight without packaging: 31 kg
