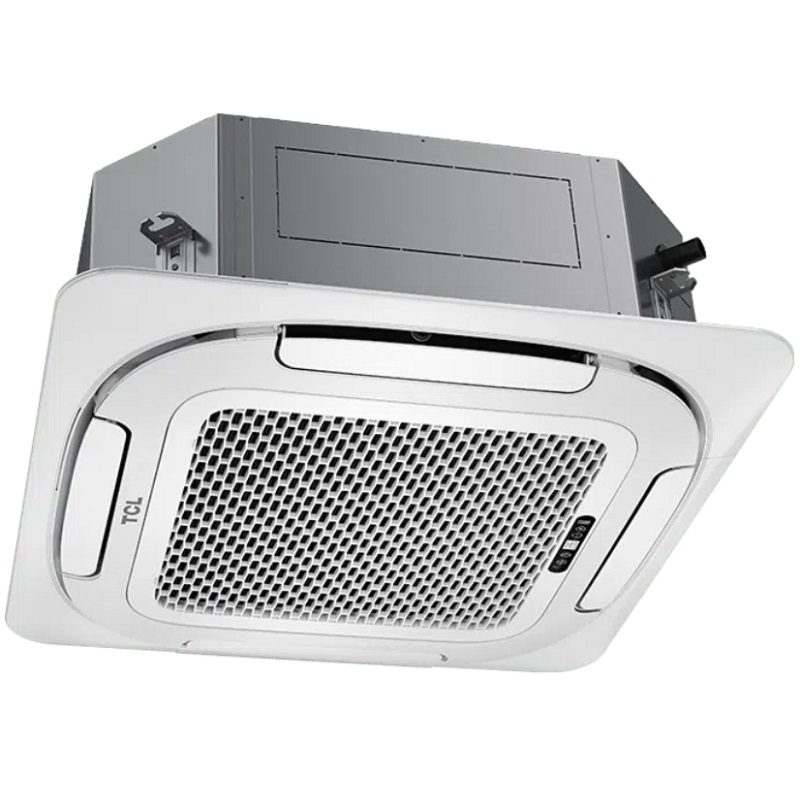

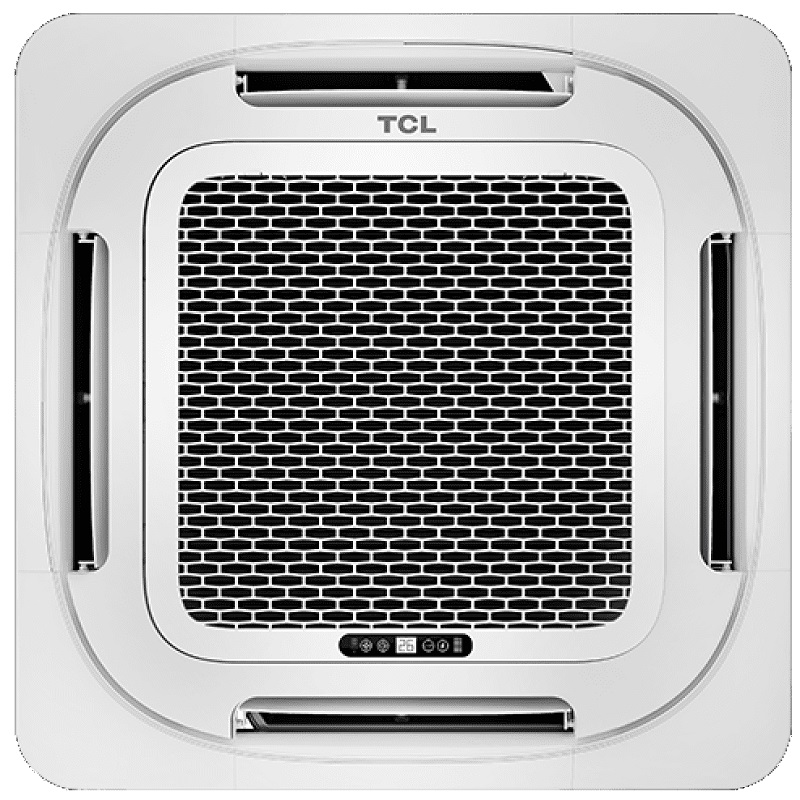

TCL M30S1S2 Cassette Air Conditioner 8.8 kW. 90 x 90 cm (230 V) R32

TCL M30S1S2 Cassette Air Conditioner 8.8 kW. 90 x 90 cm (230 V) R32

Eight-dimensional oscillation. Pleasant air is distributed throughout the room. The uniform air distribution reduces temperature fluctuations and maintains a comfortable indoor temperature. Wide oscillation angle: The louvers can oscillate from 0 to 85°, easily distributing cool air to every corner of the room. Easy-to-clean filter: The filter is very easy to remove and clean, ensuring consistently clean air. 200 mm hydraulic lift.

The cassette unit is equipped with an integrated water pump. The maximum hydraulic lift reaches 1200 mm, simplifying the installation of exhaust pipes. Quiet operation: Thanks to an optimized airflow design and 3D fan blades, TCL products increase airflow and reduce noise levels to as low as 34 dB.

This model stands out for its energy efficiency, thanks to its Inverter compressor which reduces consumption by up to 30%. It offers rapid cooling and heating, reaching the desired temperature in just 90 seconds. The reversible heat pump allows for year-round use, thus optimizing energy consumption. Furthermore, this energy-efficient system is not only beneficial for the environment but also allows for significant savings on electricity bills. With the TCL M30S1S2, enjoy optimal comfort without worrying about your energy consumption.

Technical Specifications

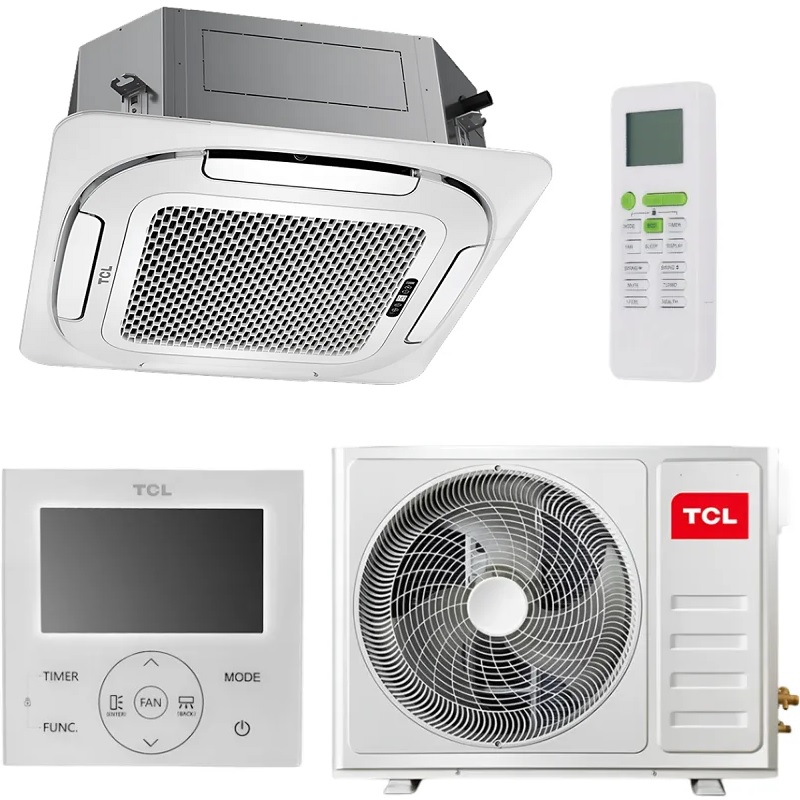

Control Type: Remote control (wired or wireless)
Declared Cooling Capacity (560~3350): 2700 W
Declared Heating Capacity (560~3380): 2800 W
Design Power: 2700 W
Declared SEER: 7 W
Energy Class: A++
Average Design Power: 2300 W
Declared Average SCOP: 4 W
Average Energy Class: A+
Annual Energy Consumption in Cooling Mode: 135 kWh/year
Average Annual Energy Consumption: 851 kWh/year
Airflow for Dehumidification: 1.5 L/h
Indoor Noise Level (F/H/M/L/Silent): 52/50/46/40/37 dB(A)
Indoor Noise Level (Standard Conditions): 52 (dB(A))
Outdoor Sound Level (Rated Conditions): 62 (dB(A))
Power Supply: 230 V/50 Hz/1P
Power Supply Side: Outdoor
Voltage Range: 165~265 V
Outdoor Cooling Current: 4.0 (1.2~8.0) A
Outdoor Heating Current: 3.1 (1.2~8.0) A
Outdoor Cooling Power Consumption: 660 (150~1600) W
Outdoor Heating Power Consumption: 650 (150~1600) W
Refrigerant Type/Charge/GWP/CO2 Equivalent: R32/0.53 kg/675/0.358 tonne
Compressor: Rotary
Indoor Airflow (Cooling/Heating): 550 m³/h
Airflow Outdoor unit: 1900 m³/h
Gas connection hose: 3/8"
Liquid connection hose: 1/4"
Application area: 9 to 16 m²
Maximum refrigerant hose length: 25 m
Level difference: 10 m
Operating temperature range: 16-31 °C
Indoor net dimensions (W x H x D): 570 × 245 × 570 mm (without panel)
Gross panel weight: 4.25 kg
Indoor ambient temperature range (°C):
Cooling: 17-32 °C / Heating: 0-30 °C
Outdoor ambient temperature range (°C):
Cooling: -15-53 °C / Heating: -20-30 °C
Outdoor net dimensions (W x H x D): 777 × 498 × 290 mm
Net panel dimensions (W x H x D): 650 × 57 × 650 mm
Internal net weight: 14.5 kg
External net weight: 22 kg
Net panel weight: 2.7 kg
Internal packaging dimensions (W x H x D): 718 × 301 × 657 mm
External packaging dimensions (W x H x D): 818 × 515 × 325 mm
Panel packaging dimensions (W x H x D): 733 × 105 × 733 mm
Internal gross weight: 18 kg
External gross weight: 24 kg
