Edenox MPG-135 HC PC Gastronorm GN 1/1 Refrigerated Counter with Glass Door
The newly designed Edenox refrigerated counters incorporate a front-mounted ventilation and condensation system, allowing air intake and exhaust from the front, ensuring optimal performance even in confined spaces.
Worktop in AISI-304 18/10 stainless steel, satin finish, with curved front edge and 100 mm sanitary backsplash.
Compact, fully die-cast structure with exterior panels in AISI-304 18/10 stainless steel.
Interior cabinet in AISI-304 18/10 stainless steel.
Doors with integrated handles in AISI-304 18/10 stainless steel.
Interior with curved seals for easy cleaning. Stamped interior doors made of AISI-304 18/10 stainless steel for increased insulation and strength, with easily replaceable gaskets around the entire perimeter.
Doors equipped with self-closing hinges and a locking system when opened.
Interior shelves made of plastic-coated rods, easily removable for cleaning. Height-adjustable shelf supports.
Height-adjustable stainless steel feet.
Drainage inside the chamber.
Control panel and motorized ventilation grille with front-opening swing.
Hermetically sealed condensing unit with ventilated condenser.
Environmentally friendly CFC-free R-290 refrigerant.

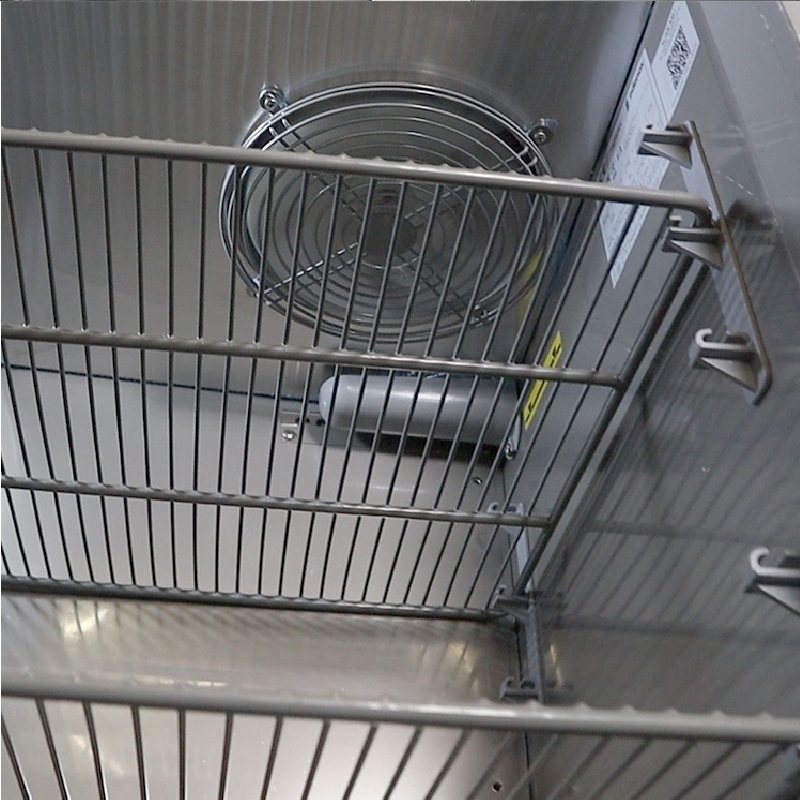

Forced-draft evaporator with anti-corrosion coating.
Automatic evaporation of defrost water.
CFC-free injected polyurethane insulation with a density of 40 kg/m³. New large-format electronic temperature controller with automatic defrost and lighting control.
Operating temperature: -2°C to +8°C with an ambient temperature of 30°C.
Equipment: One GN 1/1 shelf and two sets of runners per door.
Electrical Frequency: 50 Hz
Electrical Power: 0.249 kW
Voltage: 230 V
Current: 1 A
Phase: 1N
Sound Level: 54 dB
Gas Type: R-290
Climate Class: 4
Cooling Capacity: 0.369 kW
Condensing System: Ventilated
Sound Level: 54 dB
Temperature: -2 to +8 ºC
Blowing Agent: CO2
Equipment: Hermetic
Refrigerant Charge (kg): 0.105
Net Length (Front View): 1,342 mm
Net Width (Depth): 700 mm
Net Height: 850 mm
Gross Length (Front View): 1,455 mm
Gross Width (depth): 825 mm
Gross height: 1,000 mm
Gross weight (packed): 112 kg
Net weight: 107 kg
