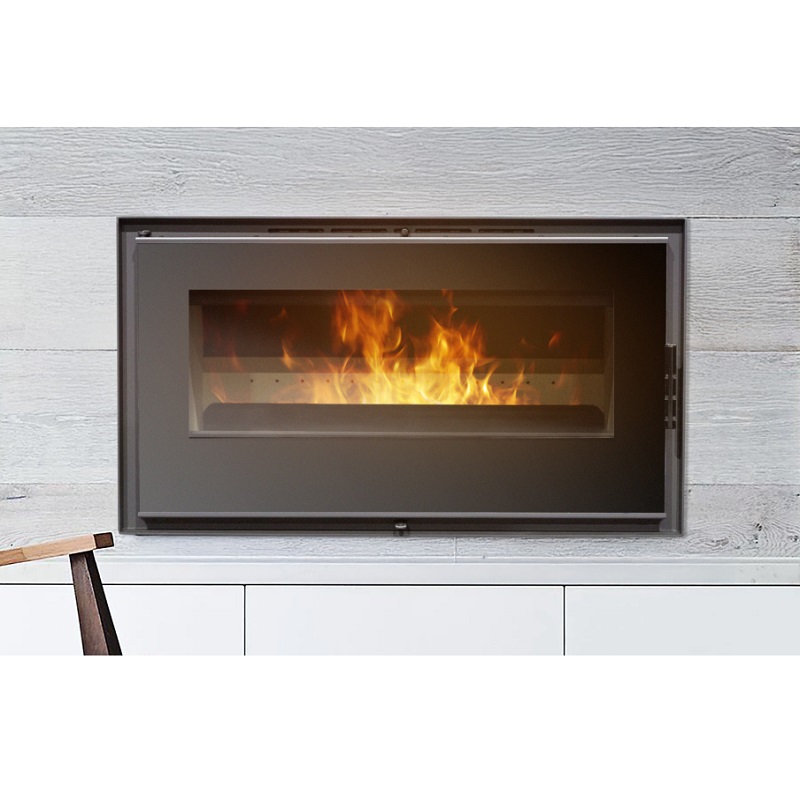

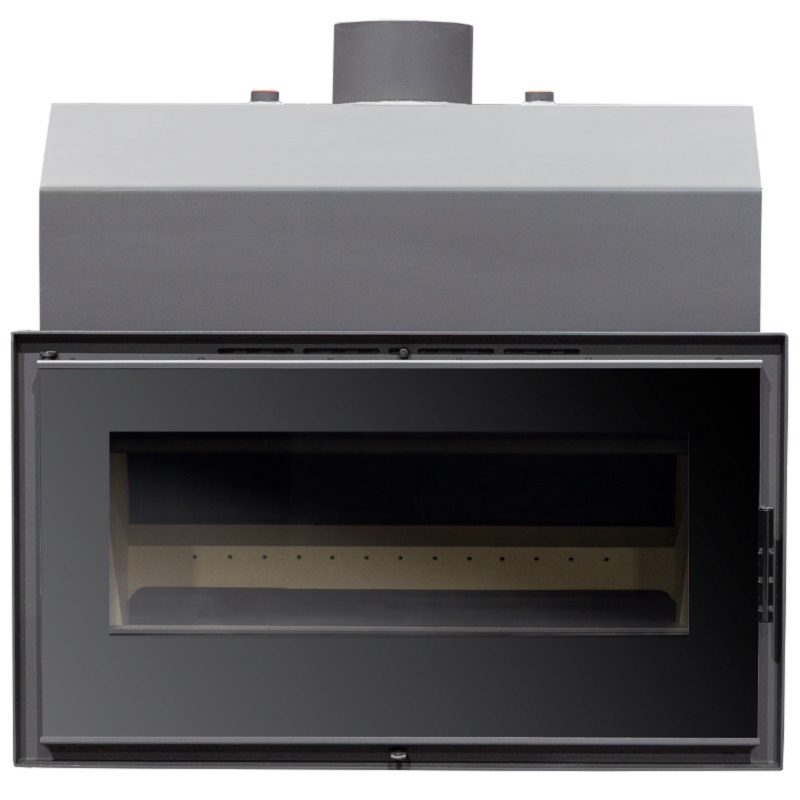

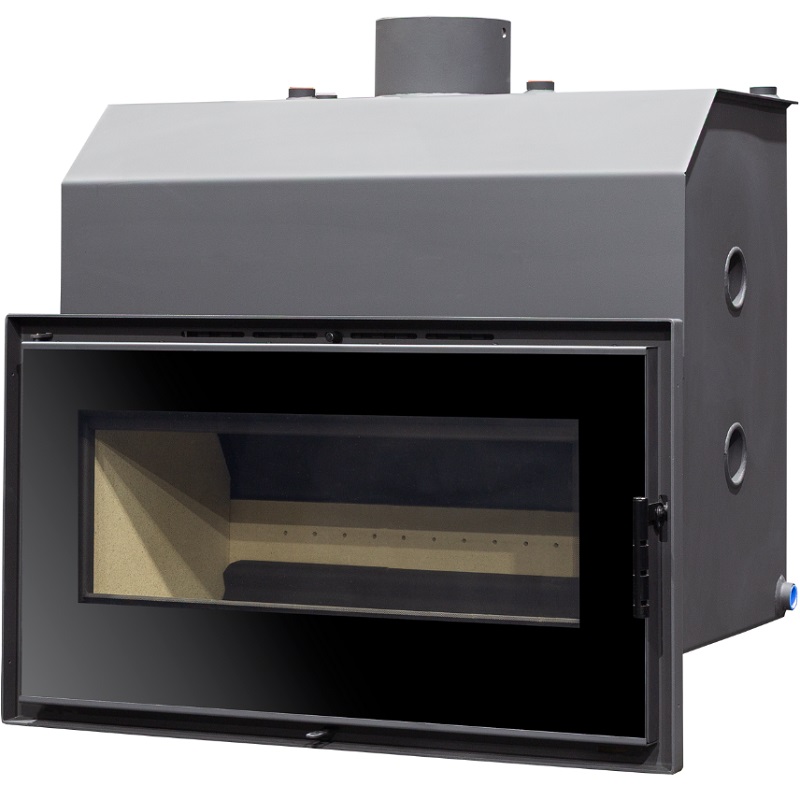

Metlor Llar XL PCH Wood Burning Stove
The Metlor Llar XL PCH stove, designed for central heating, boasts an efficiency of 80.3%. It is made of carbon steel sheet and has a 5 mm thick combustion chamber. The front is made of cast aluminum and the log compartment is made of steel. It is equipped with a 4 mm thick neo-ceramic glass panel. It has a temperature range of up to 900°C. The paint is specially designed for high-temperature appliances (up to 900°C).
Description
All parts of the appliance are made of steel.
Nominal power: 17.3 kW
Efficiency: 78.3%
Compartment power: 9.7 kW
Water power: 7.6 kW
Boiler volume: 70 liters
CO(%) (13% O2): 0.042
NOx, VOCs, particles: 102, 55, 35 mg/m3
Max. log length: 750 mm
Fume outlet: Ø 200 mm
Dimensions (H x W x D): 570 x 1000 x 580 mm
Weight: 275 kg
