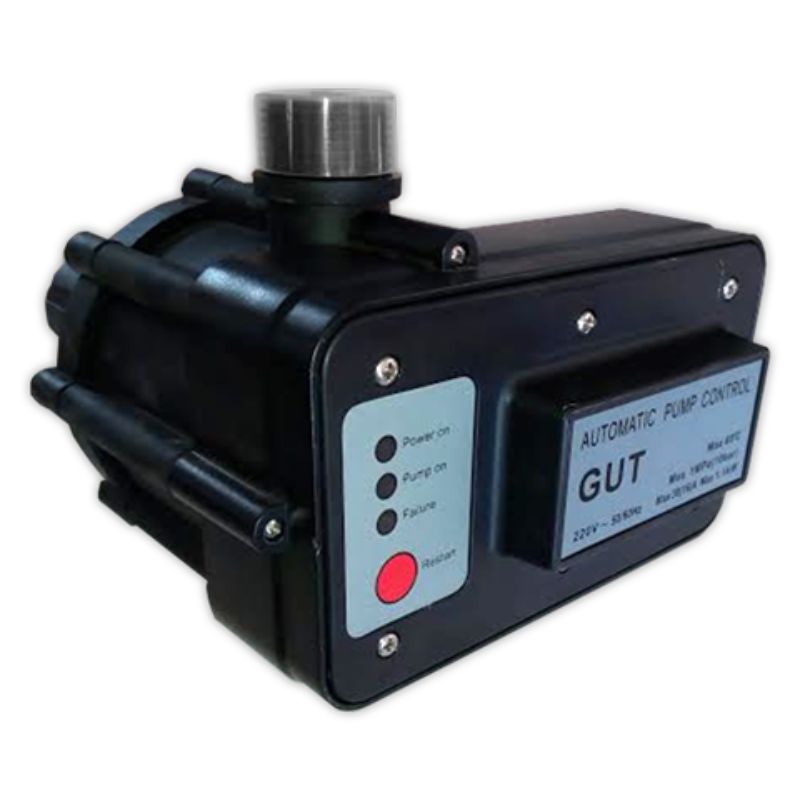

GUT MAXI PRESGUT Digital Press Control 230 V/2.2 kW/16 AMP
Automatic regulators keep the electric pump connected until the system's demand is zero, thus avoiding stops and starts during power supply, with the resulting pressure fluctuations typical of traditional expansion tank systems. It incorporates a safety system that disconnects the electric pump in the event of a water supply failure.
It keeps the electric pump connected until the system's demand is zero, thus avoiding stops and starts during the supply, with the resulting pressure fluctuations typical of traditional expansion tank systems. It incorporates a safety system that disconnects the electric pump in the event of a water supply failure.
Starting pressure: 1.5-3 bar
Power: 2.2 kW
Power supply: 1~230 V/1~120 V
Frequency: 50/60 Hz
Pump power: 2.2 kW
Maximum current: 16 A: cos phi ≥ 0.6
Protection rating: IP65
Maximum ambient temperature: 50 ºC
Maximum flow rate: 10,000 L/H
Suction/discharge threads: G 1 1/4"
Current: 230 V
Weight: 3 kg
