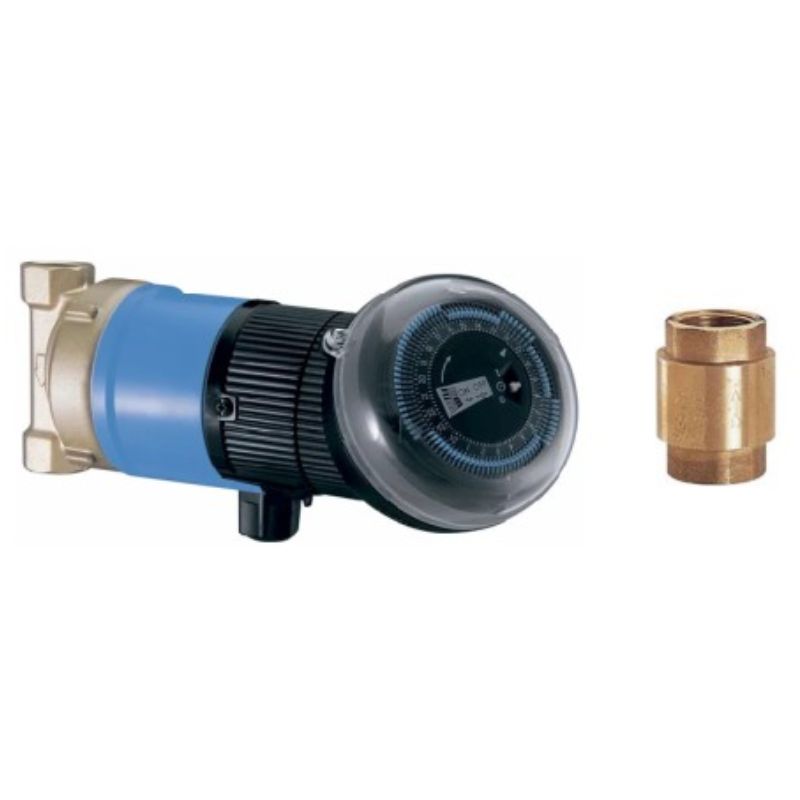

GUT SAN 15/15BTR 1/2" DHW Recirculation Pump (with Timer)
The GUT SAN 15/15BTR circulation pump with timer is designed for domestic hot water recirculation, both in closed pressurized circuits and open tanks, as well as in solar energy systems.
Features: GUT SAN 15/15BTR
Bronze pump body
Stainless steel impeller
Wet rotor motor
Speed: 2000-3000 rpm
Low energy consumption: 2.5 – 9 W
IP42 protection rating
Insulation type: F
Noise level: 43 dB
Automatic disinfection cycle detection
With Timer
Voltage: 220 V
Maximum power: 9 W
Connections: 1/2"F
Maximum delivery height: 1.3 mCA
Maximum pumping rate: 950 l/h
Liquid temperature: 2ºC to 95ºC
Recommended temperature: 65ºC
Ambient temperature: 0 to 40ºC
Maximum operating pressure: 10 bar
